C5 Hydraulic fluid tank

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Ceenine
Donor 2023
Posts: 184
Joined: 17 Nov 2014, 21:21
x 12

C5 Hydraulic fluid tank

Post by Ceenine »

How many litres are there in the hydraulic tank of the C5 X7. I consulted Wikileaks 😂but they couldn’t tell me. I couldn’t find it in my manual but that didn’t surprise me.
Don
Kees
Donor 2024
Posts: 113
Joined: 16 Nov 2021, 17:16
x 15

Re: C5 Hydraulic fluid tank

Post by Kees »

If you want to replace/ renew it, then you need 4 liter and you have to put the car in the lowest position with the diagbox.
Greetings,
Kees.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37767
Joined: 15 Sep 2015, 19:38
x 5816

Re: C5 Hydraulic fluid tank

Post by GiveMeABreak »

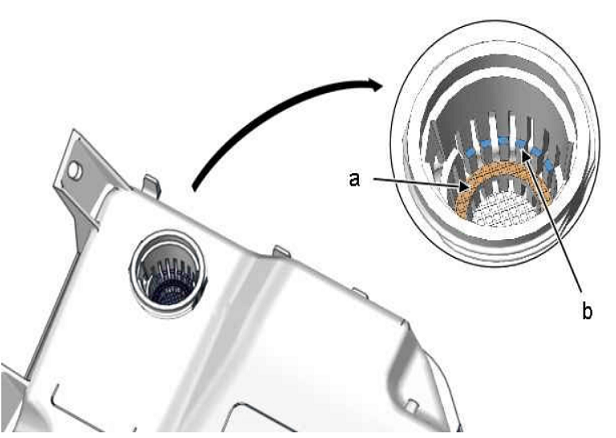

But only fill it when the vehicle is on the lowest suspension setting to between the indicated marks 'A' & 'B':
LDS MK III.PNG
Please Don't PM Me For Technical Help

Marc
