C3 Sensor drive calibration / initial setting

Post by corfco »

Hi All,

Newbie on this forum as was trying to wade through another one, so firstly thanks for existing.

I have my first Citroen, a 2012 C3 1.4 petrol with Sensor drive Semi Auto box, saved from the scrapyard as IMHO it was worth saving.

It had coolant leak (bad)and very jerky unreliable gear change, so I basically paid scrap money for it, and started repairs.
it soon became apparent that getting to the rear of the engine, and coolant pipe was a no go, so I removed the engine for access.
I changed everything i could get to, including the clutch, whilst I had access, water leak cured.
gearbox remained unpredictable, so one new battery and battery positive lead later its much better.

Drives well in manual using paddles, and much better in auto, if still slightly unpredictable.

I have read / heard about the importance of using diagnostics to reset clutch / gearbox after changing parts, so could someone please advise on the below.
Is it likely to improve gear change times (I presume so)
Am I causing any damage by driving it as is?
I do not have large sums of money to buy diagnostics, which seem very high end / specialised for this, so is anyone remotely near Manchester who I could pay for this?
A look on the directory saw trainman in Preston as my nearest I think. Every garage / mobile tech I have called do not want to touch it or do not have the right equipment.

Ready for some light hearted roasting and or advice.

Corfco
Take it apart, whats the worst that can happen?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37772
Joined: 15 Sep 2015, 19:38
x 5816

Re: C3 Sensor drive calibration / initial setting

Post by GiveMeABreak »

Hi and welcome. 10/10 for the attempt to save this one! The piloted manual boxes can be a bit of a sod to work with, depending on what's wrong with it - which is where the diagnostics come in and why so many won't touch them as they can tale a lot of time to investigate.

If the clutch or actuators are replaced there are procedures to set the clutch point and gearbox grid - all done from Lexia / Diagbox.

Have a look at our list of members who have offered Lexia / Peugeot Planet 2000 / Diagbox Diagnostics help if you haven't already seen it - link below:

At the end of the list is a link to a Google Map, showing the geographic locations of members and details. Just use the Private Message or Email links on the member's profile to contact anyone suitable.

List of Lexia / Diagbox Owners with Kits Offering Help

Bear in mind, although we update the list as often as we can, not all members are active on the Forum all the time, so it may take a while for a reply.
Please Don't PM Me For Technical Help

Marc
wheeler
Posts: 6929
Joined: 21 Sep 2002, 19:07
x 746

Re: C3 Sensor drive calibration / initial setting

Post by wheeler »

Really if the gearbox had been removed a re calibration of the clutch & gearchange actuators should be performed.
If you do get access to suitable diagnostics i cant stress how important good battery support is during the procedures (regardless of how new or good the battery is) ideally have another running car connected via jump leads, the process puts quite a load on the battery as most of it is done without the engine running. The process will nearly always fail if the battery is not supported.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37772
Joined: 15 Sep 2015, 19:38
x 5816

Re: C3 Sensor drive calibration / initial setting

Post by GiveMeABreak »

Good point.
Please Don't PM Me For Technical Help

Marc
ozvtr
Posts: 429
Joined: 13 Oct 2020, 01:11
x 137

Re: C3 Sensor drive calibration / initial setting

Post by ozvtr »

Is this a Sensodrive or EGS? I didn't think the Sensodrive was in production after 2009-ish.
corfco
Posts: 4
Joined: 16 Apr 2024, 19:08

Re: C3 Sensor drive calibration / initial setting

Post by corfco »

Thanks for the replies, sounds like something I need to do.
Not sure what EGS is, just gleaned Sensor drive from you tube vids and initial searching.

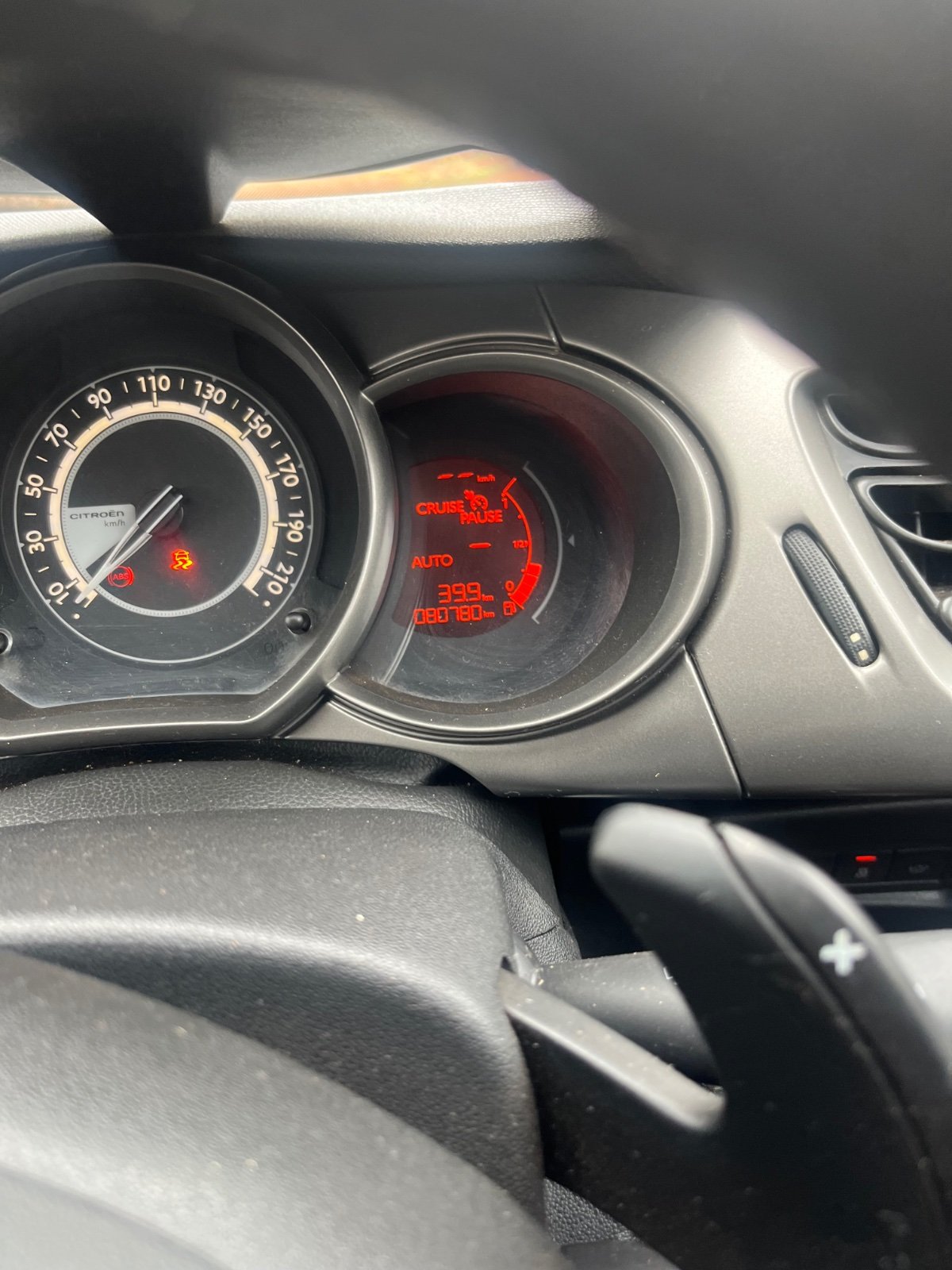

I have flappy paddles, and a reverse neutral drive on rhs of selector, If I move it left I can sequentially got up or down manually.
I will check directory and contact some nice people.
Thanks
Take it apart, whats the worst that can happen?
ozvtr
Posts: 429
Joined: 13 Oct 2020, 01:11
x 137

Re: C3 Sensor drive calibration / initial setting

Post by ozvtr »

The Sensodrive uses electric actuators for the clutch and gear change.
The EGS uses electric pumps and hydraulics to move the clutch and gears.
While they are both "piloted manual gearboxes" they are very different in execution.
corfco
Posts: 4
Joined: 16 Apr 2024, 19:08

Re: C3 Sensor drive calibration / initial setting

Post by corfco »

OK, thanks, definitely Sensor drive then.
Take it apart, whats the worst that can happen?
ozvtr
Posts: 429
Joined: 13 Oct 2020, 01:11
x 137

Re: C3 Sensor drive calibration / initial setting

Post by ozvtr »

Um...Ok, then how did you reset the clutch actuator?

Here is a very good look at the clutch actuator, how it works and how to reset it. He resets the actuator at 6:05.



When the actuator is mounted back in the car, the actuator is slid forward until the "nose" of the shaft just touches the clutch fork. Then the actuator is moved forward a further 3mm.
The gearbox is then reset as per the instructions in the owners manual. Attention: you need to remove and install the positive terminal of the battery. You then need to observe the gear indicator on the instrument panel. The gear indicator must indicate a 'dash'...NOT a gear number or N. The reset procedure will not work if a gear number or N is displayed.
If you are successful the gearbox will "click and clack" for a few minutes. Keep your foot on the brake!
corfco
Posts: 4
Joined: 16 Apr 2024, 19:08

Re: C3 Sensor drive calibration / initial setting

Post by corfco »

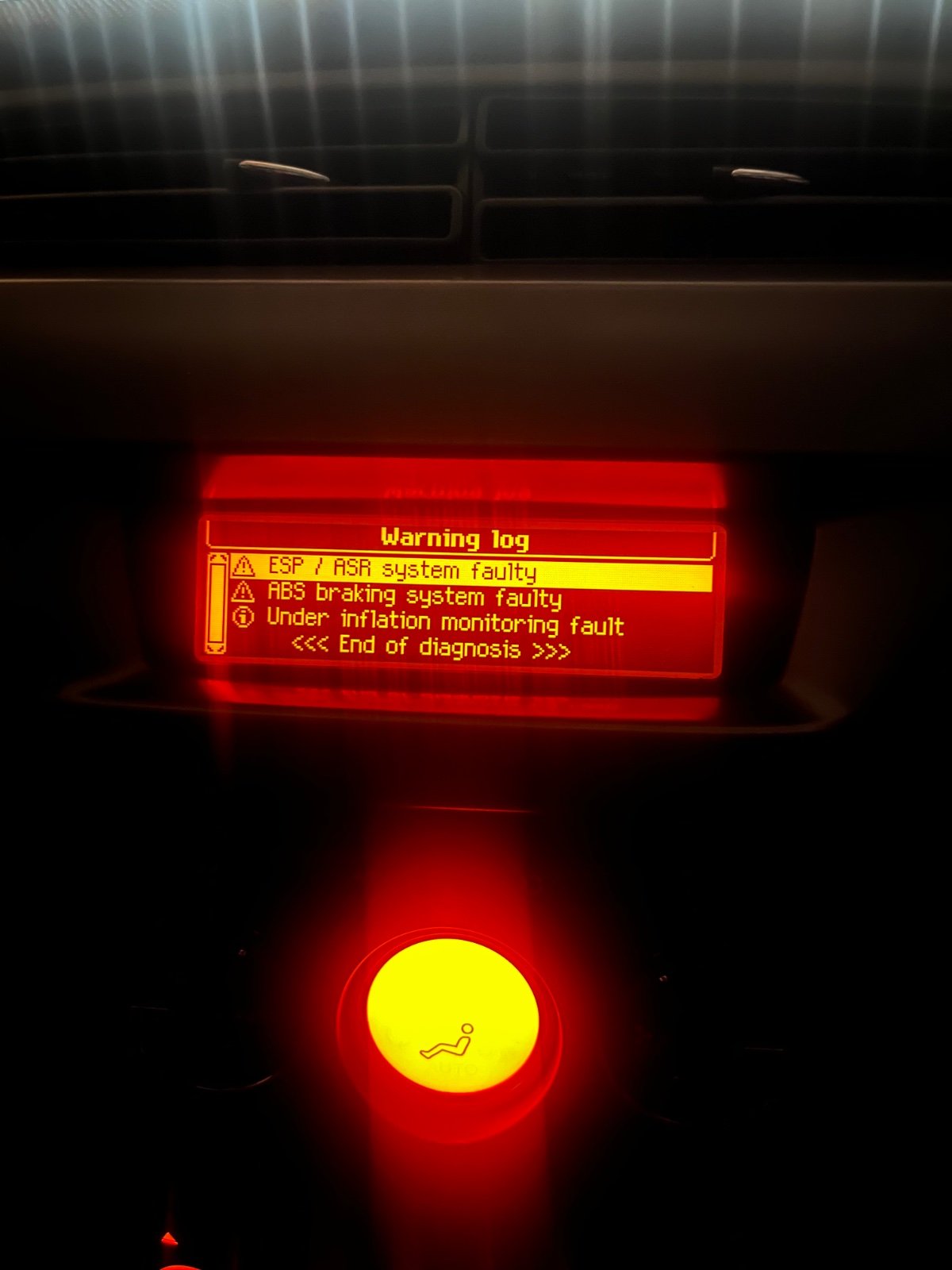

Thanks for all the info.
I managed to get hold of Lexia 3 and performed the calibration of gearbox and clutch, so I know its now as it should be.

Car performs well in manual mode, although does seem leisurely changing gear (but no more than before)
Auto still seems hit and miss, slowing for a roundabout, then pressing accelerator takes a while to work out what its doing, is this normal?
Thanks
Take it apart, whats the worst that can happen?
ozvtr
Posts: 429
Joined: 13 Oct 2020, 01:11
x 137

Re: C3 Sensor drive calibration / initial setting

Post by ozvtr »

LOL!! Yes!
Actually round about's can be quite dangerous or intimidating. You must make sure there is plenty of room to the right (right hand drive car) to merge. If you think you have enough room to "squeak in"...YOU DON'T!
The best thing is to imagine that your car has no syncromesh in first. Zoom through in second...or stop! Don't even contemplate zipping in front of that semi trailer!
Both the AL4 auto and the Sensodrive have this horrible penchant for not making up their mind as to what gear to be in...just when you need them make up their mind as to what gear to be in, and quickly!! And round about's seem to be their Achilles heal!
Is there anything you can do about it? Dunno. See if Citroen has a firmware update?
ozvtr
Posts: 429
Joined: 13 Oct 2020, 01:11
x 137

Re: C3 Sensor drive calibration / initial setting

Post by ozvtr »

Oh! In manual mode, flick the paddle 1/2 a second before you want it to actualy change gear. This gives better power transfer.
If you are accelerating, do not continue to press down on the accelerator! Freeze you foot in that position until the Sensodrive has changed gears. It seems that its harder for the engine ECU to "catch up" to where you have pushed the accelerator during the gear change, than "pick up where it left off".
ozvtr
Posts: 429
Joined: 13 Oct 2020, 01:11
x 137

Re: C3 Sensor drive calibration / initial setting

Post by ozvtr »

D'oh!
You should have the later revision of the firmware that allows you to change up and down gears while the gearbox is still in "auto", without it dropping out of auto. This is handy if you don't like the way the gearbox is performing on hills and such but you don't want to go back to full manual.
I wish the AL4 had that, it's all-or-nothing!
