EGR loom where is other end?

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.
MichalW
Posts: 6
Joined: 27 Jan 2024, 23:31

EGR loom where is other end?

Unread post by MichalW »

Hi,

Year 2011, Peugeot 3008 1.6 HDI
VIN VF3**************[VIN obfuscated, can be read by forum staff]


After EGR replacement shows error os disconnection P0405 incorrect position open circuit or short circuit to earth. Had suspicion to it before now look during replacement just got disconnected or it loose cable.


Anybody can point me where to search second end. Loom part number or photo would be great 😃

Top
User avatar
GiveMeABreak
(Donor 2016)
Posts: 42019
Joined: 15 Sep 2015, 19:38
x 6955

Re: EGR loom where is other end?

Unread post by GiveMeABreak »

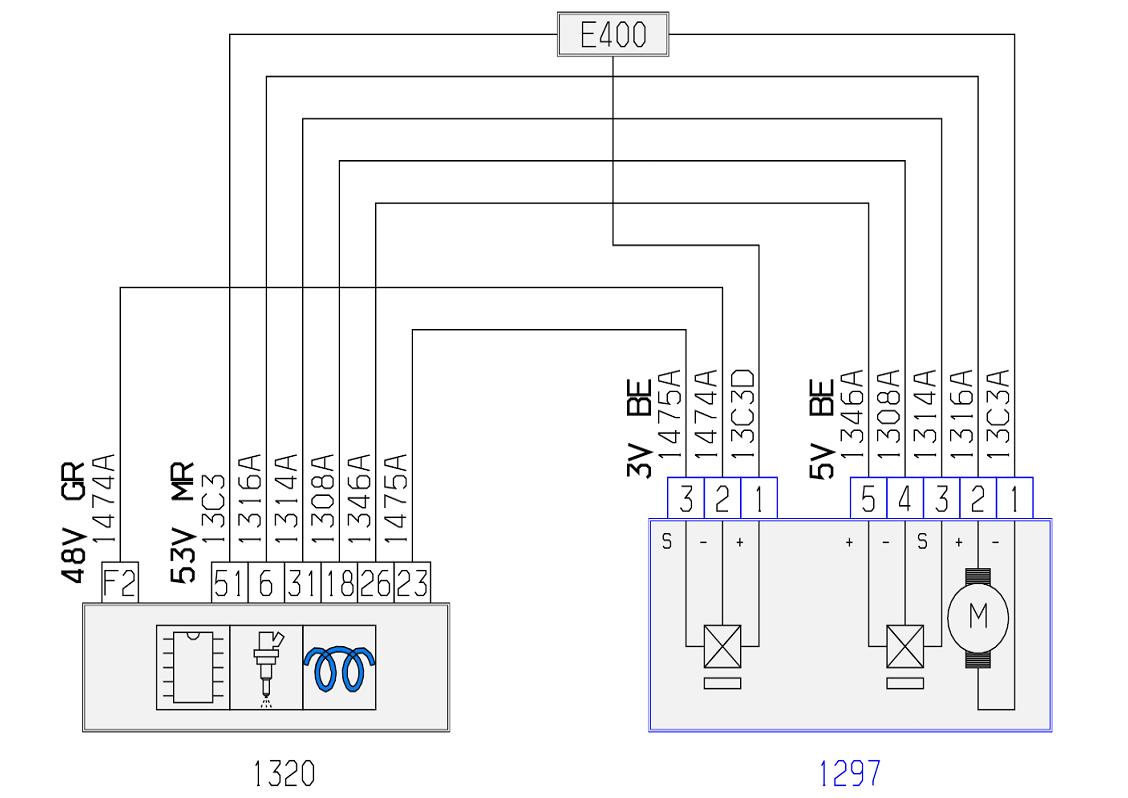

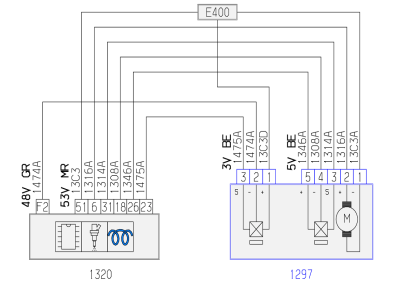

This is the EGR (1297) connection on your vehicle to the Engine ECU (1320):
3008 EGR Connections.png
Please note, I'm no longer active on the Forum, so won't respond to messages.

Marc
Top
MichalW
Posts: 6
Joined: 27 Jan 2024, 23:31

Re: EGR loom where is other end?

Unread post by MichalW »

Thanks a lot EGR have 5 wires right section of 1297 square what are those 3 wires from left 3V BE ? Bypass?
Top
User avatar
GiveMeABreak
(Donor 2016)
Posts: 42019
Joined: 15 Sep 2015, 19:38
x 6955

Re: EGR loom where is other end?

Unread post by GiveMeABreak »

1475A: EGR BYPASS position repeat sensor signal output
1474A: EGR valve BYPASS position repeat sensor earth
13C3D: supply +5V CM VCC4
Please note, I'm no longer active on the Forum, so won't respond to messages.

Marc
Top
MichalW
Posts: 6
Joined: 27 Jan 2024, 23:31

Re: EGR loom where is other end?

Unread post by MichalW »

Brilliant thanks 👍
