Xantia 2 - Cooling Fans Relays Help

Unread post by Nick Orfanidis »

Hello.
I was thinking of installing 2 LEDs inside the car, that indicate the 1st and the 2nd speed of the radiator cooling fans. Is there anyone that can help me by telling me to which relay pins I have to take a 12v signal , for each fan speed, from the relays that are installed in the triangle relay box?? If possible , I prefer , at the slow fan speed to turn on the one LED and at the high fan speed to turn on both of the LEDs, if possible.
The LEDs are already installed , so the only thing is to figure out in which +12v to connect the 2 signals.
Thank you in advance!!
Top
User avatar
CitroJim
A very naughty boy
Posts: 54549
Joined: 30 Apr 2005, 23:33
x 8048

Re: Xantia 2 - Cooling Fans Relays Help

Unread post by CitroJim »

A search of the forum will soon unearth the required wiring diagrams :)
Jim

A bit of a Citroen AX fan...
Top
thorter
Posts: 224
Joined: 22 Feb 2005, 02:07
x 41

Re: Xantia 2 - Cooling Fans Relays Help

Unread post by thorter »

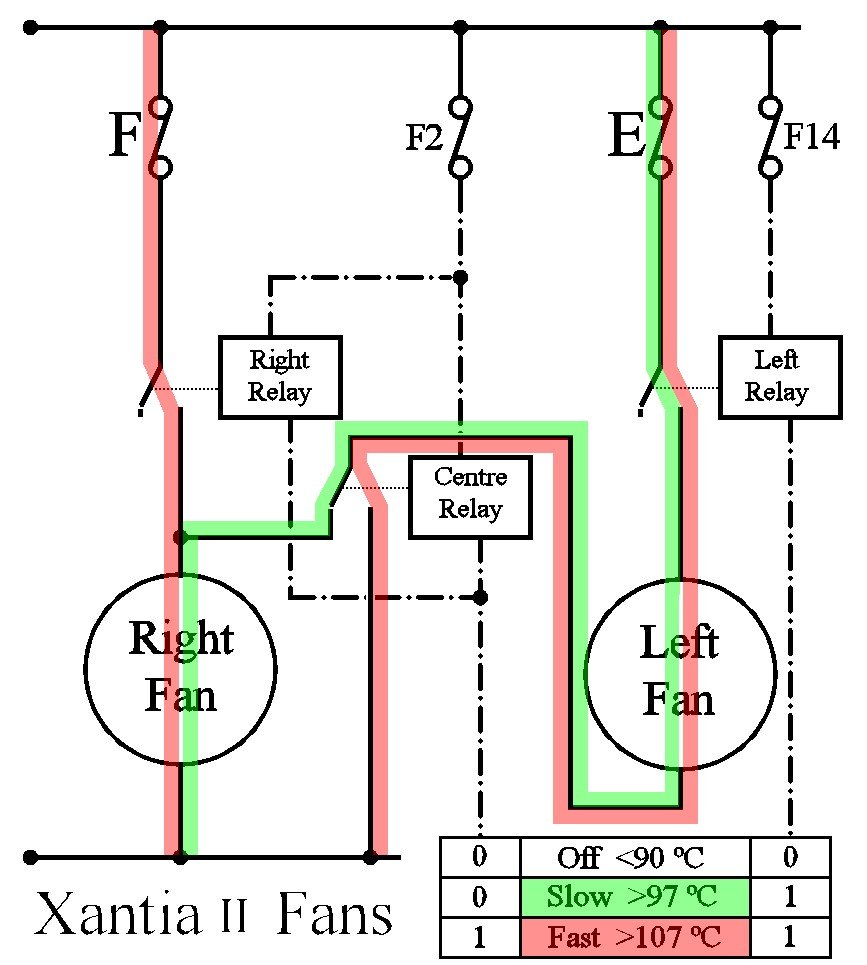

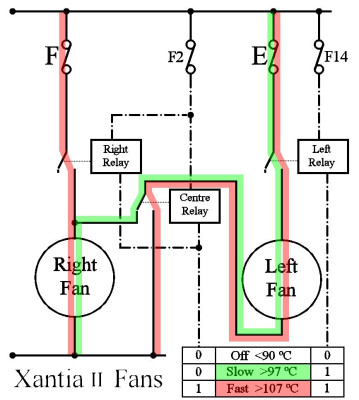

Here is a de-tangled diagram that may help. You still need to work out which wires are which on the car.
Xantia Fan Paths.jpg
Top
User avatar
Clogzz
Posts: 2125
Joined: 15 May 2005, 18:04
x 40

Re: Xantia 2 - Cooling Fans Relays Help

Unread post by Clogzz »

viewtopic.php?t=31403&sid=4173ab29af46f ... a8946b22f2
2002 C5 2.0i AL4 239,000 km 76372389
Top
User avatar
CitroJim
A very naughty boy
Posts: 54549
Joined: 30 Apr 2005, 23:33
x 8048

Re: Xantia 2 - Cooling Fans Relays Help

Unread post by CitroJim »

Excellent :-D I could have put money on you supplying the link Clogzz.. Wish I had now!

Good to see you :D
Jim
