Simple guide to some engine features

Post by Huskyxantia »

A simple guide i put together to help the not so clued up mechanically minded folks :) like me

Photo 1. yellow injectors, Red injector clamp bolts,Green fuel filter primer

Photo 2. Purple turbo,green vacuume pump,yellow water temp sensor,red thermostate housing,red yellow dots clutch,blue oil filter cap.

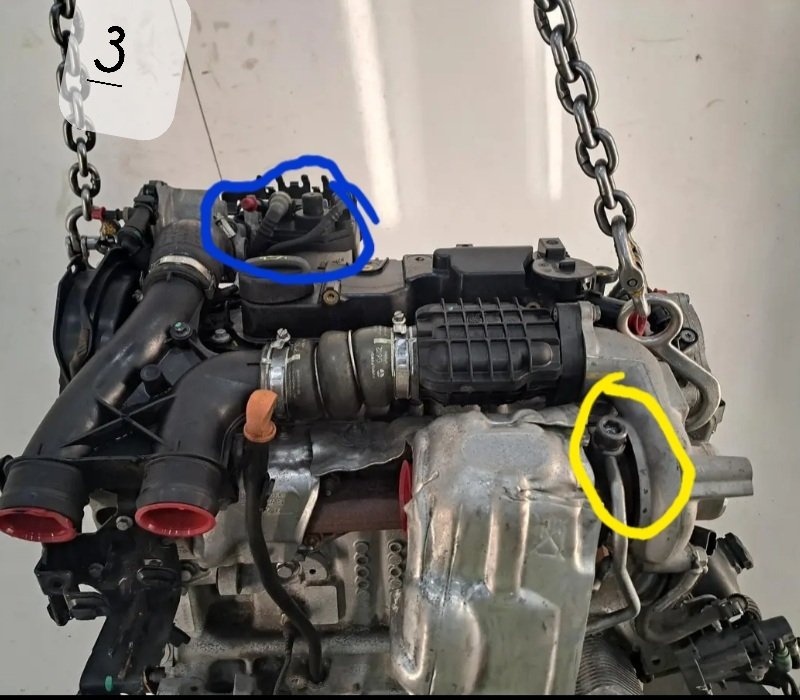

Photo 3.blue fuel filter hoising , yellow turbo oil feed pipe & bolt.

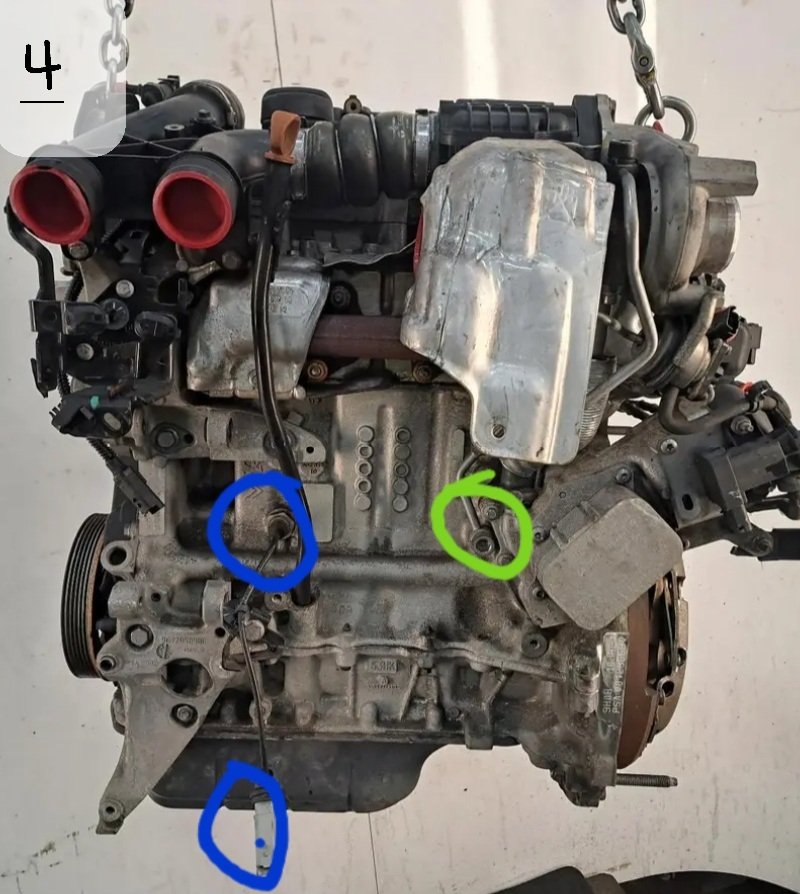

Photo 4.blue oil pressure sensor switch,green lower bango bolt for turbo oil feed pipe hidden by the dpf.

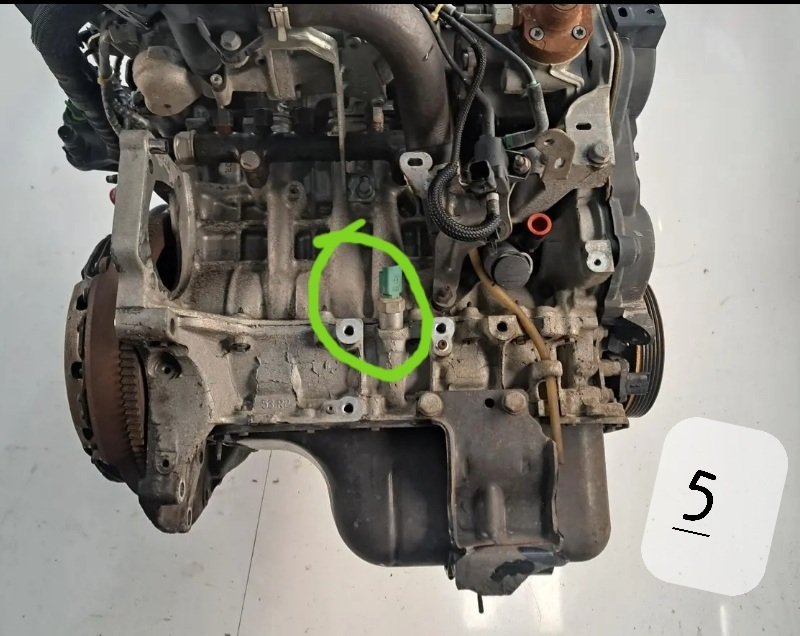

Photo 5. Is this oil level sensor ?
Attachments
No.5
No.5
No.4
No.4
No.3
No.3
No.2
No.2
No.1
No.1
Husky. :?
User avatar
CitroJim
A very naughty boy
Posts: 49932
Joined: 30 Apr 2005, 23:33
x 6287

Re: Simple guide to some engine features

Post by CitroJim »

That's very useful Husky, thanks for posting :D Yes, I should say the sensor in 5 is the level sensor given its position relative to the sump.

Maybe worth saying this is the DV6 1.6 diesel...
