c3 picasso 2010 front wheel alignment toe in specs?

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

mart
Posts: 6
Joined: 01 Dec 2023, 14:57

c3 picasso 2010 front wheel alignment toe in specs?

Post by mart »

Hello! I have fitted new track rod ends to my c3 Picasso and want to check the tracking.
I can't find any specs online but can find the following for a C3.

Front Total Toe, -0.25, -0.08.

So my questions.
Can anyone quote the toe in figures for the c3 picasso?
Or are the C3 numbers close enough?
Are the numbers quoting degrees or mm or inches (guessing degrees)
I'm also thinking a - indicates toe out. Correct?

Thanks in advance for any guidance and help.

Mart.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38187
Joined: 15 Sep 2015, 19:38
x 5932

Re: c3 picasso 2010 front wheel alignment toe in specs?

Post by GiveMeABreak »

No, they're not the same. The following are for the C3 Picasso:

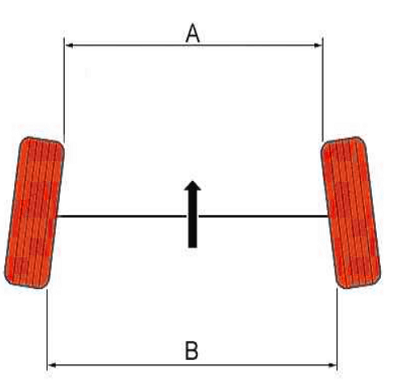

c3 pic track.PNG
"A" less than "B": Positive figure (+) (toe-in).
"A" more than "B": Negative figure (-) (opening / toe out).

Front Suspension
Checking values (vehicle for Europe)Setting
Camber (not adjustable)-0°30' ± 0°30'
Castor (not adjustable)4°38' ± 0°18'
Pivot angle (not adjustable)11°26' ± 0°30'
Tracking at the axle (adjustable)- 0°17' ± 0°09'
Tracking at the wheel (Adjustable)- 0°09' ± 0°04'
Lower camber dissymmetry at 0°30’.
Lower castor dissymmetry at 0°30’.
Distribute the global parallelism value symmetrically, left wheel-right wheel
Please Don't PM Me For Technical Help

Marc
mart
Posts: 6
Joined: 01 Dec 2023, 14:57

Re: c3 picasso 2010 front wheel alignment toe in specs?

Post by mart »

Thanks for that. I have a pair of vintage Dunlop tracking gauges and my first reading gave a massive 2 deg plus toeing IN! Making adjustments now to get it better. It just shows the differences you can get when fitting pattern parts.

Thanks for the info.

Mart.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38187
Joined: 15 Sep 2015, 19:38
x 5932

Re: c3 picasso 2010 front wheel alignment toe in specs?

Post by GiveMeABreak »

No worries.
