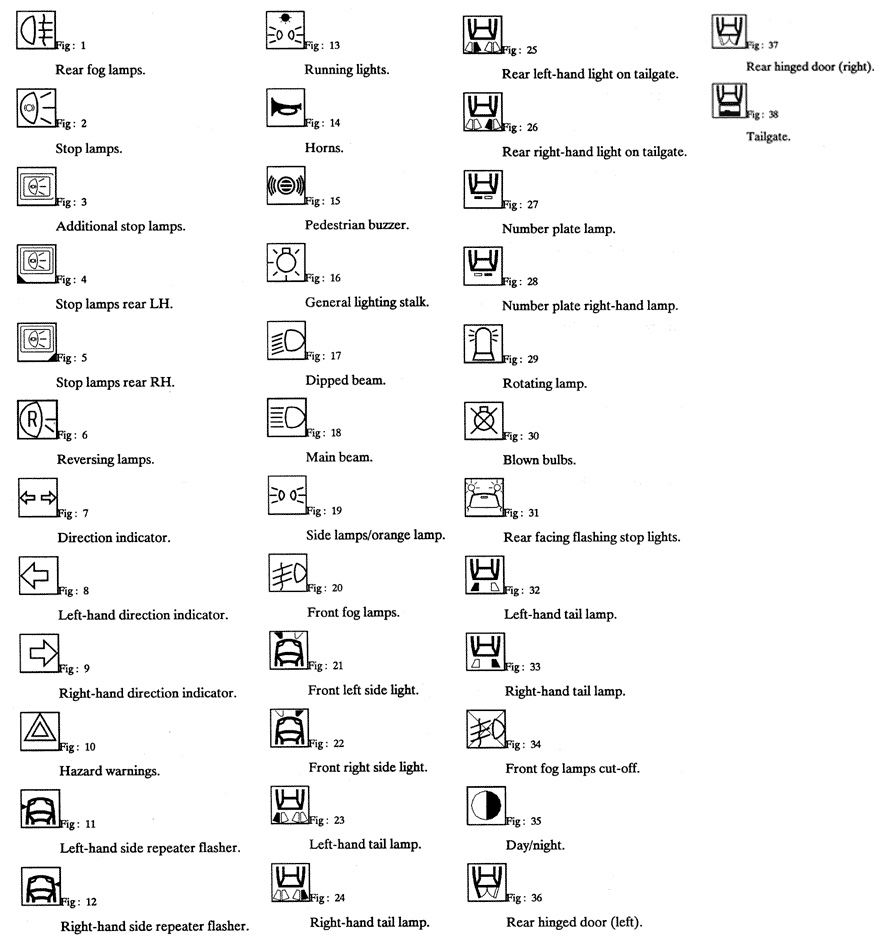

PSA Electrical Diagrams - List of Symbols: Exterior Lighting & Signalling

Unread post by GiveMeABreak »

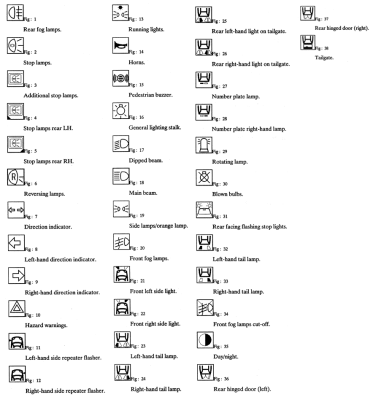

PSA Electrical Diagrams - List of Symbols: Exterior Lighting & Signalling

Click Image to Magnify
