PSA Electrical Diagrams - List of Symbols: Multi-Assembly

Unread post by GiveMeABreak »

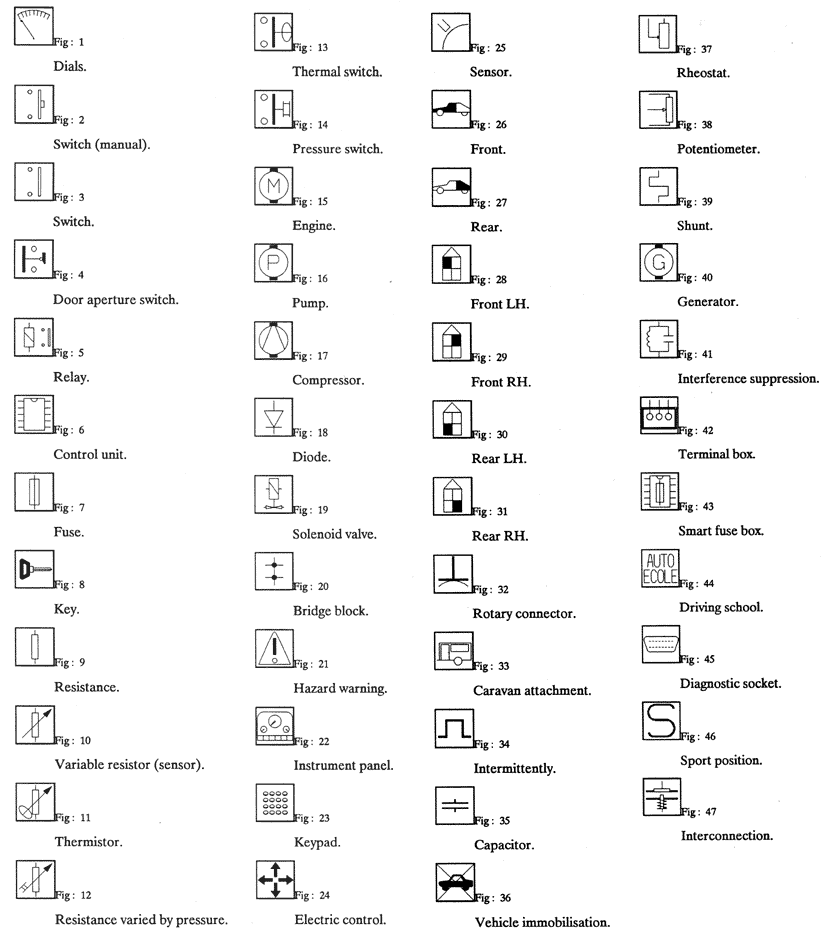

PSA Electrical Diagrams - List of Symbols: Multi-Assembly

Click Image to Magnify
Please Don't PM Me For Technical Help

Marc
