Nemo wiring diagram

Post by squermy »

Hi there.

Im after a wiring diagram for the Nemo 2011.

I have a bad earth in one of the stop lamps. Given that its presenting half the voltage, it must be earthing through another bulb, or something.
Hoping the diagram would show me the earthing consolidation points.
Seems you chaps need to know the VIN for some reason so here it is... VF3**************[VIN obfuscated, can be read by forum staff]

Many thanks, Chris
User avatar
Forum Admin Team
Posts: 35161
Joined: 15 Sep 2015, 19:38
x 4937

Re: Nemo wiring diagram

Post by GiveMeABreak »

It's actually a Peugeot Bipper, although technically the same vehicle as a nemo, ... and yes we need the VIN as diagrams are vehicle and build specific.

As for the earths for the stop lamps:

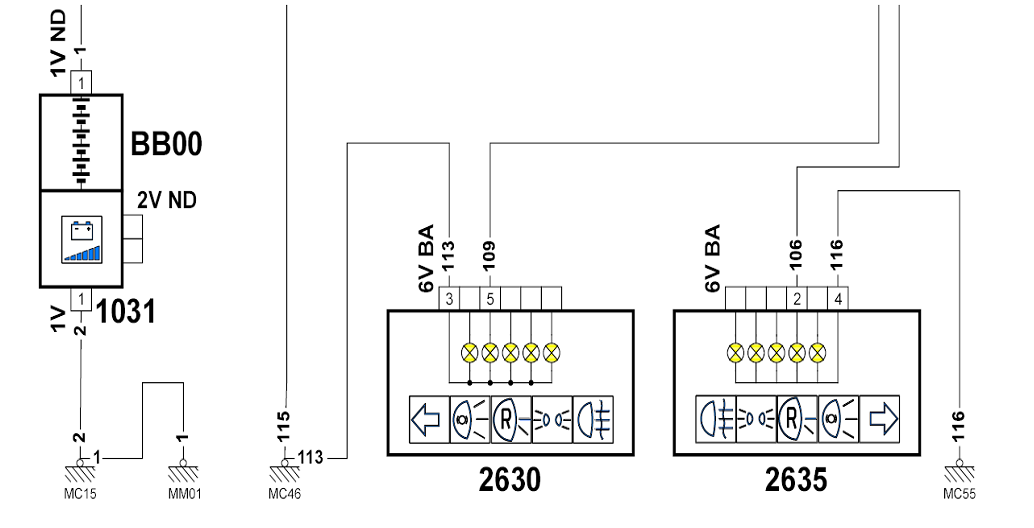

Bipper Earth.PNG
2630 : rear LH lamp unit on the body
2635 : right-hand tail lamp

You have a different earth for left and right side.
Left Side Lamp: MC46
Right Side Lamp: MC55

Locations on body here:
