Boxer III wiring diagram

Unread post by Jerome2828 »

Hi, I´m looking for wiring diagram license plate number. Cable at door is ok.
Peugeot Boxer III 2.2 hdi 2011
VF3**************[VIN obfuscated, can be read by forum staff]

thank you
Top
wheeler
Posts: 7894
Joined: 21 Sep 2002, 19:07
x 1044

Re: Boxer III wiring diagram

Unread post by wheeler »

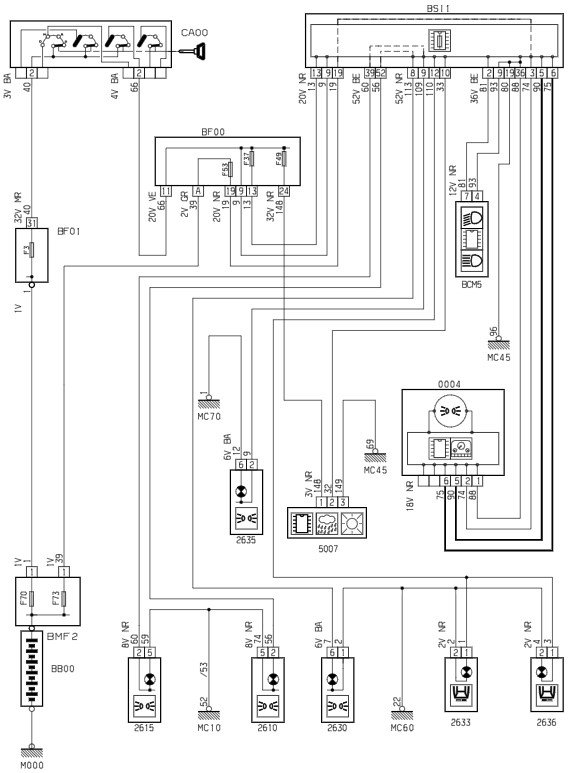

Here you go, number plate lamps are 2633 & 2636
Attachments
plate lights.jpg
Top
Jerome2828
Posts: 3
Joined: 13 Jul 2023, 20:17

Re: Boxer III wiring diagram

Unread post by Jerome2828 »

Thank you
