Very strange bolt!!

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

User avatar
Rp0thejester
Donor 2024
Posts: 2387
Joined: 11 May 2022, 19:54
x 807

Very strange bolt!!

Post by Rp0thejester »

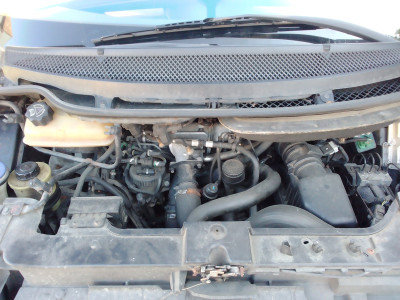

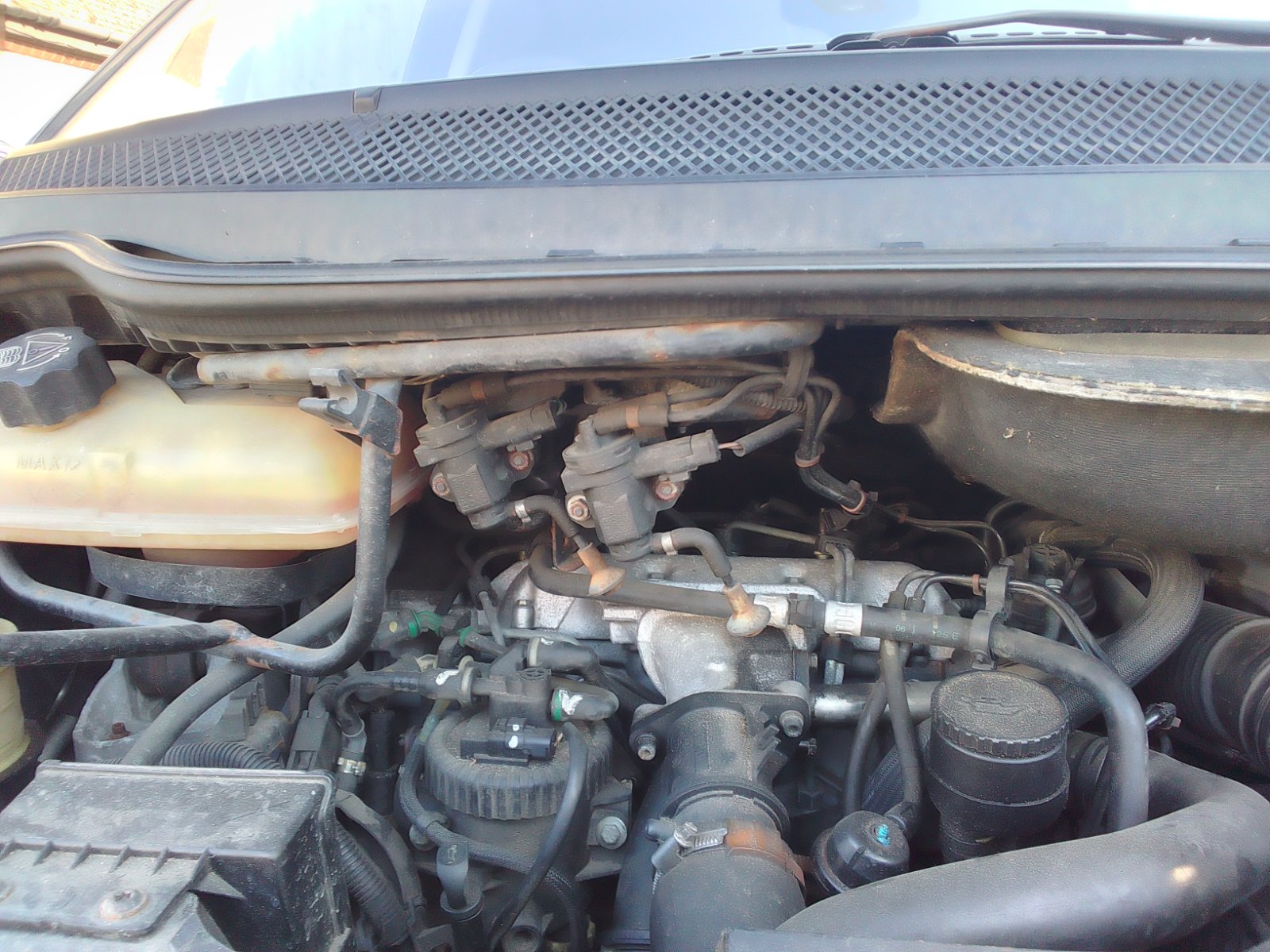

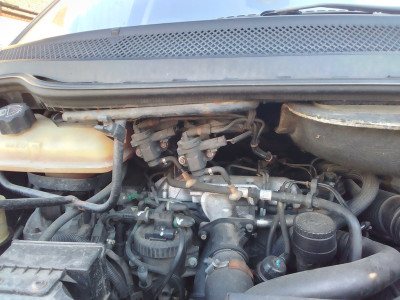

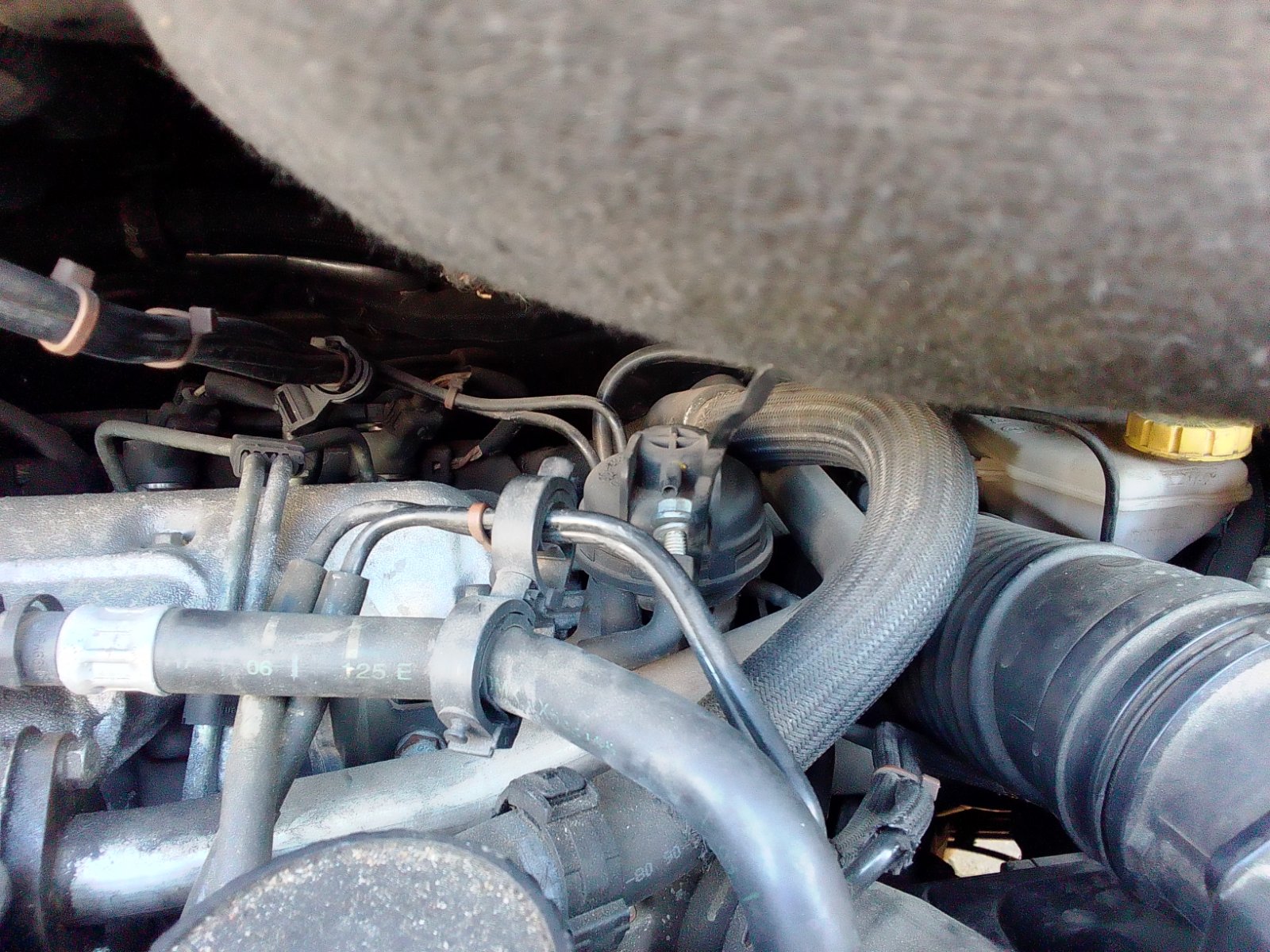

I need help with this one guys, what is that bolt doing there??
Ryan

'99 Xsara 1.6 X (Red) with Sunkissed bonnet. T59 SBX
'54 Astra Estate 1.7DTI (Artic White)
'06 C8 2.2Hdi Exclusive (Aster Grey)

Champion of Where's CitroJim :-({|=
Yes I ask the stupid questions, because normally it is that simple.
User avatar
myglaren
Forum Admin Team
Posts: 25450
Joined: 02 Mar 2008, 14:30
x 4917

Re: Very strange bolt!!

Post by myglaren »

Plugging a vacuum hose by the look of it.
A modification by a previous owner?
User avatar
Rp0thejester
Donor 2024
Posts: 2387
Joined: 11 May 2022, 19:54
x 807

Re: Very strange bolt!!

Post by Rp0thejester »

A vacuum to what would be my question, it's next to the intake manifold, so it's concerning me a little
Ryan

'99 Xsara 1.6 X (Red) with Sunkissed bonnet. T59 SBX
'54 Astra Estate 1.7DTI (Artic White)
'06 C8 2.2Hdi Exclusive (Aster Grey)

Champion of Where's CitroJim :-({|=
Yes I ask the stupid questions, because normally it is that simple.
User avatar
CitroJim
A very naughty boy
Posts: 49598
Joined: 30 Apr 2005, 23:33
x 6172

Re: Very strange bolt!!

Post by CitroJim »

Is that the EGR actuator?
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
Rp0thejester
Donor 2024
Posts: 2387
Joined: 11 May 2022, 19:54
x 807

Re: Very strange bolt!!

Post by Rp0thejester »

That's what I'm worried about. Can't find any decent info on C8 2.2s anywhere on the web. Even FCF results in Google give little to no info on placements/engine layout
Ryan

'99 Xsara 1.6 X (Red) with Sunkissed bonnet. T59 SBX
'54 Astra Estate 1.7DTI (Artic White)
'06 C8 2.2Hdi Exclusive (Aster Grey)

Champion of Where's CitroJim :-({|=
Yes I ask the stupid questions, because normally it is that simple.
Hell Razor5543
Donor 2023
Posts: 13743
Joined: 01 Apr 2012, 09:47
x 3006

Re: Very strange bolt!!

Post by Hell Razor5543 »

Whereabouts is that pipe? My C5 has a 2.2 engine, so it might be possible for me to help work out where the pipe should go.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
Rp0thejester
Donor 2024
Posts: 2387
Joined: 11 May 2022, 19:54
x 807

Re: Very strange bolt!!

Post by Rp0thejester »

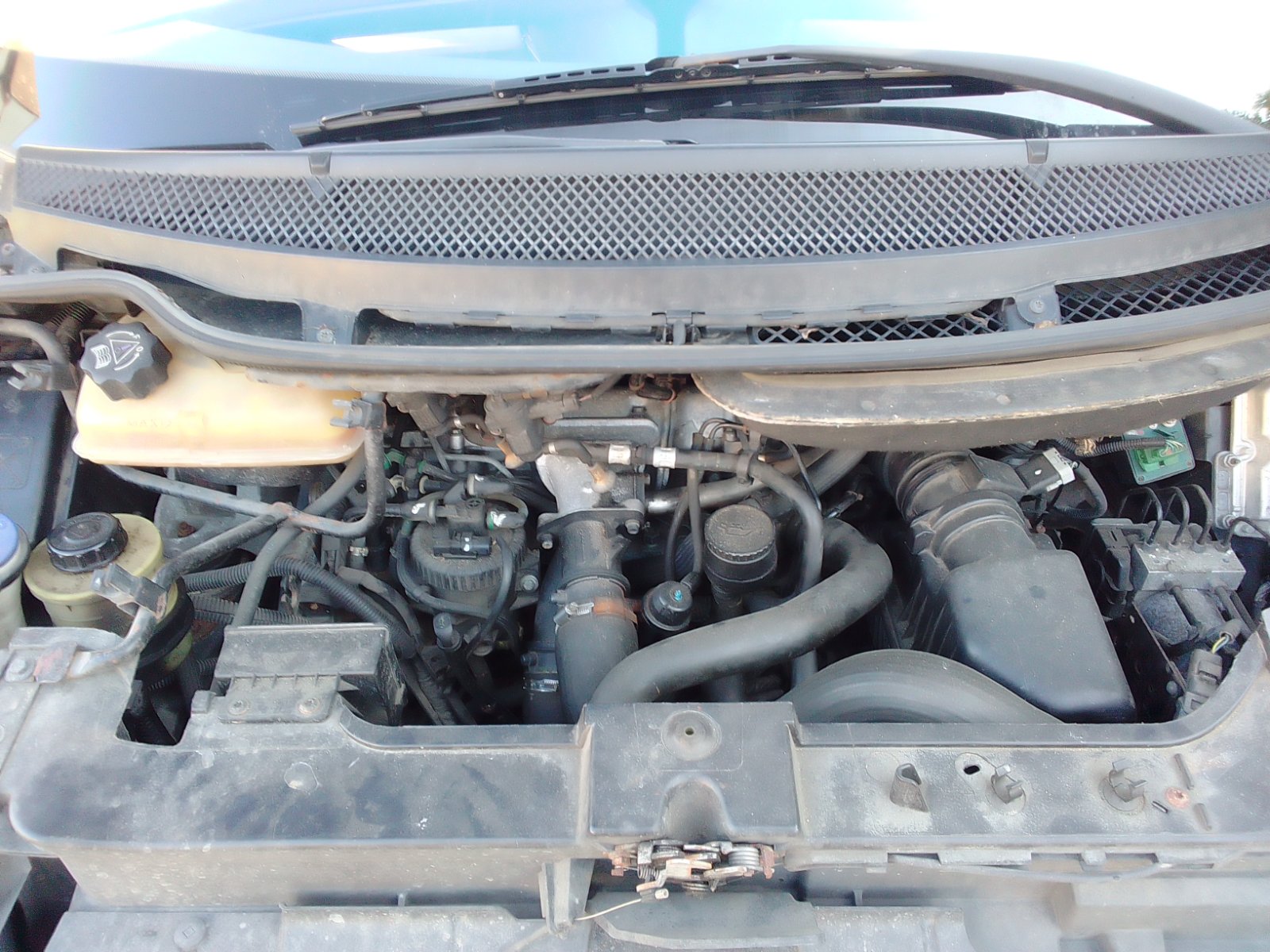

hope that helps to locate it.
Ryan

'99 Xsara 1.6 X (Red) with Sunkissed bonnet. T59 SBX
'54 Astra Estate 1.7DTI (Artic White)
'06 C8 2.2Hdi Exclusive (Aster Grey)

Champion of Where's CitroJim :-({|=
Yes I ask the stupid questions, because normally it is that simple.
Hell Razor5543
Donor 2023
Posts: 13743
Joined: 01 Apr 2012, 09:47
x 3006

Re: Very strange bolt!!

Post by Hell Razor5543 »

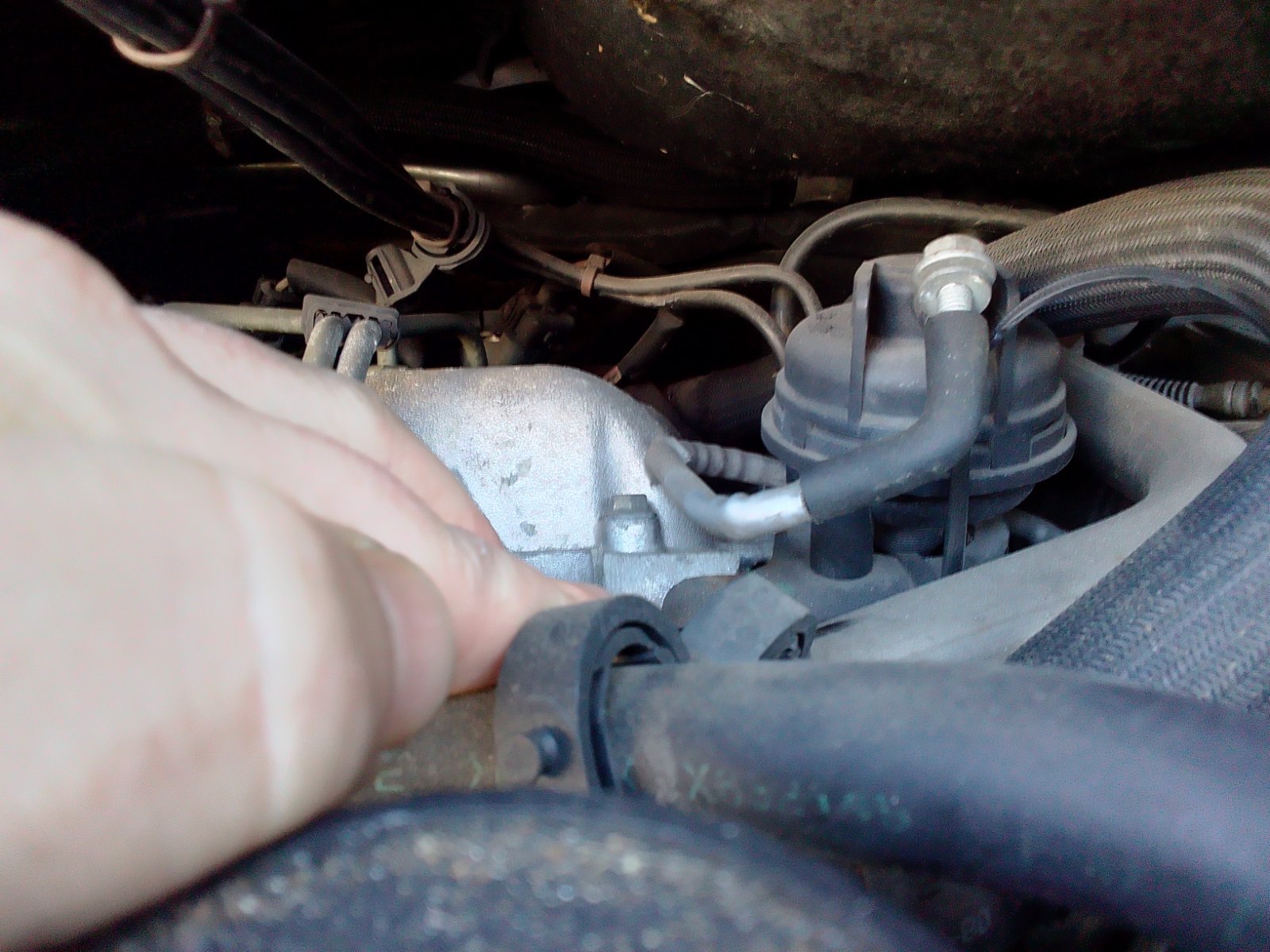

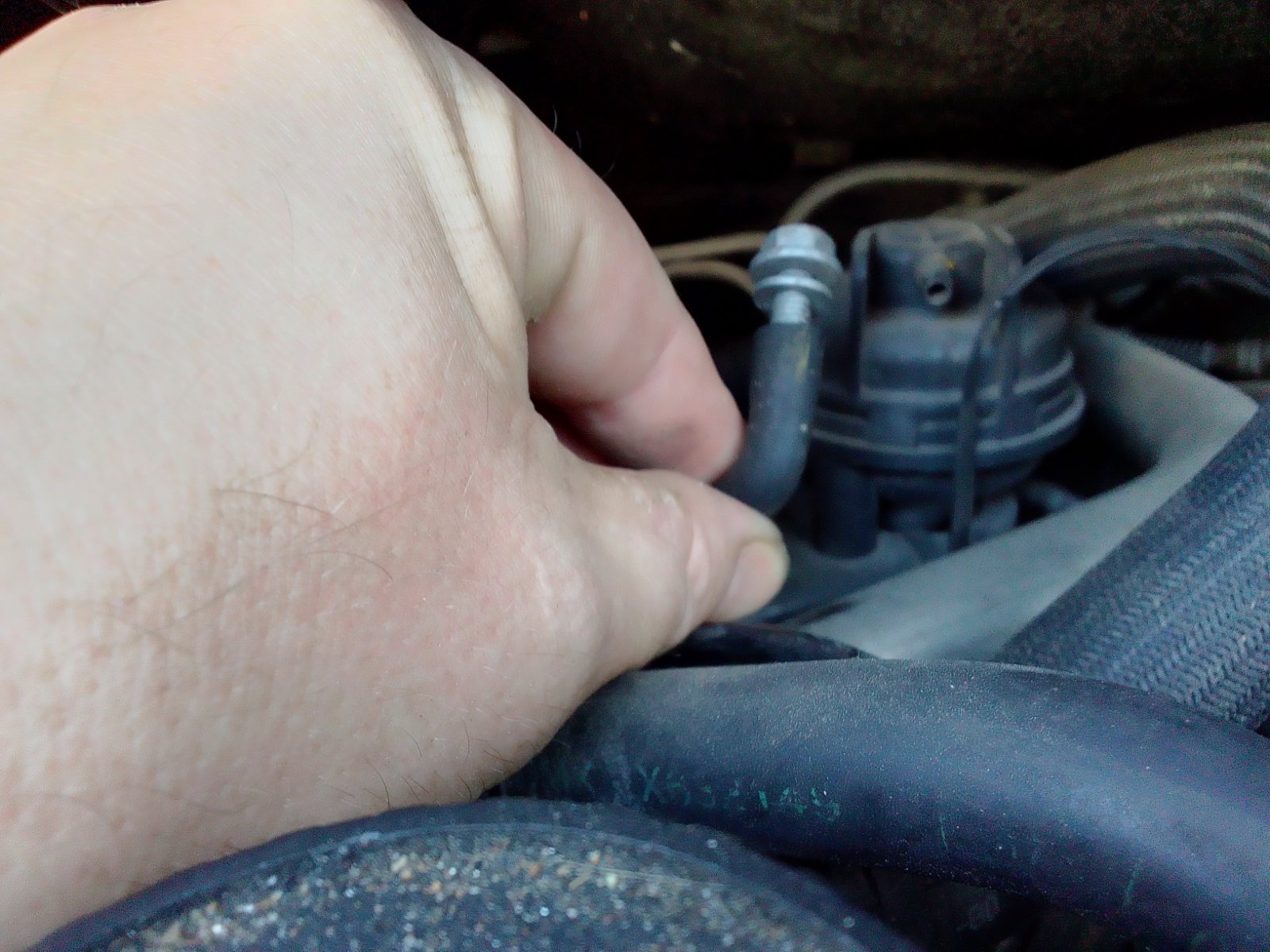

The last photograph shows something with what looks like a corresponding spigot (or where one should be) by the bolt head. Unfortunately there are quite a few differences between my engine and yours.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
MattBLancs
Donor 2024
Posts: 2518
Joined: 25 Apr 2022, 09:03
x 1331

Re: Very strange bolt!!

Post by MattBLancs »

EGR pipe (connected to inlet manifold) goes sailing past this mystery pneumatic actuator, so seems unlikely to do with this??

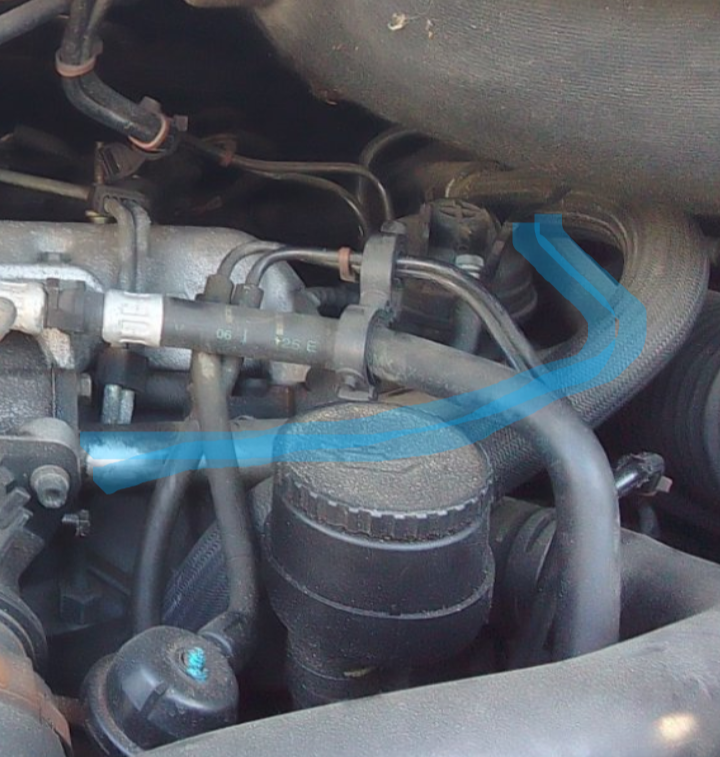

Markup of your image

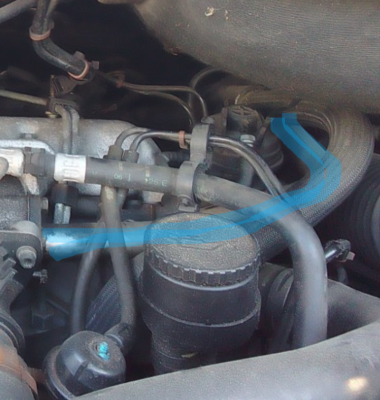

Markup of your image
User avatar
Rp0thejester
Donor 2024
Posts: 2387
Joined: 11 May 2022, 19:54
x 807

Re: Very strange bolt!!

Post by Rp0thejester »

This is why I love to hate my Citroen, she's different to the others
Ryan

'99 Xsara 1.6 X (Red) with Sunkissed bonnet. T59 SBX
'54 Astra Estate 1.7DTI (Artic White)
'06 C8 2.2Hdi Exclusive (Aster Grey)

Champion of Where's CitroJim :-({|=
Yes I ask the stupid questions, because normally it is that simple.
Hell Razor5543
Donor 2023
Posts: 13743
Joined: 01 Apr 2012, 09:47
x 3006

Re: Very strange bolt!!

Post by Hell Razor5543 »

You could try to 'bodge' a spigot onto that part just behind the bolt. It would take some care, because you would have to drill out the remains of the broken spigot and then fashion a replacement (probably from brass, as this is quite malleable).
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
Rp0thejester
Donor 2024
Posts: 2387
Joined: 11 May 2022, 19:54
x 807

Re: Very strange bolt!!

Post by Rp0thejester »

I don't think it's broken, a simple jubilee clip should fit it, it just puzzles me as to why a bolt has been placed there and why?? And what's the reason for not fitting it back on to the other thingy me jiggy
Ryan

'99 Xsara 1.6 X (Red) with Sunkissed bonnet. T59 SBX
'54 Astra Estate 1.7DTI (Artic White)
'06 C8 2.2Hdi Exclusive (Aster Grey)

Champion of Where's CitroJim :-({|=
Yes I ask the stupid questions, because normally it is that simple.
Hell Razor5543
Donor 2023
Posts: 13743
Joined: 01 Apr 2012, 09:47
x 3006

Re: Very strange bolt!!

Post by Hell Razor5543 »

Well, you could connect it up and see what happens! I wonder if that is a vacuum device that is playing up (hence whey the pipe was disconnected)? On a previous C5 I had an electro-valve gone short circuit, while the EGR valve had a split diaphragm.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
Rp0thejester
Donor 2024
Posts: 2387
Joined: 11 May 2022, 19:54
x 807

Re: Very strange bolt!!

Post by Rp0thejester »

If I didn't need the car for work tomorrow I would but don't want to risk it. After tomorrow I'm back on the train so will see what happens
Ryan

'99 Xsara 1.6 X (Red) with Sunkissed bonnet. T59 SBX
'54 Astra Estate 1.7DTI (Artic White)
'06 C8 2.2Hdi Exclusive (Aster Grey)

Champion of Where's CitroJim :-({|=
Yes I ask the stupid questions, because normally it is that simple.
User avatar
MattBLancs
Donor 2024
Posts: 2518
Joined: 25 Apr 2022, 09:03
x 1331

Re: Very strange bolt!!

Post by MattBLancs »

On my 2.2 HDI 406 Coupe, there is a vacuum driven actuator roughly in the same area - it is quite a bit lower down, nearer the gearbox bell housing. On mine this is for the inlet swirl flaps (shut at lower RPM, I think this shuts part off and the engine works as though 8 valve (1 inlet valve per cylinder is flowing) Higher RPM flaps opened and 2 valves per cylinder available for the air rushing in.

Agree, it has hallmarks of previous owner: "split diaphragm, can't (or can't be bothered!) to source new actuator, do just plug it and keep driving"

I think on the Coupe forum there was discussion about some of these actuators being unavailable / very difficult to source.
