Peugeot 206 1.4 HDI Pin assignment in MAF sensor plug

[juander]

Hello everyone. I would like to get the electrical pinout of my peugeot 206 1.4 HDI from 2002 8HX. His VIN is: VF3**************[VIN obfuscated, can be read by forum staff]. I would like to know which are the pins of:

Air Temperature Signal
Air Flow Sensor Power Supply
Intake Air Pressure Sensor Power Supply
Air Inlet Flowmeter Signal
Air Flow Sensor Earth



Thank you very much

[GiveMeABreak]

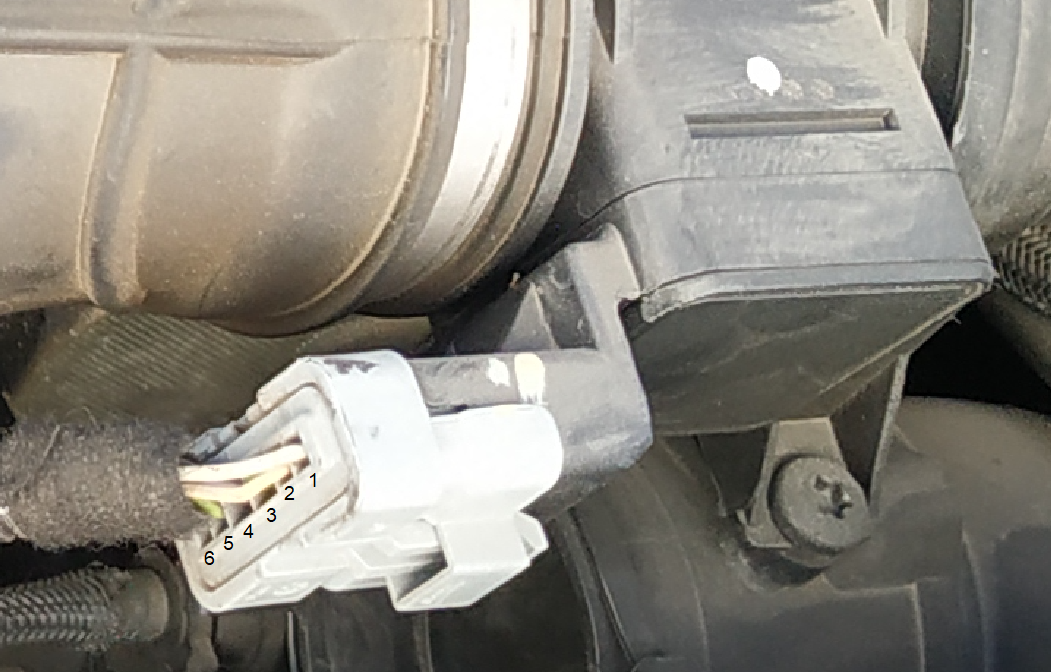

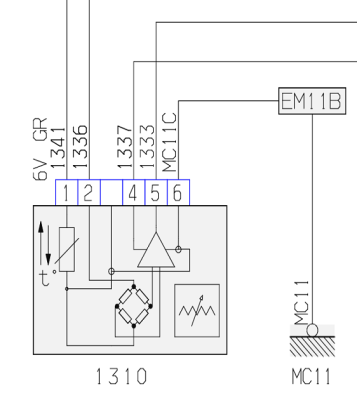

Pin (1) 1341: air temperature signal
Pin (2) 1336: air flow sensor earth
Pin (3) Unused
Pin (4) 1337: Air flow sensor power supply
Pin (5) 1333: inlet air flowmeter signal
Pin (6) MC11C: earth mc11

[juander]

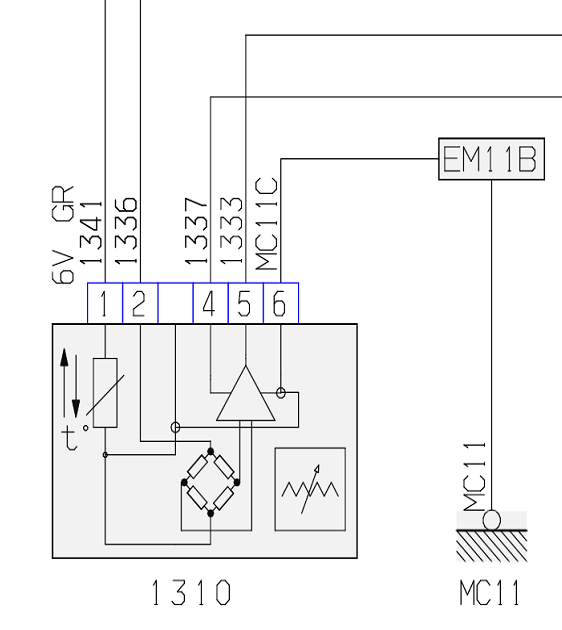

Pin (1) 1341: air temperature signal
Pin (2) 1336: air flow sensor earth
Pin (3) Unused
Pin (4) 1337: Air flow sensor power supply
Pin (5) 1333: inlet air flowmeter signal
Pin (6) MC11C: earth mc11

Thanks a lot! One last question, what voltage ranges (within normality) should pin 5 give from earth?

Thanks again

[GiveMeABreak]

There's not a lot of data specified for this vehicle being a 2002 model, so can't help with that.

[juander]

There's not a lot of data specified for this vehicle being a 2002 model, so can't help with that.

OK. don't worry. my problem is the following: my 206 gives error P1505, I removed the airbag control unit and it continues giving the error, very rare... the case (I have not explication) removing the flowmeter connector the error P1505 disappears and the car works perfectly . I want to override pin 5, it will give me an error on the ECU, but it won't give me an error on the panel and it will let me turn on.
