[Peugeot 206]Trying o find the schemes for windows control panel

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.
UserFromInternet
Posts: 13
Joined: 21 Nov 2022, 20:47
x 1

[Peugeot 206]Trying o find the schemes for windows control panel

Unread post by UserFromInternet »

Hi, how are you?
I'm trying to find the schemes for both driver + passenger windows control panel for my 206 car

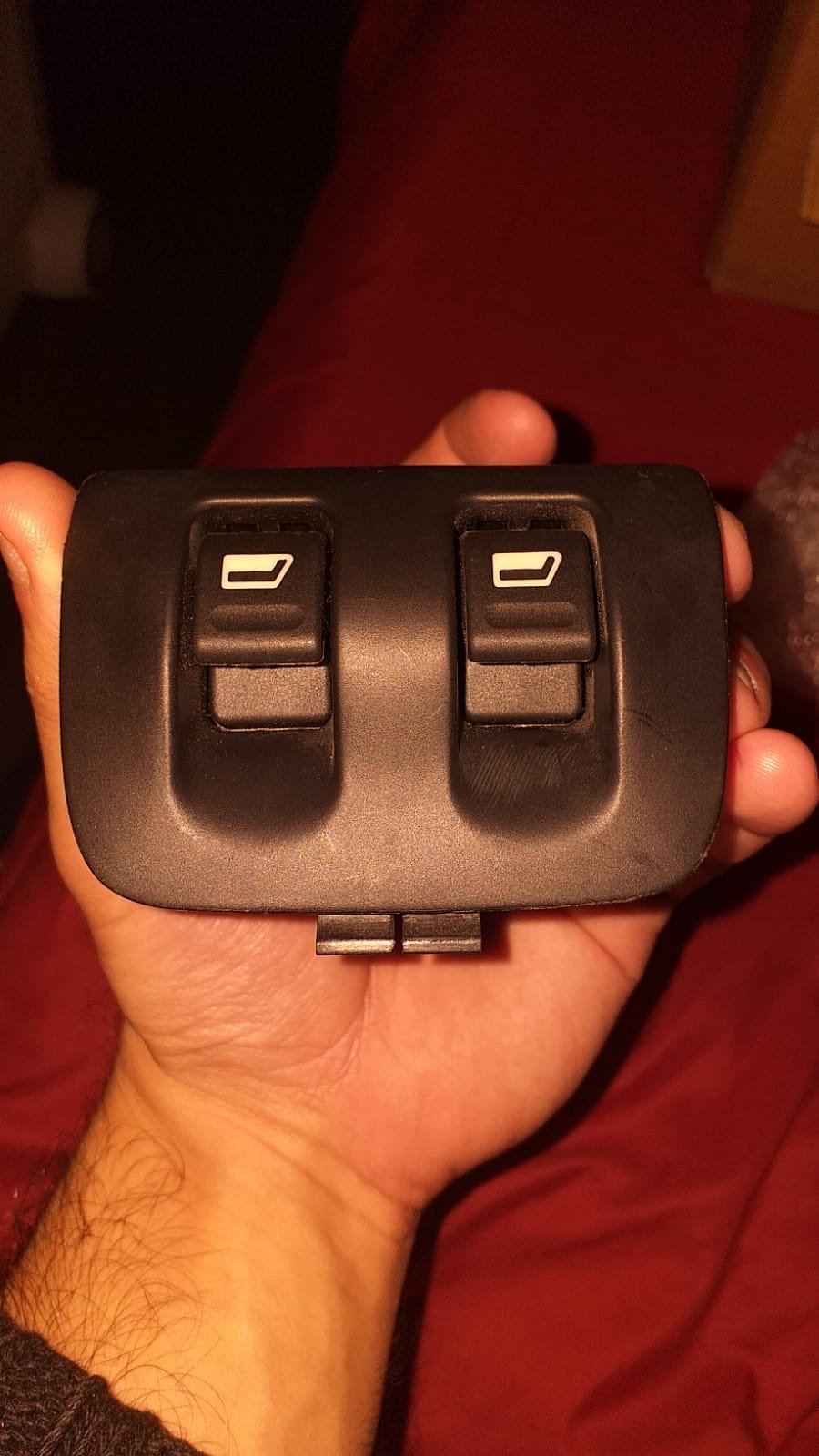

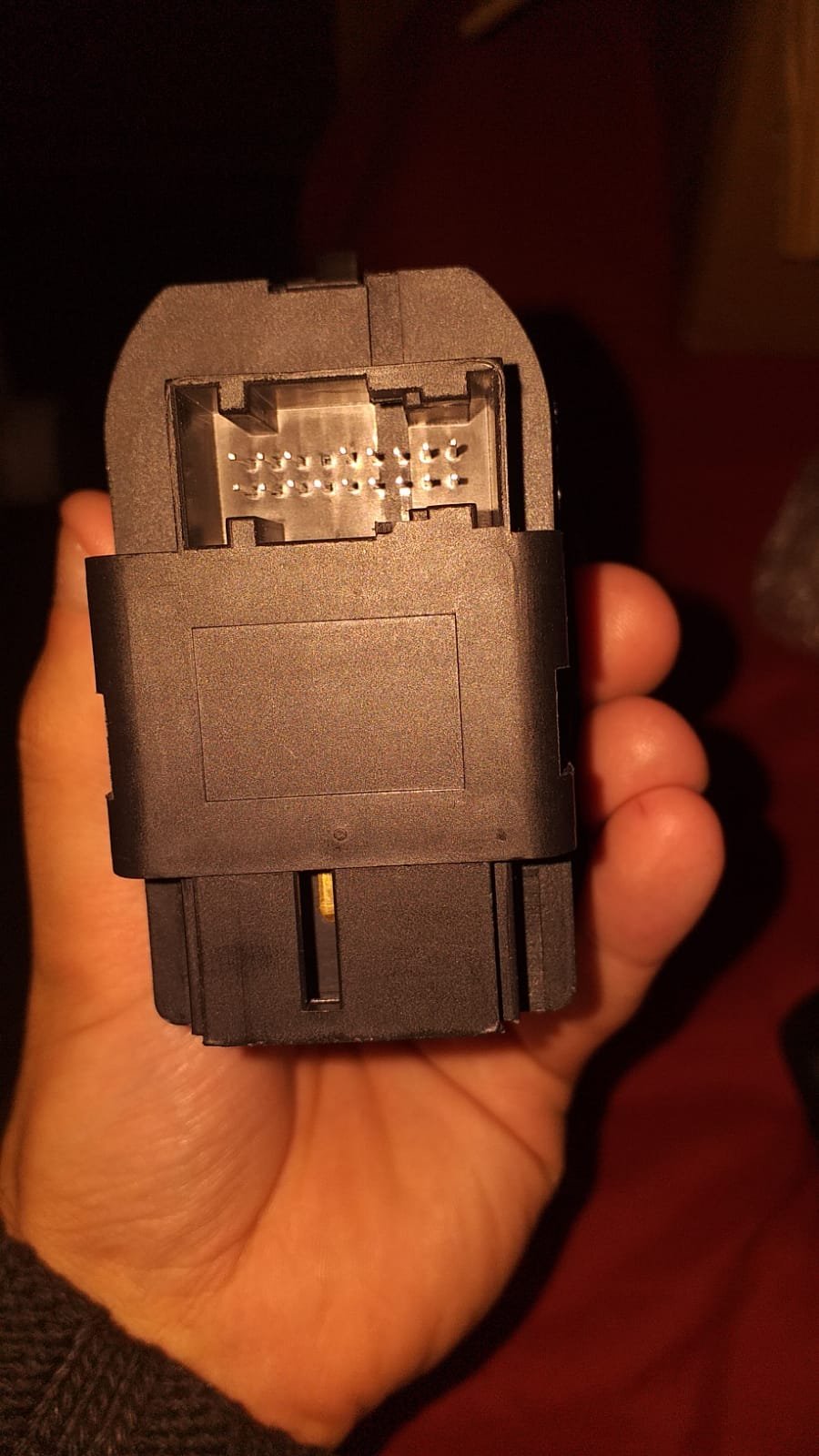

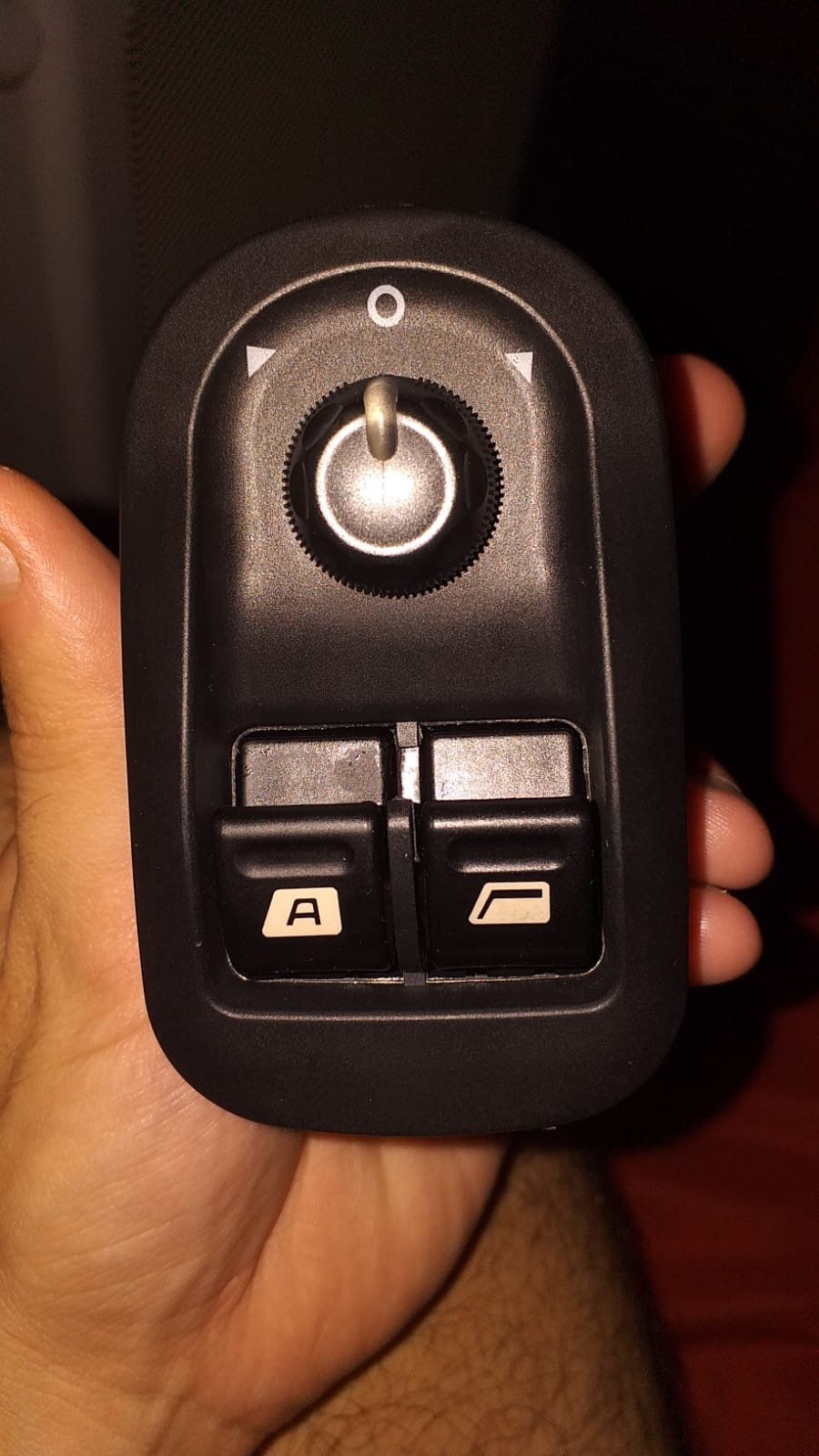

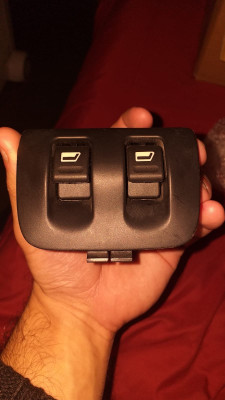

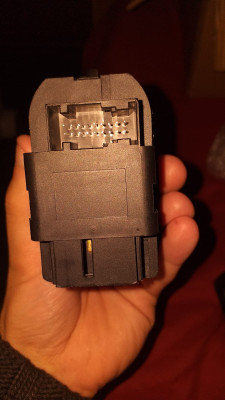

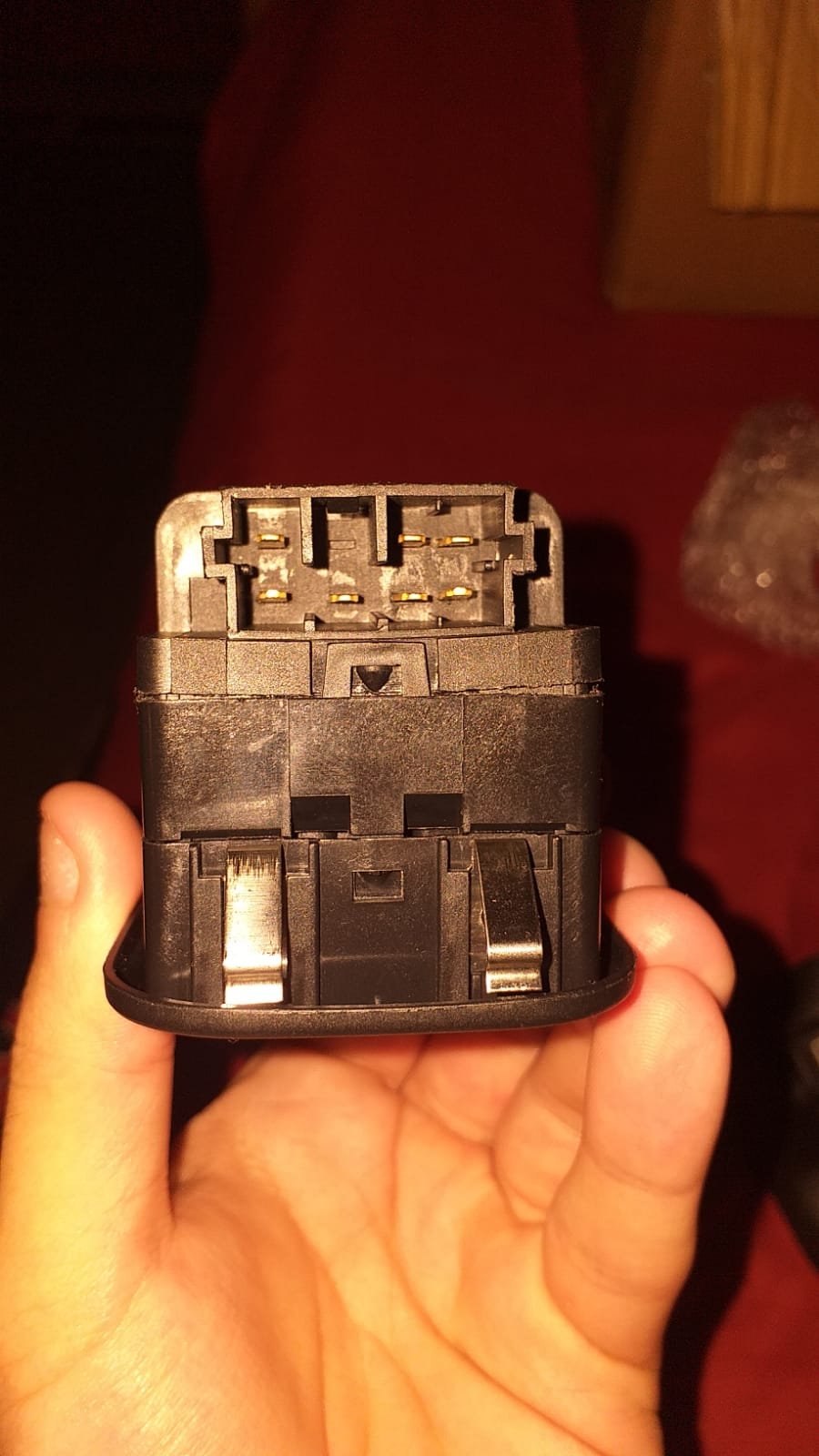

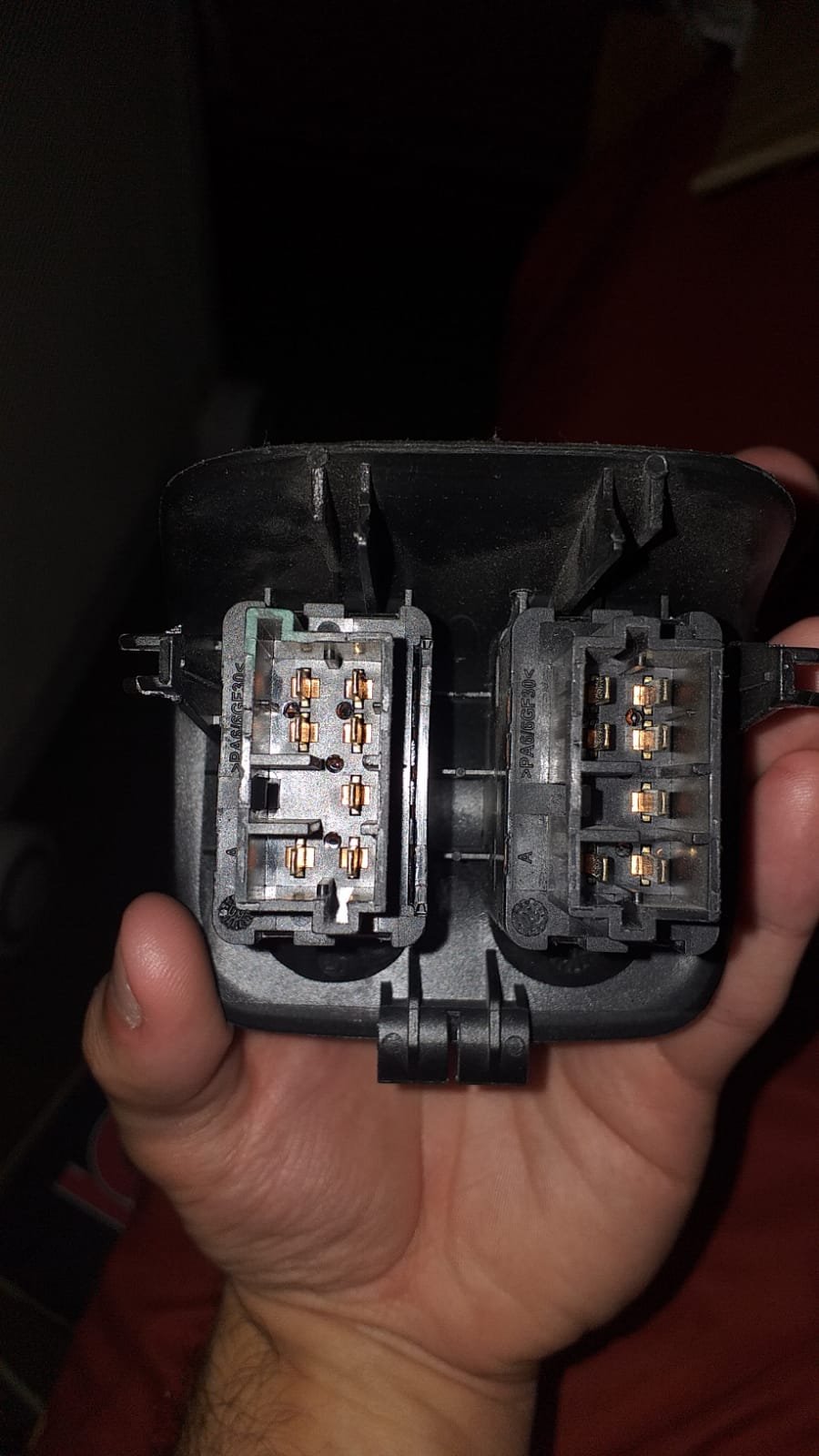

I have attached some images.

The thing is, i bought 2 universal power window kits in order to make my four windows automatic and i need the schemes to do the correct wiring and so on.
Could you please help me to find both schemes?
Attachments
