Hydraulic Pipe Repair

Post by Edhertz »

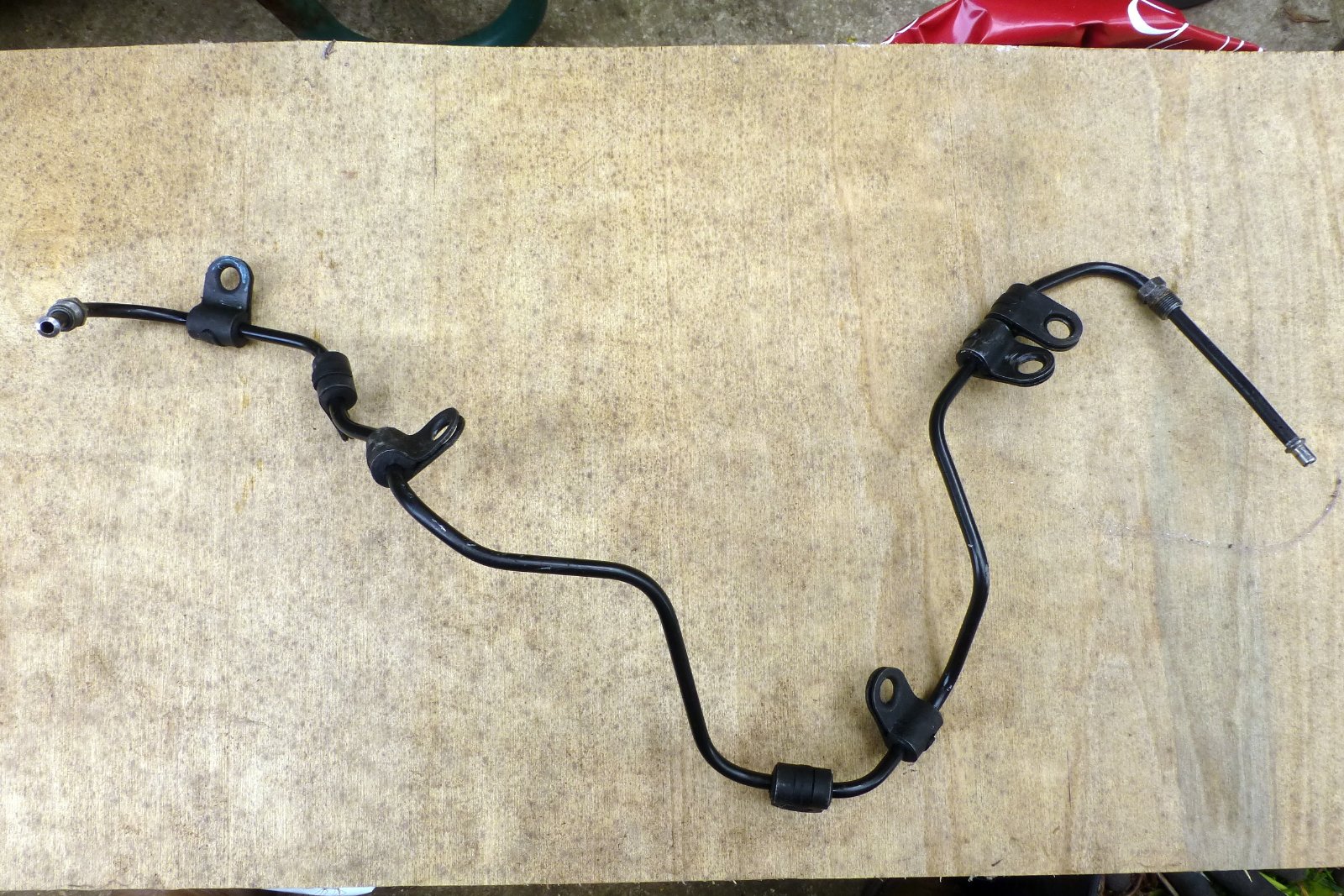

Has anyone out there done a fracture repair on a hydraulic pipe? The leak is on the pump to accumulator pipe at the accumulator end at the flare junction. I guess this was caused by vibration even though it was well secured by brackets. Is the pipe of two part construction and if it is can it be brazed or silver soldered effectively?
Cheers for replies in advance
Alan
1999 Xantia Exclusive 2.0Hdi Mauritius blue
1999 Peugeot LX 1.9D silver
User avatar
Stickyfinger
(Donor 2016)
Posts: 10600
Joined: 28 Mar 2013, 22:05
x 1375

Re: Hydraulic Pipe Repair

Post by Stickyfinger »

Brazed is best....because very high pressure....and it should be sleeved as a "hole fill" would not be that strong I would guess
Alasdair
Activa, the Moose Dogger
User avatar
CitroJim
A very naughty boy
Posts: 50151
Joined: 30 Apr 2005, 23:33
x 6397

Re: Hydraulic Pipe Repair

Post by CitroJim »

As Alasdair says exactly, I've made several successful repairs by sleeving and brazing in the past...
Jim

Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Edhertz
(Donor 2022)
Posts: 146
Joined: 19 Apr 2010, 17:51
x 6

Re: Hydraulic Pipe Repair

Post by Edhertz »

Thanks for replies. Problem is the fracture is at the root of the swaged flange so not possible to get a sleeve on it unless it's split.
Alan
1999 Xantia Exclusive 2.0Hdi Mauritius blue
1999 Peugeot LX 1.9D silver
Peter.N.
Moderating Team
Posts: 11584
Joined: 02 Apr 2005, 16:11
x 1212

Re: Hydraulic Pipe Repair

Post by Peter.N. »

Me too. The XM hydraulic pipe used to fracture where it enters the pump (usually due to a flat Acc sphere) I silver soldered an appropriately sized olive on the the pipe, only shortened it by about 1/4". Brazing will do, similar temperature - but soft solder won't, Guess how I know.

Peter
Edhertz
(Donor 2022)
Posts: 146
Joined: 19 Apr 2010, 17:51
x 6

Re: Hydraulic Pipe Repair

Post by Edhertz »

Thanks for your comments. I might try your method if all else fails. I've got a shout out in the 'wanted section for a pipe ....... worth a try!
Cheers Alan
Alan
1999 Xantia Exclusive 2.0Hdi Mauritius blue
1999 Peugeot LX 1.9D silver
Edhertz
(Donor 2022)
Posts: 146
Joined: 19 Apr 2010, 17:51
x 6

Re: Hydraulic Pipe Repair

Post by Edhertz »

Just to finish off this hydraulic pipe saga.

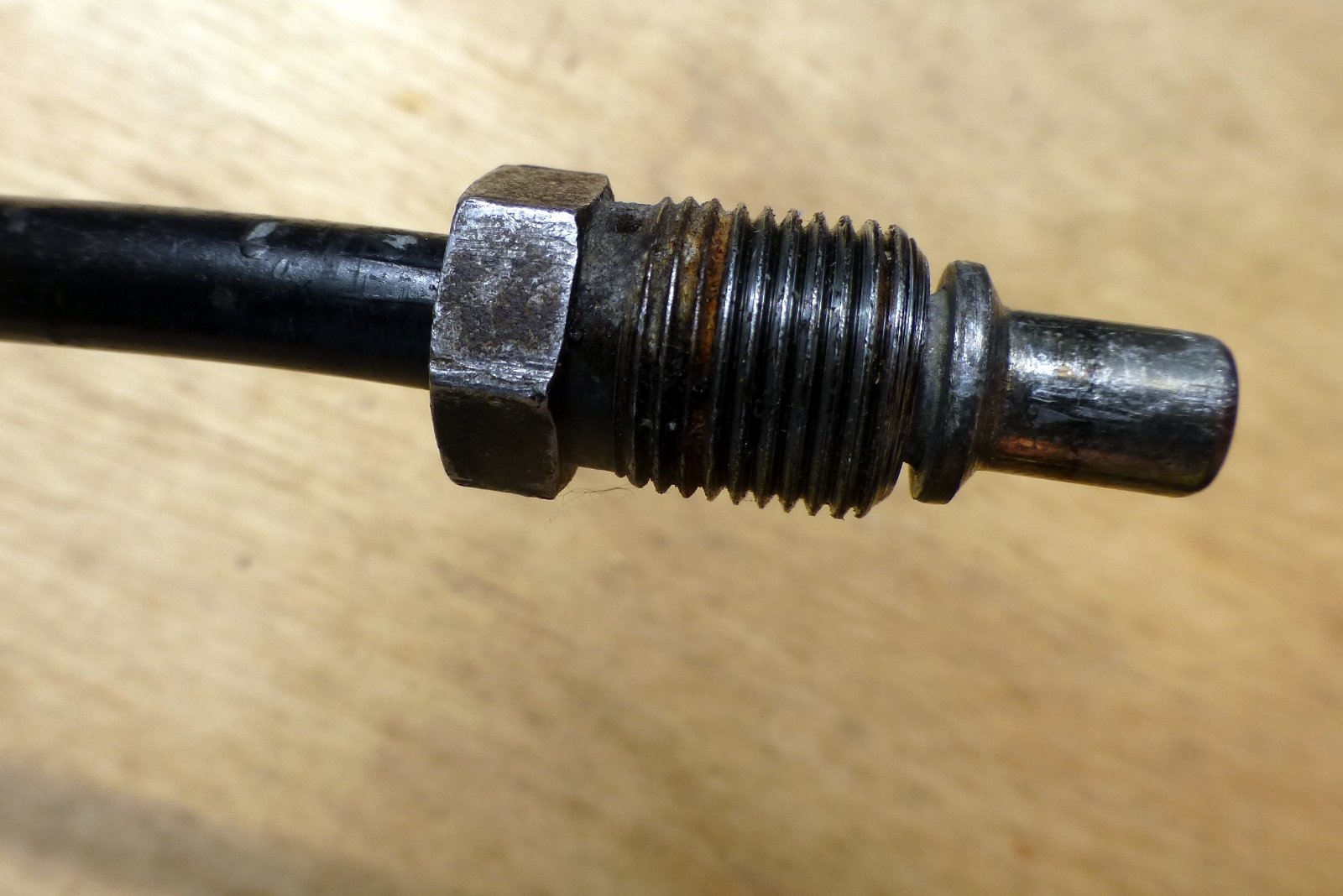

No joy sourcing a replacement apart from a scrapper who wanted £20.00 just for delivery from Swindon. Following Peter.N.'s reply I cut the pipe at the fracture but was unable to obtain a suitable olive, so I made a steel one up on my trusty Harrison L5 with a seating angle of 37 degrees and silver soldered it in the same relative position as original.

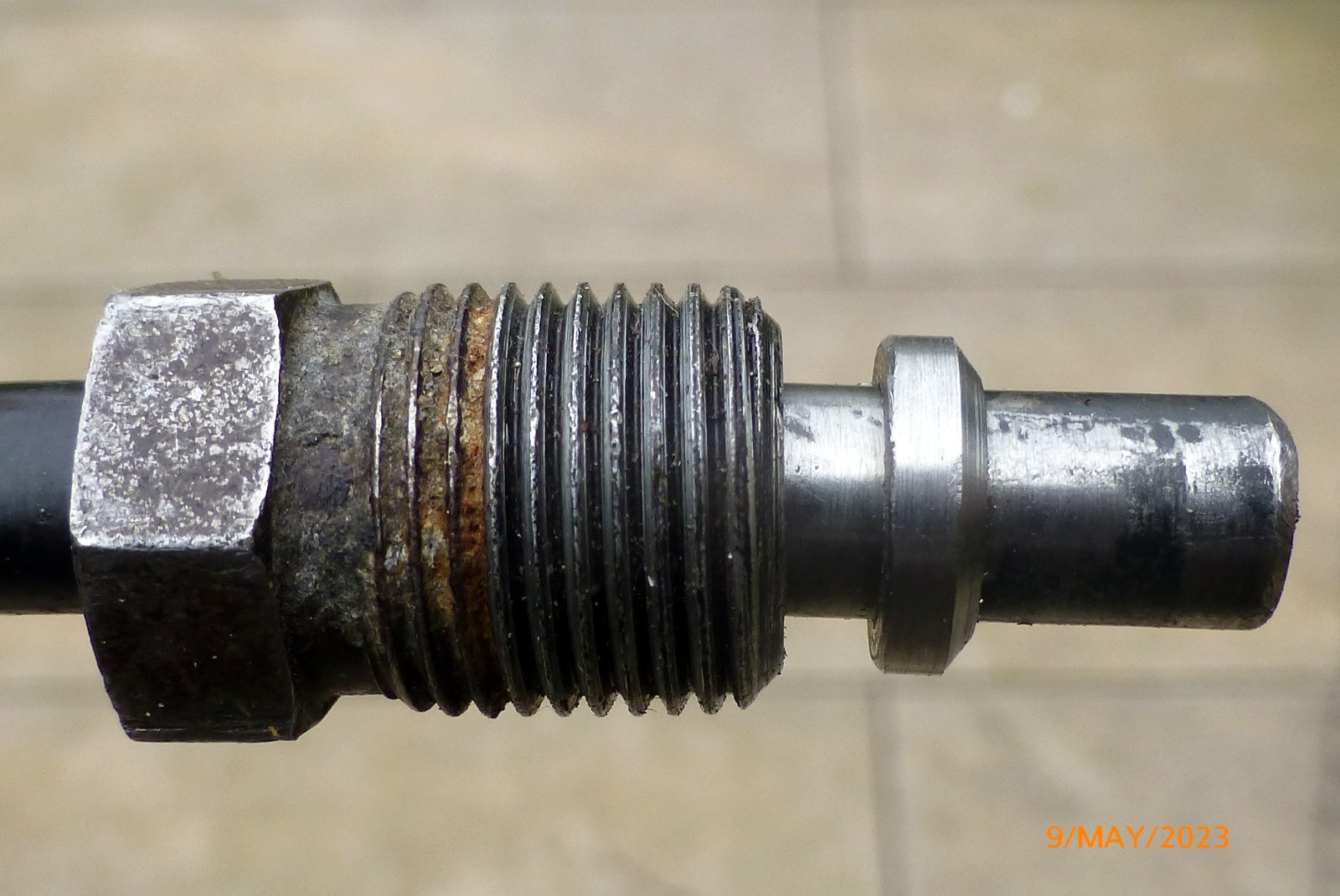

Accumulator end.JPG

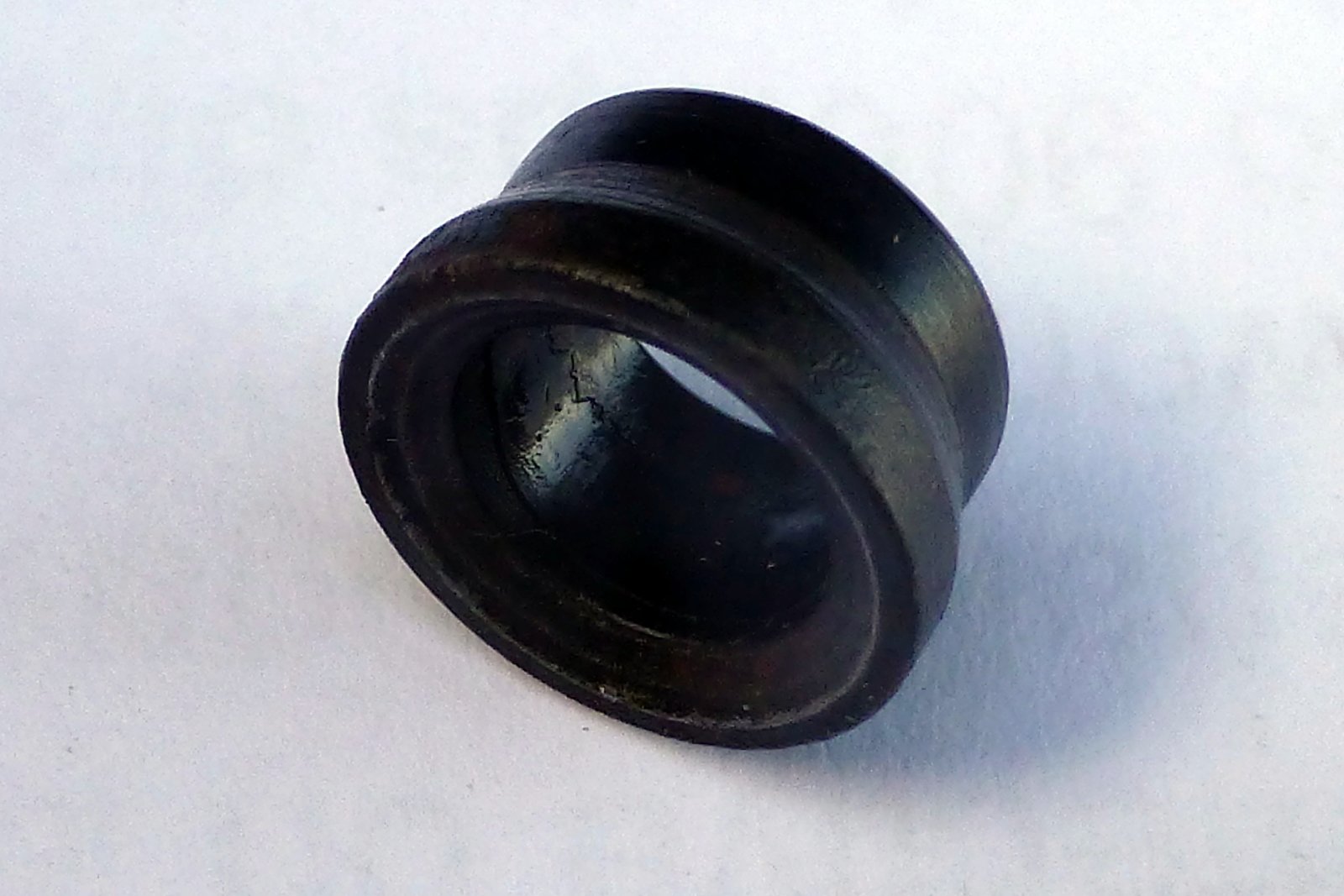

Finding this seal in the accumulator inlet was a surprise since it does not appear on the piping parts diagram
Job done!
Alan
1999 Xantia Exclusive 2.0Hdi Mauritius blue
1999 Peugeot LX 1.9D silver
Peter.N.
Moderating Team
Posts: 11584
Joined: 02 Apr 2005, 16:11
x 1212

Re: Hydraulic Pipe Repair

Post by Peter.N. »

Well done.

Peter
Jay-Bruce
(Donor 2022)
Posts: 522
Joined: 20 Mar 2019, 01:30
x 251

Re: Hydraulic Pipe Repair

Post by Jay-Bruce »

Edhertz wrote: 28 May 2023, 21:38 ... I cut the pipe at the fracture but was unable to obtain a suitable olive, so I made a steel one up on my trusty Harrison L5 with a seating angle of 37 degrees...
