my first post on this forum even I few times read for other folks problems,right now I work on citroen C 5 2010,after some frontal damage/crash there is so many wires damaged.even without schematic but with use of diagnostic tool I manage to repair most of them..there is only one system what beats me to concrete garage floor..
front park sensors..car have 6 front sensors and I find 8 wires on bumber crushed without connector..I belive that power suply is in paralel to all sensors so that is 2 wires for all of them- 6 wires are for signal to park ecu.of course french wires are not colour coded I know that..but cant find any numbers on them??..also I need to find where to conect them ? damaged side is driver side near batery so probably wires are there crushed too..
I desperadly need schematic diagram for this system,or even some descriptions will help..am I corect in my opinion that 3 pin sensor is only one signal wire and 2 wires are for power suply...wich 2 wires- 1-2-3
car VIN is VF7**************[VIN obfuscated, can be read by forum staff] ..
what sw you guys use for Citroen schematic ? Iam good in electric/electronic but mostly work on Germans car and have tools and literature for them
can anybody help on this ?
Citroen C5 2010 front park sensors
-
- Locked user account
- Posts: 5
- Joined: 26 Apr 2023, 10:32
-
- Forum Admin Team
- Posts: 41487
- Joined: 15 Sep 2015, 19:38
- x 6718
Re: Citroen C5 2010 front park sensors
Don't rely on colour codes - use the wiring pins and the codes which are reprinted every several inches on the wire sleeves.
So basically the positive + and negative - wires for all sensors are linked, which makes 2 of the 8 wires, and the remaining 6 wires are the sensor connections to the ECU form pin 3 of each sensor connector. That's your 8 wires in total.

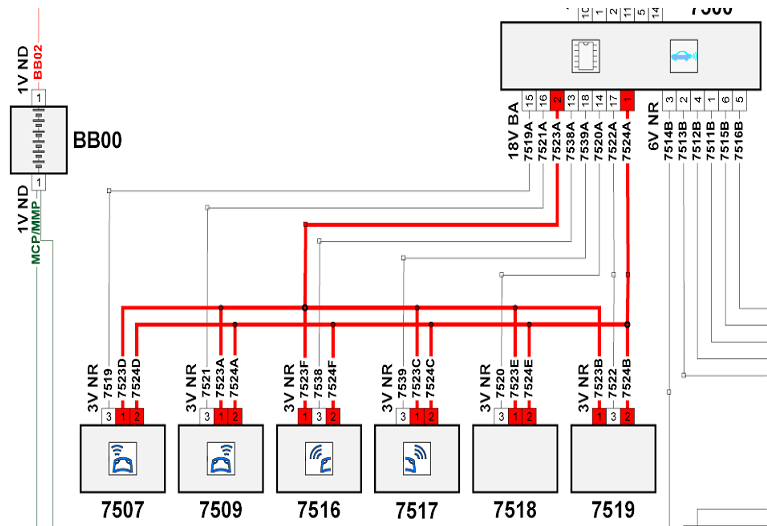

Click Image to Zoom

Hardware
7500: parking assistance ECU
7518: front left outer parking assistance sensor
7507: front left inner parking assistance sensor
7509: front right inner parking assistance sensor
7516: front left lateral parking assistance sensor
7517: front right lateral parking assistance sensor
7519: front right outer parking assistance sensor
Wiring
7520: front LH outer sensor signal
7523E: front sensor control +
7524E: front sensor control -
7524D: front sensor control -
7523D: front sensor control +
7519: front LH inner sensor signal
7523A: front sensor control +
7524A: front sensor control -
7521: front RH inner sensor signal
7523F: front sensor control +
7524F: front sensor control -
7538: left side sensor signal
7524C: front sensor control -
7523C: front sensor control +
7539: right side sensor signal
7524B: front sensor control -
7523B: front sensor control +
7519: front LH inner sensor signal
So basically the positive + and negative - wires for all sensors are linked, which makes 2 of the 8 wires, and the remaining 6 wires are the sensor connections to the ECU form pin 3 of each sensor connector. That's your 8 wires in total.
Click Image to Zoom
Hardware
7500: parking assistance ECU
7518: front left outer parking assistance sensor
7507: front left inner parking assistance sensor
7509: front right inner parking assistance sensor
7516: front left lateral parking assistance sensor
7517: front right lateral parking assistance sensor
7519: front right outer parking assistance sensor
Wiring
7520: front LH outer sensor signal
7523E: front sensor control +
7524E: front sensor control -
7524D: front sensor control -
7523D: front sensor control +
7519: front LH inner sensor signal
7523A: front sensor control +
7524A: front sensor control -
7521: front RH inner sensor signal
7523F: front sensor control +
7524F: front sensor control -
7538: left side sensor signal
7524C: front sensor control -
7523C: front sensor control +
7539: right side sensor signal
7524B: front sensor control -
7523B: front sensor control +
7519: front LH inner sensor signal
Please Don't PM Me For Technical Help
Marc
Marc
-
- Locked user account
- Posts: 5
- Joined: 26 Apr 2023, 10:32
Re: Citroen C5 2010 front park sensors
THANKS
wow thats it...now just trace all wires until I see number on them..OK..
based on my measurment on sensor pins 1 and 2 is power lines pin 3 is always output signal so this schematic confirm it..
7523 always positiv suply
7524 negativ suply
should I expect full 12 V for suply or is it some stabilized voltage 8-10 V ?
thanks once again this is so big help !
regards !
wow thats it...now just trace all wires until I see number on them..OK..
based on my measurment on sensor pins 1 and 2 is power lines pin 3 is always output signal so this schematic confirm it..
7523 always positiv suply
7524 negativ suply
should I expect full 12 V for suply or is it some stabilized voltage 8-10 V ?
thanks once again this is so big help !
regards !
-
- Locked user account
- Posts: 5
- Joined: 26 Apr 2023, 10:32
Re: Citroen C5 2010 front park sensors
well after spend some time to find number on wires I simply decide to another aproach-numbers are almost invisible..but since I have schematic will be easier to conect one by one wire on ecu connector and find wich one is what number..car is from frontal colision so some wire change colour because somebody already try to repair it...with youre schematic it will be easy task...tomorow is another day/another problems..
Thank you !
Thank you !
-
- Forum Admin Team
- Posts: 41487
- Joined: 15 Sep 2015, 19:38
- x 6718
Re: Citroen C5 2010 front park sensors
No problem, but there is no further voltage data available.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Locked user account
- Posts: 5
- Joined: 26 Apr 2023, 10:32
Re: Citroen C5 2010 front park sensors
all work fine now..
found another place with few broken wires
without schematic and proper diagnostic tool that job is mision imposible
connect wires like in schematic solder them and insulate with schrink tube...need to find some connector 8 pins one of these days
found another place with few broken wires
without schematic and proper diagnostic tool that job is mision imposible
connect wires like in schematic solder them and insulate with schrink tube...need to find some connector 8 pins one of these days
-
- Donor 2023
- Posts: 13988
- Joined: 01 Apr 2012, 09:47
- x 3126
Re: Citroen C5 2010 front park sensors
I would not use connectors unless they are waterproof. Think of the spray, etc., coming up from the road.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
ex C5 2.0HDi VTR
ex C5 2.0HDi VTR
ex C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
ex C5 2.0HDi VTR
ex C5 2.0HDi VTR
ex C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
-
- New User
- Posts: 1
- Joined: 20 May 2023, 08:06
Re: Citroen C5 2010 front park sensors
I’m looking into retro fitting these too but can you get away without the two side ones and link the sensors outputs on another front one to fool it into thinking that they are there and just have the four across the front?
-
- Forum Admin Team
- Posts: 41487
- Joined: 15 Sep 2015, 19:38
- x 6718
Re: Citroen C5 2010 front park sensors
This thread is about repairing the existing system, not retrofitting.
But no you can't. Citroen only supply a separate generic aftermarket (Non Citroen) kit for retrofitting. The original parking assistance ECU requires all 4 (rear) and / or all 4-6 front sensors to be correctly operational and assigned to work correctly as well as programmed in the BSI.
But no you can't. Citroen only supply a separate generic aftermarket (Non Citroen) kit for retrofitting. The original parking assistance ECU requires all 4 (rear) and / or all 4-6 front sensors to be correctly operational and assigned to work correctly as well as programmed in the BSI.
