Peugeot 508 RXH HYBRID 4 P1ABF

[Adizntk]

Good evening everyone

I have issue with my hybrid system, the clutch on electric engine is not engaging so I have replaced the whole engine and diff with another working one but it’s still throwing this code P1ABF. I don’t know where else can I look so if someone can help me I would very appreciate that. Thanks

[GiveMeABreak]

I'll need the VIN first, (please post your VIN in full without spaces - it will be automatically masked from public view after submitting your post & will only be visible to staff).

[Adizntk]

I'll need the VIN first, (please post your VIN in full without spaces - it will be automatically masked from public view after submitting your post & will only be visible to staff).

The vin is: VF3**************[VIN obfuscated, can be read by forum staff]

[GiveMeABreak]

The fault is recorded in the Hybrid Control ECU (1)

This is what the fault means:

Fault Code:	P1ABF
Description of Fault:	Motor: Absence of coupling. Failure to couple the reduction gear after 3 attempts. Conditions of activation of the diagnostics The following conditions have to be met: - Ignition on - Indicator lamp READY lit
Conditions for Fault to clear:	Issue 3 coupling requests (shifting gears) after repair.
Downgrade Modes whilst Fault is active:	Driving possible only in combustion mode.
Symptoms:	Lack of power Absence of the electric mode Absence of automatic stopping of the internal combustion engine Banging/knocking/creaking
Suspect Areas:	Motor Electric traction machine

[Adizntk]

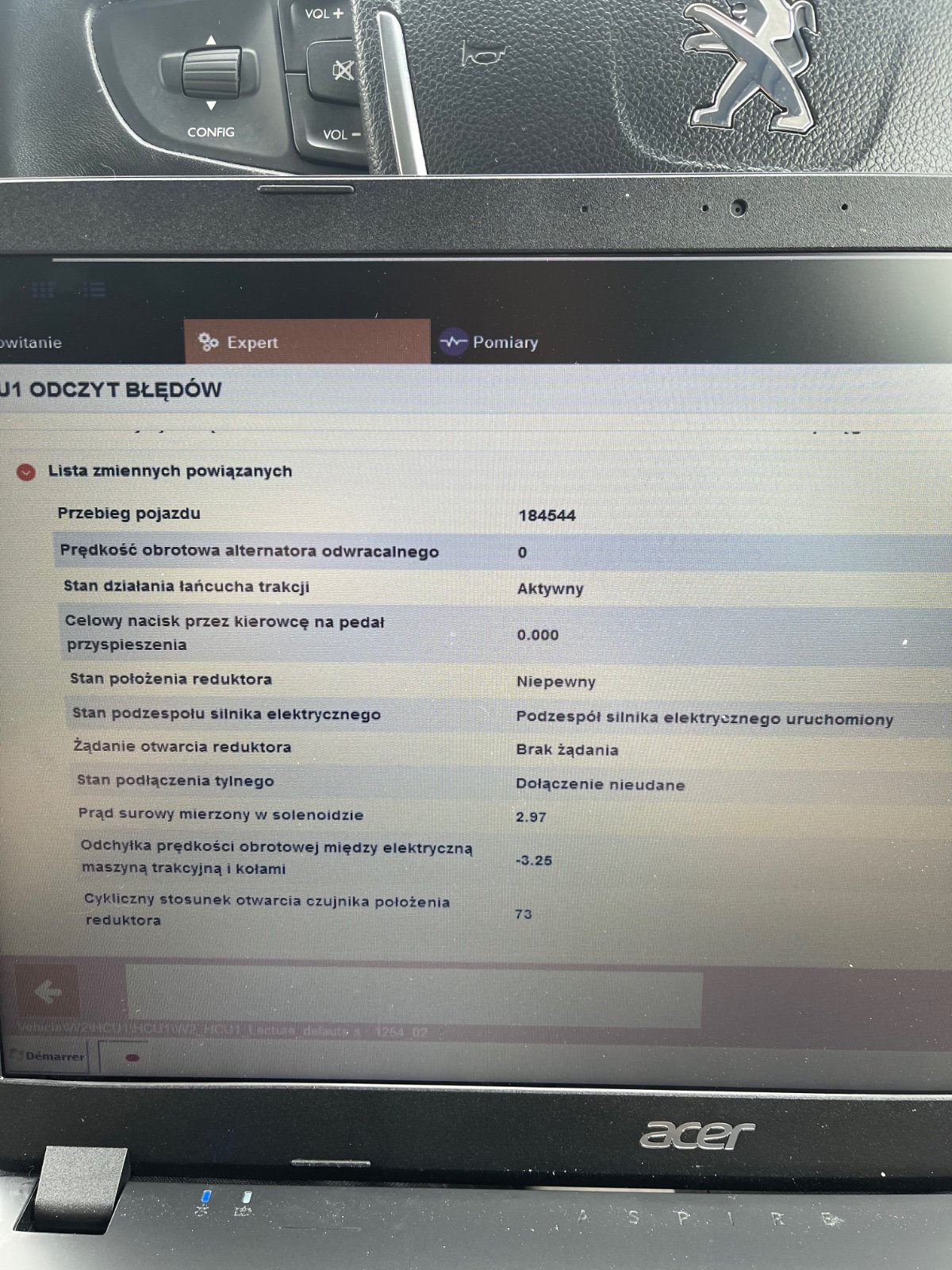

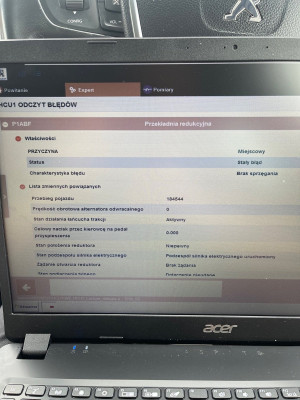

So I had the whole thing replaced sourced from donor car and I could see it working before, now I’m wondering what is the electric traction machine? I will scan the car tomorrow again and see if there are any other faults. Is there a procedure to calibrate the lot after replacement was done? I spoke to someone today who told me that this fault can also occur if the vacuum pump is not working properly but I don’t know if that’s true. Thanks

[Adizntk]

Do you have the wiring diagram by any chance?

[GiveMeABreak]

Here's the Traction System:

1919 : power electrical unit and control unit
6714 : - The transmission mode selector
7800 : ESP ECU
1920 : low temperature coolant pump
1917 : front electric machine
1918 : rear electric machine
6704 : hybrid rear reducer
1760 : battery HT+ battery status supervisor
1036 : converter power supply protection fuse

[Adizntk]

Thank You

[Vytautas]

Peugeot 508 2.0hdi hybrid 4 maybe someone can help me, I have such faults as U12C7, P1B70, P1AC4

[noahkaral]

Hey. Perhaps someone fixed the problem with P1ABF and has solution?

[Vytautas]

Hi please help I’m have problem with my Peugeot 508 rxh hybrid 4. When I’m start drive only electric motor, driving fine but when I’m drop acceleration and start charging battery rear wheels. throws errors
U0167
P1B70
PIAC4

[GiveMeABreak]

I'll need your VIN to double check (please post your VIN in full without spaces - it will be automatically masked from public view after submitting your post & will only be visible to staff), but I suspect the following info is relevant:

Fault Code:	P1AC4
Description of Fault:	Drive train : Failure of the activation of the electromotor sub-assembly. The electromotor sub-assembly is not activated after 2 s for a partial activation request or 3 s for a total activation request. The following conditions have to be met: - Ignition on - Indicator lamp READY lit
Conditions for Fault to clear:	3 activations/deactivations of the electromotor sub-assembly.
Downgrade Modes whilst Fault is active:	Deactivation of the "Stop and Start" function
Symptoms:	Problem activating the power unit Absence of automatic stopping of the internal combustion engine
Suspect Areas:	Hybrid control ECU

Fault Code:	P1B70
Description of Fault:	Resolver: Signal wrong or absent. Indicator lamp READY lit
Conditions for Fault to clear:	-
Downgrade Modes whilst Fault is active:	Irreversible deactivation of the vehicle cruise control (Need to switch the ignition off and then on, in order to make the function available again). Irreversible deactivation of the vehicle speed limiter (Need to switch the ignition off and then on, in order to make the function available again). Electric drive machine in neutral.
Symptoms:	Lack of power Absence of the electric mode Absence of automatic stopping of the internal combustion engine Cutting of the vehicle speed limiter Cutting of cruise control
Suspect Areas:	Hybrid control ECU Electric drive machine position sensor Electrical harnesses Connectors

Fault Code:	U0167
Description of Fault:	Intersystems CAN: Absence of response to the unlocking request. No response from the built-in systems interface following an unlocking request from the hybrid control ECU 1. The following conditions have to be met - Ignition on - Indicator lamp READY lit
Conditions for Fault to clear:	Driving for 5 minutes
Downgrade Modes whilst Fault is active:	Deactivation of the "Stop and Start" function
Symptoms:	Absence of automatic stopping of the internal combustion engine Problem activating the power unit Jerking/stalling (Stopping the vehicle)
Suspect Areas:	Hybrid control ECU Built-in systems interface Intersystems CAN

So it probably needs some specialist investigation. The ECU on some models can be replaced (They are a little under £3k or a new battery itself with the ECU is about £6.5k).

Although the ECU

[michaloko]

Good evening everyone

I have issue with my hybrid system, the clutch on electric engine is not engaging so I have replaced the whole engine and diff with another working one but it’s still throwing this code P1ABF. I don’t know where else can I look so if someone can help me I would very appreciate that. Thanks

Adizntk , did you fix your problem ? i have same error and same problem ,replaced the whole engine and diff with another one but still same error,i suspec the problem is hybrid control module but not shure ,coudl you share howe you fix your car?

[Kristijonas]

Hey,

I have a problem with my Peugeot 508 4Hybrid, 2012.
VIN: VF3**************[VIN obfuscated, can be read by forum staff]
The diagnostics shows error P1ABE.
The issue is that the car sometimes suddenly jerks. This happens both when the car is in electric mode and in 4WD mode. For example, when you start moving from a traffic light, the jerk occurs, the diesel engine starts, and you continue driving as usual. Sometimes, when you're in electric mode, the jerk occurs, and the car feels like it's in neutral for about 2 seconds before returning to normal in electric mode. It's quite peculiar because on some days, it happens a few times, while on others, it occurs every time you're in electric mode. Has anyone else experienced this issue?

[GiveMeABreak]

Fault Code:	P1ABE
Description of Fault:	Motor: Unwanted uncoupling. During a phase when the reduction gear is engaged (coupling successful), the "reduction gear status" is "disengaged". Conditions of activation of the diagnostics The following conditions have to be met: - Ignition on - Indicator lamp READY lit
Conditions for Fault to clear:	Carry out a road test involving the coupling phases after repair
Downgrade Modes whilst Fault is active:	Driving possible only in combustion mode
Symptoms:	Lack of power Absence of the electric mode Cutting of the vehicle speed limiter Cutting of cruise control Banging/knocking/creaking
Suspect Areas:	Reduction gear position sensor Hybrid control ECU Electrical harnesses Connectors
