In case someone needs a picture a Peugeot 306 2001 HDI meridian fuse box image

[onejon1]

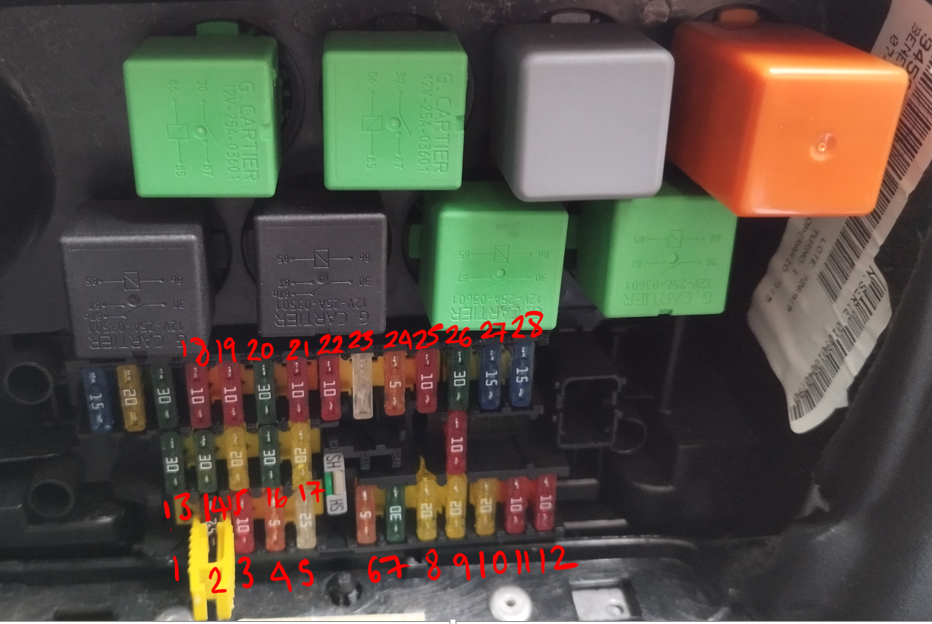

In case someone needs a picture a Peugeot 306 2001 HDI meridian fuse box
Engine Size 1997cc
Cylinders 4
Valves 8
Fuel Type Diesel
Transmission Manual
Gearbox 5 Speed
Drivetrain Front wheel
numbers are not aligned to the manual, but just for reference

[Dormouse]

Thanks for that

[picassodad]

Thanks onejon1...

How can you tell if it's a "meridian" pug 306 please ?

[MattBLancs]

Thanks onejon1...

How can you tell if it's a "meridian" pug 306 please ?

Meridian was a trim level, most noticeably with nice part leather seats of the "bucket type" as fitted to dturbo/ GTi 6 etc (the former got fabric buckets, the latter full leather buckets I think)

Some meridian models had an oval badge on the doors with Meridian written on it, this this was dropped on later ones (from memory they got chrome letter Meridian badge, on the back?)

[picassodad]

Thanks onejon1, much appreciated.

Could you tell me the function of the relays please, top row left to right then lower row left to right please.

Also fuse numbers. I can see some numbers on the fuse box but cannot find any other info. I have been going round in circles about this for some time now.

I have a list of fuse numbers and function but I am not sure at all about this.

Thanks in advance....
