Saxo indicators wiring diagram

bkod · Unread post by **bkod** » 19 Oct 2022, 17:52

Hi.
Wondering if anyone with access to SEDRE would be able to help me... My laptop refused any further cooperation so can't check it myself. I would need wiring diagram for Saxo indicators...
Thanks
Ben

Unread post by **CitroJim** » 19 Oct 2022, 18:07

Why? What's the problem with them?

Unread post by **Huskyxantia** » 19 Oct 2022, 20:06

Knowing the saxo the wire under the splash guards rotted . Happend to my one 8 yr ago , nice green wire !

bkod · Unread post by **bkod** » 19 Oct 2022, 20:38

CitroJim wrote: 19 Oct 2022, 18:07 Why? What's the problem with them?
[/quot
CitroJim wrote: 19 Oct 2022, 18:07 Why? What's the problem with them?
e]

The indicators and hazards just stopped working. I have replaced relay but no success. The hazard switch seems to be ok according to my multimeter...

It's 04 plate which sat for at least a year. Bought it for my son as first car and I'm sorting it step by step... Some issues were solved by new alternator connector. That didn't solve the indicators issue...

bkod · Unread post by **bkod** » 19 Oct 2022, 20:43

Huskyxantia wrote: 19 Oct 2022, 20:06 Knowing the saxo the wire under the splash guards rotted . Happend to my one 8 yr ago , nice green wire !

What do you mean by splash guards?

Unread post by **Huskyxantia** » 19 Oct 2022, 21:34

Wheel arch liners, try jacking up the car, remove front wheel then move wheel arch liner to gain access to the back of the side indicator in the wing , my old saxo indicator wire had rotted i had to cut out the green coloured wire and splice new wire plus new bulb holders this sorted my problem , also check all earth points behind headlights and the rear lights , not to mention fuse terminals.

bkod · Unread post by **bkod** » 19 Oct 2022, 21:56

Huskyxantia wrote: 19 Oct 2022, 21:34 Wheel arch liners, try jacking up the car, remove front wheel then move wheel arch liner to gain access to the back of the side indicator in the wing , my old saxo indicator wire had rotted i had to cut out the green coloured wire and splice new wire plus new bulb holders this sorted my problem , also check all earth points behind headlights and the rear lights , not to mention fuse terminals.

That wouldn't make all the indicators to stop working, would it? They were working, one day just stopped...
I'll have to check everything bit by bit and that's why I was hoping for diagrams. My laptop with SEDRE installed on it died recently and I can't find the DVDs to install it on another...

Unread post by **Huskyxantia** » 19 Oct 2022, 22:28

Do it the old fashioned way, check the wires to each bulb holder and follow the wire to where it goes for any breaks, even the loom in the door can cause all types of electrical issues so they might be worth a look, heres some links to some car electrics i know the stalk can be sebsepterble to damp .
Some links below might shed some light

https://fuseandrelay.com/citroen/saxo.html
http://www.saxperience.com/forum/showthread.php?t=24339
http://www.saxperience.com/forum/showth ... p?t=449780

bkod · Unread post by **bkod** » 19 Oct 2022, 22:47

Huskyxantia wrote: 19 Oct 2022, 22:28 Do it the old fashioned way, check the wires to each bulb holder and follow the wire to where it goes for any breaks, even the loom in the door can cause all types of electrical issues so they might be worth a look, heres some links to some car electrics i know the stalk can be sebsepterble to damp .
Some links below might shed some light

https://fuseandrelay.com/citroen/saxo.html
http://www.saxperience.com/forum/showthread.php?t=24339
http://www.saxperience.com/forum/showth ... p?t=449780

Thanks for the links. It looks like there's one I needed. Thank you very much!

Unread post by **Huskyxantia** » 20 Oct 2022, 16:59

If you do get it sorted pop your end results up on here as it will help others

wheeler · Unread post by **wheeler** » 20 Oct 2022, 22:39

Would need either the reg, VIN or at the very least the RP number to get the correct wiring diagram for your car.

bkod · Unread post by **bkod** » 21 Oct 2022, 09:36

wheeler wrote: 20 Oct 2022, 22:39 Would need either the reg, VIN or at the very least the RP number to get the correct wiring diagram for your car.

Great! Thanks!

VF7**************[VIN obfuscated, can be read by forum staff]

wheeler · Unread post by **wheeler** » 21 Oct 2022, 10:37

Got it, will get a diagram later this afternoon when i get home.

wheeler · Unread post by **wheeler** » 21 Oct 2022, 14:17

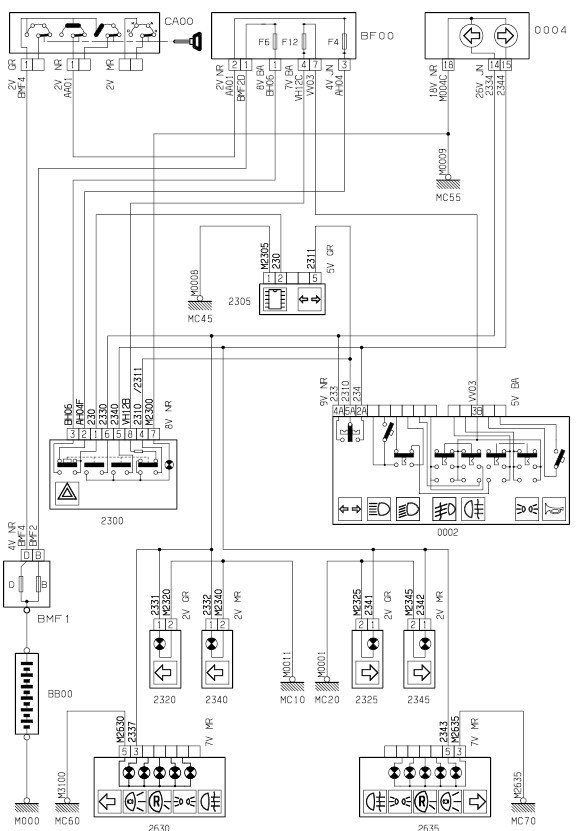

Heres the diagram.
If you have a total loss of indicators/hazzards the first thing i would check is you have a battery live at pin 3 of the hazzards switch & an earth at pin 7

bkod · Unread post by **bkod** » 21 Oct 2022, 15:16

wheeler wrote: 21 Oct 2022, 14:17 Heres the diagram.
If you have a total loss of indicators/hazzards the first thing i would check is you have a battery live at pin 3 of the hazzards switch & an earth at pin 7

Thank a lot! I'll be working on it on Sunday. I'll let you guys know the results
