Vacuum solenoid location and missing vacuum pipe??

[Jedders]

Hi everyone,

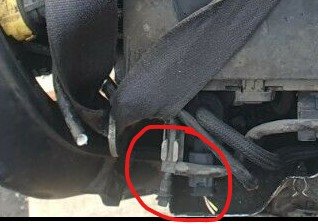

Whilst trying unsuccessfully to locate the vacuum solenoid on my C5 X7(help), I noticed what I think is a missing vacuum pipe. Having fished around the back of the engine I couldn't find anything to connect to it. So I'm wondering if this could be the cause of the fault codes kindly deciphered in my previous post. I've attached a couple of photos.
Thanks in advance

[KennyW]

There 3 or 4 solenoids at the back of the engine depending age of your C5. All have vacuum pipes attached to them. With a pipe running to the vacuum pump situated next to the HP fuel pump.
Any holes etc in these pipes will affect the vehicle.
Some of these hoses are a PITA to get to and replace.

Kenny

[Jedders]

Hi Kenny
Thanks for the info, the car is C5 X7 2.0 HDI does anyone have a diagram of the vacuum circuit?

[GiveMeABreak]

Have a look here:

viewtopic.php?t=65231&hilit=vacuum+circuit

[Jedders]

Hi Marc

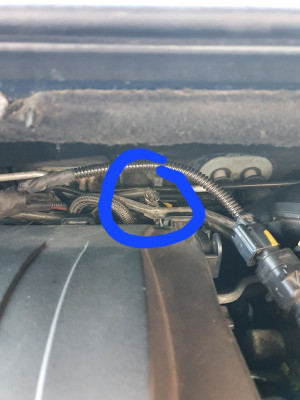

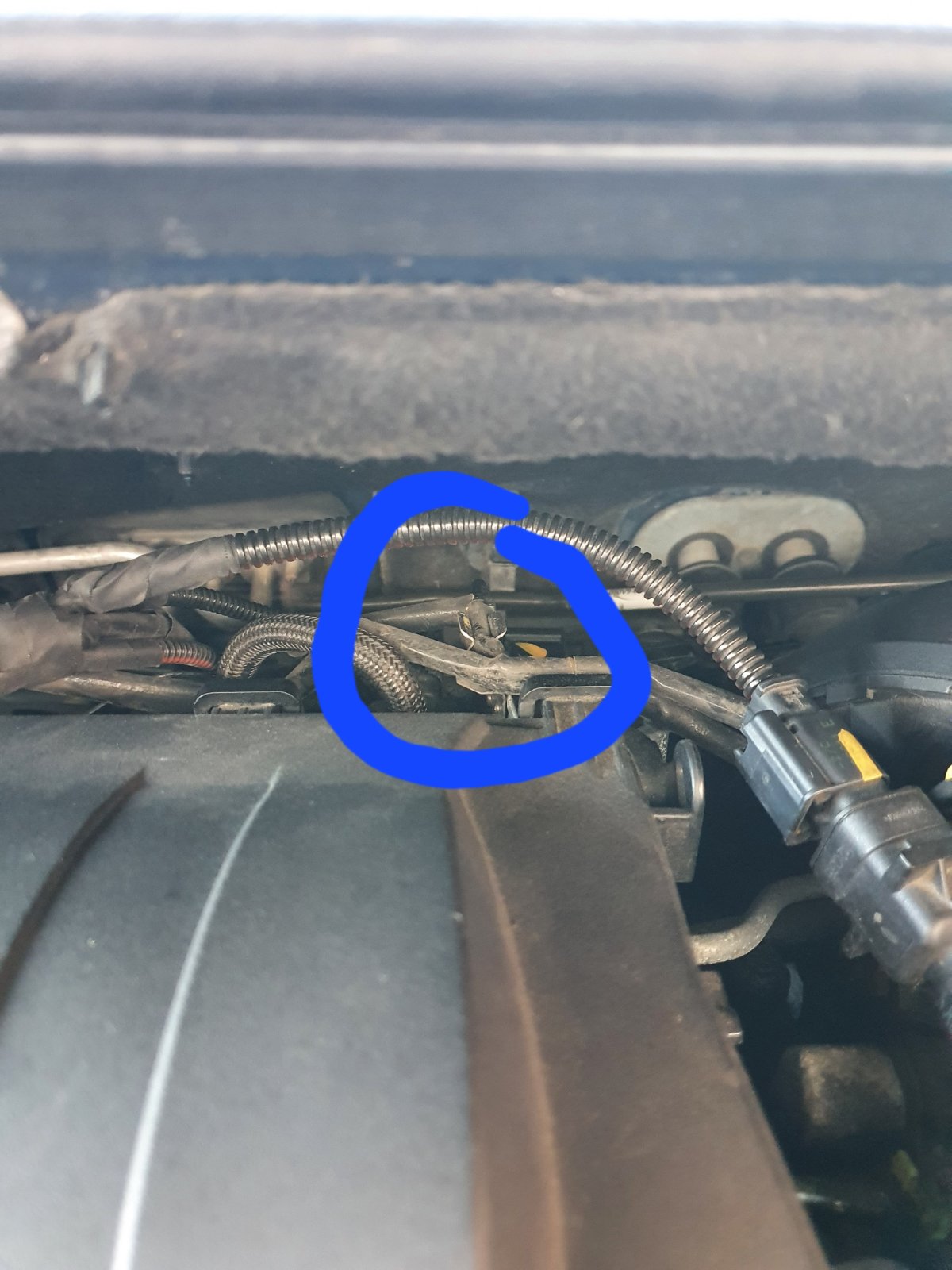

Looking at the 3 pictures halfway down the post. The 3rd picture shows what looks like a blanking cap on the pipes to the far right?
Thanks for the pointers.

[GiveMeABreak]

This one?

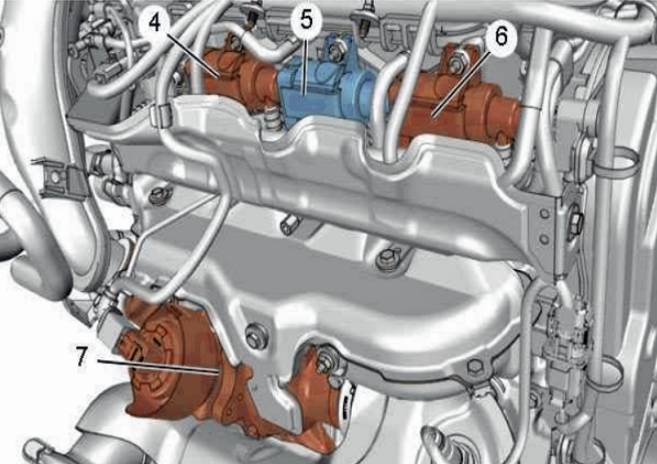

I can't see any blanking of the pipes.... (40, (5) & (6) are the electrovalves, but I can't see any blanking parts.

[Jedders]

Hi Marc,
Found it trawling through ebay looking at engines for sale!
download/file.php?mode=view&id=46155

Possibly for sitcking the vacumm guage?

[KennyW]

Jedders,

What year and engine type is your C5 ?

It maybe relevant. From the photo that looks like a electrical connection possibly for the solenoid for EGR valve. I'm only guessing as the plastic pipe to the left, is that going to the Turbo.

Kenny

[Jedders]

Hi Kenny
It's definitely a tee piece that's part of the vacuum circuit not an electrical connection.

[KennyW]

Okay, There is a vacuum pipe which has a 'T' piece which runs from vacuum pump to solenoid back to EGR valve. I have this one in the shed.

Can you confirm your engine and year of manufacture.

Kenny

[Jedders]

Hi Kenny,

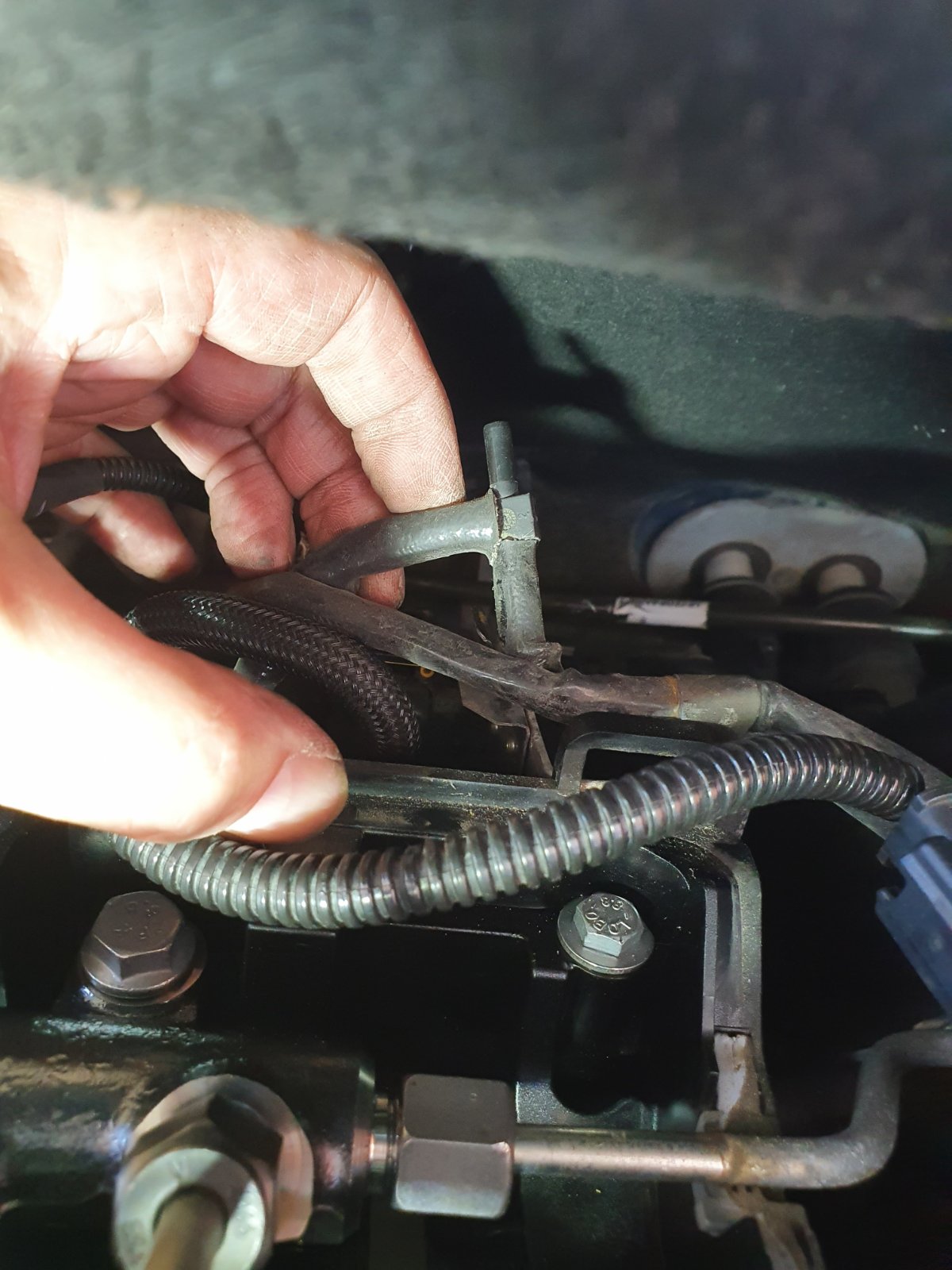

I have the pipe with the tee piece but didn't know what was connected to it. I assumed there was a missing vacuum pipe connected to the 3rd outlet of the tee but it looks like it is a blanking plug not a 3rd pipe. I've stuck a bit of tape over the end whilst a work today and the car did seem better driving home.
Thanks

[KennyW]

yes It is blanking plug, the slightest hole will cause problems.

Kenny

[Jedders]

I just need to sort the vibration now but that's another story. The thing is I very been hooked on citroen since my first Xantia and they were a lot easier to work on.
Thanks for everyone's help.

[admiral51]

Just an idle thought but would These be suitable to blank the T

Colin

[Jedders]

Hi Colin
I made one with a a dust cap and o ring
Thanks
