Mk1 Expert fan blower not working

[Wookey]

So my fan blower has stopped working. It's mid summer and we're about to head to europe for a month. There is no aircon in this van so having the fan working at least is quite important.

It's a huge pain to get out (and I suspect even worse to get back in, with a set of not-very accessible clips and having to take much of the dash off to get at things.


My real question is: how does the speed control work? It seems to be just a resistor from 0-500 Ohm (measured between fan control wire and earth) at the lever end, so is there a controller of some sort in the fan body itself?

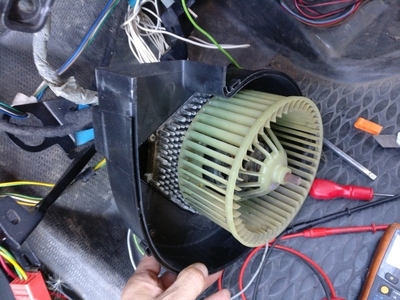

Mine looks like this:


As for the fan, It works if you put 12V on it, although I think not at full speed. But as soon as you connect the control wire it stops. Does that mean the fan unit needs replacing, or the dash slider or is something else amiss.

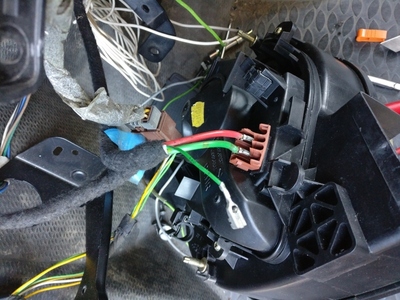

(So it works like this - connect up that green wire and it stops)

The other really weird thing is that I don't have any power on the fan power line either. I can't find any blown fuses. The diagrams say F5 is the fan interior fuse (10A), but the _feed_ to that fuse has no 12V so the problem is upstream. Apparently this comes from a relay. Is that one of the two relays next to the interior fusebox (I have a small green one and big blue one)?

Seems unlikely that I'd get two faults at once, so I've quite confused abuot what's going on here. Knowing how it was supposed to work in the first place would help.

[Wookey]

OK. So I realised that I took of more of the fan housing than I needed to - the annoying clips could have stayed on - the blower unscrews from the cowling. Oh well. I don't have a haynes for this vehicle (there wasn;t one when I bought it, only Russek and Russek only deals with mechanical stuff, not interior bits.

I've bought a new blower unit as they are only 30 quid. But it has a 3-pin plug instead of a 4-pin:

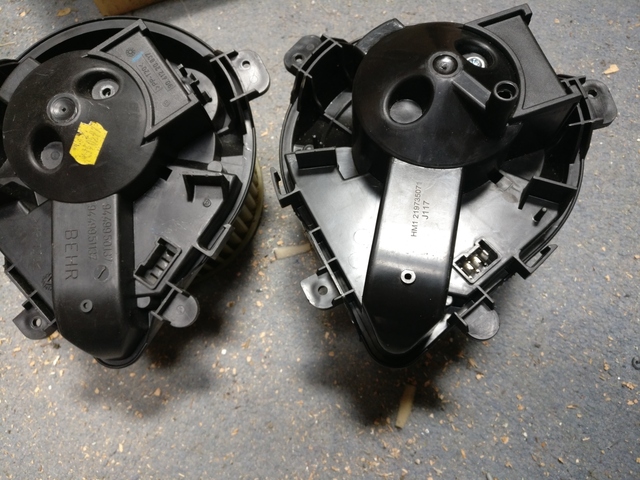

Old one on the left, new on the right

I only have 3 wires so it's probably the same electrically, but I don't know for a fact and I don't want to damage the controller by wiring it up backwards.
I could just hack the connector down and use that if I was reasonably sure this would work.
Knowing which 3 wires go to which pins on a Xantia (apparently the fan I have fits that too) would be very helpful.
I've currently got 12V in pin 1, controller wire (resistance to ground?) in pin 2 and Gnd in pin 3.

It would be really useful to know how these fans/motors/controllers work so I could work out what's going on. And it's all pretty urgent now as I'm leaving in 6 days.

I found one video online (Xsara Mk2) which is physically very similar but the controller and wiring is different: That's got a second connector and the driver transistors are visible.

My old controller is potted so I can't tell what the electronics does. Not checked the new one yet.
I presume the motor is AC or BLDC (it just goes 'clunk' if you give it 12V DC). So it's tricky to check which of the motor, controller unit, dash-speed-setter is at fault without knowing how any of them work.

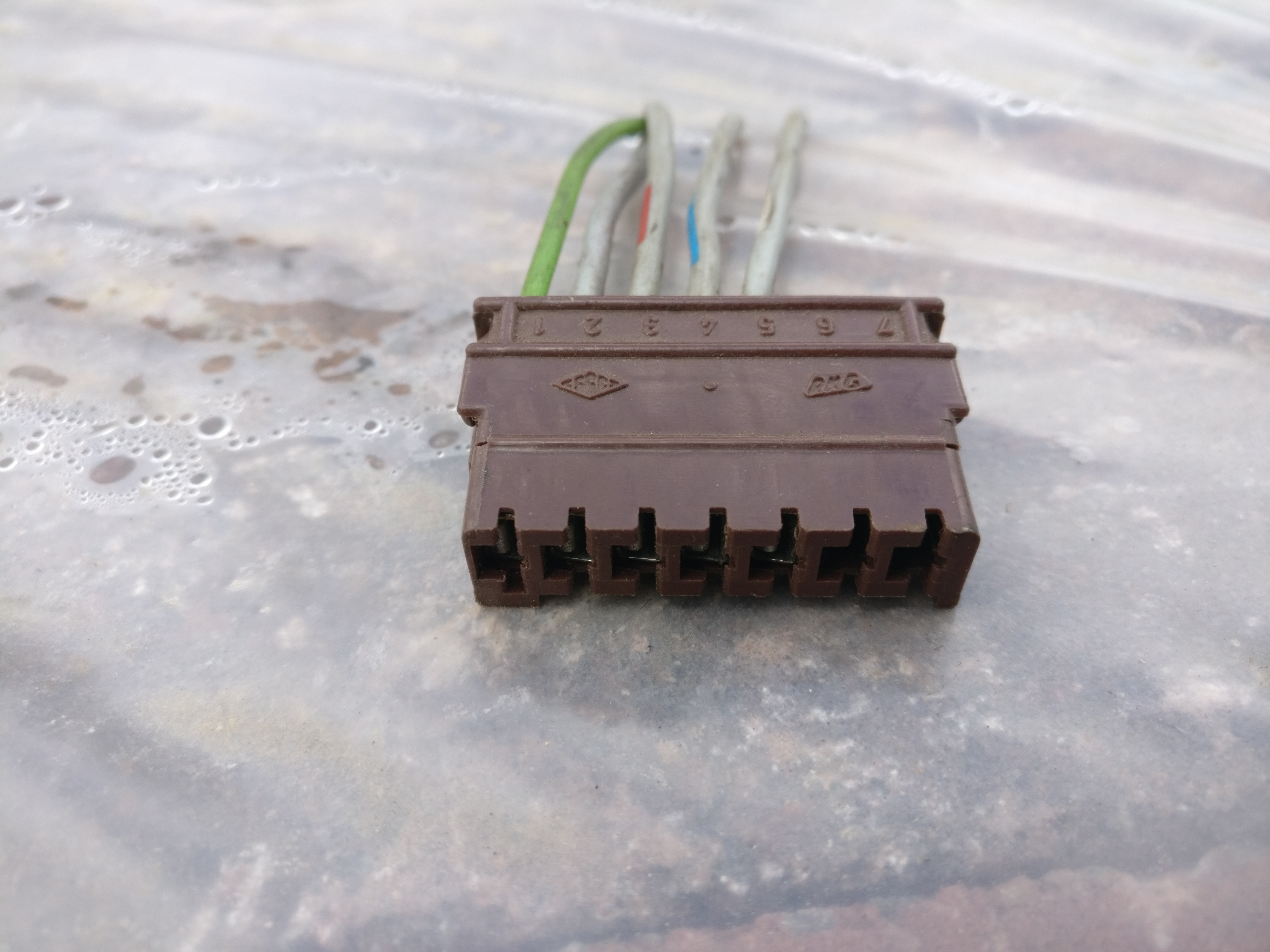

Also, what is the name of these connectors - and is it possible to buy spares?

It looks like it says 'RKG' on the right and I can't read the left logo. It might be 'SGE' in a diamond logo?

[Wookey]

Turns out the power wires for the 3-pin version are indeed the opposite way round to the 4-pin version. I can have full blast or nothing. Adding the 0-500ohm resistance to ground seems to do nothing on this one, so apparently it has a different control method too. Swapping it for a 4-pin variant tomorrow.

And I've worked after wasting an embarassing amount of time checking out wiring that the reason there is no power is that fan power is switched by the alternator D+ line so there is only fan power when the engine is on. Start the engine and power appears - so that was working exactly as intended. You'd think I would have noticed over 20 years of owning this van that the blower only works when it was running, but apparently it never impinged on my consciousness.

[Wookey]

This morning I got hold of the 4-pin version. And lo-and-behold, you plug it in, start the engine, and it all 'just works'. So the 3-pin version has both opposite power sense _and_ a a different control mechanism to the 4-pin (3 wire) version. Obviously!
Well that was a massive palaver, but it was indeed the blower controller inside the blower that had died. And a whole new blower is half the price (£33 (ECP) for the 4-pin one) of a replacement controller alone (£67 (ebay)).

So now I can drive across France in next week's heatwave (34C) with only some misery

I'd still like to know where to get those brown connectors from, or at least what they are, because I've chopped one end off mine now.

[Wookey]

So the saga continues. The new blower lasted 4 days of our month-long European trip (in the boiling heat!), so we've mostly been driving at night with the windows open to avoid getting cooked. But of course you also need a blower for removing condensation if it's cold. We tried to buy one in France, but Peugeot wanted €404 (!) for one. So we tried a local car-parts place and they wanted €310. They couldn't believe we only paid £33 in the UK (OK, on special and reduced from ~£70). EuroCarParts were very helpful and happy to give us another one when we got back, so knowing that we could spend nothing (rather than 300-400 euro) meant we decided to put up with it.

However I've now swapped the unit at ECP but the new one doesn't seem to want to work either! It's just dead. Nightmare.
Have I got yet another duff one? Seems unlikely. Is something else wrong? (there isn't much to go wrong with 3 wires: 0V, 12V (when engine on), 500K resistor)

I really need to know how these things are supposed to work so I can work out what the hell is going on. Maybe these blowers are £33 for a reason, and are a bit crap!
I can buy a new controller for the same money: https://www.ebay.co.uk/itm/224454275371
so maybe I should give that a go.

I'll try digging out the controller potting in the original motor and do some more experiments but it would help a lot if someone could confirm that the control mechanism really is 0-500K resistance to 0V or is it supposed to be a voltage divider and it;s actually voltage control?
And any knowledge of what's inside that potting, which I guess is something like the unpotted version shown in this video:


And I think this comment there may explain the difference between the 3-pin and 4-pin version
Longo: 4 years ago (edited)
It Chinese board work but not how you expect.The whole signal-control logic is inverted.On OEM part you have 0v on control pint then motor is on it max speed., 12V or more make motor to stop (OFF position)
Here you need 12V over the control pin to run it max.
Can be used , but with one NOT logic created using transistor or just by replacing them transistors on oem board you will get problem fixed easy.
If mine got broken will change that stupid circuit with one done by FET and PWM

[Grose1]

Hello! I'm having the same problem but the blower is not working at all
Did you manage to have this working?

[Wookey]

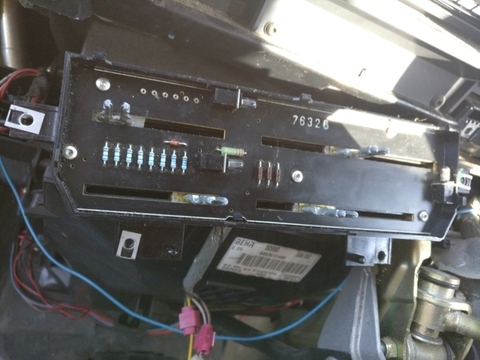

Yes. I did get it working eventually. But I can't remember what the secret was in the end. I remember I had to take the central fan control console apart and change things around. I think that was because I had burnt out one of the resistors.
