Hi All

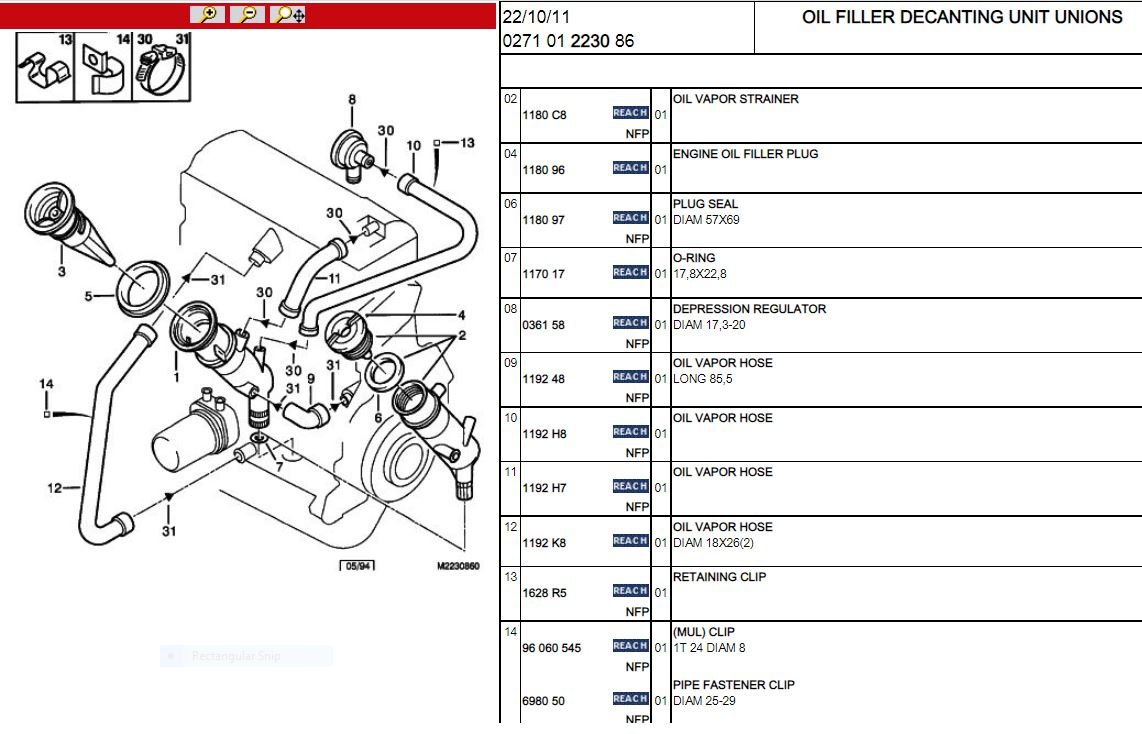

Would anyone have a diagram showing the parts which make up the oil filler neck for a 1997 Citroen XM 2.1 XUD11BTE ?
Seem to have a lot of oil running down the front of the engine but not sure where all the seals/gaskets etc are
thanks
Request for Citroen XM oil filler diagram
-
wesacosa
- (Donor 2021)
- Posts: 101
- Joined: 04 May 2021, 17:34
- x 3
-
white exec
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- x 1751
