XM 11 XUD11BTE Camshaft

Unread post by wesacosa »

Hi All
would anyone happen to have the diagram showing the cam cover bolts for a 1997 XM 2.1 XUD11BTE
I can't remember which position takes the bolt and which position takes the three studs
thanks
Last edited by GiveMeABreak on 16 Jan 2022, 16:00, edited 1 time in total.
Reason: Moved Out of Parts Request to Technical Forum
Top
User avatar
GiveMeABreak
(Donor 2016)
Posts: 41989
Joined: 15 Sep 2015, 19:38
x 6963

Re: XM 11 XUD11BTE Camshaft

Unread post by GiveMeABreak »

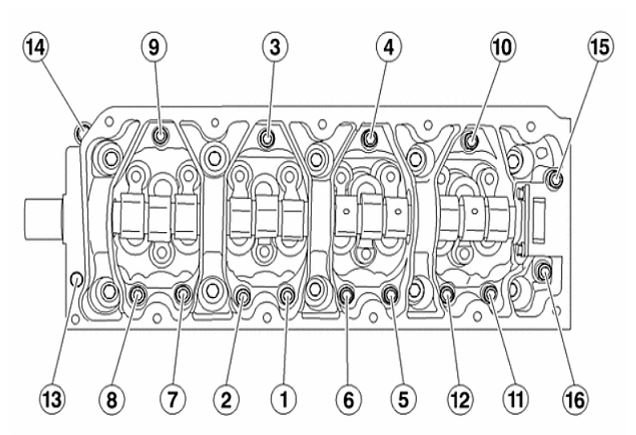

Any good?
XM Cam.JPG
Please note, I'm no longer active on the Forum, so won't respond to messages.

Marc
Top
RichardW
Forum Treasurer
Posts: 12531
Joined: 07 Aug 2002, 17:12
x 1472

Re: XM 11 XUD11BTE Camshaft

Unread post by RichardW »

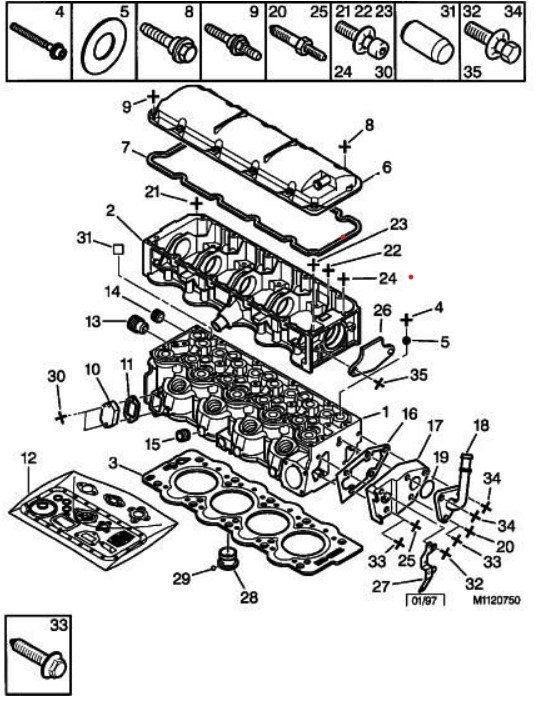

Parts database is not helpful...
21td cam.jpg
9 is stud and 8 is bolt. There are presumably things that attach on top so you should be able to work out where to put them.
Richard W
Top
User avatar
white exec
Posts: 7445
Joined: 21 Dec 2015, 12:46
x 1751

Re: XM 11 XUD11BTE Camshaft

Unread post by white exec »

Wes,
Ask the QQ on XM Forum - any number of 2.1 owners there would have a look at their cam cover for you.
Chris
Top
wesacosa
(Donor 2021)
Posts: 101
Joined: 04 May 2021, 17:34
x 3

Re: XM 11 XUD11BTE Camshaft

Unread post by wesacosa »

thanks all. I think I figured it out. Two seem to be studs which don't have attachments,. but my confusion was because I thought a pipe clip went on a cam cover bolt but turned out it went on one of the inlet manifold fixings.
