pinout of a electronic throttle body of a Citroen C3 60kW 12V VTi

Unread post by jlcortex »

Hello,

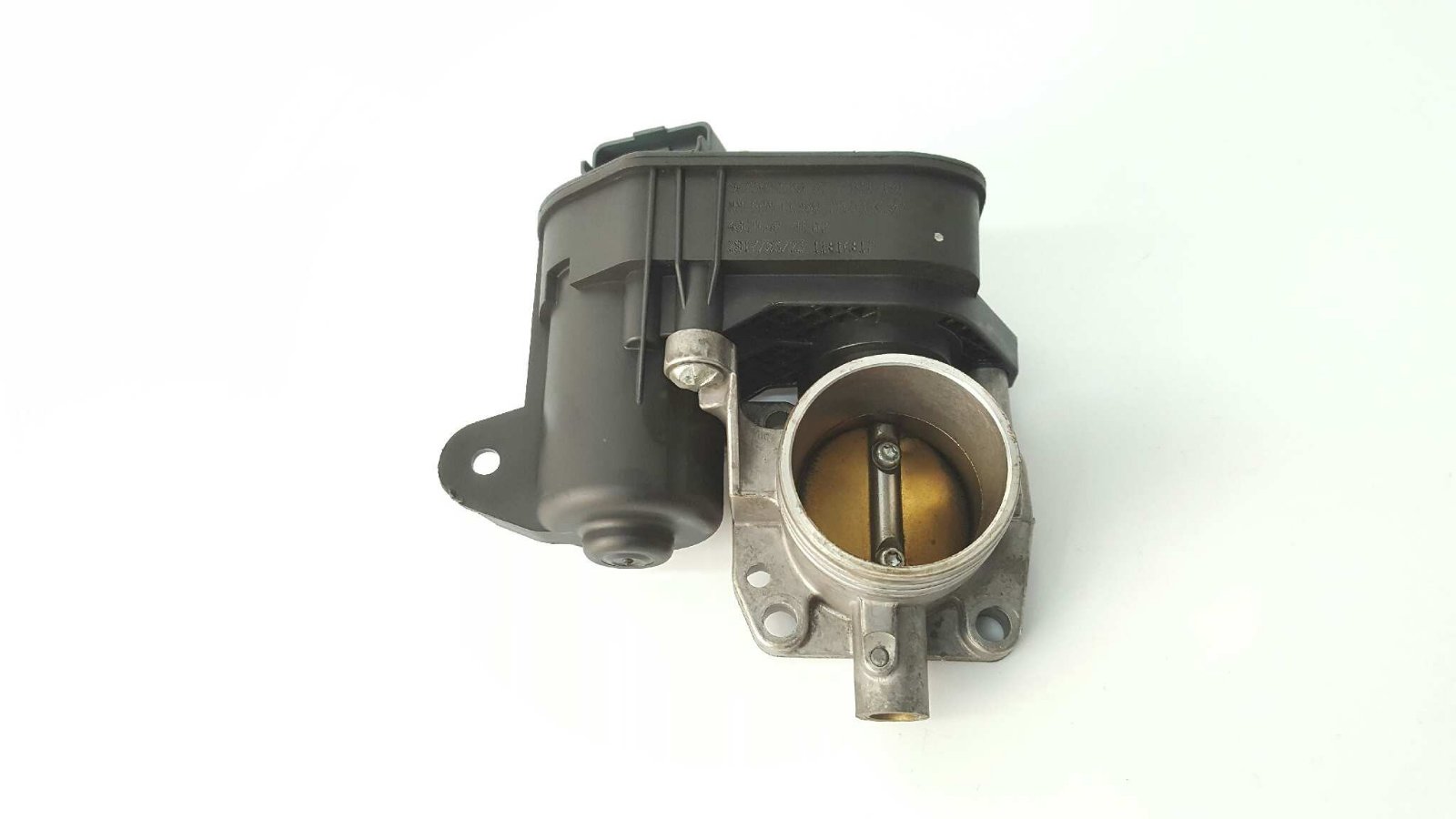

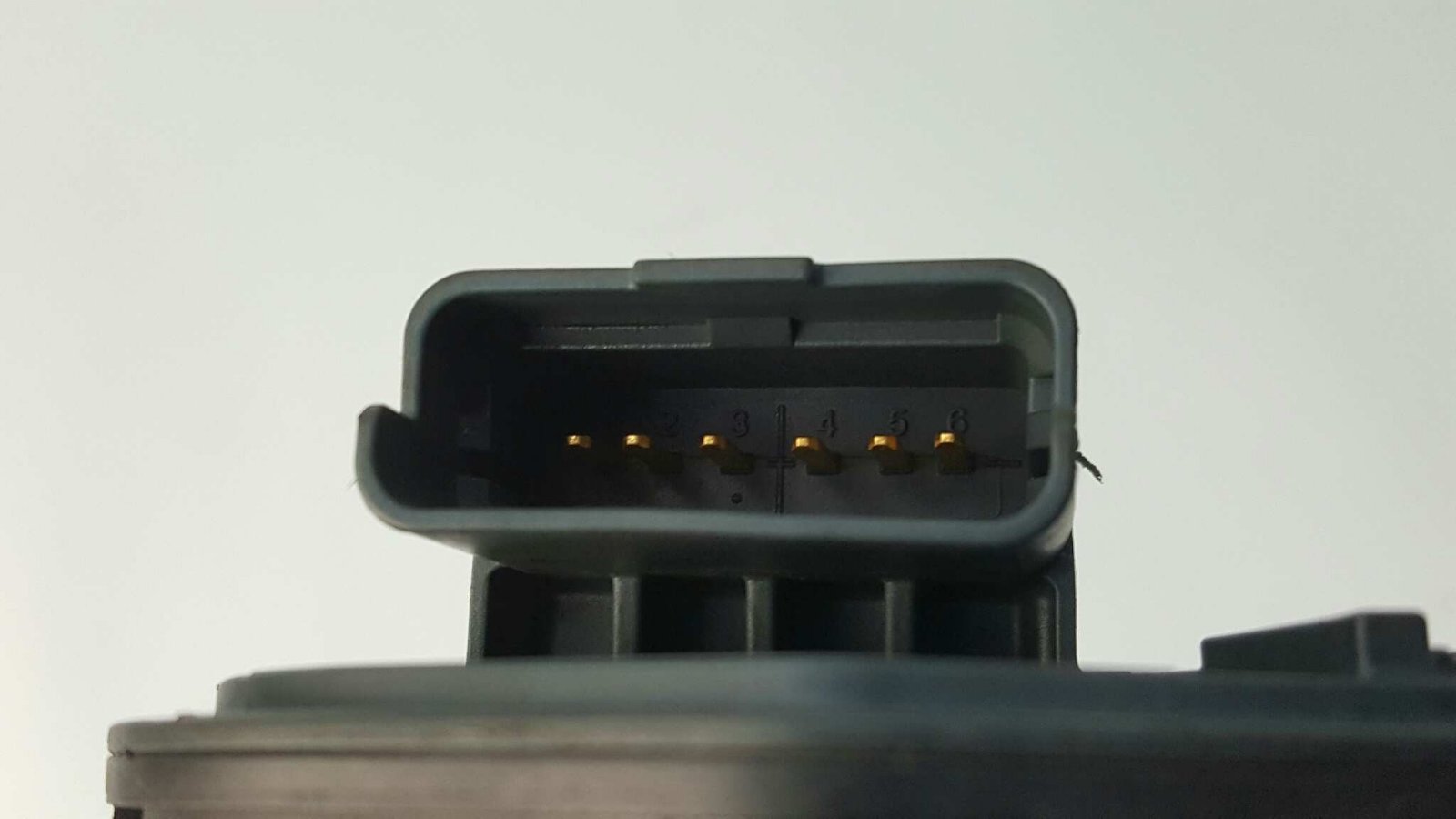

I am trying to find the pinout of a electronic throttle body of a Citroen C3 60 kW 12V VTi
The reference of the part is 9673622380.

Or someone have the electric wiring diagram?

Thanks
jlcortex
