BX air-con TXV

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

User avatar
white exec
Moderating Team
Posts: 7007
Joined: 21 Dec 2015, 13:46
x 1321

BX air-con TXV

Post by white exec »

My turn to ask for some help, as I'm drawing a bit of a blank on this one...

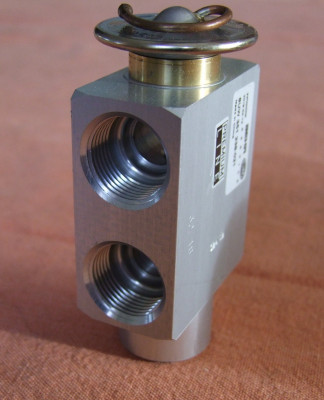

Am renovating the A/C system on the BX19D, VIN VF7**************[VIN obfuscated, can be read by forum staff], and have obtained a new thermal expansion valve (TXV), which attaches to the cabin evaporator.
.
Part no. is 6461.J3, which is NFP from Citroen, so have laid in an identical Mahle Behr AVE87000P.

Problem is the valve needs four O-rings (of two sizes) to attach, and these didn't come with the new valve.
Parts shows the valve, but not its O-rings (only those for the two engine-bay hoses).

I need the sizes of these rings.
The valve's manufacturer (Egelhof - it's their TCD2 / 320300S) says the O-rings are vehicle specific.
Citroen tech Coventry can't locate anything.
BXClub haven't turned up anything yet.

Measuring the new valve's grooves is a bit inconclusive, as there are several recesses, and there's a risk of damaging the soft aluminium surface of the seatings.

I guess the O-ring sizes must have been in a TSB, at some point?
Or maybe someone here has done the job?

Any help would be really appreciated.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 24382
Joined: 15 Sep 2015, 19:38
x 2667

Re: BX air-con TXV

Post by GiveMeABreak »

Not sure if this will help Chris, but these people have the valves - clicking on the magnifying glass brings up some other info - but it may be useful if you contact them as I would of thought they would know which ones you need.

https://www.swisclima.ch/en/fans/g/4010/m/40181

User avatar
white exec
Moderating Team
Posts: 7007
Joined: 21 Dec 2015, 13:46
x 1321

Re: BX air-con TXV

Post by white exec »

Hi Marc,
Yes, it helps a lot, and confirms the unit I've already bought should be the correct one.
Have now contacted them to see whether they can supply its O-rings, or know the sizes.
Much appreciated.

User avatar
white exec
Moderating Team
Posts: 7007
Joined: 21 Dec 2015, 13:46
x 1321

Re: BX air-con TXV

Post by white exec »

You turned up trumps there, Marc.
The Swiss came back by email within a couple of hours, and quoted all three ring sizes for the valve, which turn out to be included in a 280-ring HNBR box-set on Amazon.
The sizes correspond nicely with one of the groove positions in the valve.
Jaba on BXClub also turns out to have done the TXV job before, and has offered to confirm the sizings.

There are times, you know, when we can tell Citroen a thing or two... :chin:
A full write up of this slightly obscure job (TXV replacement) will get done.

admiral51
Donor 2021
Posts: 2273
Joined: 24 May 2007, 10:11
x 279

Re: BX air-con TXV

Post by admiral51 »

Experience and knowledge is priceless ( well maybe a tenner at most ) which sums up this forum as what it was designed for :)

Cracking result and it will help others on different forums.

Big up to the Swiss company for a quick reply and with details need to mark them up as a good one

User avatar
GiveMeABreak
Forum Admin Team
Posts: 24382
Joined: 15 Sep 2015, 19:38
x 2667

Re: BX air-con TXV

Post by GiveMeABreak »

Great news Chris, pleased that is one less hassle for you 👍
