Xantia Bulkhead Connector IC01

Post by Renanek9 »

Hello!

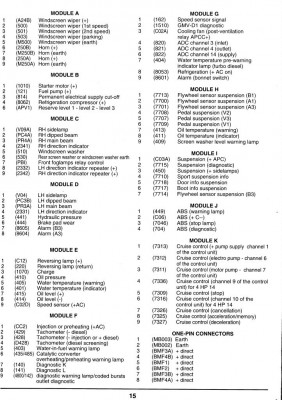

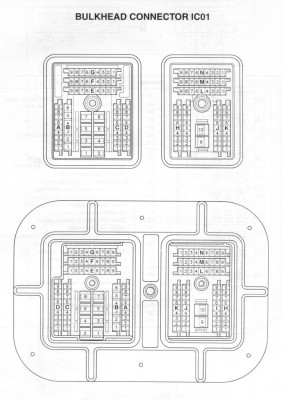

I´ve found this Bulkhead Connector (IC01) pinout diagram. I believe this is from a Phase 1 Xantia model.
Can anyone help to provide a good image for the same IC01 connector for the Phase 2 (V6 activa model, if needs to be specific, i don´t know)

Just to make sure that i will follow the correct diagram to solve my problem

Thank you very much!

Renanek9
Posts: 10
Joined: 20 Apr 2021, 18:29

Re: Xantia Bulkhead Connector IC01

Post by Renanek9 »

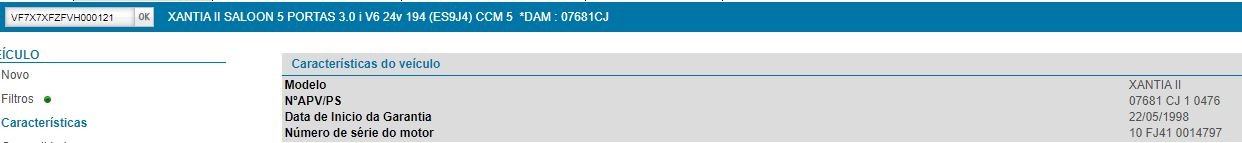

Maybe this help to help me =)

User avatar
white exec
Moderating Team
Posts: 6946
Joined: 21 Dec 2015, 13:46
x 1253

Re: Xantia Bulkhead Connector IC01

Post by white exec »

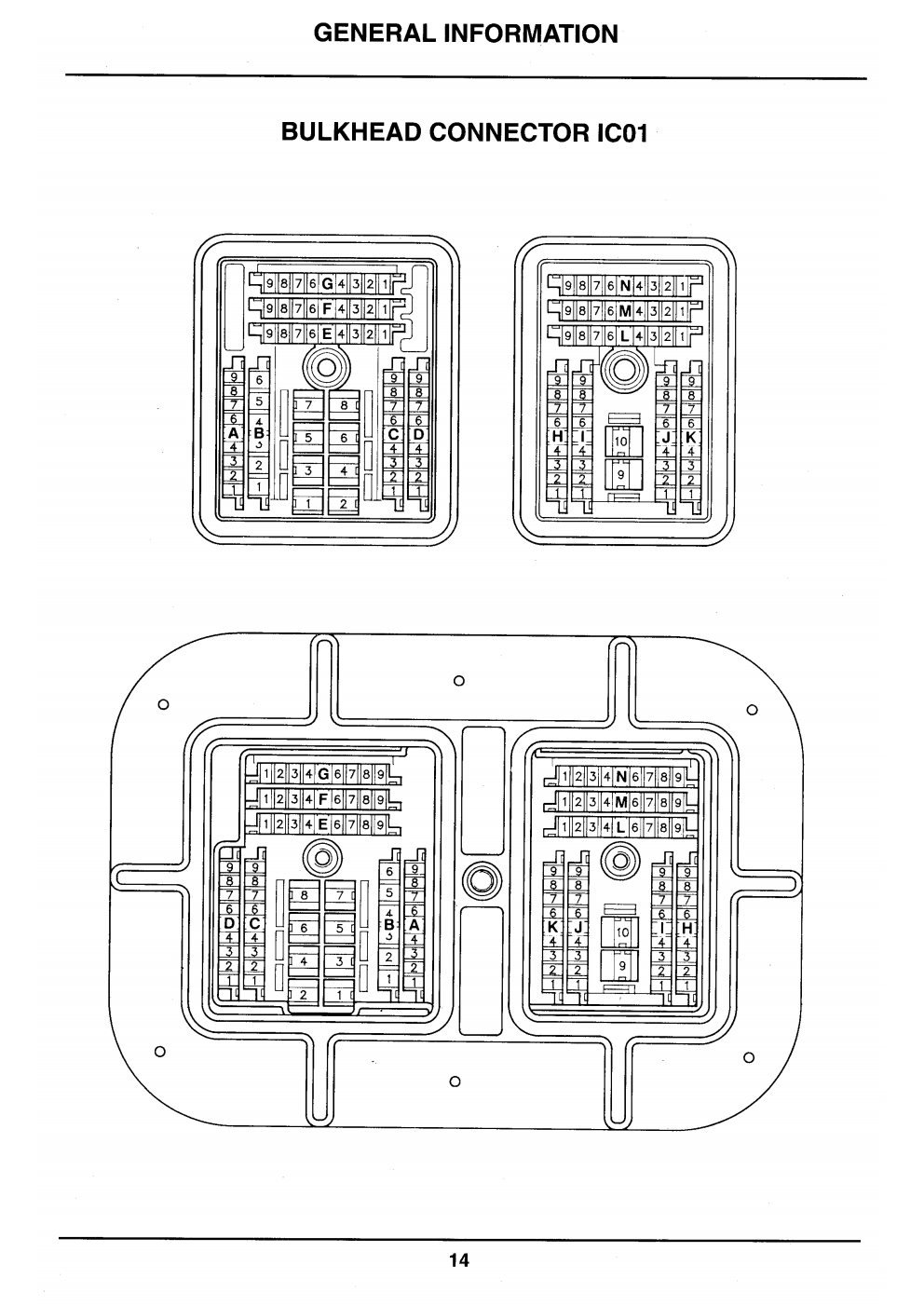

IC01 p.01.jpg

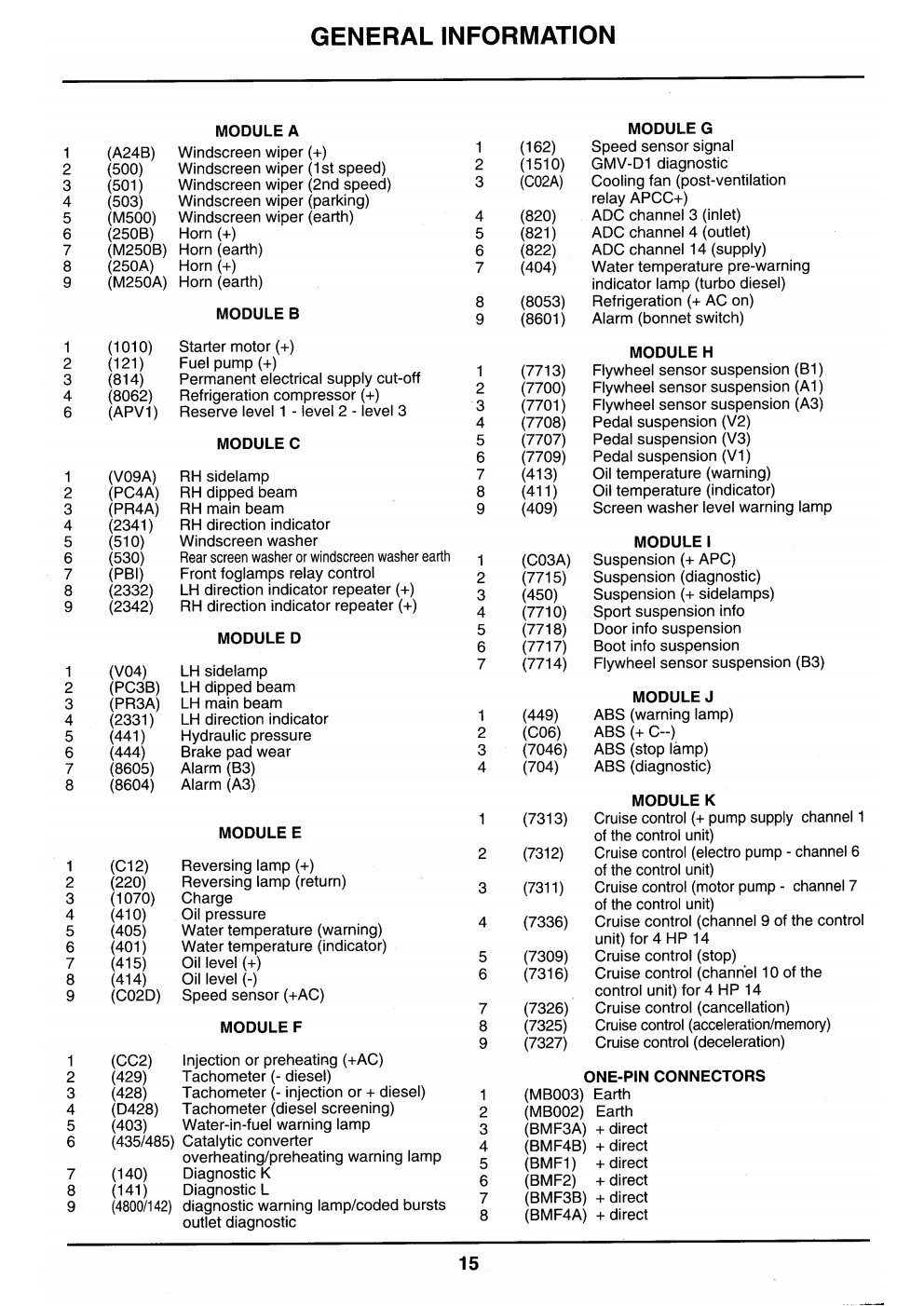

IC01 p.02.jpg
Source: Xan EWD BRE0312 Vol.1 pp14-15 IC01 bulkhead connector

User avatar
white exec
Moderating Team
Posts: 6946
Joined: 21 Dec 2015, 13:46
x 1253

Re: Xantia Bulkhead Connector IC01

Post by white exec »

Renanek9 wrote:
11 Jun 2021, 00:03
Maybe this help to help me =)

Yes, it does! Add your RP number (7681) to your profile or signature. Will help for future reference. :)

Renanek9
Posts: 10
Joined: 20 Apr 2021, 18:29

Re: Xantia Bulkhead Connector IC01

Post by Renanek9 »

white exec wrote:
11 Jun 2021, 07:46
Source: Xan EWD BRE0312 Vol.1 pp14-15 IC01 bulkhead connector
Chris thank you very much! You helped me on 2 topics already.

Thank you a lot!

Renanek9
Posts: 10
Joined: 20 Apr 2021, 18:29

Re: Xantia Bulkhead Connector IC01

Post by Renanek9 »

white exec wrote:
11 Jun 2021, 08:02
Yes, it does! Add your RP number (7681) to your profile or signature. Will help for future reference. :)
Thanks for the tip! Added
