Part no for trim undertray section

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

C5-NON
Donor 2020
Posts: 51
Joined: 26 May 2020, 21:28
x 1

Part no for trim undertray section

Post by C5-NON »

Could anyone share the part no for the little section of undertray that joins onto the main undertray at front and clips to along bottom of front wing (driver side).

thanks

User avatar
GiveMeABreak
Forum Admin Team
Posts: 22607
Joined: 15 Sep 2015, 19:38
x 2341

Re: Part no for trim undertray section

Post by GiveMeABreak »

Let me know the item numbers for the parts you want the info for:

C5-NON
Donor 2020
Posts: 51
Joined: 26 May 2020, 21:28
x 1

Re: Part no for trim undertray section

Post by C5-NON »

Thanks Marc, I did buy item 3, however mechanic said there’s nothing there to clip the bottom of the wing to? Is there a part that is not in that diagram that goes on the bottom of the front wings (the holes are there in the wing) but not holes in part 3?

User avatar
GiveMeABreak
Forum Admin Team
Posts: 22607
Joined: 15 Sep 2015, 19:38
x 2341

Re: Part no for trim undertray section

Post by GiveMeABreak »

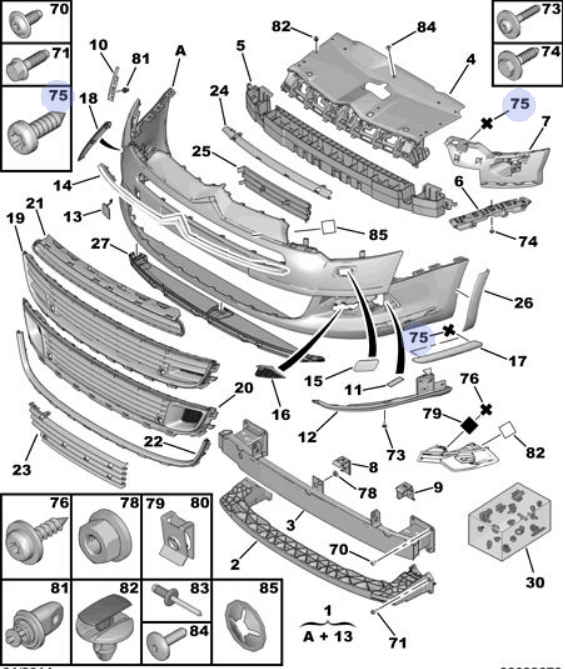

Here is the front bumper detail - but with so many parts I can't help further without a photo really:

User avatar
GiveMeABreak
Forum Admin Team
Posts: 22607
Joined: 15 Sep 2015, 19:38
x 2341

Re: Part no for trim undertray section

Post by GiveMeABreak »

And here for the Wing:

C5-NON
Donor 2020
Posts: 51
Joined: 26 May 2020, 21:28
x 1

Re: Part no for trim undertray section

Post by C5-NON »

It looks like it might be part 12 on the front bumper diagram. Can’t tell from the diagram of it has holes in for clipping to the front bumper directly under the front of the wing and then to the undertray ?

User avatar
GiveMeABreak
Forum Admin Team
Posts: 22607
Joined: 15 Sep 2015, 19:38
x 2341

Re: Part no for trim undertray section

Post by GiveMeABreak »

Item (12) is the Front Bumper Deflector: £40.28 Part No: 7414YA
Have a look here on this ebay link, it has better photos of the part with the holes so you can see:

https://www.ebay.co.uk/c/24014326008

C5-NON
Donor 2020
Posts: 51
Joined: 26 May 2020, 21:28
x 1

Re: Part no for trim undertray section

Post by C5-NON »

Thanks Marc, been a great help, I think that’s the part, but the Driver side I need, is it different part no?

User avatar
GiveMeABreak
Forum Admin Team
Posts: 22607
Joined: 15 Sep 2015, 19:38
x 2341

Re: Part no for trim undertray section

Post by GiveMeABreak »

There's no separate part listed for left and right - so I suspect these are a set as per the diagram in my last post - which shows the 2 of them when the part is zoomed up.
