Xantia HDi Front Offside Hydraulic Pipe

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
Rhothgar
Donor 2023
Posts: 1758
Joined: 22 Nov 2004, 00:21
Location: Nottingham - UK
My Cars: 2013 Peugeot 3008 Allure 1.6HDi - FD63 FWA VF3**************[VIN obfuscated, can be read by forum staff]
1995 Citroen Xantia 1.9TD S1 - M728 GDL VF7**************[VIN obfuscated, can be read by forum staff]
1996 Citroen Xantia 1.9TD SX S1 - N707 MGP (Currrently laid up)
2000 Citroen Xantia 2.0 HDi S2 - X435 JGJ VF7**************[VIN obfuscated, can be read by forum staff] (Clutch died Dec 2017 - Resurrected Easter Sunday 2021)
1997 Citroen ZX SX TD - P788 AJL
1959 Landrover Defender S2 - Two owners from new
1968 Triumph Vitesse Convertible 2.0
1980 Ford Escort RS2000 Customer - 2nd Owner
1988 Saab 900 T16S - A 1980's exercise in understated Hooliganism...
Oh! and two Harley Davidsons - A 1990 Sportster and a 2003 Fatboy 100th Anniversary (the only vehicle I have owned from new)
x 78

Xantia HDi Front Offside Hydraulic Pipe

Post by Rhothgar »

Hi

No rush as it's a job I don't relish. It may be NFP or exorbitantly expensive in which case the brazing skills which I don't have will have to be employed...

When changing the oil the other week, I noticed what appeared to be a weep from the hydraulic pipe which goes under the offside wheelarch at its highest point.

Presumably it's the feed pipe to the offside strut though I'm not 100% clear if there is only one pipe in that area?
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Xantia HDi Front Offside Hydraulic Pipe

Post by white exec »

Would this be the brake pipe, or the steel section of the fluid return pipe from the front strut?
Chris
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Xantia HDi Front Offside Hydraulic Pipe

Post by GiveMeABreak »

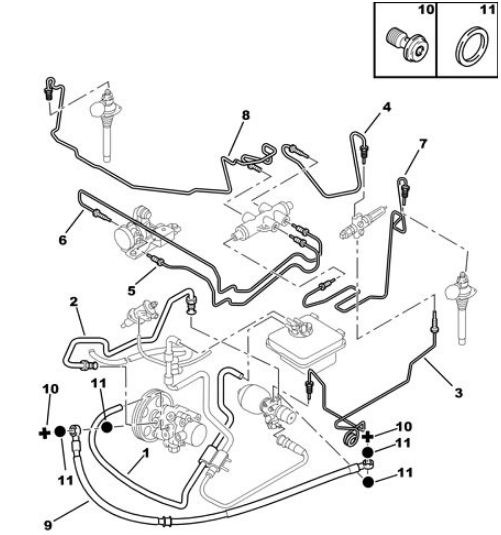

Here's the frons suspension supply piping for your Xantia:
Roth Pipes.PNG
If it's one of these let us know the item number, so we can get you the part number.

VIN: VF7**************[VIN obfuscated, can be read by forum staff] for Chris in case I'm out later.
Please Don't PM Me For Technical Help

Marc
Rhothgar
Donor 2023
Posts: 1758
Joined: 22 Nov 2004, 00:21
Location: Nottingham - UK
My Cars: 2013 Peugeot 3008 Allure 1.6HDi - FD63 FWA VF3**************[VIN obfuscated, can be read by forum staff]
1995 Citroen Xantia 1.9TD S1 - M728 GDL VF7**************[VIN obfuscated, can be read by forum staff]
1996 Citroen Xantia 1.9TD SX S1 - N707 MGP (Currrently laid up)
2000 Citroen Xantia 2.0 HDi S2 - X435 JGJ VF7**************[VIN obfuscated, can be read by forum staff] (Clutch died Dec 2017 - Resurrected Easter Sunday 2021)
1997 Citroen ZX SX TD - P788 AJL
1959 Landrover Defender S2 - Two owners from new
1968 Triumph Vitesse Convertible 2.0
1980 Ford Escort RS2000 Customer - 2nd Owner
1988 Saab 900 T16S - A 1980's exercise in understated Hooliganism...
Oh! and two Harley Davidsons - A 1990 Sportster and a 2003 Fatboy 100th Anniversary (the only vehicle I have owned from new)
x 78

Re: Xantia HDi Front Offside Hydraulic Pipe

Post by Rhothgar »

white exec wrote: 14 Sep 2020, 10:59 Would this be the brake pipe, or the steel section of the fluid return pipe from the front strut?
I was going to say that I’ve no idea.

But your question combined with the piccy Marc sent now leads me to believe it is a return pipe.

Please Marc can I have some more? I’m pretty sure it will be the low pressure side.
Rhothgar
Donor 2023
Posts: 1758
Joined: 22 Nov 2004, 00:21
Location: Nottingham - UK
My Cars: 2013 Peugeot 3008 Allure 1.6HDi - FD63 FWA VF3**************[VIN obfuscated, can be read by forum staff]
1995 Citroen Xantia 1.9TD S1 - M728 GDL VF7**************[VIN obfuscated, can be read by forum staff]
1996 Citroen Xantia 1.9TD SX S1 - N707 MGP (Currrently laid up)
2000 Citroen Xantia 2.0 HDi S2 - X435 JGJ VF7**************[VIN obfuscated, can be read by forum staff] (Clutch died Dec 2017 - Resurrected Easter Sunday 2021)
1997 Citroen ZX SX TD - P788 AJL
1959 Landrover Defender S2 - Two owners from new
1968 Triumph Vitesse Convertible 2.0
1980 Ford Escort RS2000 Customer - 2nd Owner
1988 Saab 900 T16S - A 1980's exercise in understated Hooliganism...
Oh! and two Harley Davidsons - A 1990 Sportster and a 2003 Fatboy 100th Anniversary (the only vehicle I have owned from new)
x 78

Re: Xantia HDi Front Offside Hydraulic Pipe

Post by Rhothgar »

GiveMeABreak wrote: 14 Sep 2020, 11:23 Here's the frons suspension supply piping for your Xantia:


If it's one of these let us know the item number, so we can get you the part number.

VIN: VF7**************[VIN obfuscated, can be read by forum staff]**************[VIN obfuscated, can be read by forum staff] for Chris in case I'm out later.
Sorry. Forgot VIN. Nice one Marc.

That picture gives me no clue See response to Chris (unless you’re out sunning yourself!) 👍🏻
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Xantia HDi Front Offside Hydraulic Pipe

Post by white exec »

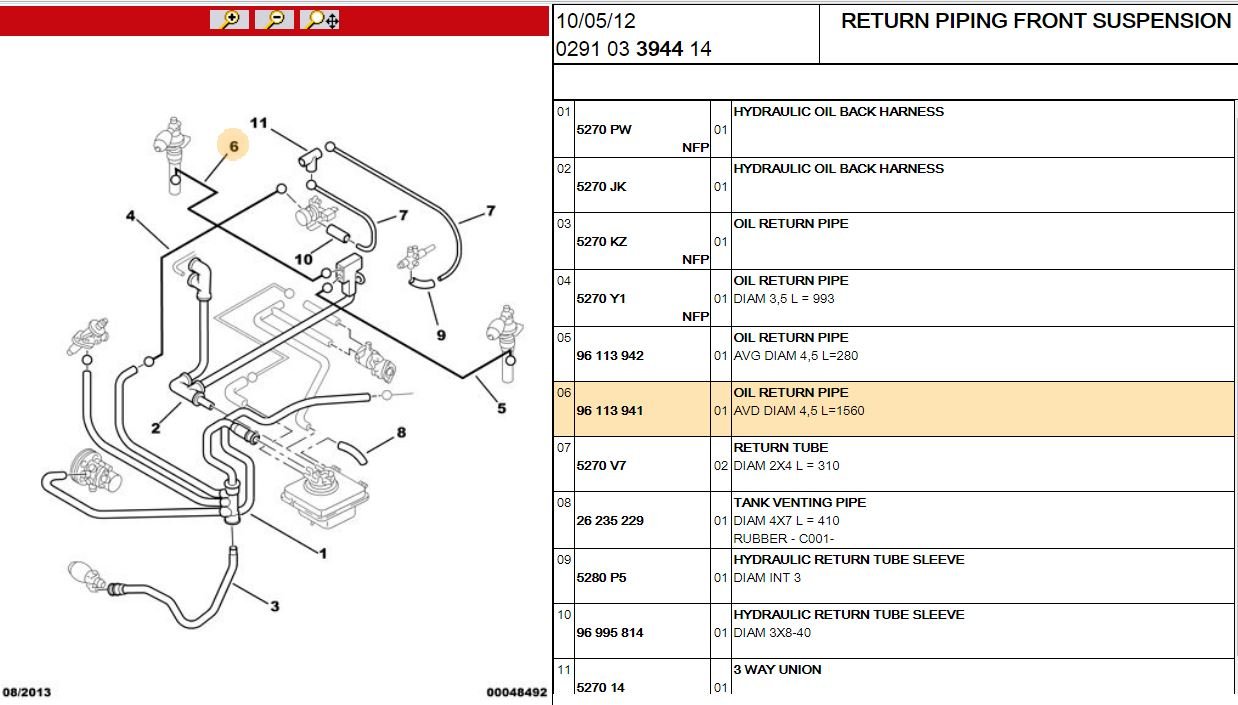

This is the part, for the return piping . . .
