Rear puddle lights

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Steveo
Posts: 84
Joined: 31 Dec 2019, 21:05
x 10

Rear puddle lights

Post by Steveo »

Hi all
Hope everyone is OK!
I've just completed replacing all the interior bulbs to led, I now have nice crisp white illumination.
I am however missing rear puddle lights the door cards have not been cut out for the lamp holders.
So I was wondering if anyone who has a 2009 C5 vtr+ has removed the door cards and found the wiring plug for the above lights or would it be possible to remove the rear door loom connector to see if the pins are populated (if I knew which pins they were lol)
I don't really want to remove the door card if there is no chance of the plug/wiring being there.

Any assistance would be welcome
Regards
Steve

User avatar
GiveMeABreak
Forum Admin Team
Posts: 20364
Joined: 15 Sep 2015, 19:38
x 2010

Re: Rear puddle lights

Post by GiveMeABreak »

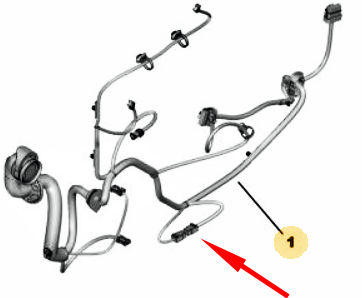

With specific reference to your rear door electrical harness, it is the same as mine, which has the rear sill lights in the rear doors. So your wiring will be there as you can see from the diagram - the connection for the lighting unit should be the one I have arrowed.

Steveo
Posts: 84
Joined: 31 Dec 2019, 21:05
x 10

Re: Rear puddle lights

Post by Steveo »

Hi Marc
I will take the door card off over the weekend if there's a chance the harness and plug is there
Thank you
Regards
Sreve
