Guide pins

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.
V8Sam
Posts: 14
Joined: 24 Feb 2020, 18:07

Guide pins

Unread post by V8Sam »

The guide pins I have ate differ from each other, 2 of one type and 2 if another

Anyone know what pin goes where?

I'm assuming one for top one for bottom.and not 2 for left and 2 for right
Attachments
Top
User avatar
Paul-R
Moderating Team
Posts: 8966
Joined: 07 May 2009, 16:24
x 1865

Re: Guide pins

Unread post by Paul-R »

What are they guiding?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson
Top
V8Sam
Posts: 14
Joined: 24 Feb 2020, 18:07

Re: Guide pins

Unread post by V8Sam »

Brake calipers.
Top
User avatar
white exec
Posts: 7445
Joined: 21 Dec 2015, 12:46
x 1750

Re: Guide pins

Unread post by white exec »

Think you'll need to post your VIN, so we can look at a parts diagram.
Chris
Top
User avatar
GiveMeABreak
(Donor 2016)
Posts: 41989
Joined: 15 Sep 2015, 19:38
x 6955

Re: Guide pins

Unread post by GiveMeABreak »

These kits are specific to the vehicle. Each caliper has a top and bottom pin - but as for the difference it will likely depend on the caliper type as to what is in the kit and how they are fitted.
Please note, I'm no longer active on the Forum, so won't respond to messages.

Marc
Top
V8Sam
Posts: 14
Joined: 24 Feb 2020, 18:07

Re: Guide pins

Unread post by V8Sam »

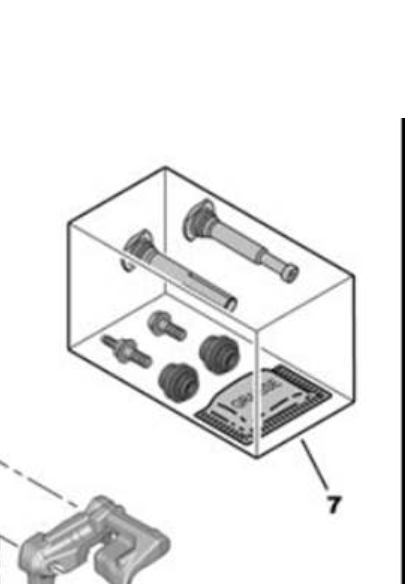

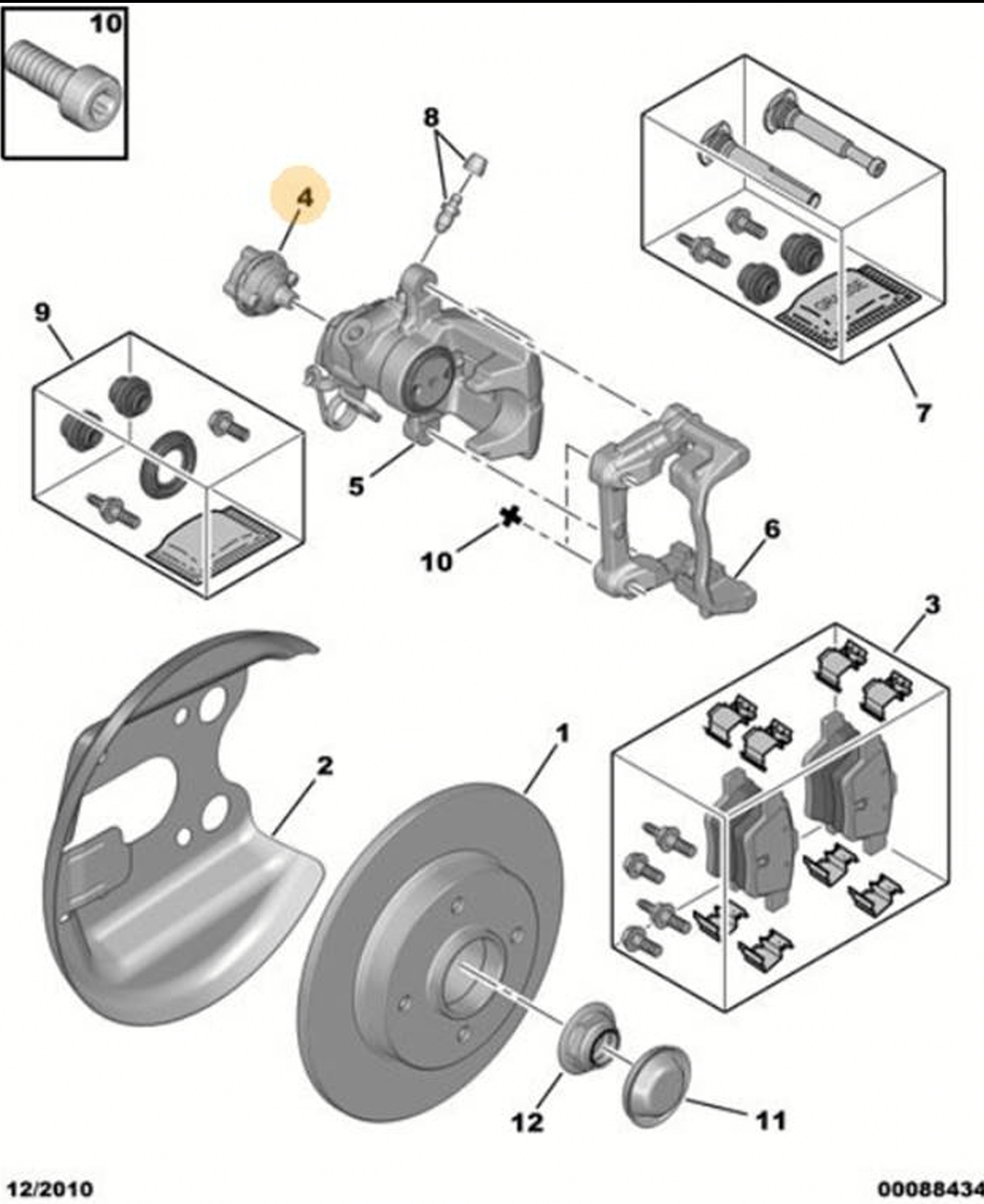

Full image.

Bosh type rear brakes.

Not sure if the one on the left is for the top or the one on the right.
Attachments
Top
