Protector Down Motor

This is the Forum for all your DS Automobiles Technical Questions, Problems or Advice.

Moderator: RichardW

JINETE
Posts: 28
Joined: 19 Feb 2020, 11:42

Protector Down Motor

Post by JINETE »

Very good Señori@s, I need to know the part and reference of the protector under engine and what is very deteriorated , my VIN number is VF7**************[VIN obfuscated, can be read by forum staff].

User avatar
GiveMeABreak
Forum Admin Team
Posts: 22667
Joined: 15 Sep 2015, 19:38
x 2348

Re: Protector Down Motor

Post by GiveMeABreak »

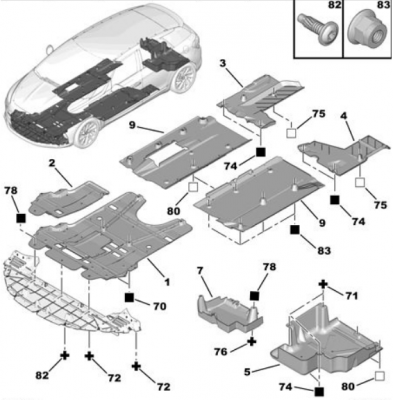

Tell me which numbers on the diagram you need the part number for:
Engine Protection.PNG

JINETE
Posts: 28
Joined: 19 Feb 2020, 11:42

Re: Protector Down Motor

Post by JINETE »

The piece in particular is the central one that marks him number 1 or 70 and 78 thanks

User avatar
GiveMeABreak
Forum Admin Team
Posts: 22667
Joined: 15 Sep 2015, 19:38
x 2348

Re: Protector Down Motor

Post by GiveMeABreak »

Number (1) is the Engine and Gearbox Sound Proofing and is part: 9675053180

(70) & (78) are the fixing clips

(7) Is the air deflector, part: 9804495180

JINETE
Posts: 28
Joined: 19 Feb 2020, 11:42

Re: Protector Down Motor

Post by JINETE »

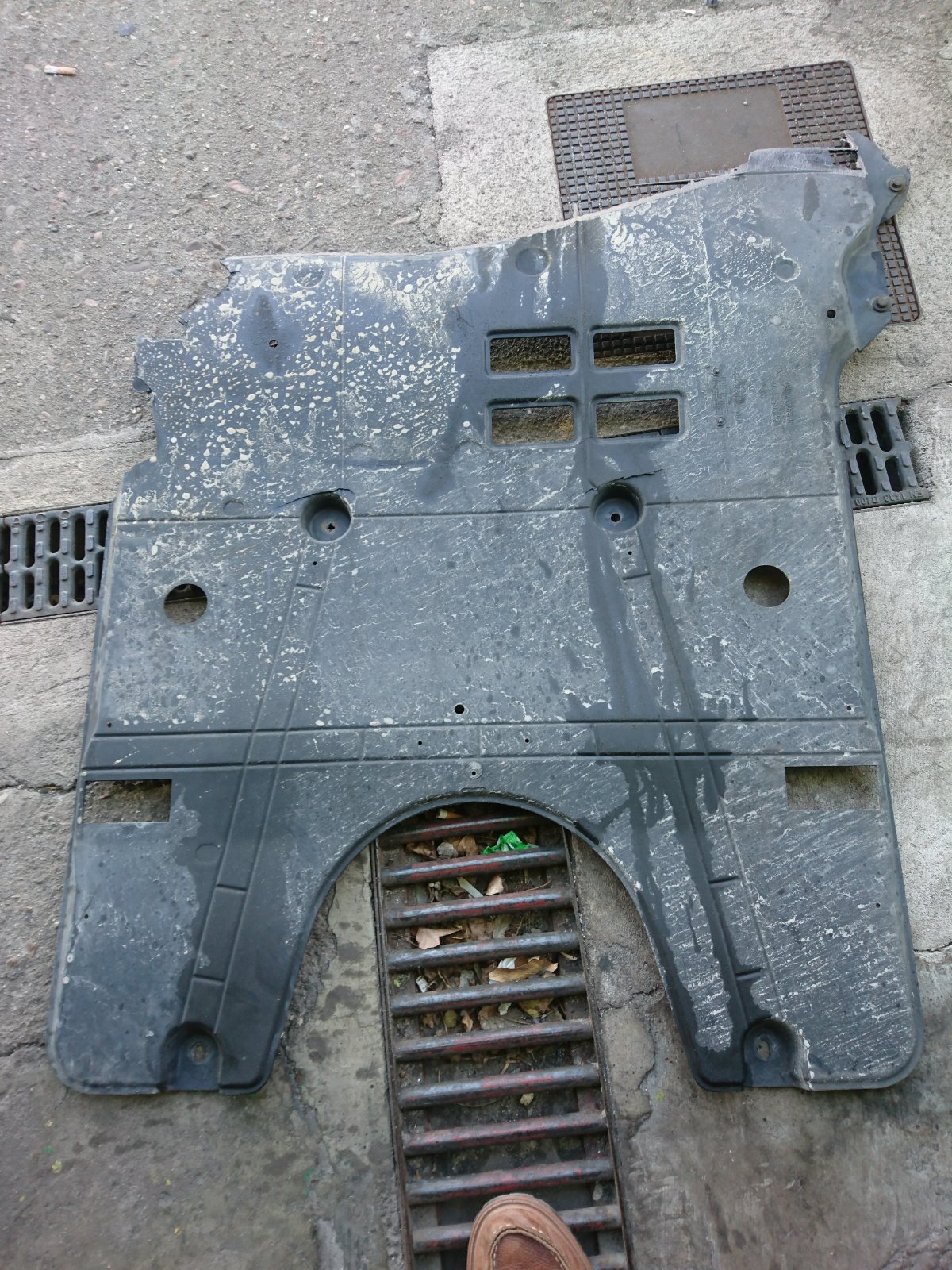

Perfect 👌 is the number 1 piece which is the one that is deteriorated thanks

JINETE
Posts: 28
Joined: 19 Feb 2020, 11:42

Re: Protector Down Motor

Post by JINETE »

Perfect 👌 is the number 1 piece which is the one that is deteriorated thanks
Attachments
