l am a little bewildered. In the engine compartment, in the middle-ish off to the right, there is a plastic piece with a plus and minus on it.
I am assuming this is if you need to connect jump cables unless someone tells me no its not for that. But what I don't understand, when l connect a volt multimeter, I get no reading which I find strange as if there is no power going to those two cables. I did put a little grease on them but surely that would not stop a reading. I appreciate a reply.
xsara picasso 05 2ltr petrol Automatic. Plus and minus ?
Moderator: RichardW
-
- Posts: 33
- Joined: 22 Jun 2019, 16:39
- Location: Stockholm ,Sweden
- My Cars: Xsara picasso 05 2.0l Automatic petrol
- Paul-R
- Donor 2023
- Posts: 6916
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1369
Re: xsara picasso 05 2ltr petrol Automatic. Plus and minus ?
A photo might help identification if you can take one.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
- Michel
- (Donor 2022)
- Posts: 2207
- Joined: 29 May 2017, 13:50
- Location: Nothanks
- My Cars: Some cars and a motorbike
- x 659
Re: xsara picasso 05 2ltr petrol Automatic. Plus and minus ?
It is for that, but I also get no reading on my HDi version. When I've had to use jump cables on it, I attach the + terminal to the positive , and use the engine mount on the opposite side of the engine to clamp my earth cable to.jerseykevsweden wrote: ↑27 Dec 2019, 08:03 Hi folks,
l am a little bewildered. In the engine compartment, in the middle-ish off to the right, there is a plastic piece with a plus and minus on it.
I am assuming this is if you need to connect jump cables unless someone tells me no its not for that. But what I don't understand, when l connect a volt multimeter, I get no reading which I find strange as if there is no power going to those two cables. I did put a little grease on them but surely that would not stop a reading. I appreciate a reply.
-
- Posts: 33
- Joined: 22 Jun 2019, 16:39
- Location: Stockholm ,Sweden
- My Cars: Xsara picasso 05 2.0l Automatic petrol
Re: xsara picasso 05 2ltr petrol Automatic. Plus and minus ?
Thanks, Still pretty strange no reading.
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: xsara picasso 05 2ltr petrol Automatic. Plus and minus ?
There should be 2 terminals there - remote connections to the battery under the seat. This is what I have on this - but according to this you should be able to both charge and read the battery status - but as mentioned - don't use the earth behind the bonnet lock:

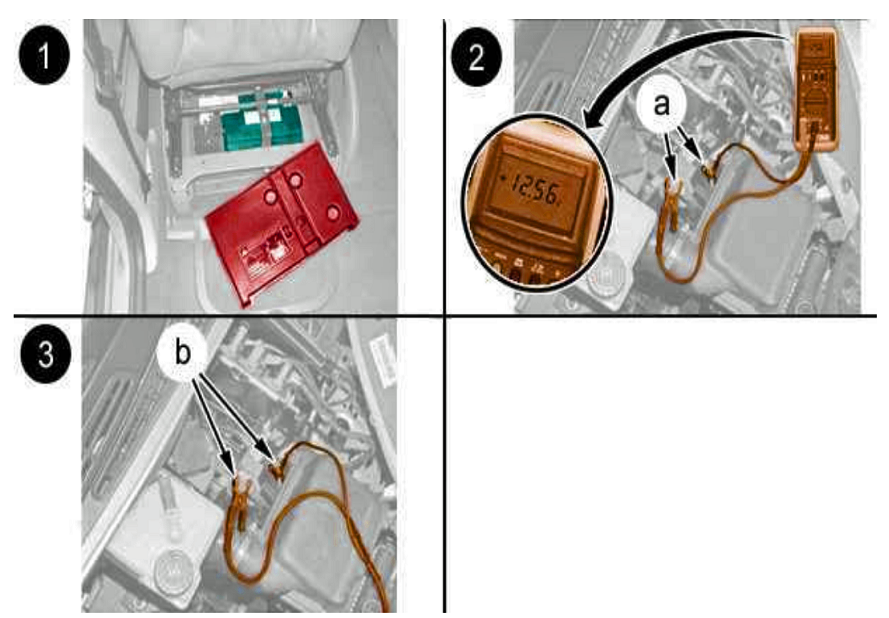

Figure ①: Location of the ancillaries battery:
The ancillaries battery is located under the driver’s seat
A remote terminal block (positive terminal and earth) is located under the bonnet (at "b")
CAUTION : Do not use the earth that is behind the bonnet securing hook; this screw being painted, it cannot be used for checking the ancillaries battery.
Figure ② : Checking the ancillaries battery using either a battery tester or a voltmeter (at "a"):
Figure ③: Recharging the service battery:
Figure ①: Location of the ancillaries battery:
The ancillaries battery is located under the driver’s seat
A remote terminal block (positive terminal and earth) is located under the bonnet (at "b")
CAUTION : Do not use the earth that is behind the bonnet securing hook; this screw being painted, it cannot be used for checking the ancillaries battery.
Figure ② : Checking the ancillaries battery using either a battery tester or a voltmeter (at "a"):
- Open the flap for access to the remote positive terminal
- Check the state of charge of the ancillaries battery using either a battery tester or a voltmeter (the black probe on the remote earth and the red probe on the remote positive terminal)
- Close the flap for access to the remote positive terminal
Figure ③: Recharging the service battery:
- Open the flap for access to the remote positive terminal
- Connect a Marque-approved charger to the ancillaries battery at "b" (the black cable on the remote earth and the red cable on the remote positive terminal)
- Using the approved charger, commence the recharging of the ancillaries battery, keeping to the manufacturer’s instructions
- Close the flap for access to the remote positive terminal
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 33
- Joined: 22 Jun 2019, 16:39
- Location: Stockholm ,Sweden
- My Cars: Xsara picasso 05 2.0l Automatic petrol
Re: xsara picasso 05 2ltr petrol Automatic. Plus and minus ?
thanks for all the replies much appreciated in understanding now.
-
- Posts: 33
- Joined: 22 Jun 2019, 16:39
- Location: Stockholm ,Sweden
- My Cars: Xsara picasso 05 2.0l Automatic petrol
Re: xsara picasso 05 2ltr petrol Automatic. Plus and minus ?
Just a quick query on the matter. now I know that you only get a reading when you put the earth to the chassis or somewhere on the engine. and put the plus on the plus. When l initially said that there was a plus and minus in the engine compartment. l noticed today that it is only 2 pluses. And that's why l wasn't getting a reading Because l took it for plus and minus. Can someone explain why it is 2 pluses that sit together ??
