Hi all I need help with cooling fan problem.
Only works on high speed
Anyone know relay location and any tips or advice
Two litre hdi Berlingo multi space with aircon and single fan
It don't run with aircon turned on either
Thanks in advance
Jim
Berlinger 2.0 hdi cooling fan
Moderator: RichardW
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: Berlinger 2.0 hdi cooling fan
Post your VIN up so we know the exact model and specs.
Please Don't PM Me For Technical Help
Marc
Marc
Re: Berlinger 2.0 hdi cooling fan
Thanks Marc
Vin is VF3**************[VIN obfuscated, can be read by forum staff]
Vin is VF3**************[VIN obfuscated, can be read by forum staff]
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: Berlinger 2.0 hdi cooling fan
Ok, so you have Peugeot Partner (same as a Berlingo). This model has a twin speed 140W Fan. It has 2 relays, one for slow and one for the fast speed:
Click Image to Zoom On the diagram above:
1509 is the fast speed relay
1508 is the slow speed relay
1506 is the Fan 2-speed resistance
So looking at the diagram below, you can see which relay is the slow speed one. So 1508 is the one and it is nearest to the actual fan itself (bear in mind the diagram is looking at the fan assembly from behind).
The relay is a 35 Amp unit and identical to the fast speed one.
It is part number 6547TX and is £8.99 for a genuine one available from any Peugeot or Citroen Dealer inc. VAT
Click Image to Zoom On the diagram above:
1509 is the fast speed relay
1508 is the slow speed relay
1506 is the Fan 2-speed resistance
So looking at the diagram below, you can see which relay is the slow speed one. So 1508 is the one and it is nearest to the actual fan itself (bear in mind the diagram is looking at the fan assembly from behind).
The relay is a 35 Amp unit and identical to the fast speed one.
It is part number 6547TX and is £8.99 for a genuine one available from any Peugeot or Citroen Dealer inc. VAT
Please Don't PM Me For Technical Help
Marc
Marc
Re: Berlinger 2.0 hdi cooling fan
Marc
Amazing details and thanks for taking the time to help.
I will have a look tonight after work and let you know my findings so others can benefit.
Kind regards Jim
Amazing details and thanks for taking the time to help.
I will have a look tonight after work and let you know my findings so others can benefit.
Kind regards Jim
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: Berlinger 2.0 hdi cooling fan
No worries - it should be easily enough to replace, but the wiring can suffer on these given their location to the elements - so check those out to.
Please Don't PM Me For Technical Help
Marc
Marc
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Berlinger 2.0 hdi cooling fan
Check out also the slow-speed dropper resistance (#1506). These can burn out or go open circuit, and their connectors deteriorate with heat.
The relays are cheap enough from Peu/Cit, but are also standard 5-pin 12v 30/40A automotive type, so any motor factor (or electronics dealer) should stock them.
All the blade contacts on these "front end" items can suffer from heat, wet and weathering, so best to clean up any involved.
The relays are cheap enough from Peu/Cit, but are also standard 5-pin 12v 30/40A automotive type, so any motor factor (or electronics dealer) should stock them.
All the blade contacts on these "front end" items can suffer from heat, wet and weathering, so best to clean up any involved.
Chris
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: Berlinger 2.0 hdi cooling fan
Would it be the resistance though if the high speed is working Chris? I think these earlier Berlingos had a simpler unit over the variable ones in later cars with climate and the like.
Please Don't PM Me For Technical Help
Marc
Marc
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Berlinger 2.0 hdi cooling fan
From the diag above, the +12 supply is routed to the fan (from the low speed relay) via the dropper resistor.GiveMeABreak wrote: ↑03 Oct 2019, 17:40 Would it be the resistance though if the high speed is working Chris?
For fast speed, the fast speed relay routes +12 directly to the fan, by-passing the resistance.
So, if the resistance fails (open circuit, or poor contact), low speed operation will go missing, and the fan will not operate until high speed is triggered.
Chris
Re: Berlinger 2.0 hdi cooling fan

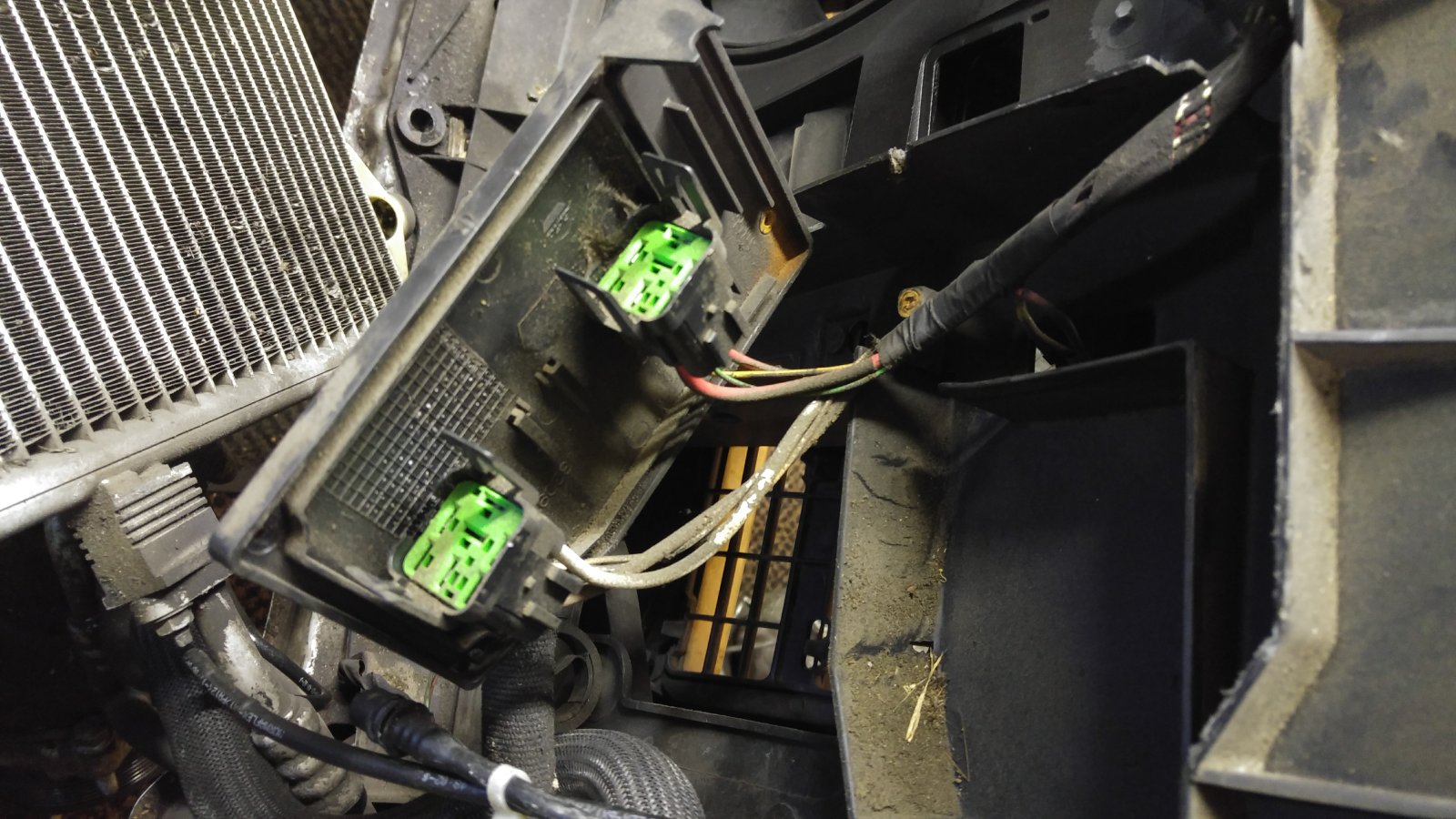

[[/img]Hi
Update Removal and inspection of all 3 items
Relays removed and given a supply and they both move and make contact using a multimeter.

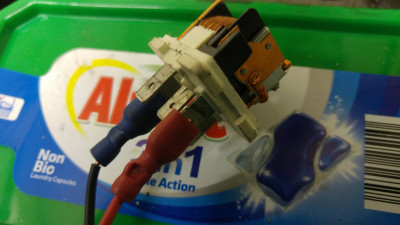

Large resistor removed and tests out at 5 ohms.
