Synergie brake lights **weird one**
Moderator: RichardW
-
- Posts: 19
- Joined: 12 Sep 2019, 13:05
- Location: Bacup, Lancashire
- My Cars: 1997 Citroen synergie TD
- x 4
Synergie brake lights **weird one**
Hi. I've been hunting for an answer to this for a few months now (yes it's a bit of a sad one but it's doing my head in! Bear with me )

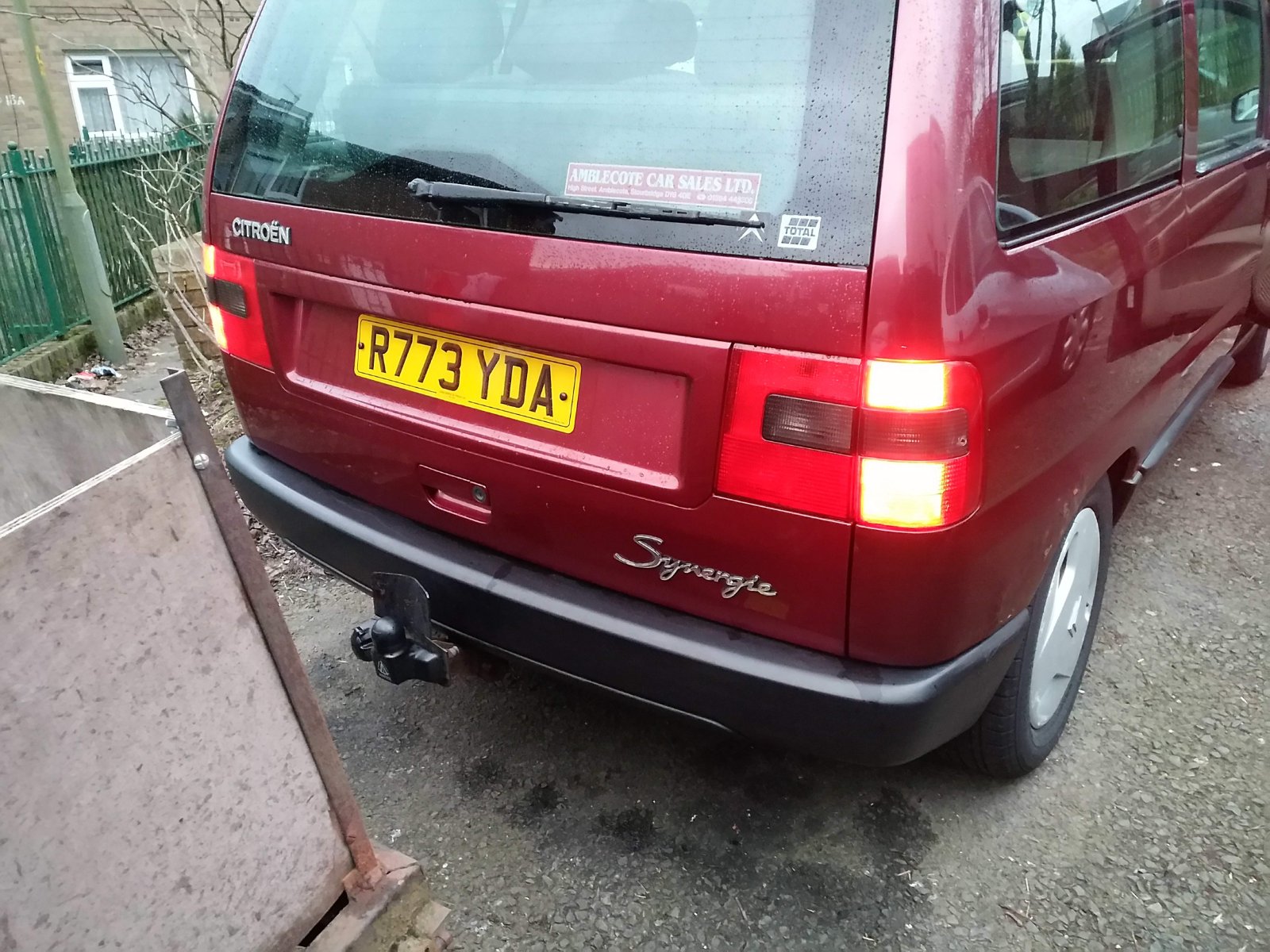

Firstly, picture the rear lights, the outer ones (not on the tailgate itself), working top to bottom, they're sectioned red, then smoked (or white/clear on the newer ones) and red at the bottom.
When I bought my car in April, the lights were
- brake/tail
- indicator
- nothing
I thought nothing of it till I went to replace an indicator bulb. And found the bottom had a blown 21w bulb. Checked the other side, sure enough that had a blown bulb in the bottom holder too. I replaced the bulbs to see what I got, and I had
- brake/tail
- indicator
- brake
Oo. 4 brake lights. Cool. (because I'm a bit sad like that!)
Moving on a couple weeks, I noticed that my lights had changed again. They were now
- tail
- indicator
- brake
I've checked the top 21/5w bulbs which were fine but I've replaced them anyway, and they're still only doing the tail lights. I can't see any wiring issues, blown fuses or anything. It's like it saves the 21w part of the top bulbs as a backup for the bottom ones. So I've taken one of the bottom bulbs out, nothings changed, it's still only the bottom brake lights (1 now lol).
I can't find any wiring diagrams or anything anywhere to try to explain it. And I refuse to accept a car of this age has a canbus system or anything as advanced as that.
Is there anyone that is sad enough to have contemplated this (like me) and has an answer? It's driving me crackers!
Thanks in advance

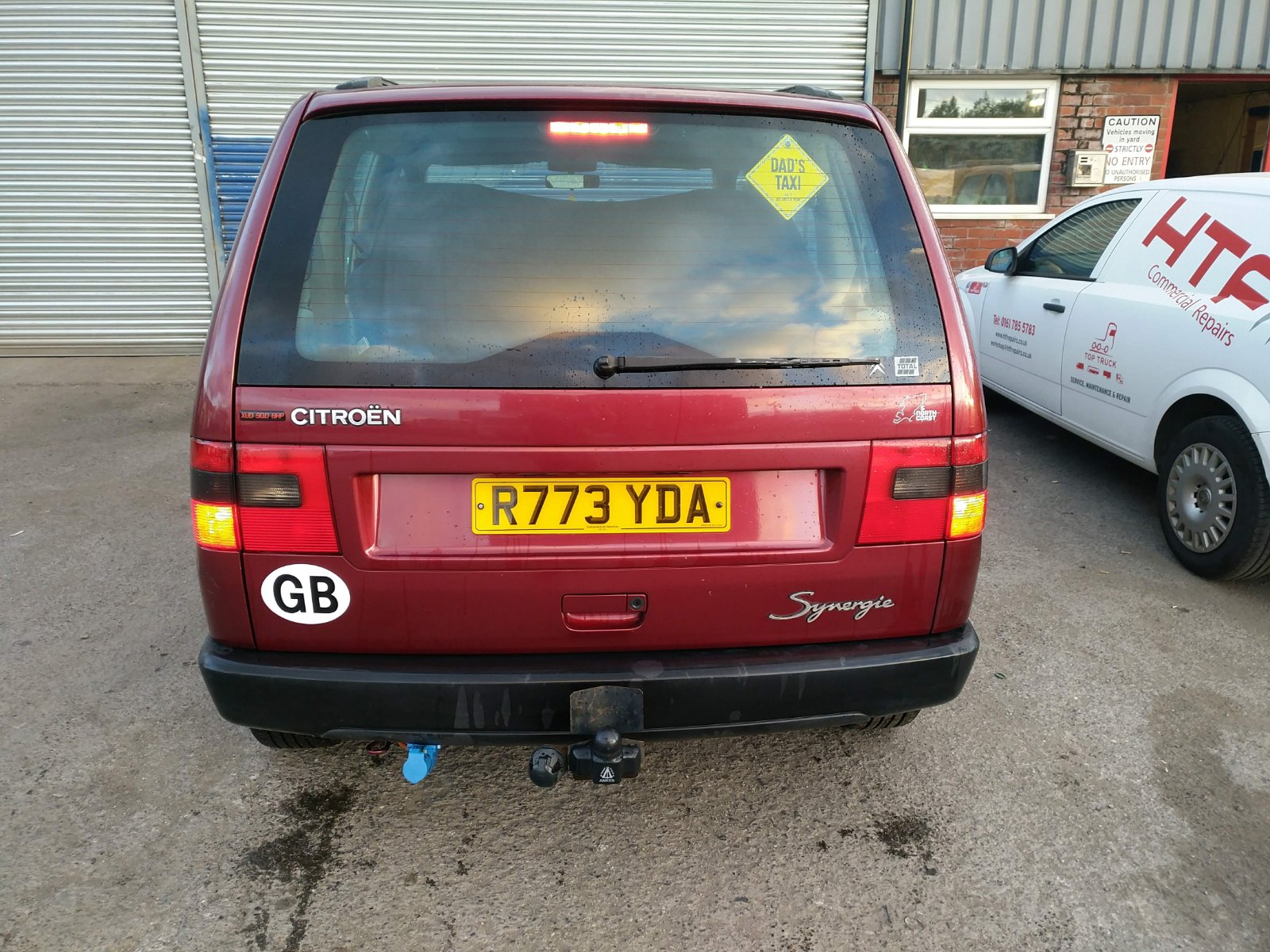

This is after putting new bulbs in the bottom (it was the top tail/brake before this, but I don't have a pic of that) This is a what I noticed a couple weeks later
Firstly, picture the rear lights, the outer ones (not on the tailgate itself), working top to bottom, they're sectioned red, then smoked (or white/clear on the newer ones) and red at the bottom.
When I bought my car in April, the lights were
- brake/tail
- indicator
- nothing
I thought nothing of it till I went to replace an indicator bulb. And found the bottom had a blown 21w bulb. Checked the other side, sure enough that had a blown bulb in the bottom holder too. I replaced the bulbs to see what I got, and I had
- brake/tail
- indicator
- brake
Oo. 4 brake lights. Cool. (because I'm a bit sad like that!)
Moving on a couple weeks, I noticed that my lights had changed again. They were now
- tail
- indicator
- brake
I've checked the top 21/5w bulbs which were fine but I've replaced them anyway, and they're still only doing the tail lights. I can't see any wiring issues, blown fuses or anything. It's like it saves the 21w part of the top bulbs as a backup for the bottom ones. So I've taken one of the bottom bulbs out, nothings changed, it's still only the bottom brake lights (1 now lol).
I can't find any wiring diagrams or anything anywhere to try to explain it. And I refuse to accept a car of this age has a canbus system or anything as advanced as that.
Is there anyone that is sad enough to have contemplated this (like me) and has an answer? It's driving me crackers!
Thanks in advance
This is after putting new bulbs in the bottom (it was the top tail/brake before this, but I don't have a pic of that) This is a what I noticed a couple weeks later
-
- Donor 2023
- Posts: 13743
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 3007
Re: Synergie brake lights **weird one**
Hi, and to the forum. That does seem a bit strange. I would expect you to have three brake lights (top, left and right), and two fog lights (left and right), all using the higher wattage bulbs. I would be inclined to check all of the bulbs (making sure that the right types of bulbs are fitted in the relevant places, and connected the right way around), and the various connectors to check they are clean, no dirt to get in the way, and the solder joins are all nice and shiny. Other than that I have no further advise (but I feel certain there will be other members who can help).
Last edited by Hell Razor5543 on 12 Sep 2019, 15:35, edited 1 time in total.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
- myglaren
- Forum Admin Team
- Posts: 25465
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4920
Re: Synergie brake lights **weird one**
Check the earth bonds - a very common cause of problems with rear lights, and as James says, check the bulbs very carefully. Some may appear correct but aren't.
Also the bulb orientation where they have two filaments. Should be difficult to impossible to fit incorrectly but it has happened and with some models causes havoc, admittedly CAN/Van systems but still.
Also the bulb orientation where they have two filaments. Should be difficult to impossible to fit incorrectly but it has happened and with some models causes havoc, admittedly CAN/Van systems but still.
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Synergie brake lights **weird one**
Agree - check out there is a good earths to each lamp position.
Not an uncommon fault on Citroen rear light clusters.
Not an uncommon fault on Citroen rear light clusters.
Chris
- moizeau
- Donor 2024
- Posts: 1589
- Joined: 12 Jan 2015, 16:08
- Location: France 36
- My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped) - x 315
Re: Synergie brake lights **weird one**
Just to throw something else into the pot. You have towing electrics. Are these plugged into the rear light cluster or scotch locked? I'd be inclined to disconnect the towing loom and see what happens.
Pete
Notice the BX is still top the list but sadly gone
Notice the BX is still top the list but sadly gone
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Synergie brake lights **weird one**
Good thought. Is there also rear-fog switch-out on one of the towing sockets which could be misbehaving?
Chris
- xantia_v6
- Forum Admin Team
- Posts: 9084
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 834
Re: Synergie brake lights **weird one**
It is also possible that the BSI detected the previously failed bulbs and went into a backup mode using the rear fog lamps as brake lamps,
You could try removing the lower bulbs and see if the upper ones start functioning as brake lights again.
You could try removing the lower bulbs and see if the upper ones start functioning as brake lights again.
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Synergie brake lights **weird one**

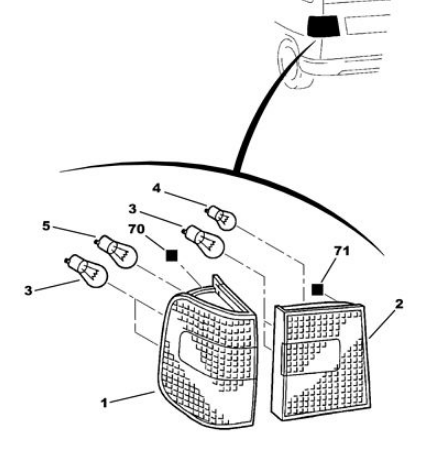

There are no diagrams I have for a vehicle this early unfortunately, but just to confirm bulb types...
