A/C Relay Citroen Synergie

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

tony1976
Posts: 58
Joined: 23 Mar 2019, 08:01
x 2

A/C Relay Citroen Synergie

Post by tony1976 »

Can anyone point me in the right direction for the relays for the a/c and for the wipers please on a Citroen synergie?
Also how much gas is required to re-gas the a/c system too please

Tony
User avatar
white exec
Moderating Team
Posts: 7489
Joined: 21 Dec 2015, 13:46
x 1467

Re: A/C Relay Citroen Synergie

Post by white exec »

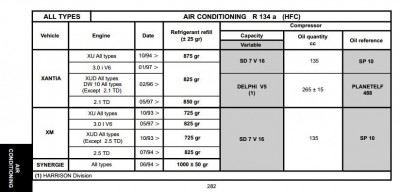

R134a re-gas/refill and oil capacities here:
Click to enlarge
Xan-XM-Synergie AC capacities.JPG
Extract from the Xantia-XM-Synergie Citroen mechanic's handbook, 2001
Click Xantia S2, the red 2001, to download the complete booklet.
viewtopic.php?f=3&t=61218&p=590278#p590278
