timing belt edge catching ?
Moderator: RichardW
timing belt edge catching ?
hi all my Picasso has started to make a rattle noise somewhere around the timing belt area , i took the covers off to have a closer look and found that the timing belt looks as if its catching somewhere as the edge is marked and found bits of frayed belt inside the cover and when i started it the belt is not running straight is wobbling bad can anyone give me a idea off what it could be, its a 02 picasso 2ltr . thanks tom
Re: timing belt edge catching ?
Petrol or diesel?
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: timing belt edge catching ?
When was the timing belt last done and were the pulleys replaced at the same time? A VIN would help us too.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 18
- Joined: 25 Feb 2019, 12:56
- Location: Canvey Island
- My Cars: 2x CX familials (Gone)
Renault Espace (Gone)
Range Rover Classic
Isuzu Trooper
Family citroens
C5
C4
C4GP - x 2
Re: timing belt edge catching ?
Loose bottom pulley?
Is it not the pulley holding the belt inline. If loose it would both rattle and allow the belt to wander.
Is it not the pulley holding the belt inline. If loose it would both rattle and allow the belt to wander.
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: timing belt edge catching ?
We'll need your VIN to proceed further....
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2017)
- Posts: 271
- Joined: 23 Dec 2014, 00:24
- Location: Bradford
- My Cars: -
Current:
2000 Citroen Dispatch 1.9TD: daily driver
1997 Peugeot 806 1.9TD: backup vehicle
1996 Citroen Synergie 1.9TD: donor car
1997 Citroen Xantia 2.0 16v: Aussie play thing
Former:
1999 Citroen Dispatch 1.9D DW8: got a new owner
1994 Peugeot 106 1.5D: killed by a deer
1996 Peugeot 106 1.5D: cremated - x 23
Re: timing belt edge catching ?
I had this on my DW8 Dispatch:
I had the garage fit a new belt and it was fine. No new pulleys needed.
I had the garage fit a new belt and it was fine. No new pulleys needed.
Re: timing belt edge catching ?
hi sorry its diesel, vin number VF7**************[VIN obfuscated, can be read by forum staff], not sure when belt was changed only had it in december and was cheap with no history , kenbw2 mines looks the same with that rubbing at a angle, i did do a short video to post but it wont allow to to post it says to file to big, im goint to get bottom covers off today so will see more hopefully, guy on street who does a few bits for people came over while i was looking at it and says its water pump on the way out but not losing water and temp is fine ? im hoping its not
-
- Donor 2023
- Posts: 13727
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 2993
Re: timing belt edge catching ?
It could be any number of things. I would be inclined to get the whole timing belt kit replaced, as this should cover all of the reasons for the problem (as well as replacing a belt that is being damaged).
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: timing belt edge catching ?
To post a video, you need to upload it to your YouTube account first and then use the lvideo address to link to it using the YouTube tags in the editor.tomj25 wrote: ↑26 Feb 2019, 07:49 hi sorry its diesel, vin number VF7**************[VIN obfuscated, can be read by forum staff]**************[VIN obfuscated, can be read by forum staff], not sure when belt was changed only had it in december and was cheap with no history , kenbw2 mines looks the same with that rubbing at a angle, i did do a short video to post but it wont allow to to post it says to file to big, im goint to get bottom covers off today so will see more hopefully, guy on street who does a few bits for people came over while i was looking at it and says its water pump on the way out but not losing water and temp is fine ? im hoping its not
This vehicle is a 2000 2.0 90bhp HDi DW10TD.

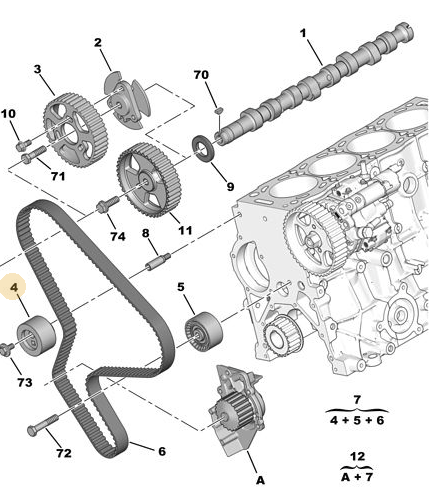

4 is your Timing Tensioning Roller, 5 is the Retractor Roller.
Please Don't PM Me For Technical Help
Marc
Marc
Re: timing belt edge catching ?
ah thats why cant upload it, would it help to upload it as i dont have a youtube account but will make one if it helps
Re: timing belt edge catching ?

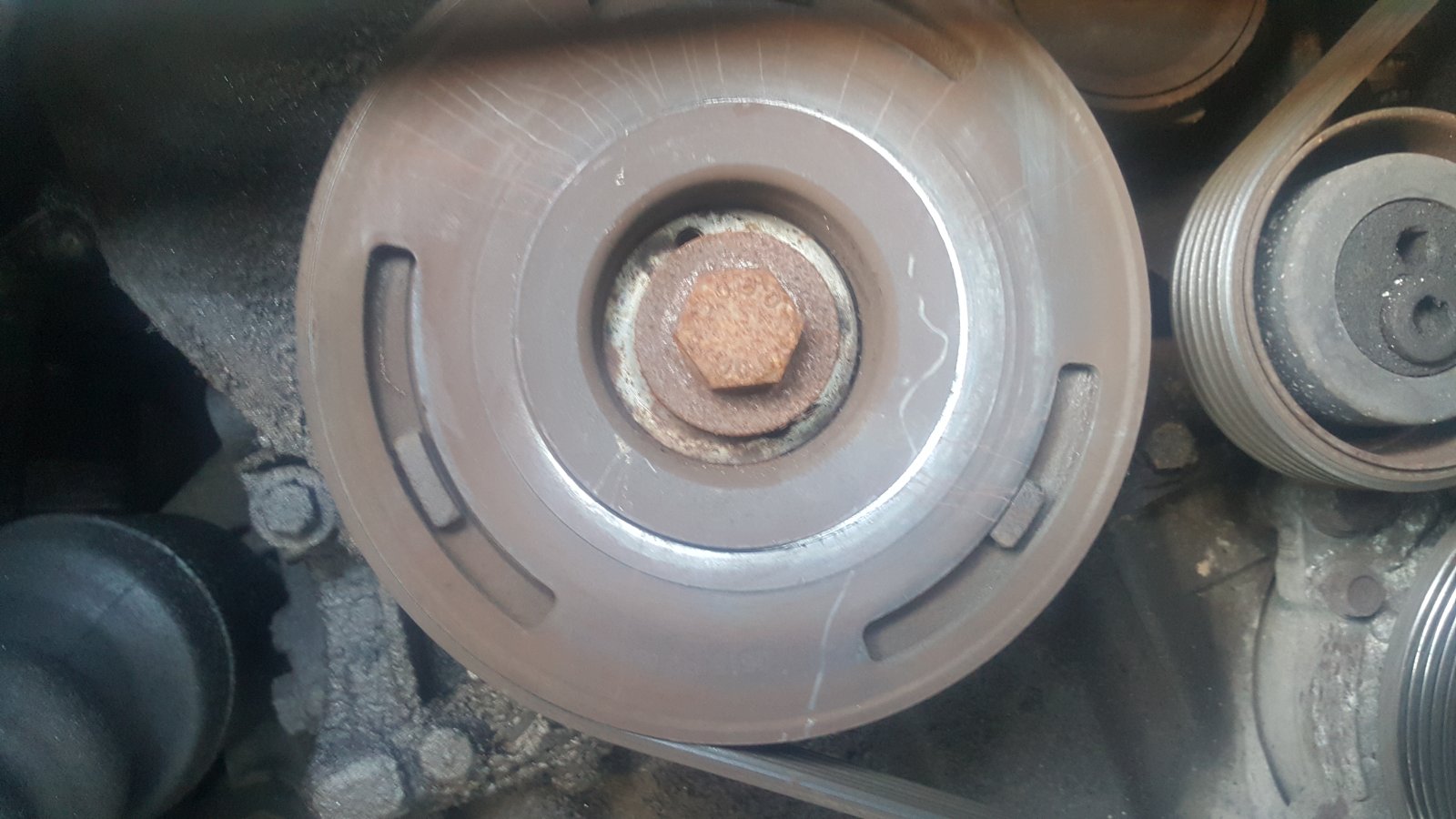

Ok got cover off wheel arch an noticed this pully straight away does it look as if it has failed
-
- Posts: 251
- Joined: 04 Oct 2018, 14:26
- Location: mid wales
- My Cars: pug306, citroen picasso
- x 14
Re: timing belt edge catching ?
dw10, how much does the bottom crank pulley outer wobble, made to wobble (NOT when the engine is running, fingers and hands cost millions !!!! ) and how does the rubber looks??
Does the engine make a horrible sounding noise when cold, which goes away a little when warm?This noise comes from the crank pulley area. How are the other parts, to idler and tensioner roller, alternator and power steering and air con, play in bearings??
Can you see the belt flapping about??
This is the aux drive belt that drives the aircon, alternator, powersteering, idler and adust pulleys, not the cam belt.The cam belt lives behind the crank bottom pulley and behind the cam belt cover which is plastic. On 306's, if the aux drive belt goes, it can take out the cam belt!!!!!
got it now, its an outy not an inny.......
when was the cam belt last replaced by the way.
the cam belt in the upper picture is in need of immediate ( that's immediate ) replacement. if the cam belt goes its a real real real disaster, at least broken rocker arms.......but possible scrap engine.
Does the engine make a horrible sounding noise when cold, which goes away a little when warm?This noise comes from the crank pulley area. How are the other parts, to idler and tensioner roller, alternator and power steering and air con, play in bearings??
Can you see the belt flapping about??
This is the aux drive belt that drives the aircon, alternator, powersteering, idler and adust pulleys, not the cam belt.The cam belt lives behind the crank bottom pulley and behind the cam belt cover which is plastic. On 306's, if the aux drive belt goes, it can take out the cam belt!!!!!
got it now, its an outy not an inny.......
when was the cam belt last replaced by the way.
the cam belt in the upper picture is in need of immediate ( that's immediate ) replacement. if the cam belt goes its a real real real disaster, at least broken rocker arms.......but possible scrap engine.
Re: timing belt edge catching ?

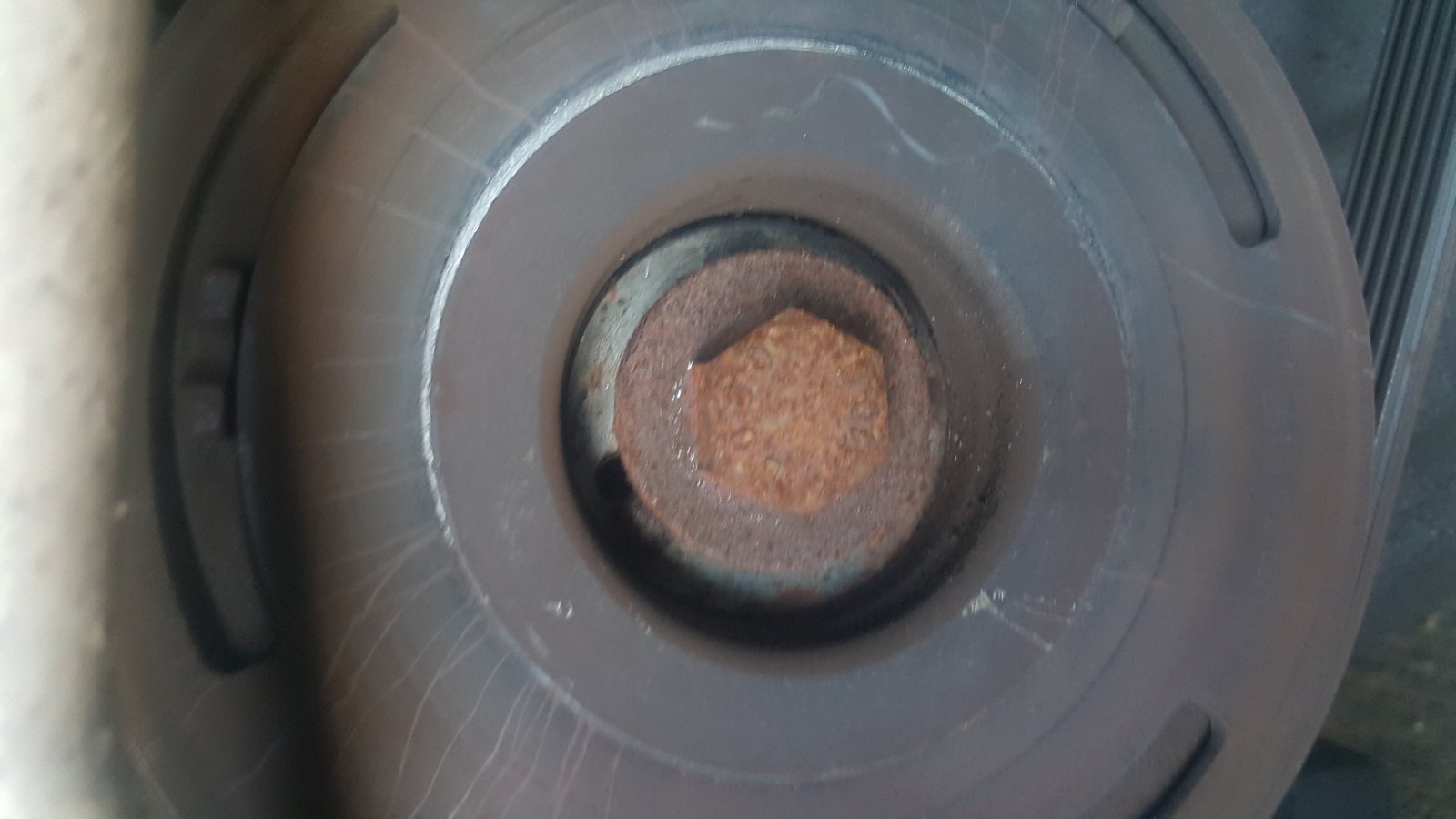

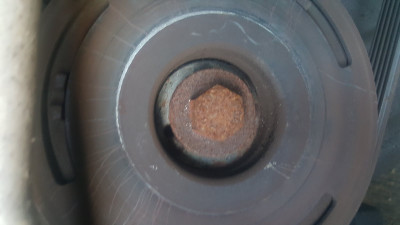

Picture of pully is crank aux belt pully sprayed a bit of wd40 on it and noise went away so i removed aux belt completely and noise went away completely and sounded as it did before noise and as soon as i put the belt back on the noise was very faint but as soon as i give it a bit off revs the noise can back, as said not sure when timing belt was changed but im going to change it once i sort this noise out and can i take it the pully has gone and needs replaced
-
- Forum Treasurer
- Posts: 10814
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 984
Re: timing belt edge catching ?
Yep, that crank pulley is toast! On this engine you should really pin the crank shaft before you try and undo the bolt, as the cam belt sprocket is floating behind (they did away with the vernier cam pulley used on earlier engines). If you want to keep it, then I would change the whole timing belt kit and the water pump and crank pulley.
Richard W
Re: timing belt edge catching ?
Great ive just been and got one so about to replace it , do i just lock the cam with pin as if i was doing timing
