Good evening gentlemen from Mullion Cove Cornwall.
The Citroen C5 2003 petrol estate is still going fine, apart from the odd auto gear box limp mode : )
However after a couple of weeks none use the heater fan stopped working.
Upon turning on the ignition the display showed the fan on as normal, but after starting the car no fan, and after 10 seconds or so the fan display went clear.

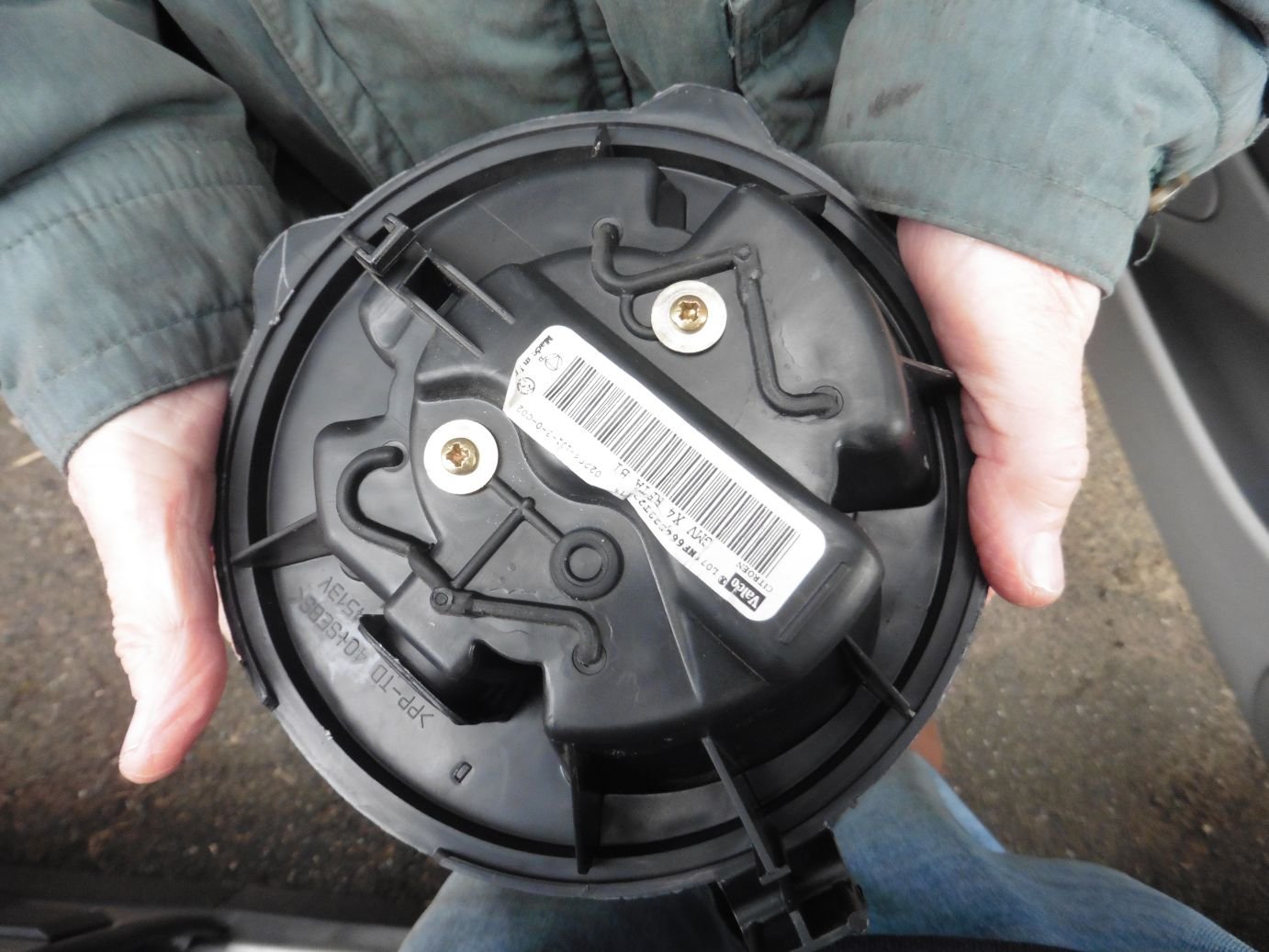

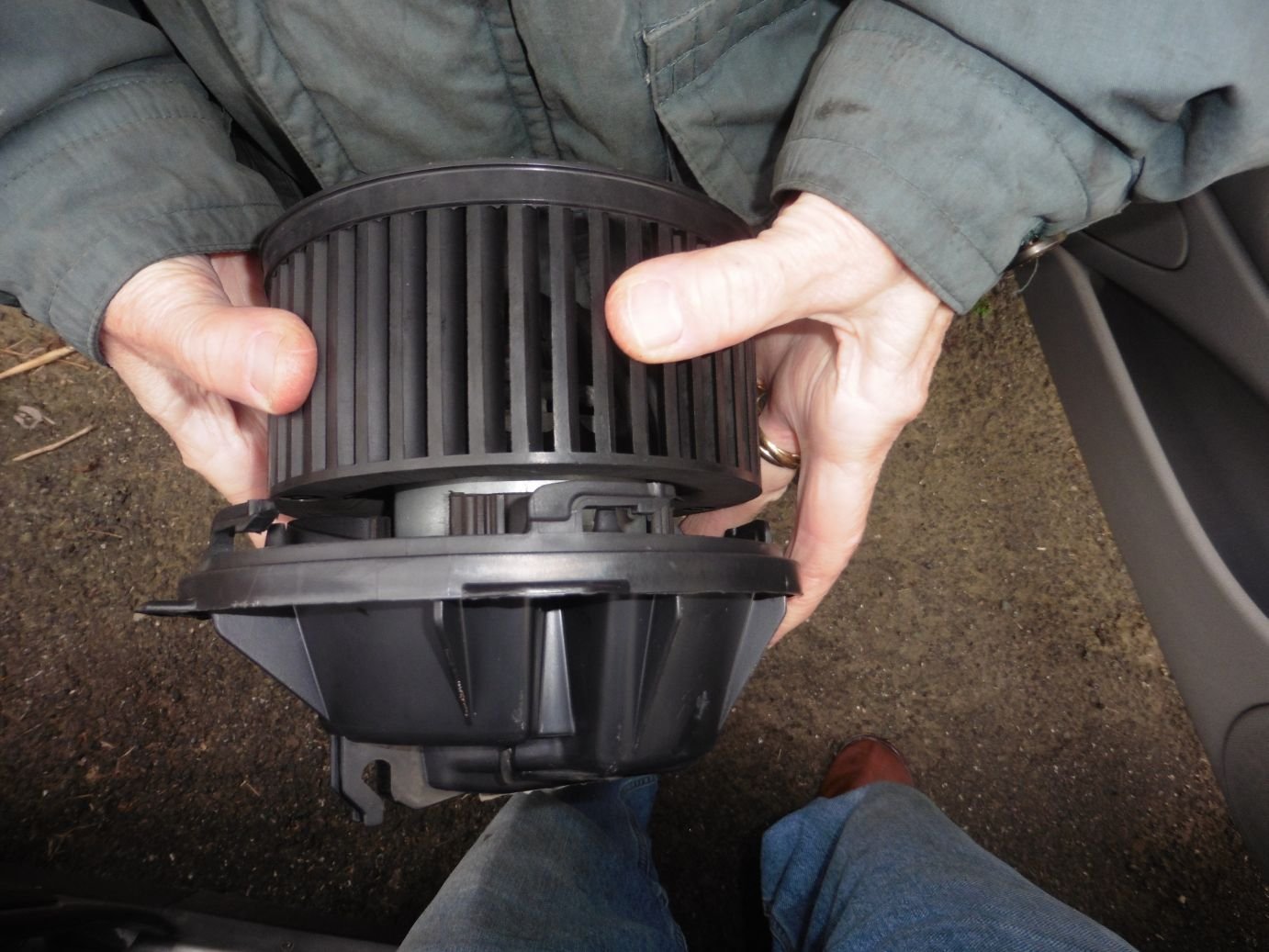

The lexia said the motor was faulty, I removed the motor and applied 12 volts, it ran fine.

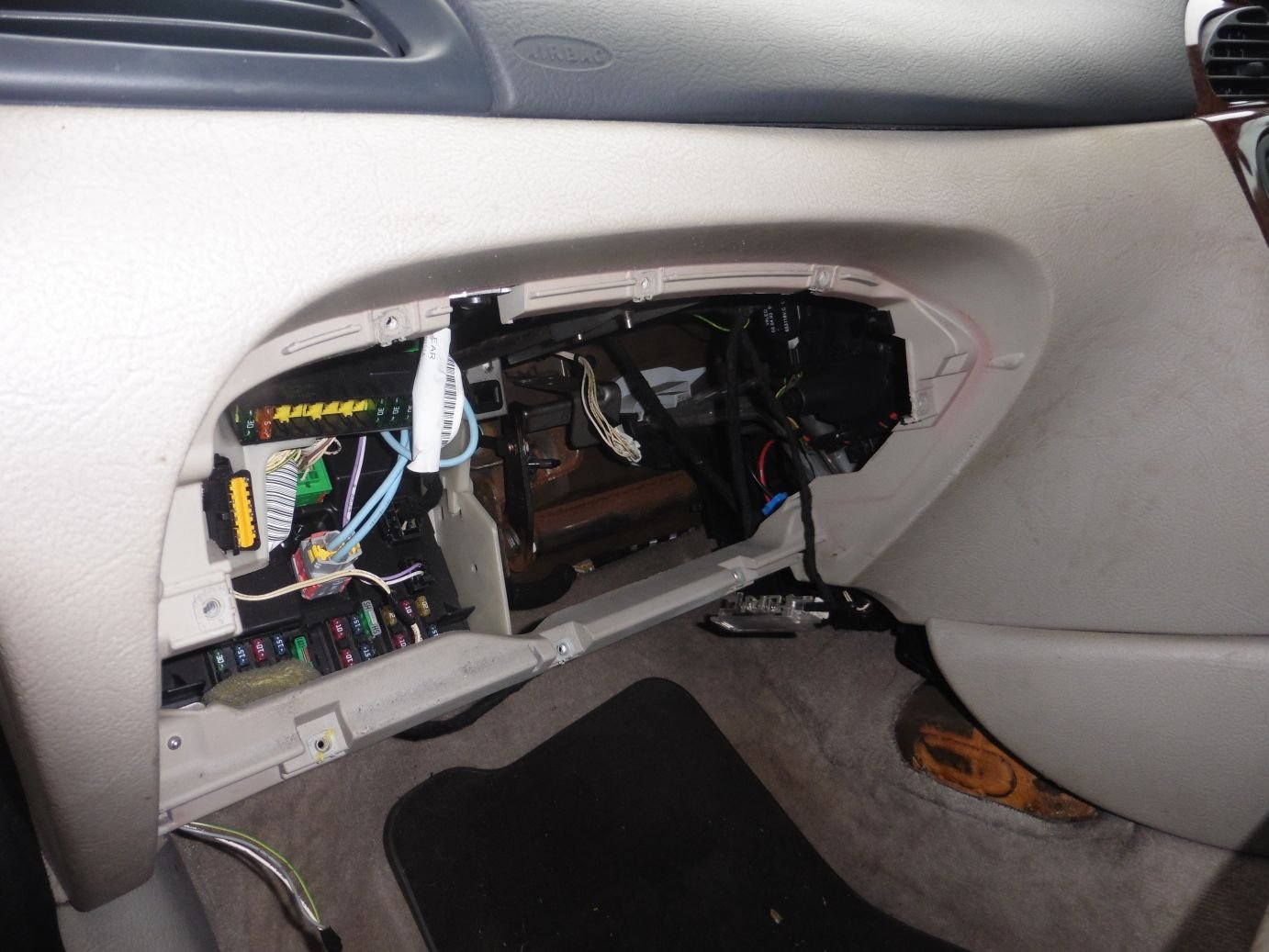

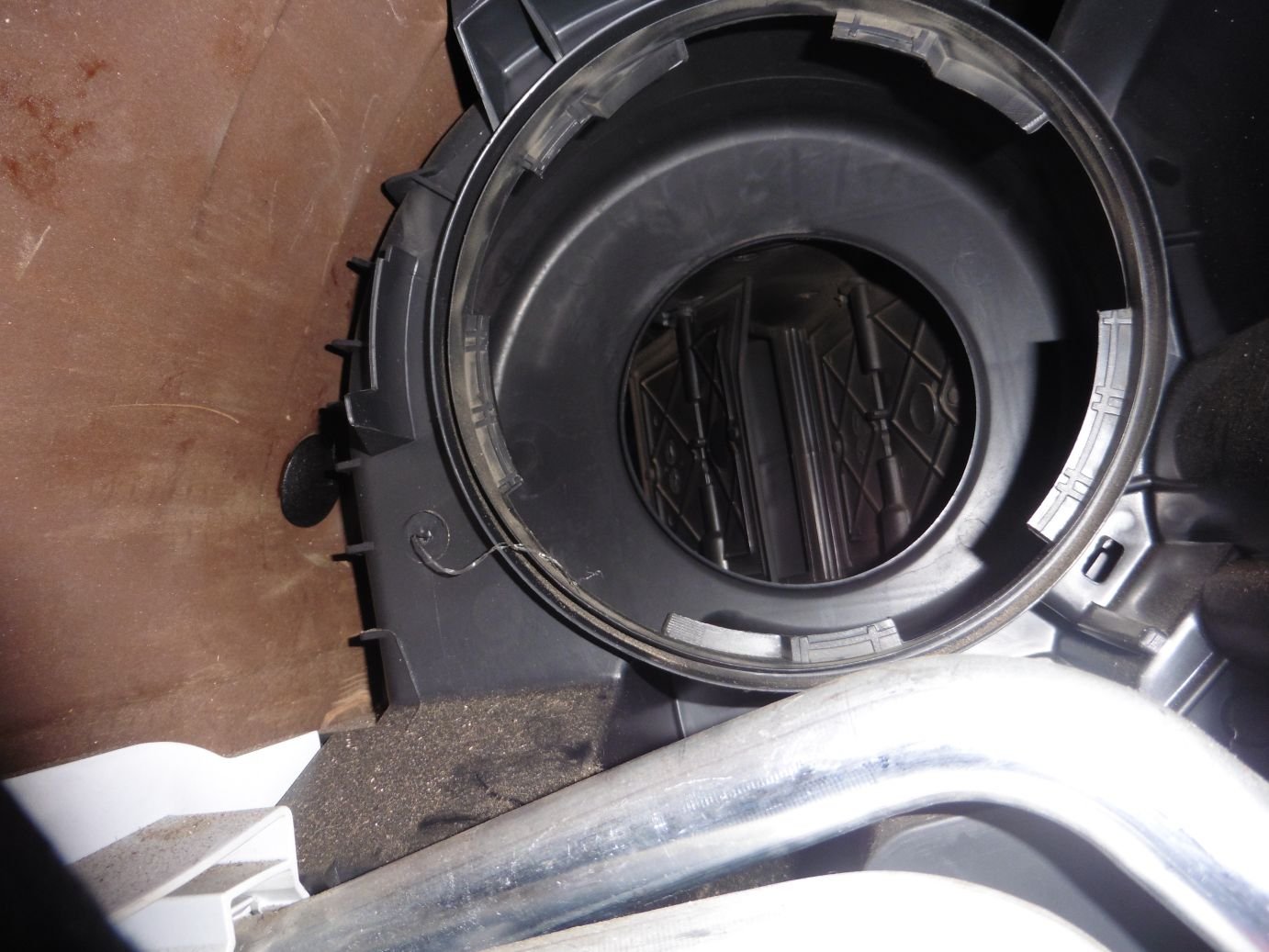

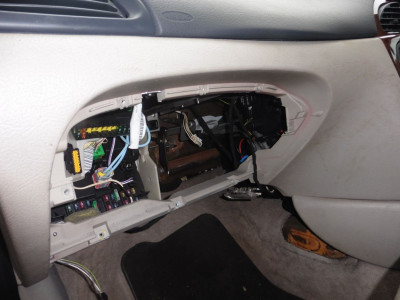

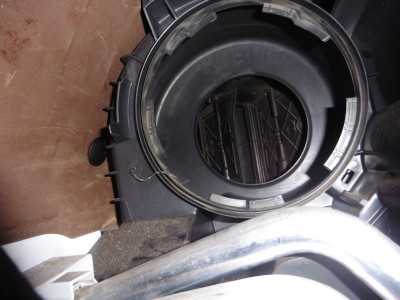

To get at the fan remove the passenger side glove box, the fan it then to your right on top of the heater box in the centre.

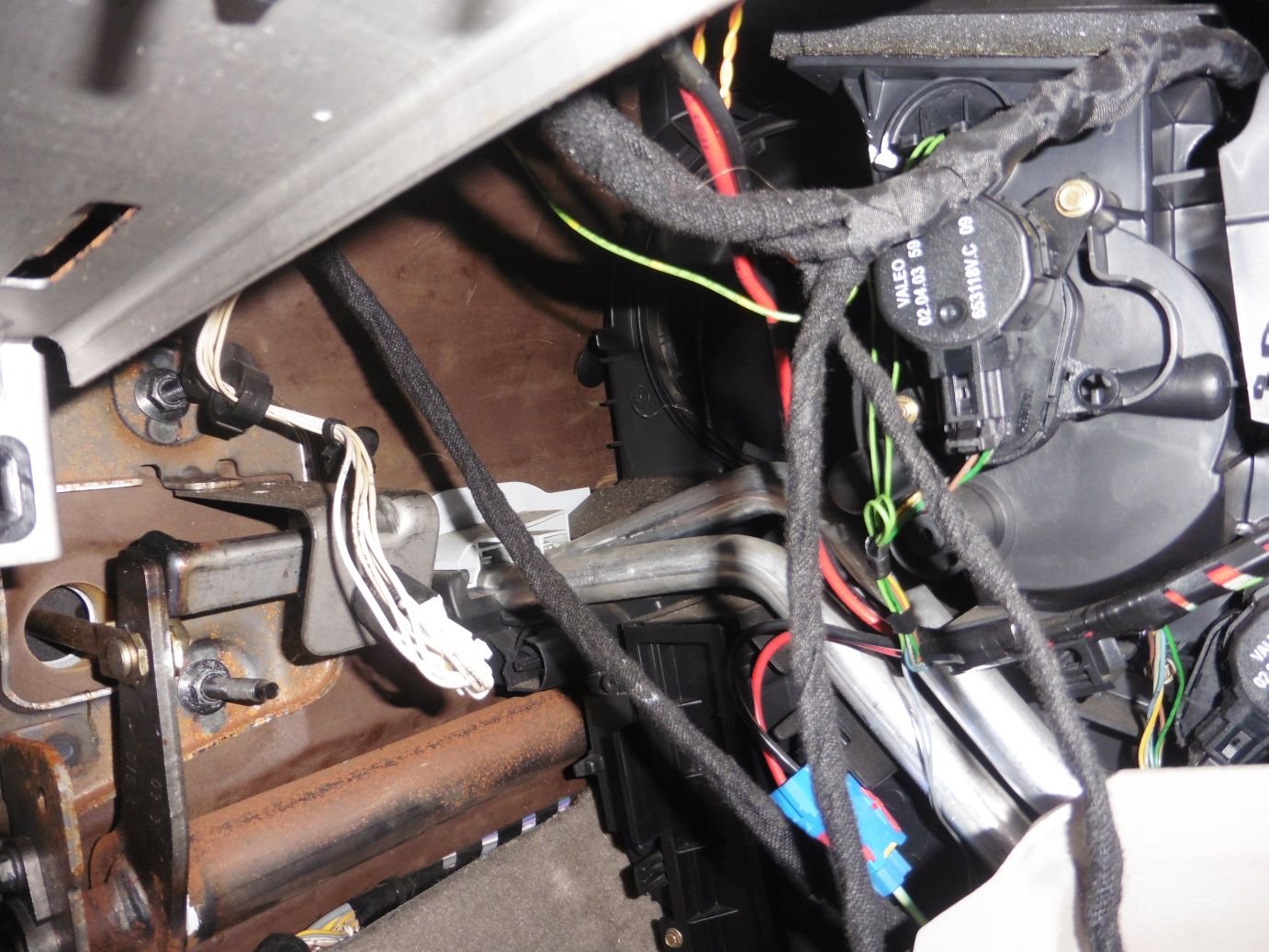

Next we went to the drivers side, where there is a box with a large heat sink to the left of the pedals,
There was only one screw holding it in and plastic retaining clips.

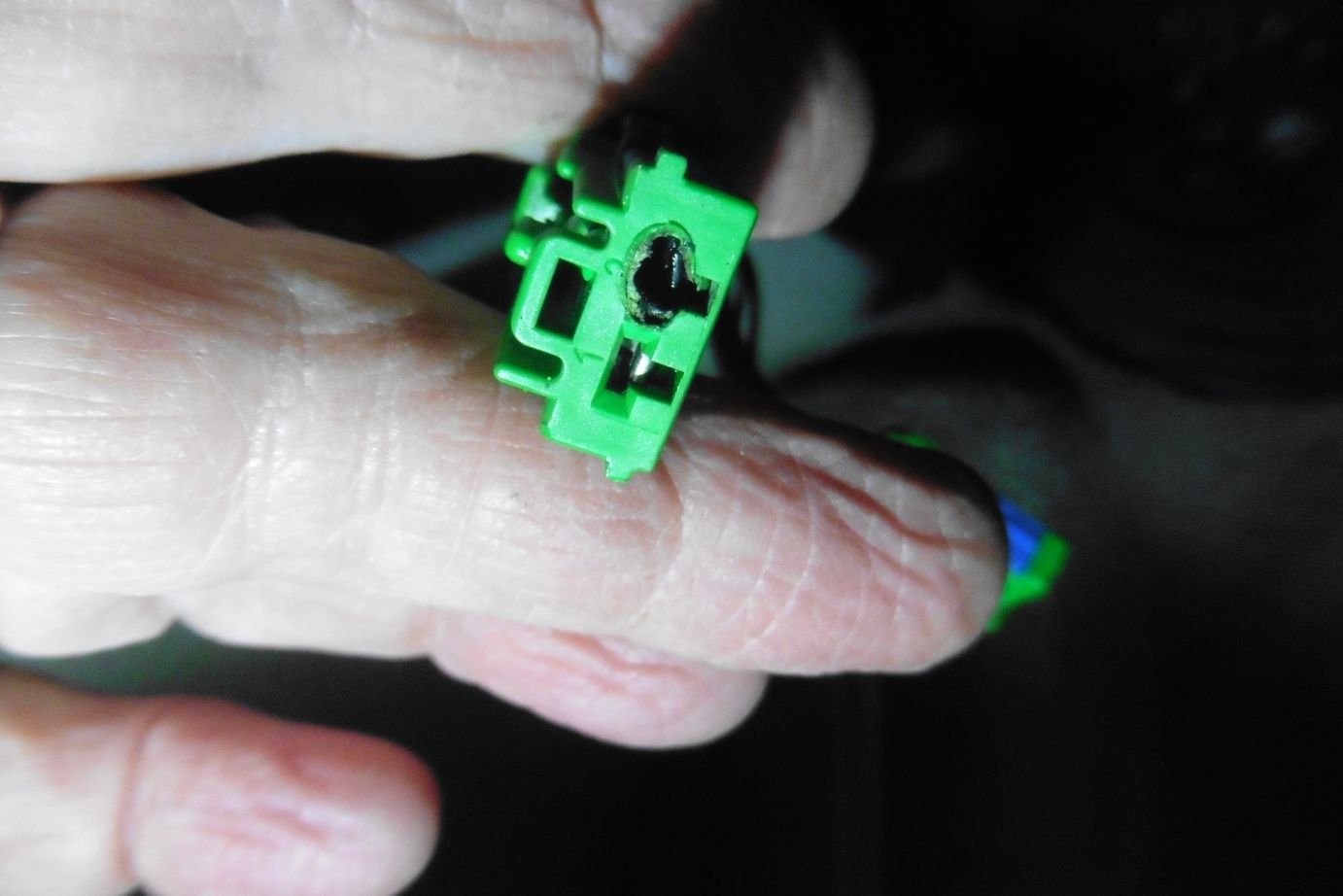

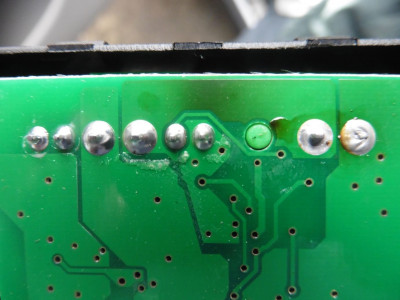

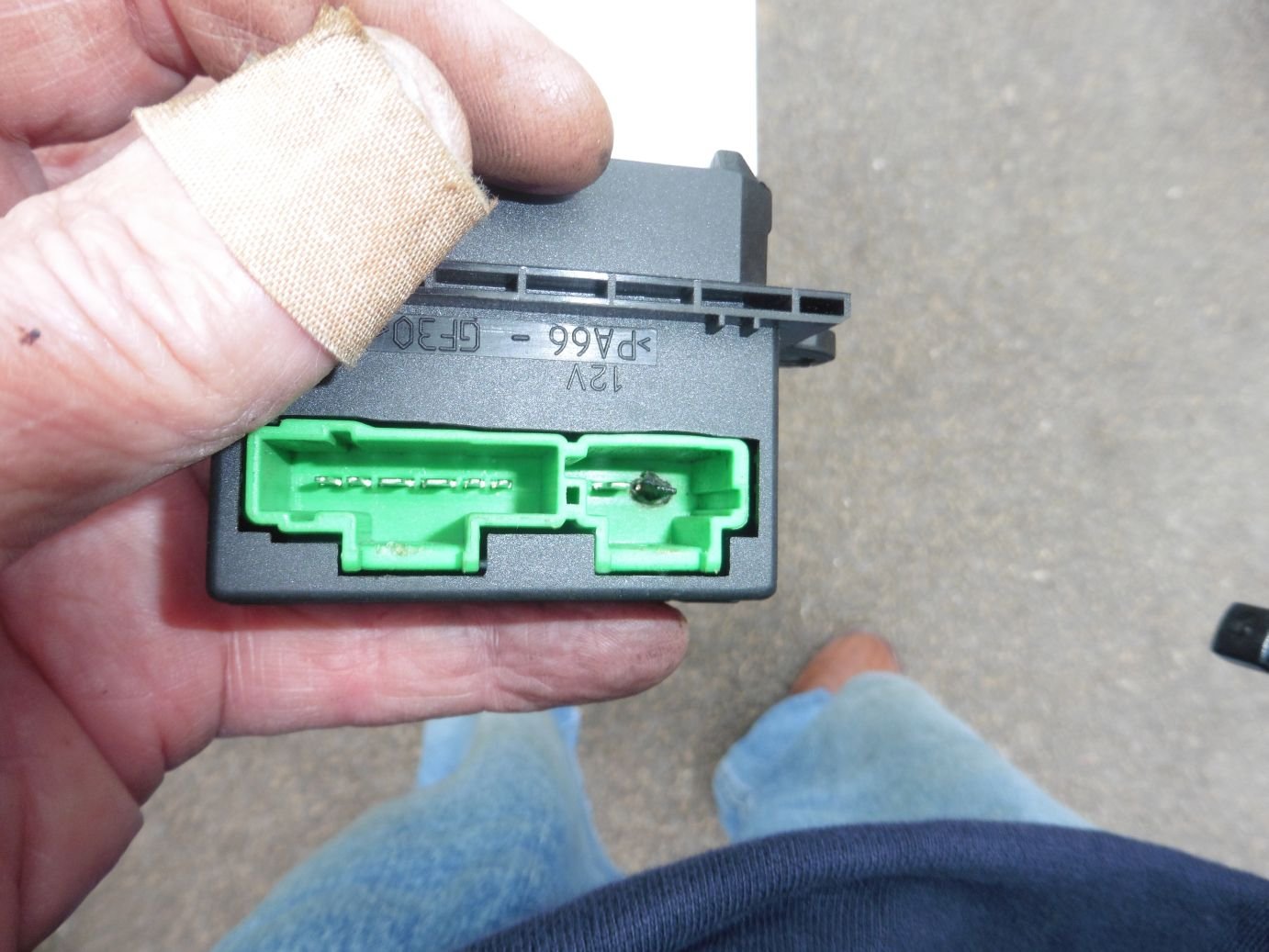

I pulled out the two plugs and removed the unit, the smaller of the two plug had a burnt socket, plus the pin on the circuit board was also burnt.
I cut off the small plug and removed the plastic moulding round the circuit board pin.

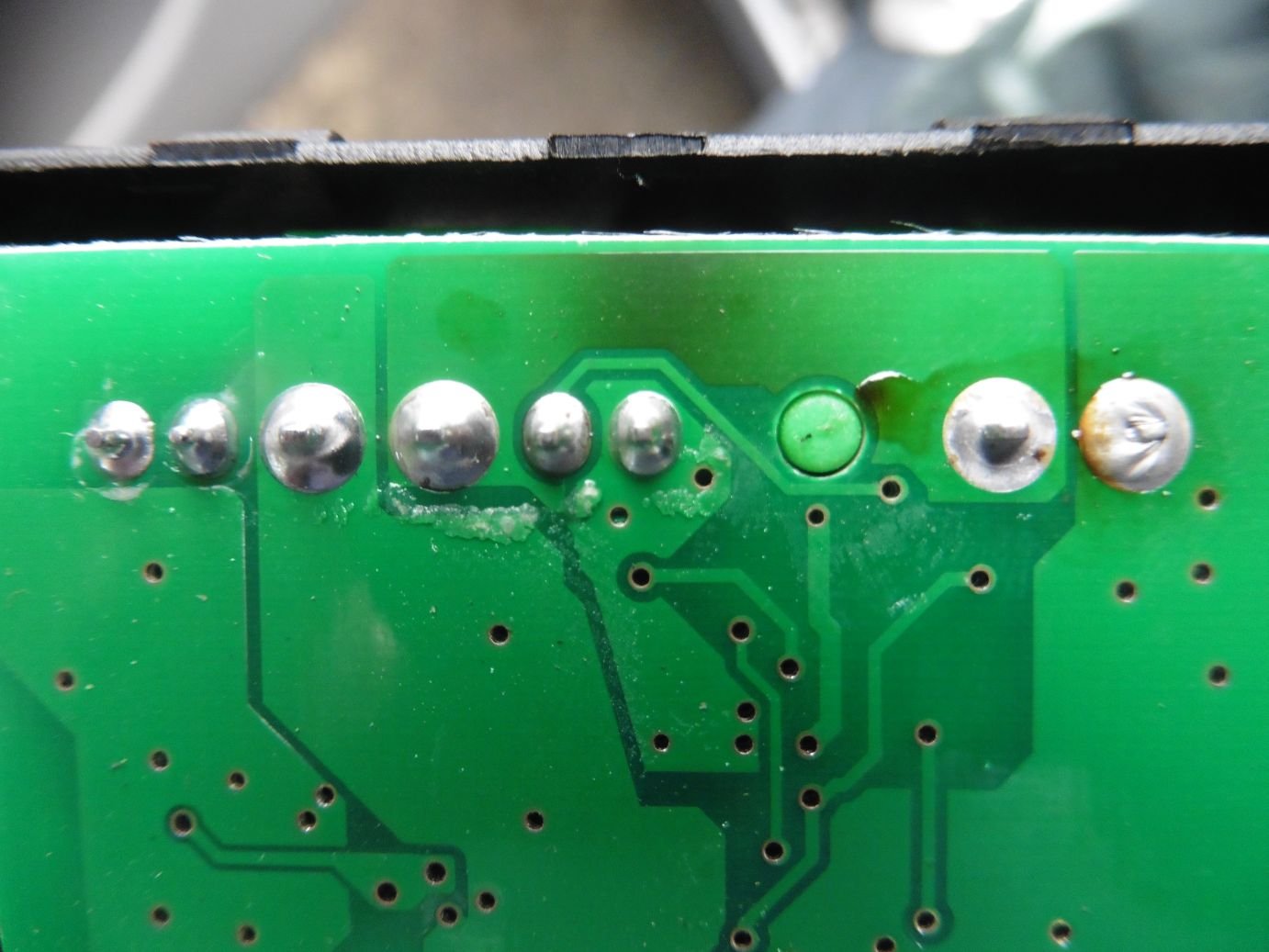

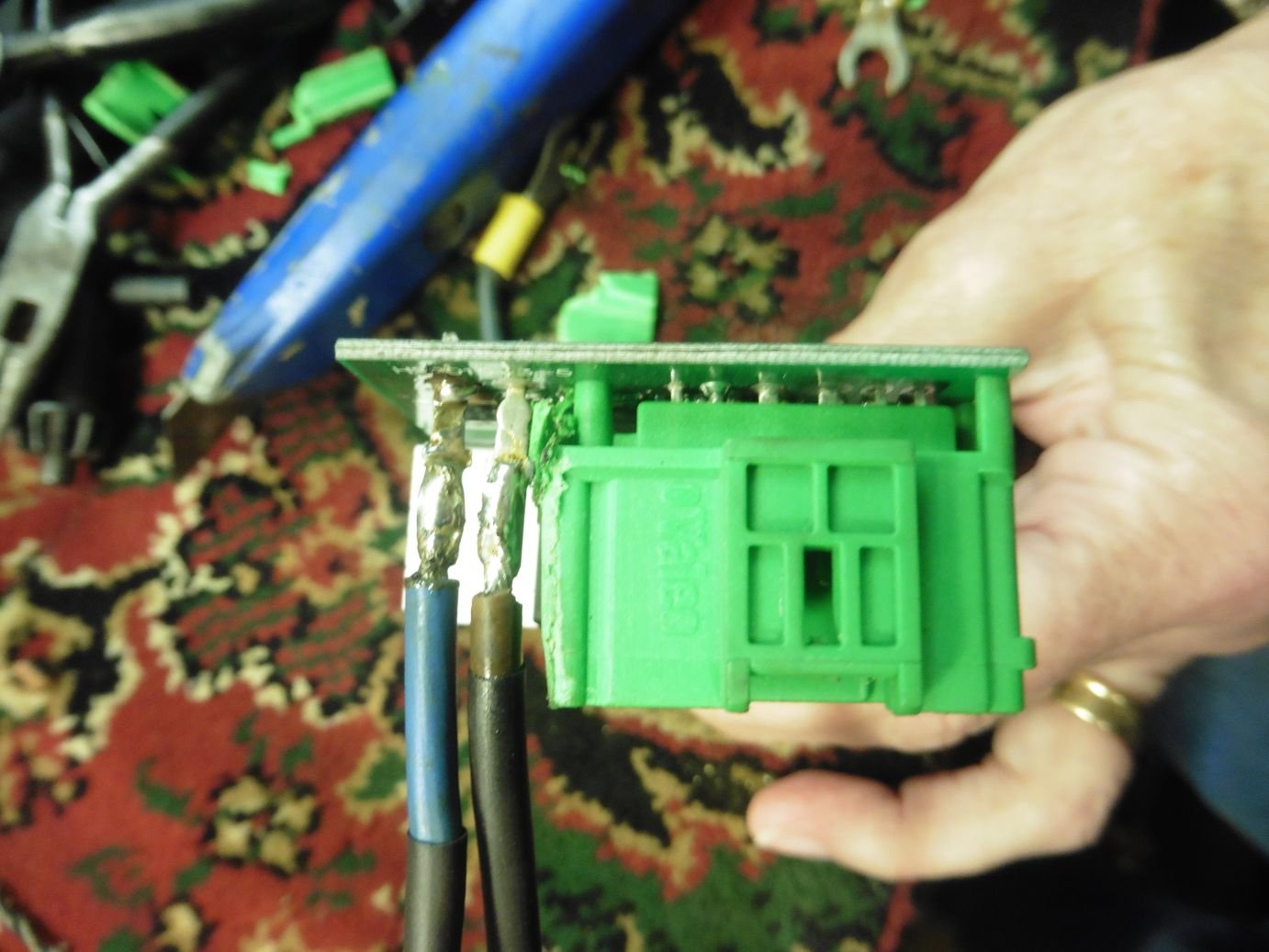

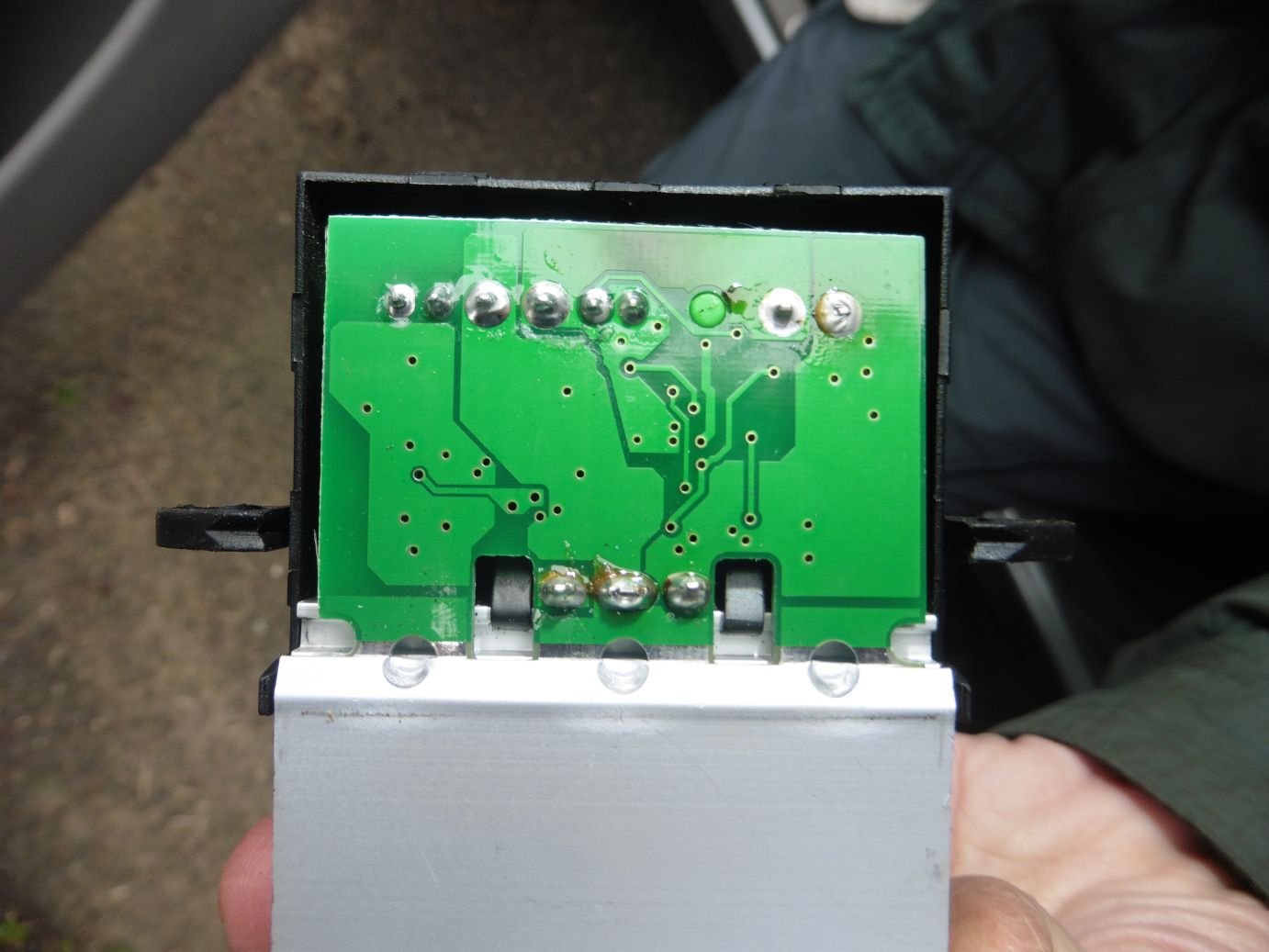

Next I cleaned the two pins and soldered two cables to them, I also re-soldering the pins into the print on the circuit board.
Heat shrink sleeving was added over the solder joints, I forgot to picture that : )

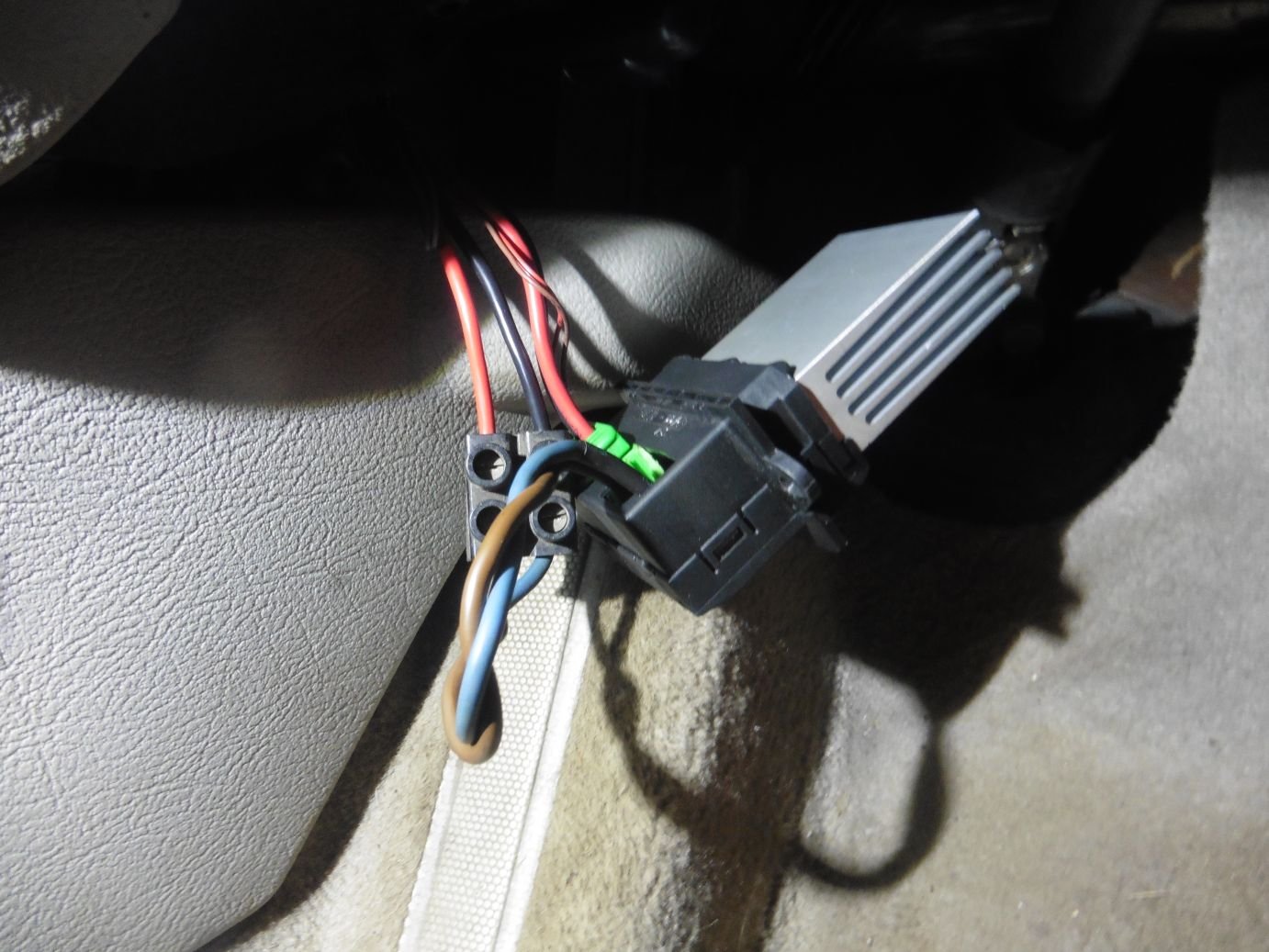

Then joined the leads to the feed cables with a large block connecter.
Getting the unit back in its housing was impossible, so I used a Stanley knife to chamfer the edges of the housing and in it went.
The blower blows harder than it has for ages : )
God Bless Spiff & number one assistant Alanna
C5 2003 Heater fan Repair : )
Moderator: RichardW
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37385
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5738
Re: C5 2003 Heater fan Repair : )
It was your blower control module, easy to replace and a common failure. They provide the resistance to power the motor through the various speeds. When they fail it’s usually all or nothing,
Please Don't PM Me For Technical Help
Marc
Marc
-
Online
- Donor 2023
- Posts: 13744
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 3007
Re: C5 2003 Heater fan Repair : )
You can buy a pair of replacement connectors (with wiring) for the blower module for a few quid off ebay;
https://www.ebay.co.uk/itm/Citroen-C5C3 ... :rk:1:pf:0
https://www.ebay.co.uk/itm/Citroen-C5C3 ... :rk:1:pf:0
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
Re: C5 2003 Heater fan Repair : )
And the failure is always the same outer wire bending the terminal.
That’s because the wire is too short and it gets hot enough in there to melt solder.
That’s because the wire is too short and it gets hot enough in there to melt solder.
2002 C5 2.0i AL4 230,000 km 76372389
- Paul-R
- Donor 2023
- Posts: 6934
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1379
Re: C5 2003 Heater fan Repair : )
This is what happened the second time the fan stopped working on my old Mk1 C5. Fortunately I had a replacement module on my donor C5 and that worked without having to change the plug. I wrote about it here some time ago.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
Online
- Donor 2023
- Posts: 13744
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 3007
Re: C5 2003 Heater fan Repair : )
On my first C5 it was one of the heavy pins in the large connector that failed.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
- spiff
- Posts: 190
- Joined: 08 Aug 2017, 20:24
- Location: Mullion Cove Cornwall
- My Cars: C5 2003 2LTR 1997 AUTO PETROL ESTATE
- x 17
Re: C5 2003 Heater fan Repair : )
Good morning on a lovely sunny day.
Thank you for the replies.
It good to know that if the module fails that replacement connecters are available.
That is now that I have cut the small plug off : )
Thank you for the link.
Other of you gentlemen have had the same fault I see.
Removing the fan to test it was a bit fiddly, what's its law meant I tried the fan first instead of the module which was as said easy to get at.
The module would not go back in its case though until I chamfered the edges of the case, could be the heat had caused the case to shrink ?
Haynes books are a great help, but the images are a game of, where on Earth is that : )
God Bless Spiff
Thank you for the replies.
It good to know that if the module fails that replacement connecters are available.
That is now that I have cut the small plug off : )
Thank you for the link.
Other of you gentlemen have had the same fault I see.
Removing the fan to test it was a bit fiddly, what's its law meant I tried the fan first instead of the module which was as said easy to get at.
The module would not go back in its case though until I chamfered the edges of the case, could be the heat had caused the case to shrink ?
Haynes books are a great help, but the images are a game of, where on Earth is that : )
God Bless Spiff
-
Online
- Donor 2023
- Posts: 13744
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 3007
Re: C5 2003 Heater fan Repair : )
It may be worth noting that;
a, the wiring on some of the replacement connectors is thinner (which makes me wonder if they are up to the task over a long period of time)
b, some of the replacement modules on e-bay are lacking somewhat in the solder/reliability stakes.
a, the wiring on some of the replacement connectors is thinner (which makes me wonder if they are up to the task over a long period of time)
b, some of the replacement modules on e-bay are lacking somewhat in the solder/reliability stakes.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
- Paul-R
- Donor 2023
- Posts: 6934
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1379
Re: C5 2003 Heater fan Repair : )
Yes, I'm glad I'm not the only one that though that the two heavy current wires looked rather thin in the photograph.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: C5 2003 Heater fan Repair : )
If I remember rightly, blower fans can take up to 20-25A on full speed, so that aftermarket replacement item wiring does look a bit thin.
Not convinced that that sort of current should be being handled by a single pin on that type of connector, either.
Not convinced that that sort of current should be being handled by a single pin on that type of connector, either.
Chris
- spiff
- Posts: 190
- Joined: 08 Aug 2017, 20:24
- Location: Mullion Cove Cornwall
- My Cars: C5 2003 2LTR 1997 AUTO PETROL ESTATE
- x 17
Re: C5 2003 Heater fan Repair : )
Good afternoon from a sunny Mullion Cove : )
The contact area on that type of plug and socket is the flat side of the socket and the two bent round contact points on the other side that provide the force.
I think that is the type they are, so not even a full both sides of the pin, if you can understand what I mean.
Still the car is 2003 and has done 160000 miles, so if original they lasted a fair while.
The wire I used to solder to the circuit board pins was thicker than the original : )
It was part off a power lead for a high current WW2 transmitter, needs must : )
I repaired a kitchen stove for a friend in the village a while back, connecters had melted on that.
The thickness of the cables feeding the oven looked more suited to a lighting circuit.
God Bless Spiff
The contact area on that type of plug and socket is the flat side of the socket and the two bent round contact points on the other side that provide the force.
I think that is the type they are, so not even a full both sides of the pin, if you can understand what I mean.
Still the car is 2003 and has done 160000 miles, so if original they lasted a fair while.
The wire I used to solder to the circuit board pins was thicker than the original : )
It was part off a power lead for a high current WW2 transmitter, needs must : )
I repaired a kitchen stove for a friend in the village a while back, connecters had melted on that.
The thickness of the cables feeding the oven looked more suited to a lighting circuit.
