2017 Berlingo diesel filter primer

Post by Chrisl »

I’m struggling to find the primer on my van, 1.6bluehdi, the filter and housing do not have the usual button for priming after changing the filter.
I have looked and cannot even see a inline squeeze primer .
Can anyone enlighten me ?
Attachments
Hell Razor5543
Donor 2023
Posts: 13667
Joined: 01 Apr 2012, 09:47
x 2252

Re: 2017 Berlingo diesel filter primer

Post by Hell Razor5543 »

HDi engines don't (AFAIK) normally need a primer.

Oh, :welc: to the forum, by the way.
Chrisl
Posts: 4
Joined: 13 Feb 2019, 20:38

Re: 2017 Berlingo diesel filter primer

Post by Chrisl »

Thanks for your advice Hell Razor and cheers for the welcome, I will be completting if my profile shortly.
Please accept my apologies for not introducing myself before posting but I desperately need to change the filter and it’s been driving me mad.
If there is anyone else that can confirm that there isn’t a primer involved I will change the filter and hold my breath , presumably there is a pump that takes care of the bleeding?
Thanks again
User avatar
myglaren
Forum Admin Team
Posts: 24785
Joined: 02 Mar 2008, 14:30
x 2937

Re: 2017 Berlingo diesel filter primer

Post by myglaren »

When you turn on the ignition but wait to start the engine you should hear the in-tank pump run for a few seconds - if it does have an in-tank pump.
In that case it will be self priming.
RichardW
Forum Treasurer
Posts: 10566
Joined: 07 Aug 2002, 17:12
x 757

Re: 2017 Berlingo diesel filter primer

Post by RichardW »

Pretty sure the Blue HDi has gone back to a lift pump in the tank. Check what it says in the handbook about running out of fuel, if it says just turn it on, then there is a lift pump. Best if you change the filter to cycle ignition on and off 4 or 5 times to cycle the pump until you hear the gurgling stop in the tank.
Chrisl
Posts: 4
Joined: 13 Feb 2019, 20:38

Re: 2017 Berlingo diesel filter primer

Post by Chrisl »

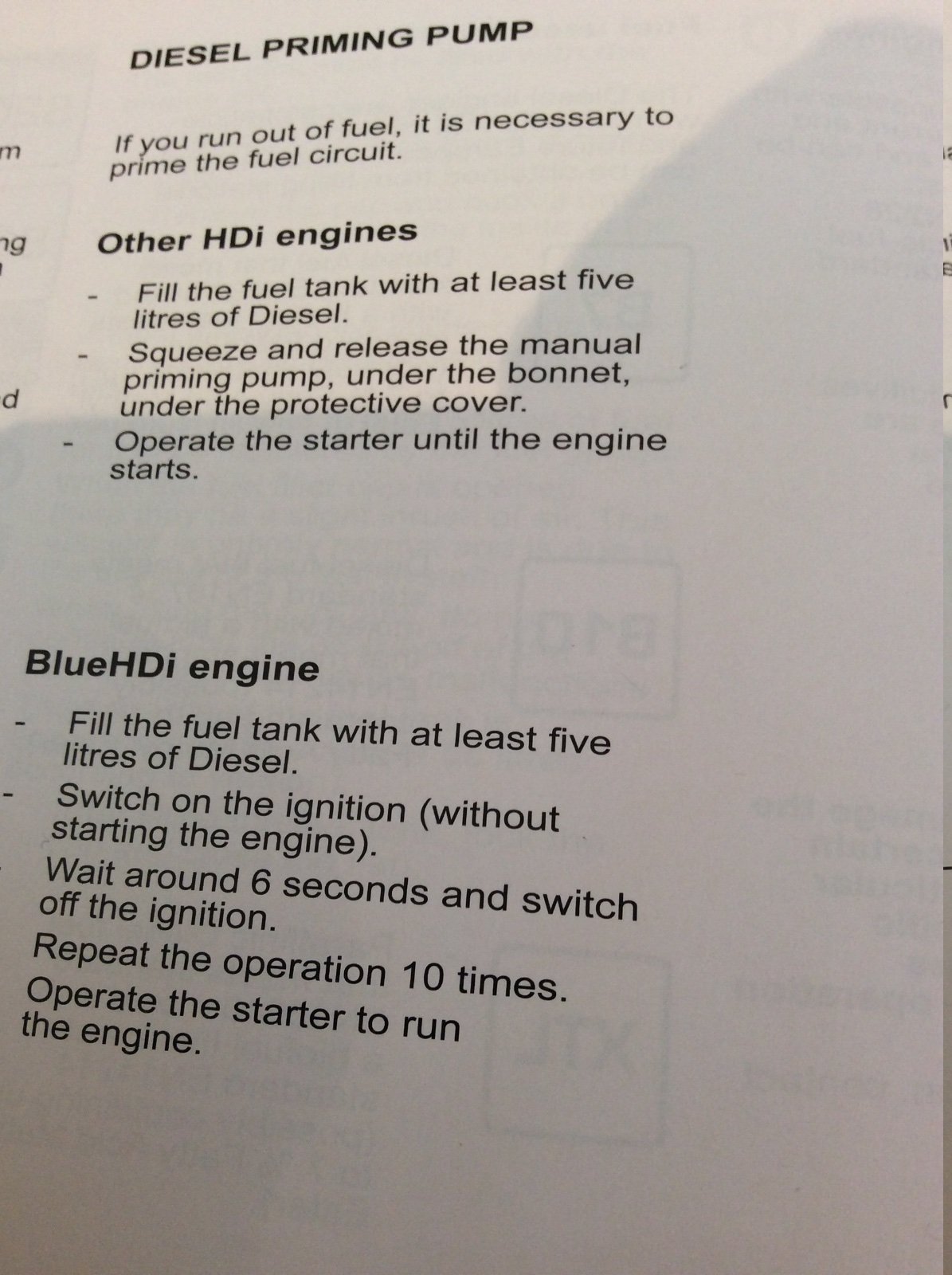

If only I had read the manual instead of filing it Lol
Thanks Richard and All.
Last edited by myglaren on 14 Feb 2019, 09:50, edited 1 time in total.
Reason: Image rotated
RichardW
Forum Treasurer
Posts: 10566
Joined: 07 Aug 2002, 17:12
x 757

Re: 2017 Berlingo diesel filter primer

Post by RichardW »

:-D If in doubt RTFM!!!
Chrisl
Posts: 4
Joined: 13 Feb 2019, 20:38

Re: 2017 Berlingo diesel filter primer

Post by Chrisl »

Haha, I’m on my third Berlingo now and always found the primer, manuals are usually stored unread.
Many thanks.
