Electrovalve wiring diagram

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Cfiver
Posts: 38
Joined: 22 Aug 2016, 16:51
x 1

Electrovalve wiring diagram

Post by Cfiver »

Can anyone help with a wiring diagram for C5 2.2hdi Mk2 Exclusive Automatic 2004? I need to verify which wires go to which electrovalve?

Vin number
VF7**************[VIN obfuscated, can be read by forum staff]
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25505
Joined: 15 Sep 2015, 19:38
x 2855

Re: Electrovalve wiring diagram

Post by GiveMeABreak »

Which ones are you talking about? EGR / Turbo? - Not to worry, as they all appear to be on the same diagram, I'll just put that up and hopefully this'll be what you'll need: :-D
C5 MK II DW12TED4 Bosch
Cfiver
Posts: 38
Joined: 22 Aug 2016, 16:51
x 1

Re: Electrovalve wiring diagram

Post by Cfiver »

Thats Excellent. Thank you Marc.. Is there a key to the part numbers and colour coding?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25505
Joined: 15 Sep 2015, 19:38
x 2855

Re: Electrovalve wiring diagram

Post by GiveMeABreak »

Have a look on our Wiki resource - I've put up the most common codes - they are in sections according to ascending order.

The introduction contains a key to the colours and other useful explanations on how to read the diagrams. :-D

https://frenchcarforum.co.uk/wiki/Elect ... ring_Codes

I you find any that aren't there, let me know and I;ll put them up for you.
Cfiver
Posts: 38
Joined: 22 Aug 2016, 16:51
x 1

Re: Electrovalve wiring diagram

Post by Cfiver »

I think I have found what I need although there is a number missing on the list (1285) Would you check this out for me? Thank you
Cfiver
Posts: 38
Joined: 22 Aug 2016, 16:51
x 1

Re: Electrovalve wiring diagram

Post by Cfiver »

I'm thinking 1285 is the Turbo solenoid??
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25505
Joined: 15 Sep 2015, 19:38
x 2855

Re: Electrovalve wiring diagram

Post by GiveMeABreak »

Just in the 🚿 I’ll check it ASAP
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25505
Joined: 15 Sep 2015, 19:38
x 2855

Re: Electrovalve wiring diagram

Post by GiveMeABreak »

Sorry for the delay - slipped my mind.

1285: inlet air heating solenoid valve /
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25505
Joined: 15 Sep 2015, 19:38
x 2855

Re: Electrovalve wiring diagram

Post by GiveMeABreak »

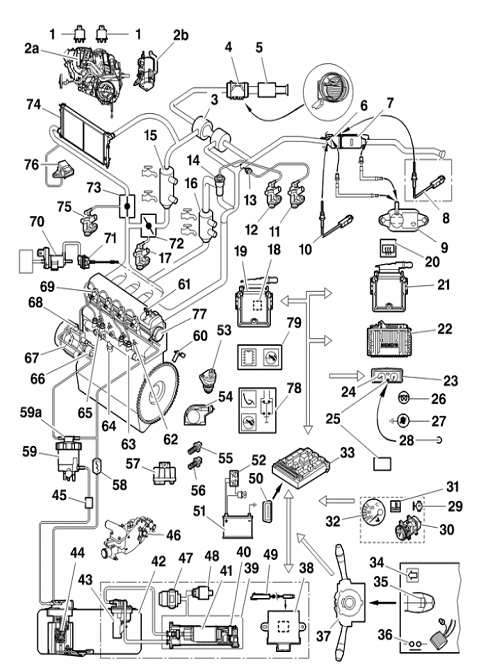

This might help you (or not!). I've only listed the table for the Air Components as I think it is the electrovalves you are interested in: (click the image to zoom).
DW12TED4 Bosch Air Components.PNG
Air System Components
ComponentRef
Turbocharger3
Air Flow Meter4
Air Cleaner5
Catalytic Converter6
Turbocharging Pressure Regulation Solenoid Valve11
Recycling Regulation Electrovalve (EGR)12
Turbo Waste Gate Control Valve13
Exhaust Gas Recycling Valve (EGR)14
Exhaust Gas/Water Exchanger (EGR)16
"Swirl" Control Electrovalve70
"Swirl" Control Diaphragm71
Throttle Butterfly Housing (EGR)73
Air/Air Heat Exchanger74
Throttle Housing Control Electrovalve75
Inlet Manifold Pressure Sensor76
Vacuum Pump77
Cfiver
Posts: 38
Joined: 22 Aug 2016, 16:51
x 1

Re: Electrovalve wiring diagram

Post by Cfiver »

Much appreciated Marc. Thank you
