Hello to all. It's my first post so hopefully I'm in the right section

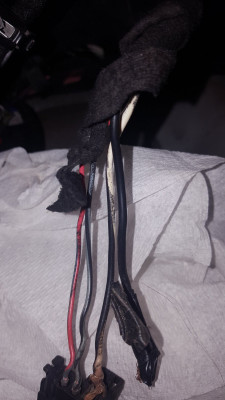

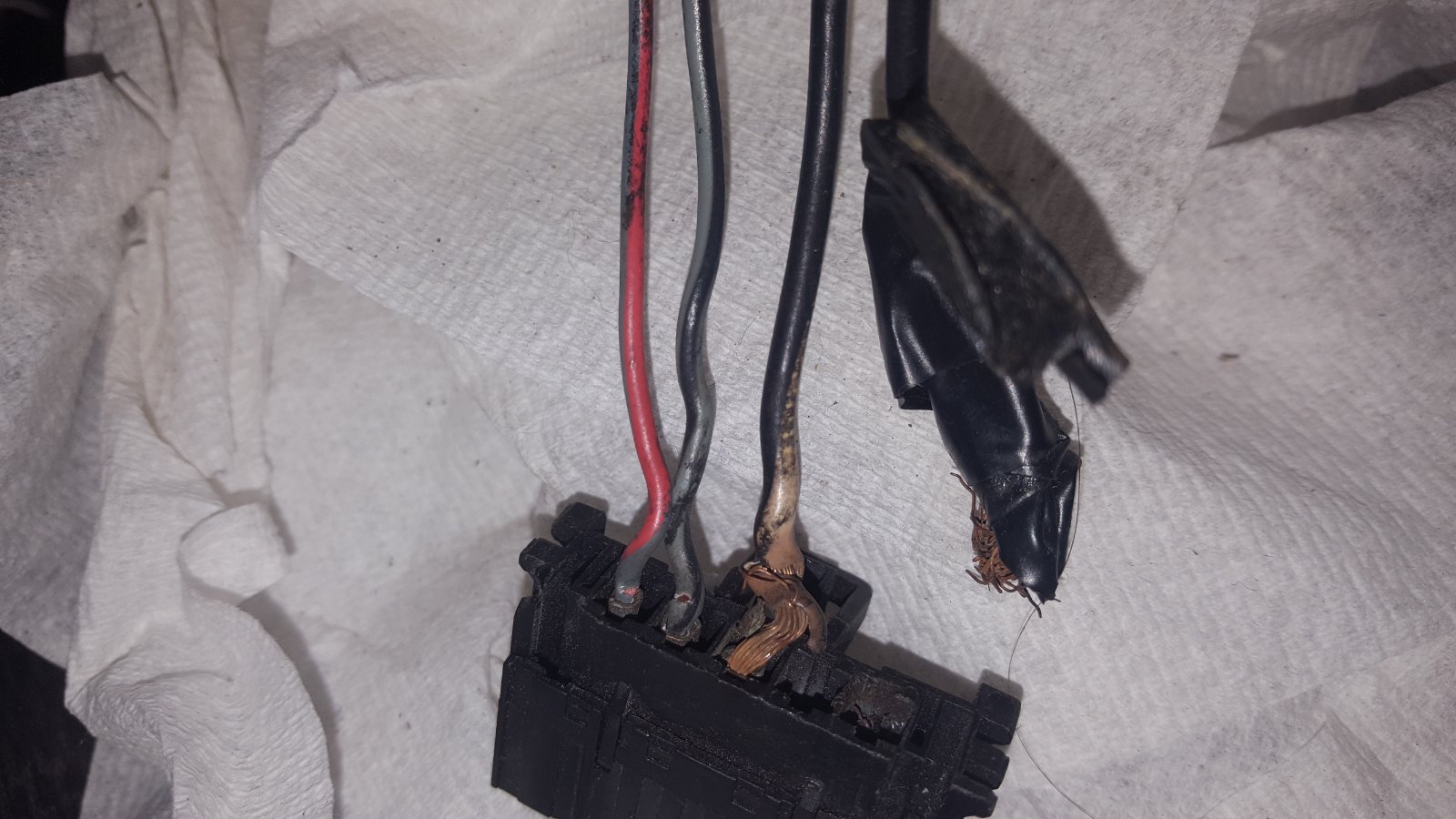

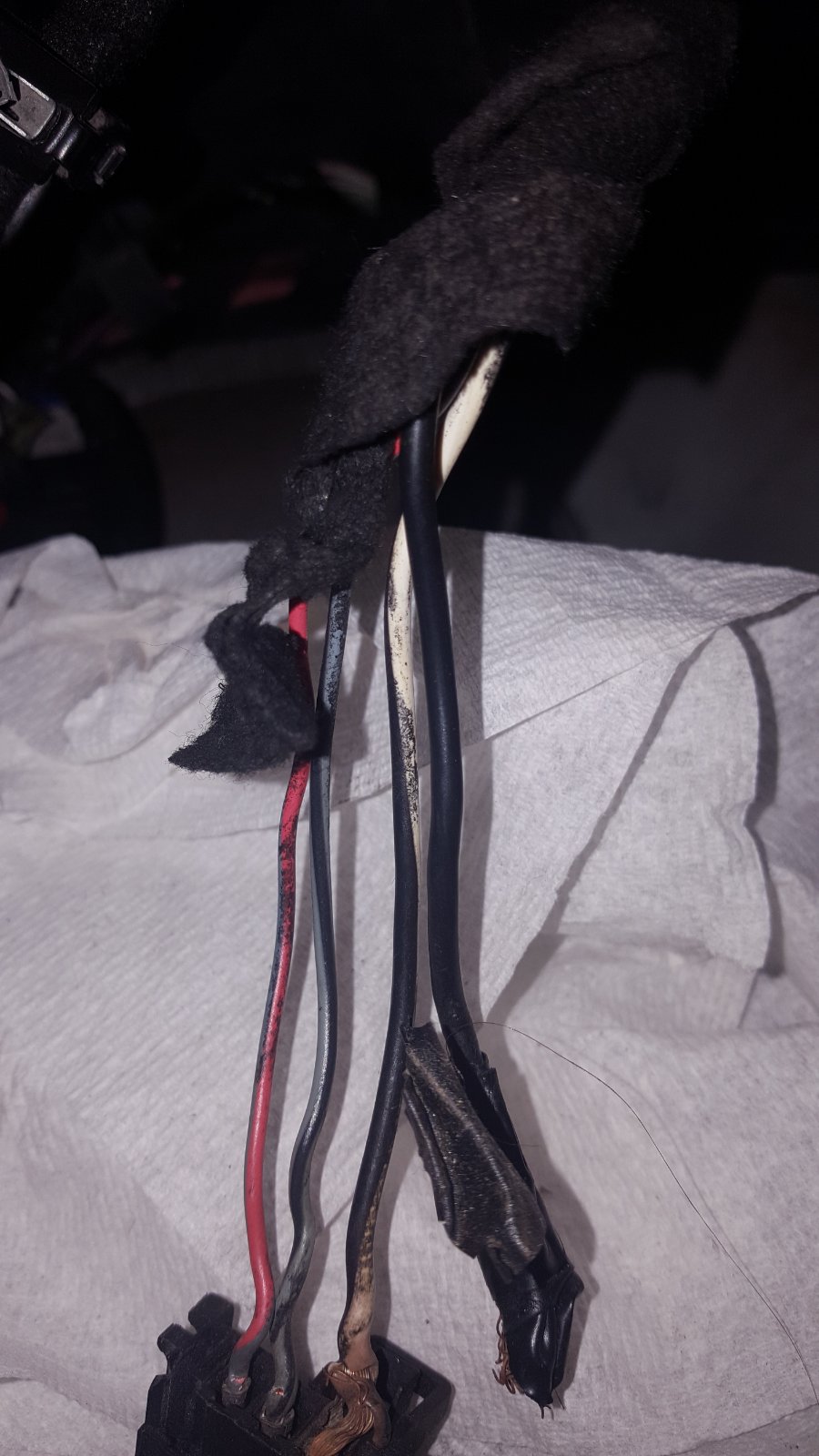

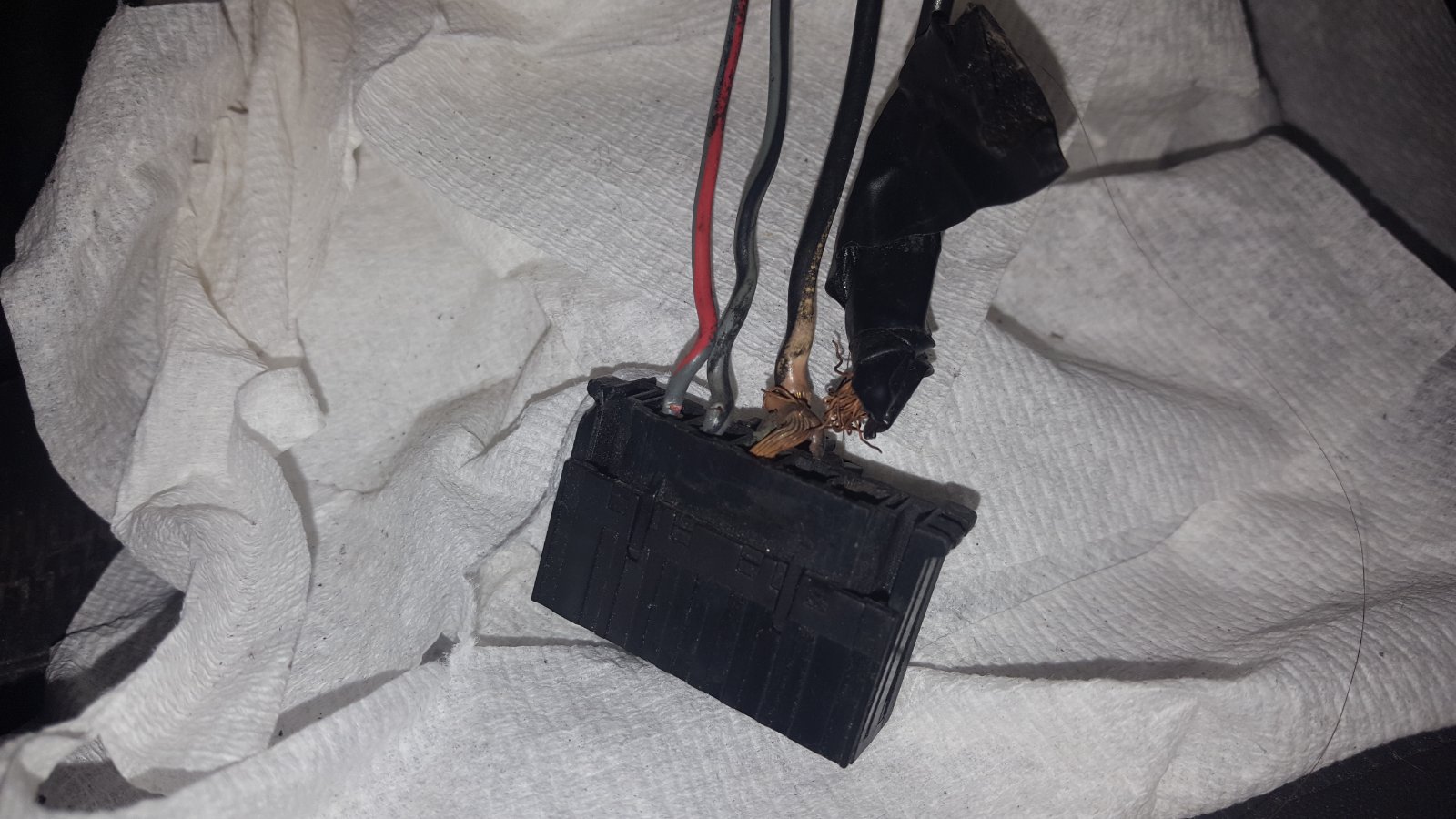

My heater blower was only working on full blast and was told I needed a new heater blower resistor. After examination, the wiring loom to the resistor was also blown.
I bought one from ebay (could be the problem) and thought I could just match up the wires but the wiring seems to be different.
Can anyone lend any knowledge?
I'll upload some pictures
Thanks, Mark
Citroen Relay Blower
Moderator: RichardW
-
- Posts: 35
- Joined: 29 Oct 2018, 17:16
- Location: bedfordshire
- My Cars: Citroen Relay 2.2
Citroen C5 tourer - x 3
-
- Posts: 35
- Joined: 29 Oct 2018, 17:16
- Location: bedfordshire
- My Cars: Citroen Relay 2.2
Citroen C5 tourer - x 3
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Citroen Relay Blower
No need to use a third party host for images, you can upload them directly to the forum, which avoids all the link issues which you are currently having.
Just go to the full editor, and at the bottom, choose attachments, add files and upload from your mobile or pc and place the image where you want it.
Just go to the full editor, and at the bottom, choose attachments, add files and upload from your mobile or pc and place the image where you want it.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 35
- Joined: 29 Oct 2018, 17:16
- Location: bedfordshire
- My Cars: Citroen Relay 2.2
Citroen C5 tourer - x 3
-
- Posts: 35
- Joined: 29 Oct 2018, 17:16
- Location: bedfordshire
- My Cars: Citroen Relay 2.2
Citroen C5 tourer - x 3
Re: Citroen Relay Blower
Thanks for that Marc. I was losing the will to live there
-
- Posts: 35
- Joined: 29 Oct 2018, 17:16
- Location: bedfordshire
- My Cars: Citroen Relay 2.2
Citroen C5 tourer - x 3
Re: Citroen Relay Blower

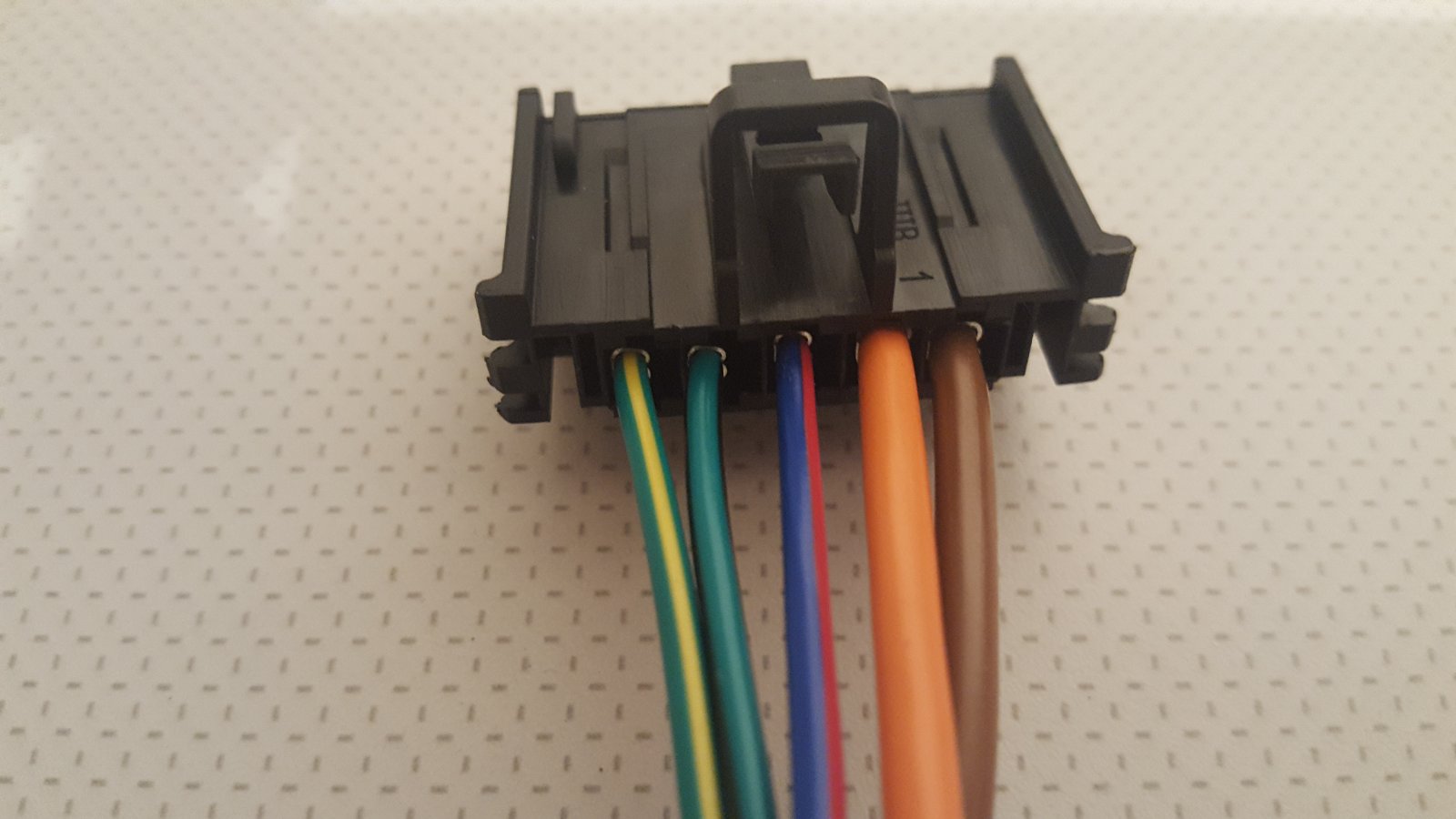

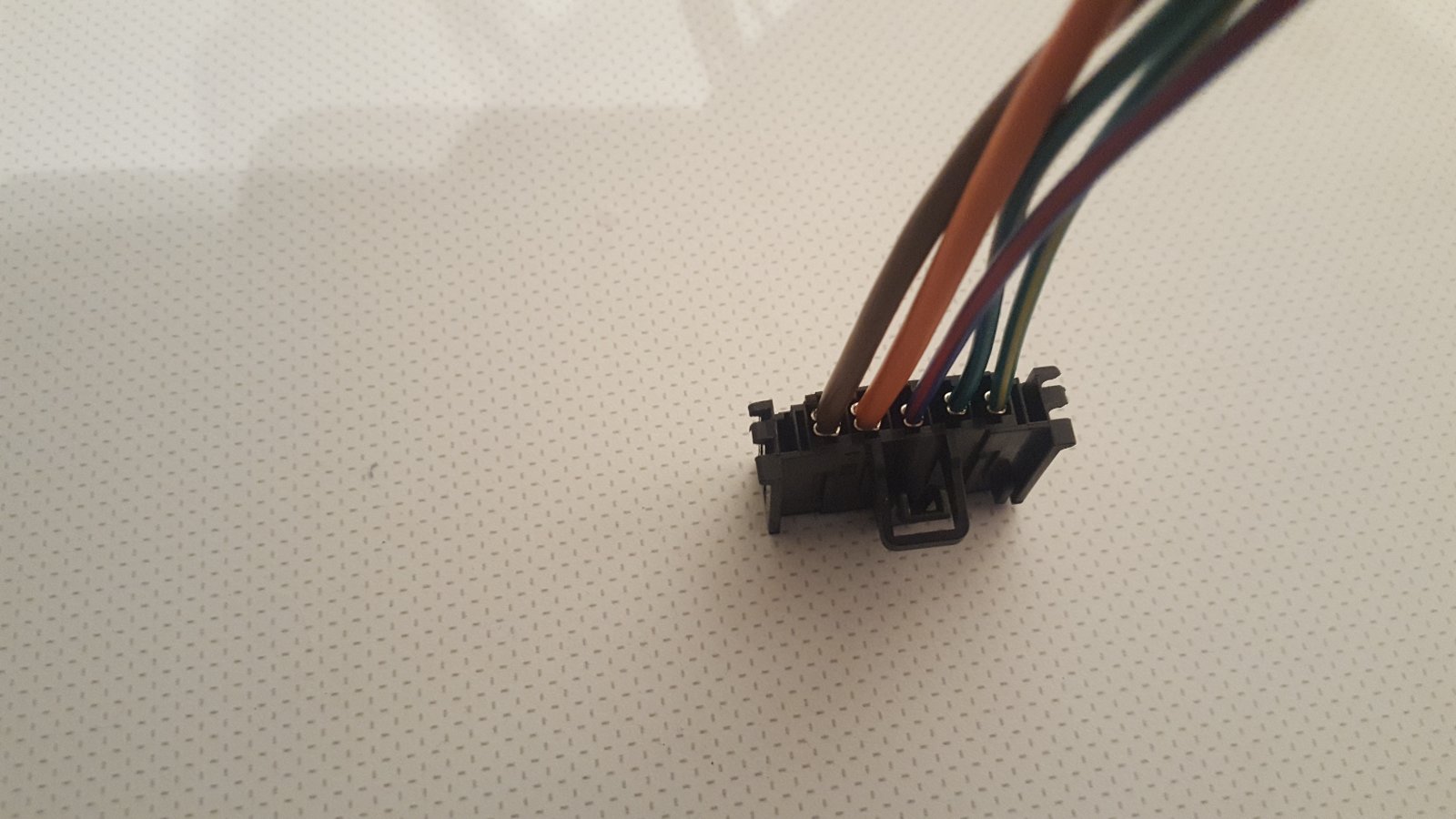

What's throwing me is my van has 4 wires the new loom has 5.
Any advice greatly appreciated
Any advice greatly appreciated
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Citroen Relay Blower
Can you pop up your VIN for me (it will be automatically hidden from public view) so I can check the wiring diagrams, then i might be able to help.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 35
- Joined: 29 Oct 2018, 17:16
- Location: bedfordshire
- My Cars: Citroen Relay 2.2
Citroen C5 tourer - x 3
Re: Citroen Relay Blower
Hi Marc. VIN is VF7**************[VIN obfuscated, can be read by forum staff]. Thanks again
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Citroen Relay Blower
Ok, so this is all I have for the wiring:
Click Diagram to Zoom
So the Blower Motor Resistor has 4 wires shown , but it is the Blower Motor itself that has 5 wires.
Click Diagram to Zoom
8050: blower motor (if separate) 8040: blower speed control (if separate) 3051: heater control panel lamp 8046: blower motor resistor (if separated) |
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 35
- Joined: 29 Oct 2018, 17:16
- Location: bedfordshire
- My Cars: Citroen Relay 2.2
Citroen C5 tourer - x 3
Re: Citroen Relay Blower
Thanks for that Marc but to be honest I'm not really any more the wiser. Going by my pics I was hoping to just cut the wires and crimp in the new loom. Exactly the same black casing on my new one as the old, just the extra wire I cant figure out.
Cheers
Cheers
-
- Posts: 35
- Joined: 29 Oct 2018, 17:16
- Location: bedfordshire
- My Cars: Citroen Relay 2.2
Citroen C5 tourer - x 3
Re: Citroen Relay Blower
In the van there's a separate live and neutral which plug straight onto the actual blower motor itself
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Citroen Relay Blower
Ok, so look at item 8050 - that is the actual blower motor and that has 2 wires. 78 goes to the Engine compartment fusebox. 67 goes to the blower speed control (8040) - wire (59) and also intersects the blower motor resistor (8046) at wire (58). Unfortunately the colours are not always reliable and there are none listed as you can see - so I can't help with the connections beyond this.
Also the added problem is that the 2-digit wiring numbers shown have no description even on the official diagram which is usless. Normally they would indicate which wire does what.
Also the added problem is that the 2-digit wiring numbers shown have no description even on the official diagram which is usless. Normally they would indicate which wire does what.
