Hi
The Air recirculation ( climate control ) in my Citroen C4 VTS doesn't work. I removed the glove box detached the servo motor that moves the flap and saw that when the recirculation button is pressed the motor rotates but for a short way. As I have spare servo motor I did this test with several motors and they all rotates a bit. It looks that something in the control circuit is wrong. BTW it also happens on my other C4 ( 4 doors ) with climate control
Thanks
C4 VTS - Air recirculation does not work
Moderator: RichardW
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
C4 VTS - Air recirculation does not work
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
- GiveMeABreak
- Forum Admin Team
- Posts: 37013
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5647
Re: C4 VTS - Air recirculation does not work
So what makes you think it isn't working as a matter of interest?
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2022)
- Posts: 711
- Joined: 30 Nov 2010, 07:02
- Location: Israel
- My Cars: Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD - x 8
Re: C4 VTS - Air recirculation does not work
When the glove box was removed I pressed the recirculation button and the flap didn't move, on top of it when the entry of air from outside
is blocked off the air stream should be stronger ( one can hear it ) but it doesn't happen. . I have 3 C4 and with one off them ( with no climate control ) when the entry of air from outside
is blocked off the air stream is intensified .
is blocked off the air stream should be stronger ( one can hear it ) but it doesn't happen. . I have 3 C4 and with one off them ( with no climate control ) when the entry of air from outside
is blocked off the air stream is intensified .
Xantia 2.0 16V Automatic make year 2000 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
Citroen C4 THP Automatic make year 2009 LHD
Citroen C4 VTS 2.0 16V make year 2006 LHD
- GiveMeABreak
- Forum Admin Team
- Posts: 37013
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5647
Re: C4 VTS - Air recirculation does not work
I think you'll find that is by design:
The system uses a Partial Air Recirculation
The partial air recirculation consists of using (via the air conditioning unit air intake flap) part passenger compartment air and part exterior air. For all engines, a partial recirculation phase is carried out to improve the heating of the passenger compartment.
This recirculation phase takes place during the engine coolant temperature increase between 35°C and 65°C. In the same way, total or partial air recirculation is carried out to improve the performance of the air conditioning. The rate of air recirculation depends on the exterior temperature and the calculated passenger compartment temperature.
This will explain why the flap is only partially moving.
The system uses a Partial Air Recirculation
The partial air recirculation consists of using (via the air conditioning unit air intake flap) part passenger compartment air and part exterior air. For all engines, a partial recirculation phase is carried out to improve the heating of the passenger compartment.
This recirculation phase takes place during the engine coolant temperature increase between 35°C and 65°C. In the same way, total or partial air recirculation is carried out to improve the performance of the air conditioning. The rate of air recirculation depends on the exterior temperature and the calculated passenger compartment temperature.
This will explain why the flap is only partially moving.
Please Don't PM Me For Technical Help
Marc
Marc
- Cutac
- Posts: 348
- Joined: 28 Aug 2016, 19:36
- Location: Croatia
- My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS - x 20
Re: C4 VTS - Air recirculation does not work

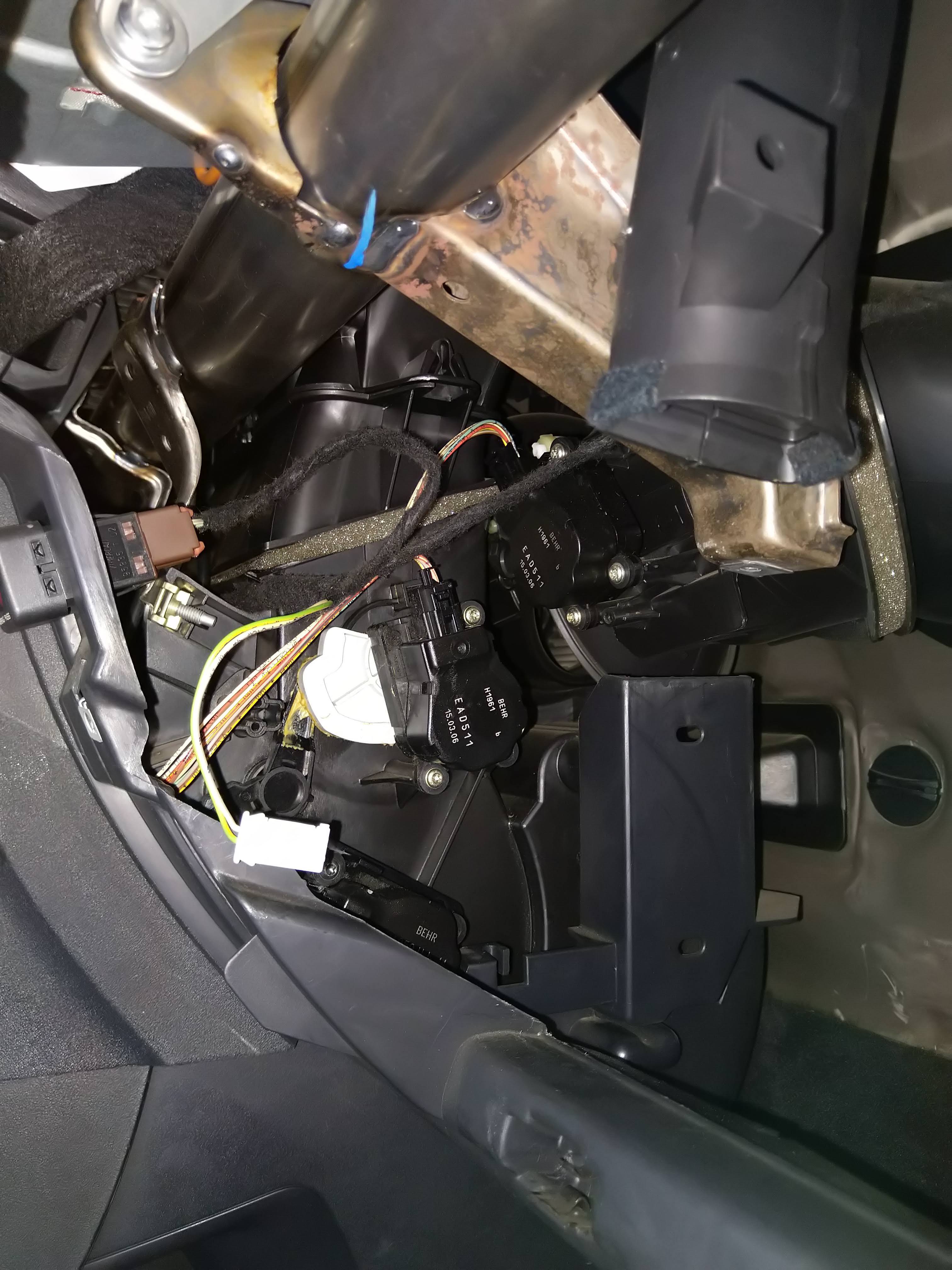

But it should move fully. I've been behind the glovebox recently and there's a tube which consists of two parts that open or close whether recirculation is selected or not.
- GiveMeABreak
- Forum Admin Team
- Posts: 37013
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5647
Re: C4 VTS - Air recirculation does not work

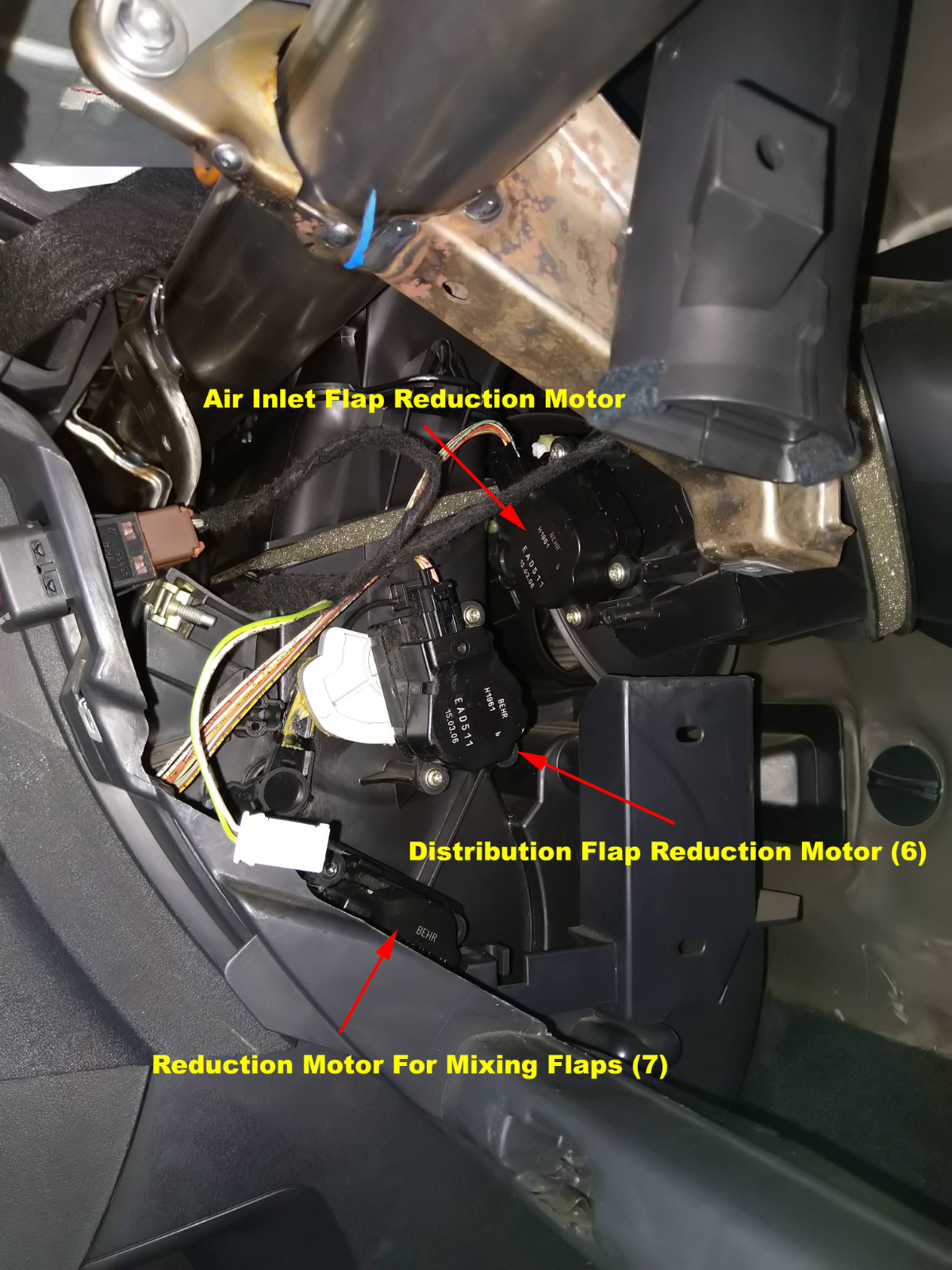

Yes but which one are you talking about - there may be both air mixer flaps and air distribution flaps.....
Please Don't PM Me For Technical Help
Marc
Marc
- Cutac
- Posts: 348
- Joined: 28 Aug 2016, 19:36
- Location: Croatia
- My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS - x 20
Re: C4 VTS - Air recirculation does not work

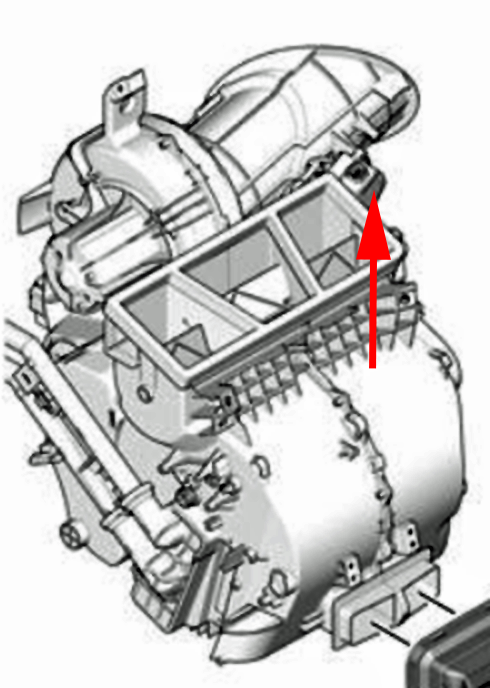

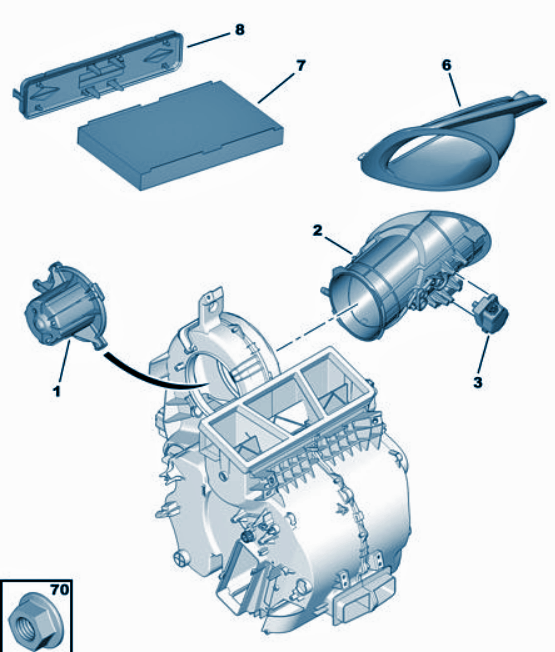

First picture, part 2 moves IIRC.
- GiveMeABreak
- Forum Admin Team
- Posts: 37013
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5647
Re: C4 VTS - Air recirculation does not work

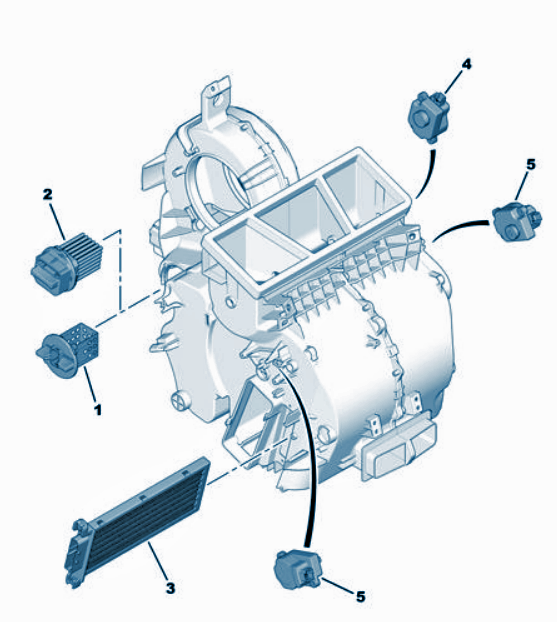

This is as far as I can tell - there was a changeover in the system up to build date 10739 and the new system from 10740. Your build date is 10728 so uses the older system.

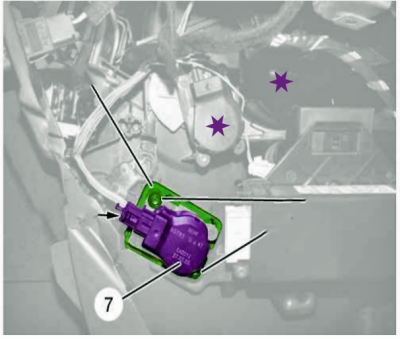

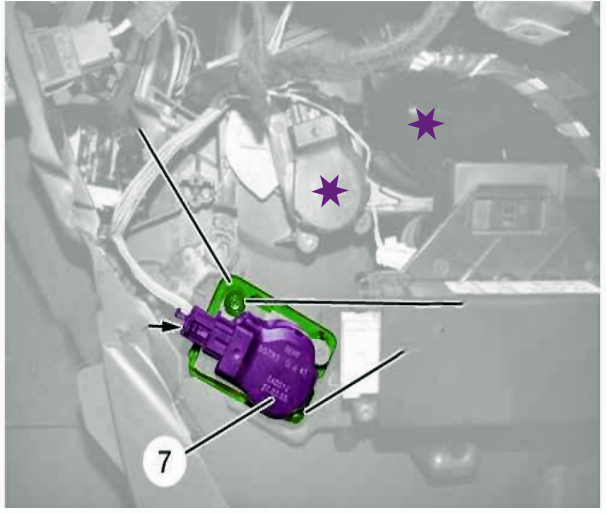

The Diagram Showing the same (Stars Show the Other Units) | This shows the mixer unit in place as per my last picture in the previous post. So not sure if that is one of the ones in your picture or an additional one! |
Please Don't PM Me For Technical Help
Marc
Marc
- Cutac
- Posts: 348
- Joined: 28 Aug 2016, 19:36
- Location: Croatia
- My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS - x 20
Re: C4 VTS - Air recirculation does not work
What's the difference with the new system?
I'm pretty sure that's the same one from my photo. Bottom to top, temperature motor(a gear on the axle), direction motor(a hexagon on the axle) and recirculation motor(didn't take it off).
GiveMeABreak wrote: ↑04 Oct 2018, 14:05 "This shows the mixer unit in place as per my last picture in the previous post.
So not sure if that is one of the ones in your picture or an additional one!"
I'm pretty sure that's the same one from my photo. Bottom to top, temperature motor(a gear on the axle), direction motor(a hexagon on the axle) and recirculation motor(didn't take it off).
- xantia_v6
- Forum Admin Team
- Posts: 9053
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 825
Re: C4 VTS - Air recirculation does not work
Can you exercise the actuators with Diagbox? I don't think that the recirculation flap normally opens more than 20% in automatic mode.
- Cutac
- Posts: 348
- Joined: 28 Aug 2016, 19:36
- Location: Croatia
- My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS - x 20
Re: C4 VTS - Air recirculation does not work
Even if I could, I can't see it with the glovebox in place and it's quite an exercise getting it out.
When I was trying it I wasn't using auto mode, I was manually changing the settings to see what'll happen/move.
When I was trying it I wasn't using auto mode, I was manually changing the settings to see what'll happen/move.
