Hi All,
can someone tell me what size/type the bolts are that hold the starter motor in on a Picasso HDi (90BHP HDi engine, same as Berlingo etc). I've done one before, but can't remember and the car is some distance away from me at the moment, or I'd go and look.. have to change the starter this evening, want to be properly equipped..
cheers
M
2003 Picasso HDi - quick question
Moderator: RichardW
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: 2003 Picasso HDi - quick question

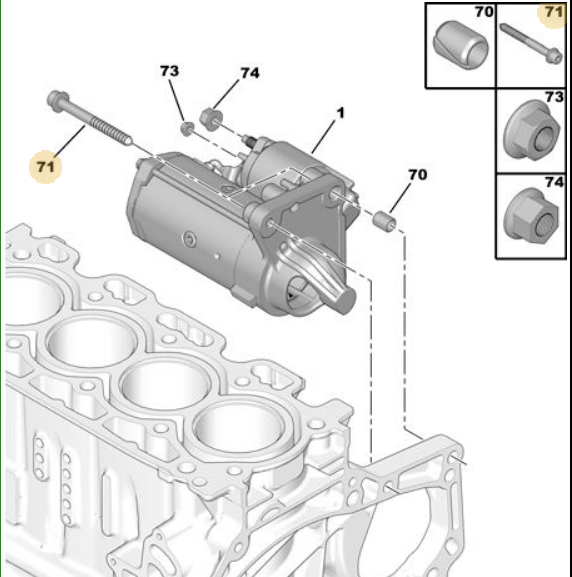

Here you go, for a 1.6 HDi 92 (DV6ATED4): I think this should cover all the bases.
Pin 70: 12 X 15 Bolt 71: Diam 8 X 125-80 Nut 73: 5 X 80 - 4 - 8 Nut 74: 8 X 125 -8 -13 |
Please Don't PM Me For Technical Help
Marc
Marc
- Michel
- (Donor 2022)
- Posts: 2207
- Joined: 29 May 2017, 13:50
- Location: Nothanks
- My Cars: Some cars and a motorbike
- x 659
Re: 2003 Picasso HDi - quick question
Thanks Marc, I'm pretty sure the 2.0HDi motor is different though.. for a start, one can get at all 3 bolts pretty easily :-p
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: 2003 Picasso HDi - quick question

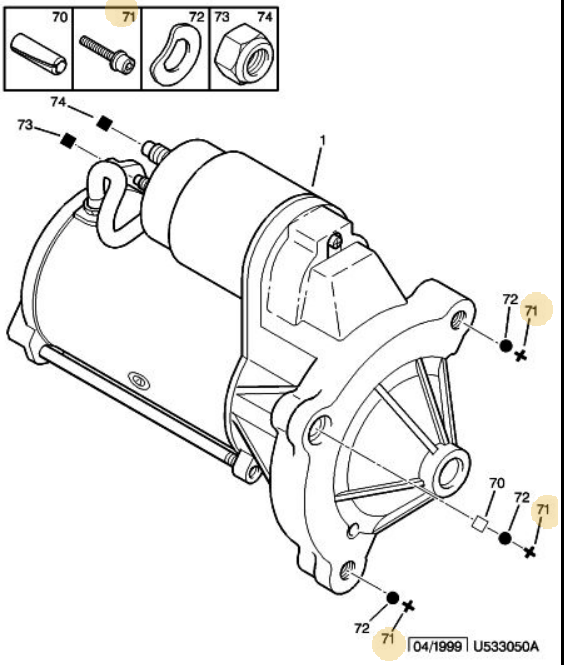

I just meant all the 'bits' on the diagram for the above - for the 2.0 HDI 90 it's this one Mike:
71: (MUL) CHC FLANGED BOLT DIAM 10X150-80 74: (MUL) SELF LOCKING NUT 8X125-8,8-13 |
Please Don't PM Me For Technical Help
Marc
Marc
- Paul-R
- Donor 2023
- Posts: 6916
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1369
Re: 2003 Picasso HDi - quick question
Unfortunately thread dimensions don't give a perfect indication of spanner sizes need. Just think of all the times PSA has used nuts and bolts which require 18mm and 16mm sockets where, in a normal world, one would have expected 19mm and 17mm.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
- Donor 2023
- Posts: 13727
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 2993
Re: 2003 Picasso HDi - quick question
I think (going by what I felt when I was looking for the third bolt, hiding under a mounting plate) they are Torx bolts. Although I may have the right size, that third bolt could be interesting.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
-
- (Donor 2020)
- Posts: 7171
- Joined: 08 Jun 2011, 18:04
- Location: GL15***
- My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE - x 2500
Re: 2003 Picasso HDi - quick question
If they're the same as the C5 they don't have hexagon heads they're 8mm Allen screw heads.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
- Michel
- (Donor 2022)
- Posts: 2207
- Joined: 29 May 2017, 13:50
- Location: Nothanks
- My Cars: Some cars and a motorbike
- x 659
Re: 2003 Picasso HDi - quick question
Thanks all! I shall tell you who's right later, but from eyeballing them yesterday, just before it started to rain, I've a feeling Gibbo is right. They are definitely torx or allen screws of some description..
- Michel
- (Donor 2022)
- Posts: 2207
- Joined: 29 May 2017, 13:50
- Location: Nothanks
- My Cars: Some cars and a motorbike
- x 659
Re: 2003 Picasso HDi - quick question
Yeah, my Grand Picasso drop-links for a start..
Re: 2003 Picasso HDi - quick question
From memory I think they are 8mm allen bolts.
The main cable is 13mm & the solenoid connection is either 8mm or 10mm
The main cable is 13mm & the solenoid connection is either 8mm or 10mm
-
- Donor 2023
- Posts: 13727
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 2993
Re: 2003 Picasso HDi - quick question
Yes, wheeler, you were right.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
- Michel
- (Donor 2022)
- Posts: 2207
- Joined: 29 May 2017, 13:50
- Location: Nothanks
- My Cars: Some cars and a motorbike
- x 659
Re: 2003 Picasso HDi - quick question
Mr. Wheeler, and Gibbo were indeed right. Thanks again to Mr. H. Razor for coming over and providing logic. He is clearly the Captain Slow to my Clarkson...
A slightly more awkward job on the Xsara Picasso 2.0HDi than on the Berlingo, as the Pic has a hydraulic clutch, and the actuator is on the side of the gearbox in the way of the lower starter bolt, but once the air filter box and fuel filter were removed out of the way, it wasn't too bad. As usual, the newer starter was somewhat larger than the original unit, and spins the engine over very quickly, and it starts first time, every time now. Next up is to replace the rear wiper blade and sort the rear washer out. Wiper works, squirter does not. It makes a noise, so it''ll be blocked or the pump dying on reverse.
The air-con man is coming to look at it on Tuesday too. If the AC, wiper, and a couple of new keys for it can be sorted, it'll be a nice car. I actually prefer it to the Grand Picasso! Shame it's not mine. I may have to look for an 08 plate late one for myself...
A slightly more awkward job on the Xsara Picasso 2.0HDi than on the Berlingo, as the Pic has a hydraulic clutch, and the actuator is on the side of the gearbox in the way of the lower starter bolt, but once the air filter box and fuel filter were removed out of the way, it wasn't too bad. As usual, the newer starter was somewhat larger than the original unit, and spins the engine over very quickly, and it starts first time, every time now. Next up is to replace the rear wiper blade and sort the rear washer out. Wiper works, squirter does not. It makes a noise, so it''ll be blocked or the pump dying on reverse.
The air-con man is coming to look at it on Tuesday too. If the AC, wiper, and a couple of new keys for it can be sorted, it'll be a nice car. I actually prefer it to the Grand Picasso! Shame it's not mine. I may have to look for an 08 plate late one for myself...
