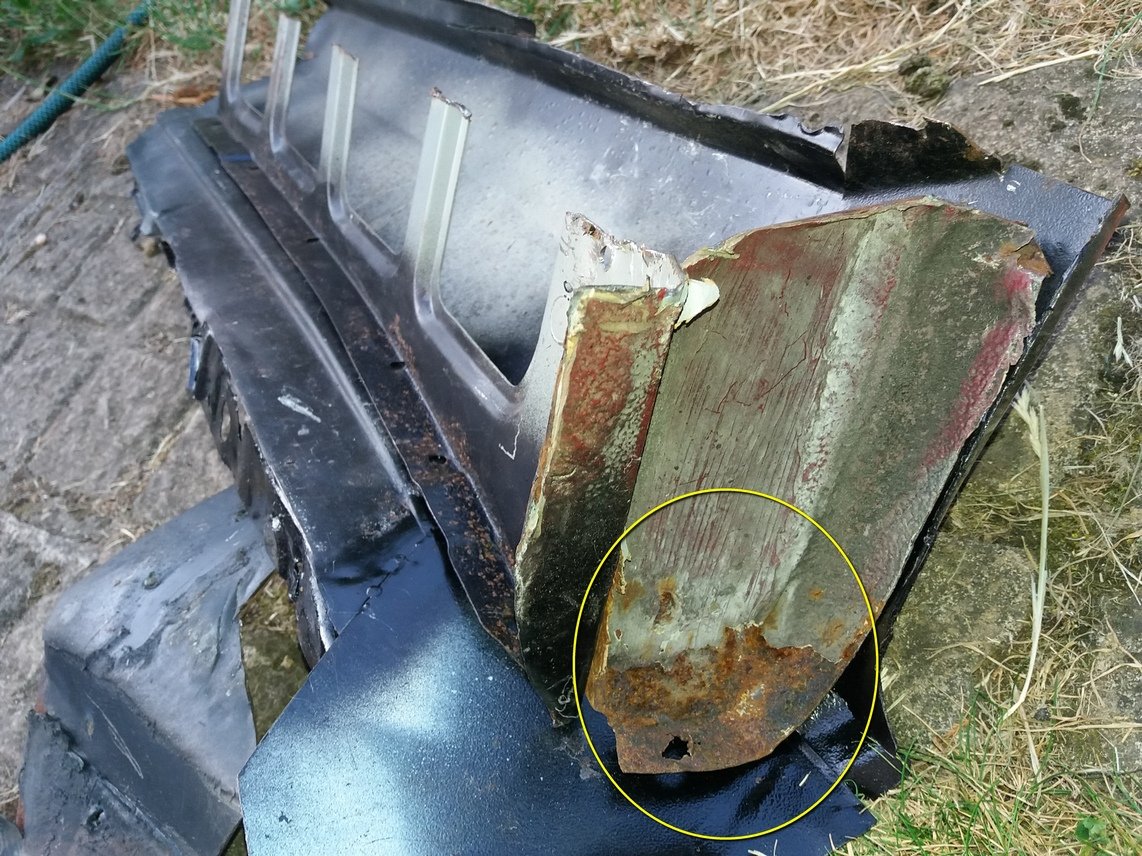

Anyone got any 'improvement' on my plan to fabricate a new one of these, circled
Best I can think at the mo is....
replicate the curve in plasticine
cut a piece of wood to shape
cut metal with one slit near the bottom
Use that as a 'former' to batter a flat piece of 0.8mm sheet into a replacement.
Sounds and no doubt will be longwinded.
Any better suggestions?
Easy job for an Engineering shop if I can find one bothered to take on something so small?
405 OS Cill, tail end, less than delighted to check my parts stash and realise that this is defo NOT ready to fit!
Anyone got any 'improvement' on my plan to fabricate a new one of these, circled
Best I can think at the mo is....
replicate the curve in plasticine
cut a piece of wood to shape
cut metal with one slit near the bottom
Use that as a 'former' to batter a flat piece of 0.8mm sheet into a replacement.
Sounds and no doubt will be longwinded.
Any better suggestions?
Easy job for an Engineering shop if I can find one bothered to take on something so small?
405 OS Cill, tail end, less than delighted to check my parts stash and realise that this is defo NOT ready to fit!
Last edited by myglaren on 15 Jul 2018, 18:08, edited 1 time in total.
Reason: Title change
Reason: Title change
Puxa
-
- (Donor 2020)
- Posts: 7654
- Joined: 08 Jun 2011, 18:04
- x 2698
Re: Curved Metal Fabrication
Easier to buy a new pattern panel from somewhere like my supplier.
http://middletonpanelsandpaint.co.uk/ca ... ls/404320
http://middletonpanelsandpaint.co.uk/ca ... ls/404320
Anyone who has never made a mistake has never tried anything new. (Albert Einstein)
-
- Posts: 7445
- Joined: 21 Dec 2015, 13:46
- x 1755
Re: Curved Metal Fabrication

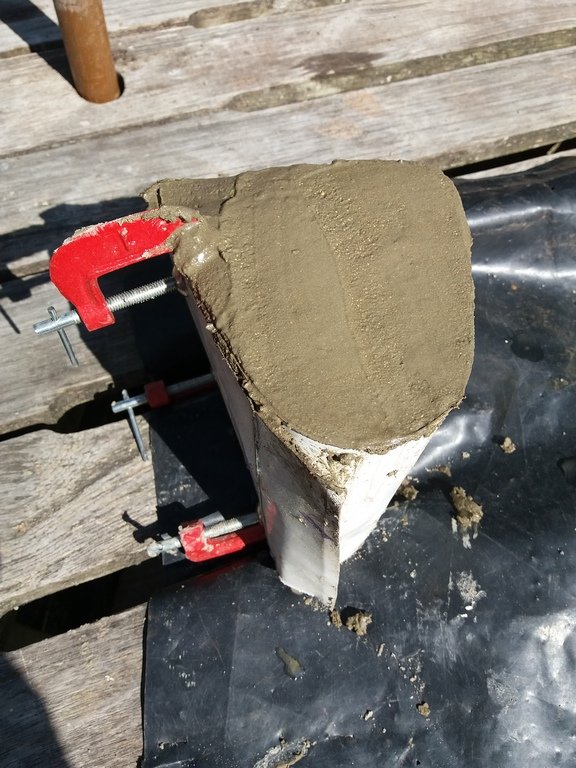

If you're going to shape some steel yourself, cast some hard-mix concrete to the original metal, and use that to form the copy. As a precaution, make two - quick enough to do.
Chris
-
- (Donor 2018)
- Posts: 1168
- Joined: 22 Apr 2013, 17:24
- x 232
Re: Curved Metal Fabrication
thanks Gibbo, can't imagine I'll successfully source one of these tho'
Do like the concrete suggestion Chris, I'm thinking that maybe if I make it ultra hard, say a 1:1 mix; it'll have the best poss chance of holding up. Rivet on some thin 0.6 metal to give the former some 'depth' and use a bit of er indoors Baking Paper to ensure the metal and concrete part company after its set.
Might be interesting to do a blog of progress.
45degrees when I got in the car earlier! not fun driving home.
Do like the concrete suggestion Chris, I'm thinking that maybe if I make it ultra hard, say a 1:1 mix; it'll have the best poss chance of holding up. Rivet on some thin 0.6 metal to give the former some 'depth' and use a bit of er indoors Baking Paper to ensure the metal and concrete part company after its set.
Might be interesting to do a blog of progress.
45degrees when I got in the car earlier! not fun driving home.
Puxa
-
- (Donor 2020)
- Posts: 7654
- Joined: 08 Jun 2011, 18:04
- x 2698
Re: Curved Metal Fabrication
Anyone who has never made a mistake has never tried anything new. (Albert Einstein)
-
- (Donor 2018)
- Posts: 1168
- Joined: 22 Apr 2013, 17:24
- x 232
Re: Curved Metal Fabrication
thanks again Gibbo, appreciate you going to the trouble.
Fingers crossed for the concrete idea !
Fingers crossed for the concrete idea !
Puxa
-
- Posts: 7445
- Joined: 21 Dec 2015, 13:46
- x 1755
-
- (Donor 2020)
- Posts: 7654
- Joined: 08 Jun 2011, 18:04
- x 2698
Re: Curved Metal Fabrication
I've seen cars with that mixture in the sill.

Anyone who has never made a mistake has never tried anything new. (Albert Einstein)
-
- Posts: 7445
- Joined: 21 Dec 2015, 13:46
- x 1755
Re: Curved Metal Fabrication
Better than the bathroom-quality sponge that BL put into the sills and rear wheel arches of 1100/1300.
I kid you not.
I kid you not.

Chris
-
- (Donor 2020)
- Posts: 7654
- Joined: 08 Jun 2011, 18:04
- x 2698
Re: Curved Metal Fabrication
I had a police sergeant come to me and ask me to look over a Lancia he was thinking of buying, it was in sparkling condition but I noticed what looked like paper poking out from a hole in the inside sill, I pulled on it and kept pulling until I had the full symphony of sheet music that was behind the filler.
Anyone who has never made a mistake has never tried anything new. (Albert Einstein)
-
- (Donor 2018)
- Posts: 1168
- Joined: 22 Apr 2013, 17:24
- x 232
Re: Curved Metal Fabrication
its out and looking good.
Gonna give it another day in the sun to harden then see if it'll fulfil its role. Plan to prep the metal later today for bending tomorrow.
So hot today that I struggled to keep the windows wet long enough to squeegee and chamois them!
Gonna give it another day in the sun to harden then see if it'll fulfil its role. Plan to prep the metal later today for bending tomorrow.
So hot today that I struggled to keep the windows wet long enough to squeegee and chamois them!
Puxa
-
- (Donor 2018)
- Posts: 1168
- Joined: 22 Apr 2013, 17:24
- x 232
Re: Curved Metal Fabrication

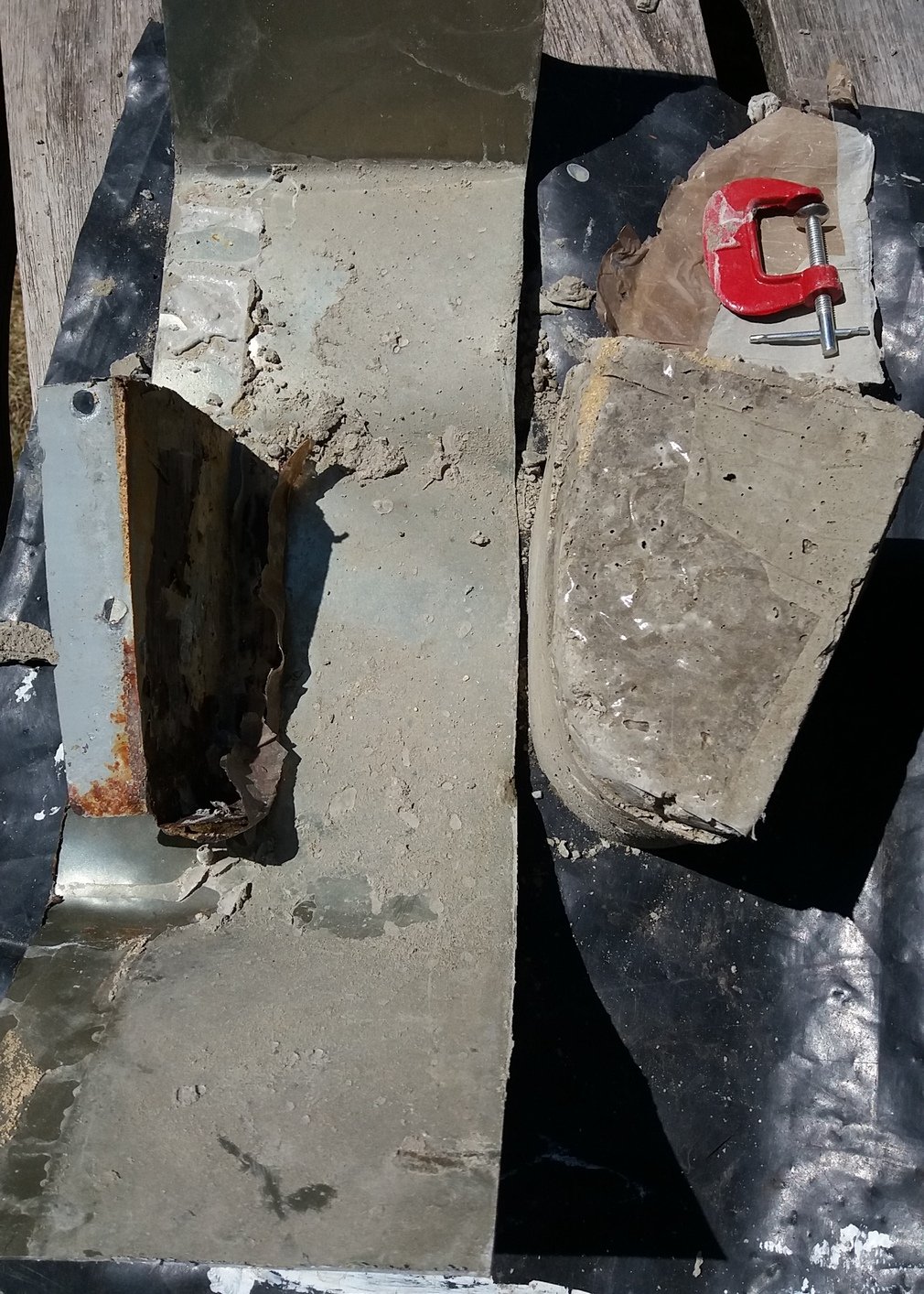

turned out really well and the concrete mould is pretty much undamaged, so thanks again Chris.
Drilled & plugged it then screwed the metal to it with some big washers too.
Haven't bothered with the bend as yet, for the sake of the 10mins that'll take would rather not bother for the mo, just in case once its all stripped down, I want to fettle its location.
NB's

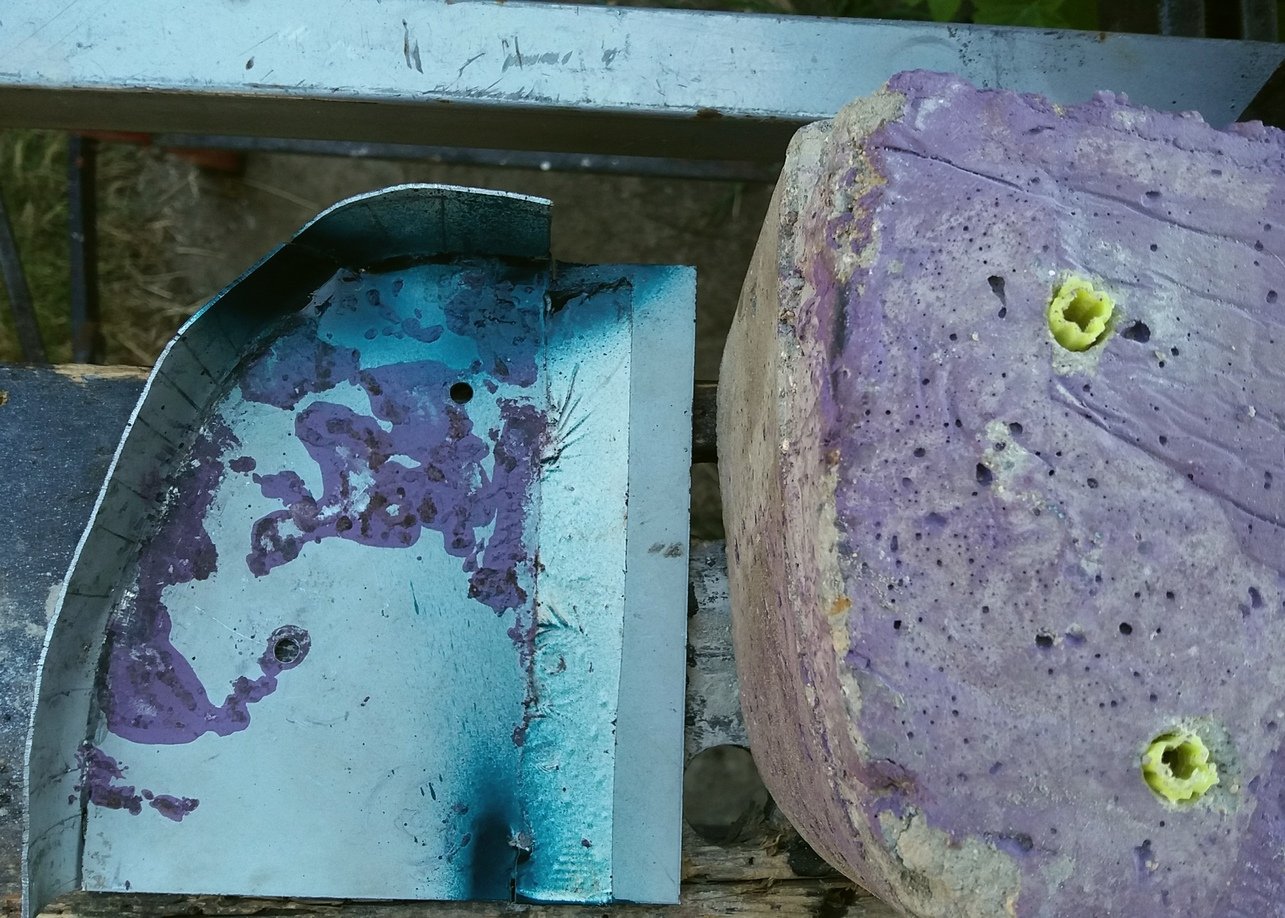

Purple paint is where I used the mould as a 'Stamp' to mark out
Green paint is for temporarily protecting short hacksaw cuts
Trick of the light re insulation tape marking bend, looks at a glance like I've bent it already, the wrong way; not so. Just flat at the mo.
Drilled & plugged it then screwed the metal to it with some big washers too.
Haven't bothered with the bend as yet, for the sake of the 10mins that'll take would rather not bother for the mo, just in case once its all stripped down, I want to fettle its location.
NB's
Purple paint is where I used the mould as a 'Stamp' to mark out
Green paint is for temporarily protecting short hacksaw cuts
Trick of the light re insulation tape marking bend, looks at a glance like I've bent it already, the wrong way; not so. Just flat at the mo.
Puxa
-
- Posts: 7445
- Joined: 21 Dec 2015, 13:46
- x 1755
-
- (Donor 2018)
- Posts: 1168
- Joined: 22 Apr 2013, 17:24
- x 232
Re: Curved Metal Fabrication

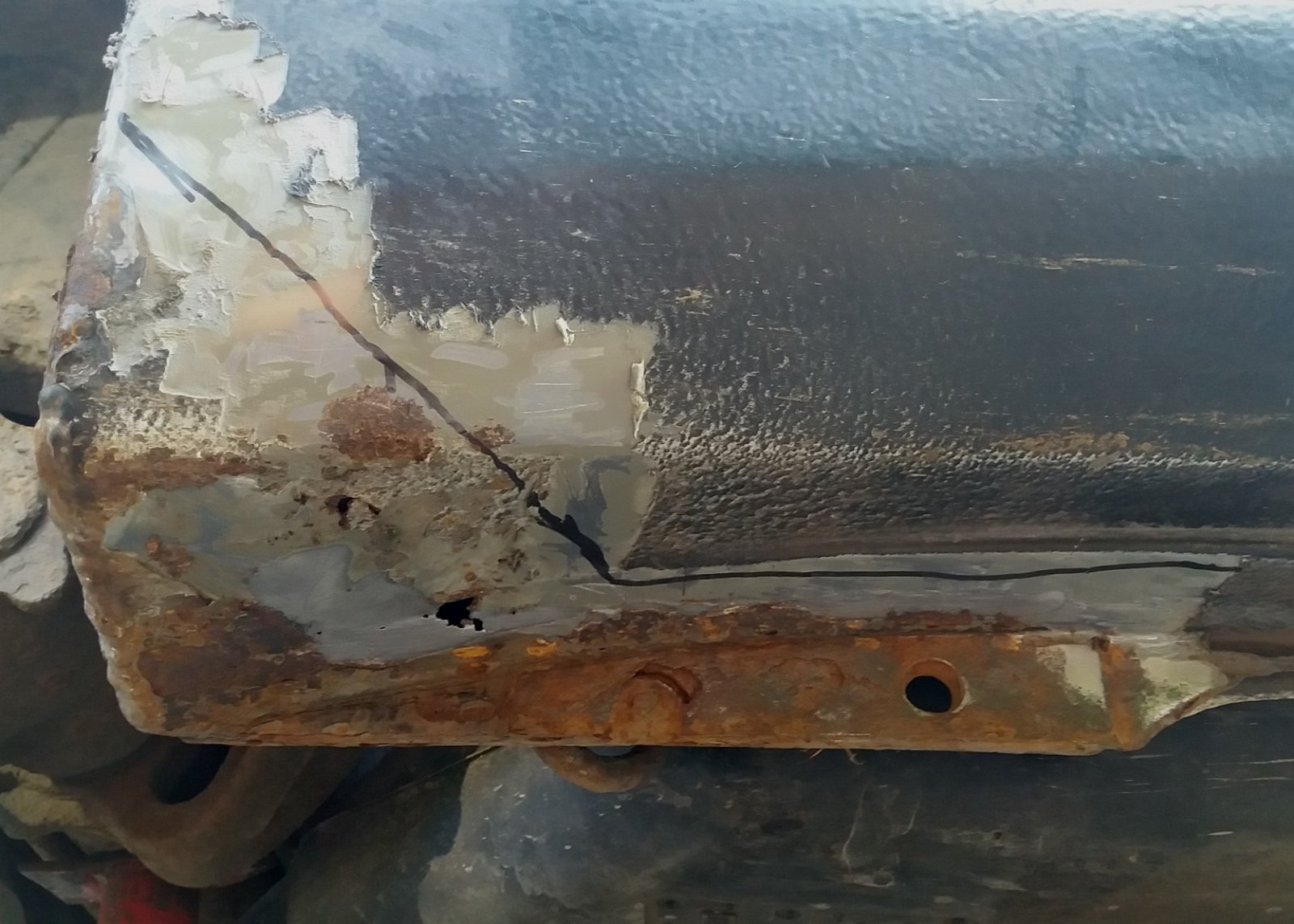

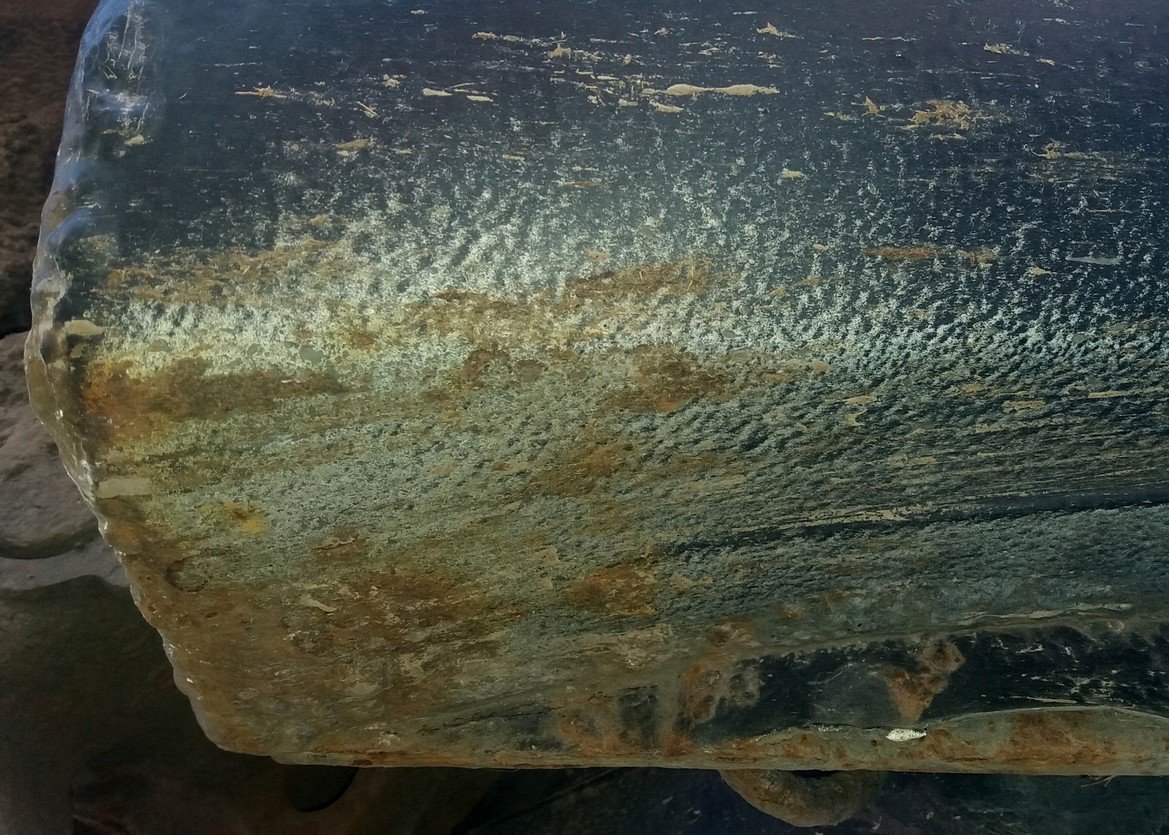

Job now started, scary really, as you can see, the appearance of the cill when I started wasn't that bad....
