Depollution Fault 1.6 HDI GP

Post by Delvey »

I had an issue with a depollution fault on a 1.6 HDI C4 Grand Picasso. A new exhaust pressure sensor has solved this issue after checking diagbox to see the issue. I then ran a forced regeneration on the motorway last night as the level of soot read 98%, but again came with the depollution message. The regen seemed to be going fine until depollution fault again which stopped the regen process. This only occurs during motorway driving (speeds over 60mph)
I have read this could be caused by an actuator, is there a way to check in diagbox? Or could it be the turbo pressure solenoid needs replacing?

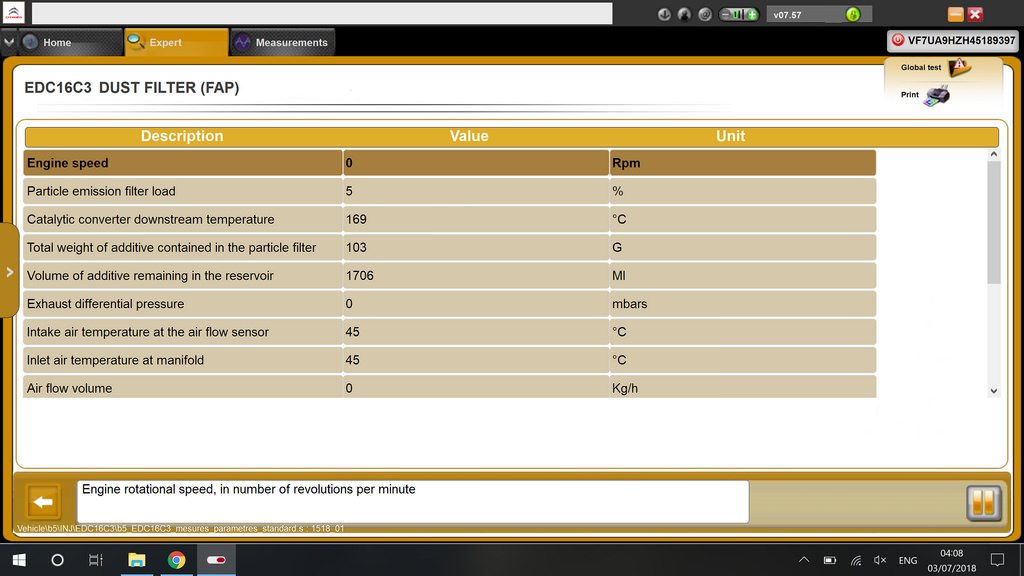

As for the soot level, it is now 5% and stayed like that all the way home. Could this be a false reading?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Depollution Fault 1.6 HDI GP

Post by GiveMeABreak »

Hi and welcome.

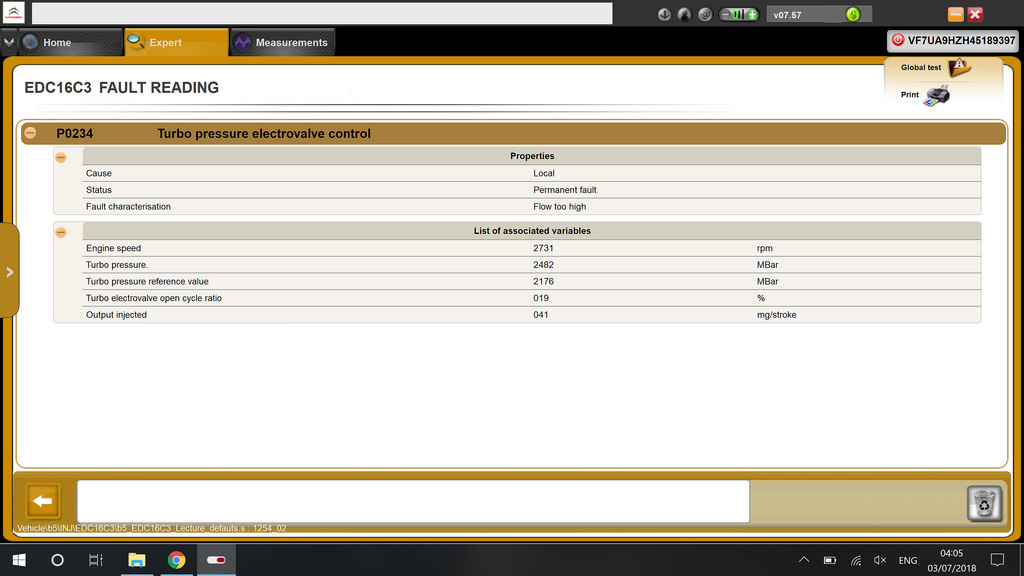

So from your screenshot, you have the BOSCH EDC16C34 Injection System.#

Any issue in the Air / Fuel Circuit will prevent or interrupt the regeneration process.

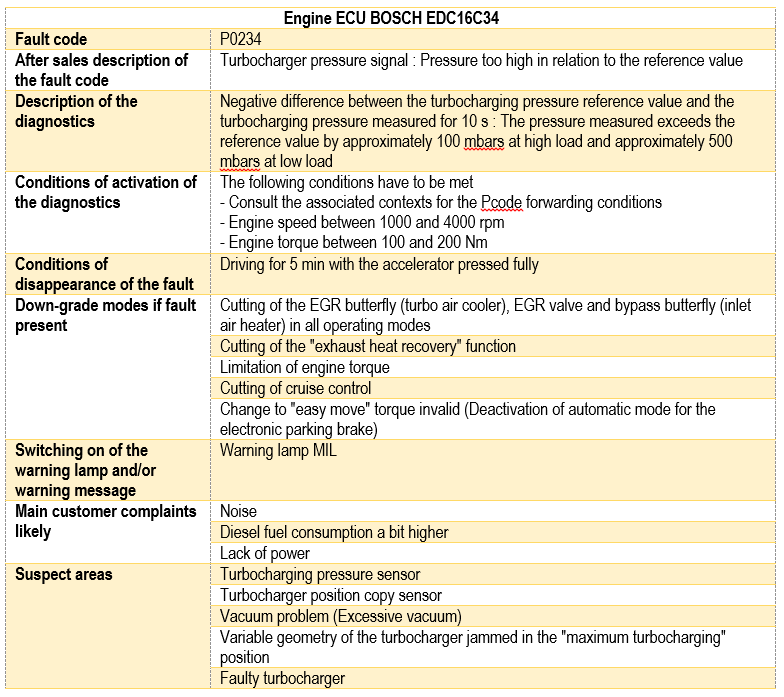

Fault P0234 has the following information: (Click to Zoom Table)
So check out the 'Suspect Areas' at the bottom and work you way through.
Please Don't PM Me For Technical Help

Marc
Delvey
Posts: 38
Joined: 03 Jul 2018, 14:39
Location: Manchester
My Cars: 1.6 HDI Grand Picasso
x 6

Re: Depollution Fault 1.6 HDI GP

Post by Delvey »

Thanks for the information. Is the turbocharging pressure sensor the MAP? Is there anyway to diagnose a faulty sensor using diagbox? Same question with the position sensor, Is this the actuator? MAP sensor is not expensive but if not faulty do not want to replace
Interesting that driving with the accelerator fully depressed for 5 minutes solves the issue, will try that next time it happens
A faulty turbocharger does not seem like the issue, I know these need regular oil changes which it has had to prevent build up of carbon in the pipes.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Depollution Fault 1.6 HDI GP

Post by GiveMeABreak »

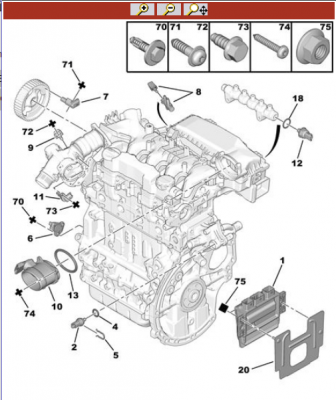

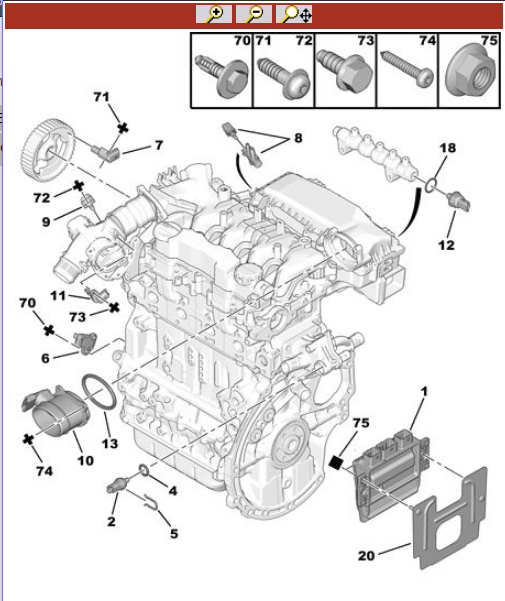

Here is where the main sensors are for reference:
Delvey C4 MAF.PNG
(2) Water Temp Sensor
(6) Engine Speed Sensor
(7) Camshaft Position Sensor
(8) Temp Sensors (GO + Support)
(9) Air Intake Pressure Sensor
(10) Mass Airflow Meter
(11) Air Intake Temp Sensor
(12) Diesel HP Sensor

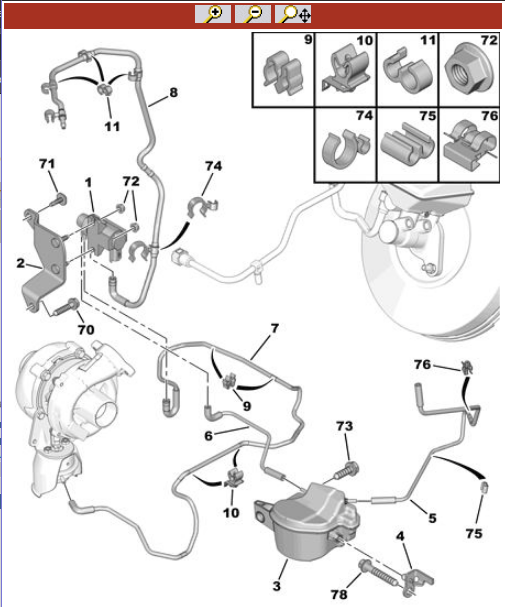

Here are the Turbo unions for Ref:
Delvey C4 Turbo A.PNG
(1) Vacuum Solenoid Valve
(3) Vacuum Reserve
(5, 6 & 7) Air Turbo Unions
Please Don't PM Me For Technical Help

Marc
Delvey
Posts: 38
Joined: 03 Jul 2018, 14:39
Location: Manchester
My Cars: 1.6 HDI Grand Picasso
x 6

Re: Depollution Fault 1.6 HDI GP

Post by Delvey »

Thanks. Look like the Vacuum solenoid Valve is round the rear. I shall double check that first for any loose hoses/splits etc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Depollution Fault 1.6 HDI GP

Post by GiveMeABreak »

Good idea to start with the likely causes first and a split turbo hose can cause all sorts of rough running.
Please Don't PM Me For Technical Help

Marc
Delvey
Posts: 38
Joined: 03 Jul 2018, 14:39
Location: Manchester
My Cars: 1.6 HDI Grand Picasso
x 6

Re: Depollution Fault 1.6 HDI GP

Post by Delvey »

GiveMeABreak wrote: 03 Jul 2018, 17:49 Good idea to start with the likely causes first and a spit turbo hose can cause all sorts of rough running.

Will check that as well. Under non-motorway urban conditions the car is fine and throws up no error codes.
Delvey
Posts: 38
Joined: 03 Jul 2018, 14:39
Location: Manchester
My Cars: 1.6 HDI Grand Picasso
x 6

Re: Depollution Fault 1.6 HDI GP

Post by Delvey »

Is this the correct page for monitoring turbo pressure?
Not had time to check any pipes etc however when I do want to ensure the correct parameters are being monitored
This is the car not stationary with me applying throttle. So the measured value is higher than the reference value even when not under any kind of load
Thanks in advanced
Delvey
Posts: 38
Joined: 03 Jul 2018, 14:39
Location: Manchester
My Cars: 1.6 HDI Grand Picasso
x 6

Re: Depollution Fault 1.6 HDI GP

Post by Delvey »

Starting to hate the car now

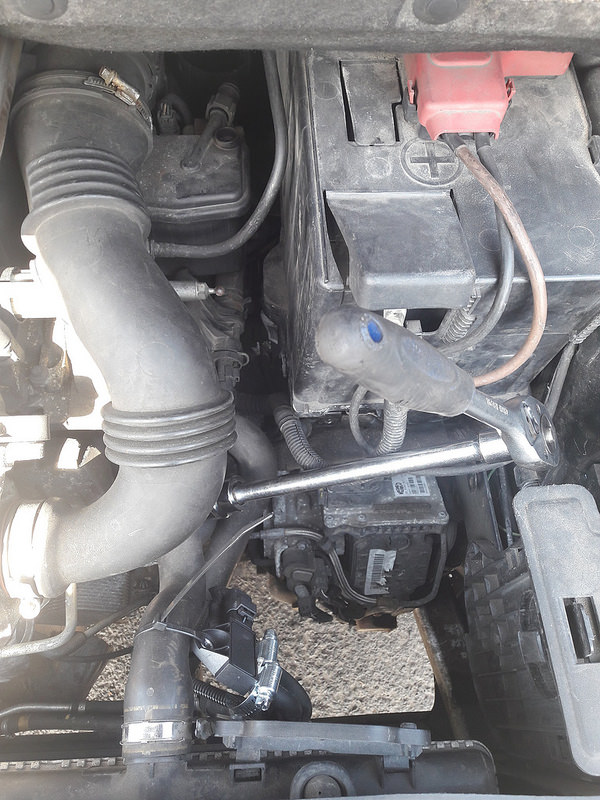

Doing an oil/filter change today, and as you can see an air intake pipe is missing! It was there 2 weeks ago
And can I replace it with some standard rubber tubing? If so what is the diameter?

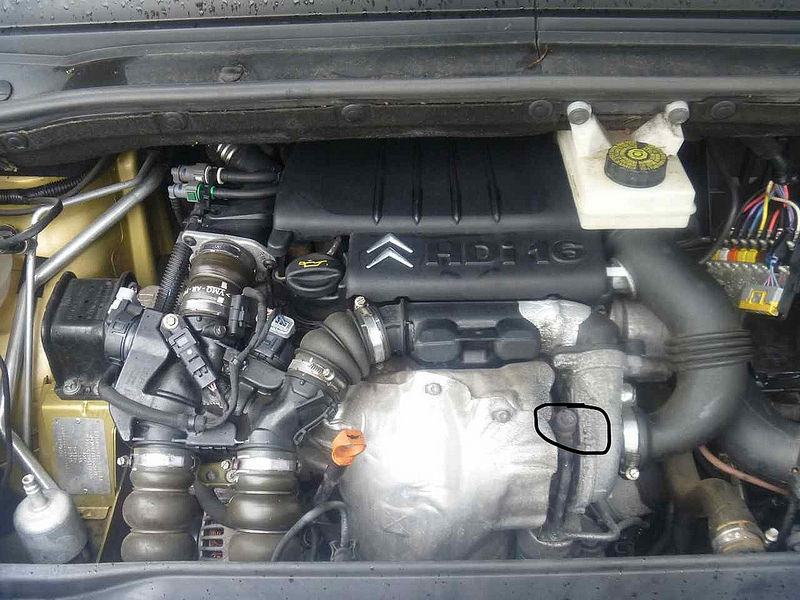

From the picture below, is the apart circled the turbo filter?

And to add more insult to injury, the fan for the radiator is no longer attached, seems to have broken from the mounting.
Delvey
Posts: 38
Joined: 03 Jul 2018, 14:39
Location: Manchester
My Cars: 1.6 HDI Grand Picasso
x 6

Re: Depollution Fault 1.6 HDI GP

Post by Delvey »

Quick update, sorry for all the bothering

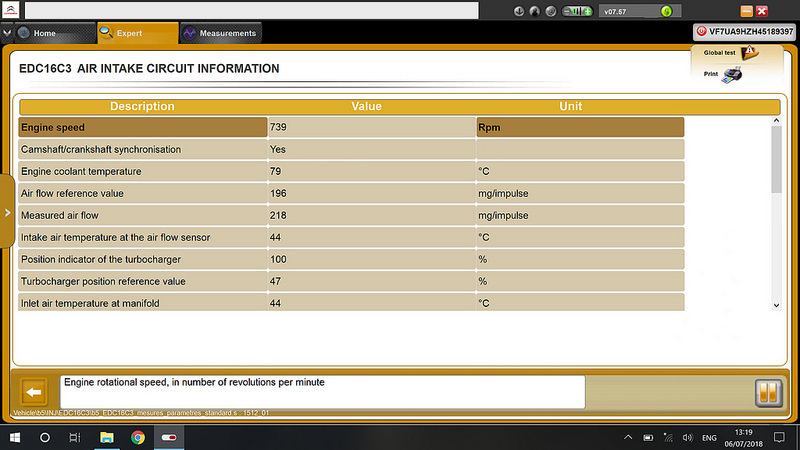

Diagbox is showing the below
So the position indicator is constantly 100%, even when driving. Could this be the issue? Would it be a faulty actuator or faulty sensor?
Also, the pipe to the right of the turbo I disconnected and it had no suction, is this correct?
MikeT
Posts: 4809
Joined: 11 Jun 2007, 16:17
Location: Christchurch, Dorset. UK
My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon
x 231

Re: Depollution Fault 1.6 HDI GP

Post by MikeT »

There is indeed a mismatch between turbo position reference (command) and position indicator (sensor).
If you can get someone to start the engine for you, you should observe the actuator arm being pulled down ~12mm.
Delvey
Posts: 38
Joined: 03 Jul 2018, 14:39
Location: Manchester
My Cars: 1.6 HDI Grand Picasso
x 6

Re: Depollution Fault 1.6 HDI GP

Post by Delvey »

MikeT wrote: 08 Jul 2018, 17:24 There is indeed a mismatch between turbo position reference (command) and position indicator (sensor).
If you can get someone to start the engine for you, you should observe the actuator arm being pulled down ~12mm.

Thanks. I am on holiday until next weekend but will try that when I return
Delvey
Posts: 38
Joined: 03 Jul 2018, 14:39
Location: Manchester
My Cars: 1.6 HDI Grand Picasso
x 6

Re: Depollution Fault 1.6 HDI GP

Post by Delvey »

MikeT wrote: 08 Jul 2018, 17:24 There is indeed a mismatch between turbo position reference (command) and position indicator (sensor).
If you can get someone to start the engine for you, you should observe the actuator arm being pulled down ~12mm.

Not replied for a while as been on holiday and started a new job
The actuator is moving on engine start. The car seems to behaving itself and not gone into limp mode recently. I need to plug it into diagbox to see the readings however
Anyone know the part number for the orange washer to the right of the turbo? Mine is in bad shape, is quite brittle and has various cracks in it
RichardW
Forum Treasurer
Posts: 10813
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: Depollution Fault 1.6 HDI GP

Post by RichardW »

Delvey wrote: 28 Jul 2018, 07:36 Anyone know the part number for the orange washer to the right of the turbo? Mine is in bad shape, is quite brittle and has various cracks in it


If you mean the bit in the inlet hose to the turbo, then it's:

Part Number Description Quantity Price excl. VAT Price incl. VAT Total incl. VAT Selection
00001434C8 SLEEVE 1 15.72 GBP 18.86 GBP 18.86 GBP

Quite dear for a little piece of rubber :roll:
Richard W
Delvey
Posts: 38
Joined: 03 Jul 2018, 14:39
Location: Manchester
My Cars: 1.6 HDI Grand Picasso
x 6

Re: Depollution Fault 1.6 HDI GP

Post by Delvey »

Thats the one, thanks
A little cheaper on ebay, blood expensive like you said
https://www.ebay.co.uk/itm/Citroen-1-6- ... 2185509937
