Warning - geek alert. The oscilloscope clock

Post by bobins »

Absolutely nothing to do with French cars, but.......
I'm sure there are one or two people on here that'll be interested in this :lol:



I've absolutely no connection with the project, but it does look rather nice :-D

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 21212
Joined: 15 Sep 2015, 19:38
x 2115

Re: Warning - geek alert. The oscilloscope clock

Post by GiveMeABreak »

I've supported a few projects on Kickstarter, but sadly this clock is a bit big for the bedside table :-D

User avatar
EDC5
Donor 2020
Posts: 1220
Joined: 01 Jul 2017, 21:48
x 105

Re: Warning - geek alert. The oscilloscope clock

Post by EDC5 »

That's a very nice clock.

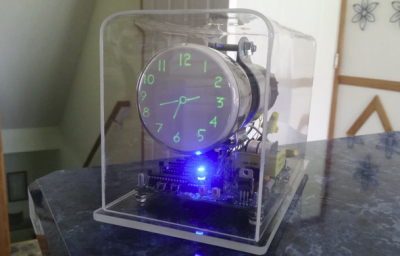

I built one of these a few years ago:


It took a few hours of soldering but worth it.

I've wanted a 'flap clock' (the sort you used to see in banks) for a while; but I like the look of those oscilloscope clocks a lot!

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 21212
Joined: 15 Sep 2015, 19:38
x 2115

Re: Warning - geek alert. The oscilloscope clock

Post by GiveMeABreak »

Very retro Elis - I do like that - especially the way you have managed to hide the 5 suitcases carrying the batteries :-D

Just kidding - I think it is great and would go well with my collection of Lava lamps, Plasma Globes, Air Clocks, Borg Lumin Glass and 3D Star Trek mirror!

User avatar
EDC5
Donor 2020
Posts: 1220
Joined: 01 Jul 2017, 21:48
x 105

Re: Warning - geek alert. The oscilloscope clock

Post by EDC5 »

Haha, I did experiment running it off a small 3Ah lead acid, but it went flat overnight. If you do get one, I highly recommend the case as there area few terminals live at 170V to drive the discharge tubes and they can give you a bit of a nip if you happen to accidentally short them out :rofl2:

The clock kit I built made use of Russian Ni-8 tubes (IIRC). I accidentally bust one of them so I bought a spare set as they are becoming harder to find, not sure if there are many about now.

User avatar
myglaren
Forum Admin Team
Posts: 18208
Joined: 02 Mar 2008, 14:30
x 1037

Re: Warning - geek alert. The oscilloscope clock

Post by myglaren »

EDC5 wrote:
23 Jun 2018, 16:15
Haha, I did experiment running it off a small 3Ah lead acid, but it went flat overnight. If you do get one, I highly recommend the case as there area few terminals live at 170V to drive the discharge tubes and they can give you a bit of a nip if you happen to accidentally short them out :rofl2:

The clock kit I built made use of Russian Ni-8 tubes (IIRC). I accidentally bust one of them so I bought a spare set as they are becoming harder to find, not sure if there are many about now.

Someone on autoshite has just bought a boatload from Russia - some miniature ones to make a watch with too.

User avatar
white exec
Moderating Team
Posts: 6241
Joined: 21 Dec 2015, 13:46
x 1051

Re: Warning - geek alert. The oscilloscope clock

Post by white exec »

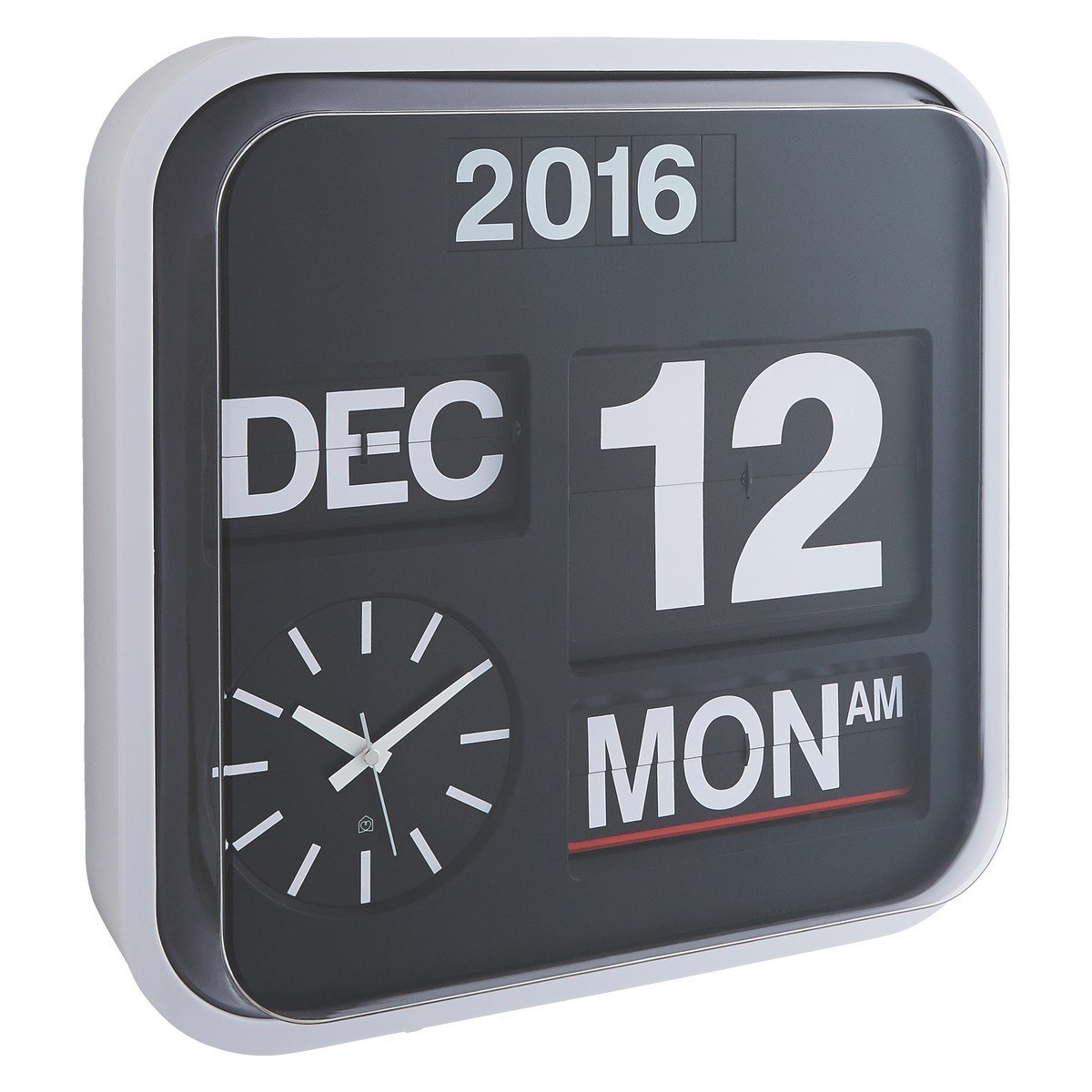

We own up to having one of these - bought from Habitat, somewhere in the 80s
Habitat flap clock.jpg
Not really 'bedside' - it's about 42cm square!

dnsey
Posts: 1543
Joined: 20 Oct 2004, 01:39
x 14

Re: Warning - geek alert. The oscilloscope clock

Post by dnsey »

GiveMeABreak wrote:
23 Jun 2018, 15:52
I've supported a few projects on Kickstarter, but sadly this clock is a bit big for the bedside table :-D


You could do a miniature bedside one using a 1CP1 - I should imagine that there are still some around if you search.

User avatar
EDC5
Donor 2020
Posts: 1220
Joined: 01 Jul 2017, 21:48
x 105

Re: Warning - geek alert. The oscilloscope clock

Post by EDC5 »

white exec wrote:
23 Jun 2018, 19:27
We own up to having one of these - bought from Habitat, somewhere in the 80s
Habitat flap clock.jpg
Not really 'bedside' - it's about 42cm square!



That's a nice clock! definitely need to get myself one of those at some point!
dnsey wrote:
24 Jun 2018, 08:57

You could do a miniature bedside one using a 1CP1 - I should imagine that there are still some around if you search.
I Don't know much about analogue CRT electronics, but is there ant reason you couldn't use a large CRT from a scrap TV, or do they have to be these specialized small CRT units?

User avatar
white exec
Moderating Team
Posts: 6241
Joined: 21 Dec 2015, 13:46
x 1051

Re: Warning - geek alert. The oscilloscope clock

Post by white exec »

Careful with those CRTs - Nothing like a dose of x-rays next to the bed? :shock:

Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 21212
Joined: 15 Sep 2015, 19:38
x 2115

Re: Warning - geek alert. The oscilloscope clock

Post by GiveMeABreak »

True, these days I have my Apple Watch for my alarm clock in bedside mode and frequently change the watch face so never get bored.

dnsey
Posts: 1543
Joined: 20 Oct 2004, 01:39
x 14

Re: Warning - geek alert. The oscilloscope clock

Post by dnsey »

EDC5 wrote:
24 Jun 2018, 21:02

I Don't know much about analogue CRT electronics, but is there ant reason you couldn't use a large CRT from a scrap TV, or do they have to be these specialized small CRT units?


There's a difference in the way in which the beam is deflected - the 'scope' CRTs are electrostatic, the TV ones electromagnetic.
It could in principle be done, but it would be much easier to use a Raspberry Pi or the like to display the clock on a raster, per standard TV / monitor practice.
