Coolant drainage plug location

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
Nemo26
Posts: 59
Joined: 19 Apr 2017, 09:26
Location: Germany NRW
My Cars: Citroen C5 X7
x 4

Coolant drainage plug location

Post by Nemo26 »

Hi, does somebody knows exact location of coolant drainage plug on dw10bted4 engine block?
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Coolant drainage plug location

Post by EDC5 »

I'm not sure if there is one on the block. I just removed the bottom radiator pipe and opened the bleed valves.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Coolant drainage plug location

Post by GiveMeABreak »

Elis is right - no drain plug as such, but here are the components of the system and at the bottom what they say to drain it. 4 Tables - 2 for the manual and 2 for the AM6 box, depending on whether fitted with additional heating or not:

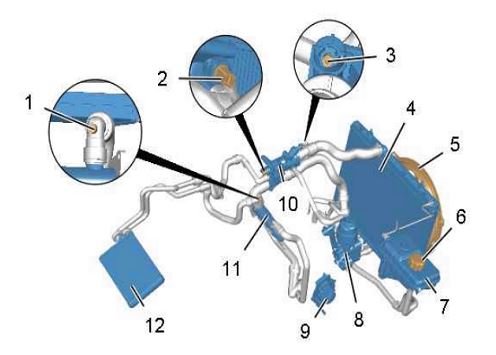

X7 DW10BTED4 Coolant A Man GBox No Add Heater.JPG
X7 DW10BTED4 Coolant A Man GBox No Add Heater Table..PNG

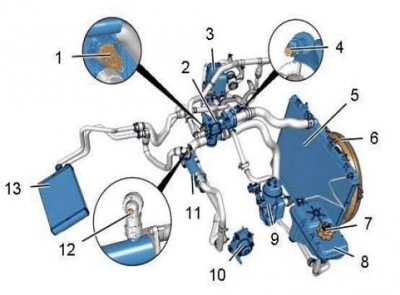

X7 DW10BTED4 Coolant A Man GBox With Add Heater.JPG

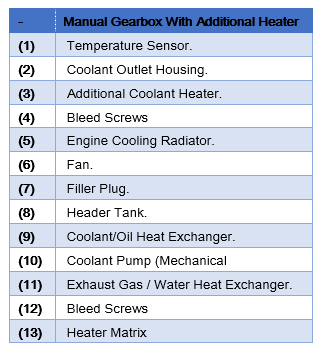

X7 DW10BTED4 Coolant A Man GBox With Add Heater Table.PNG

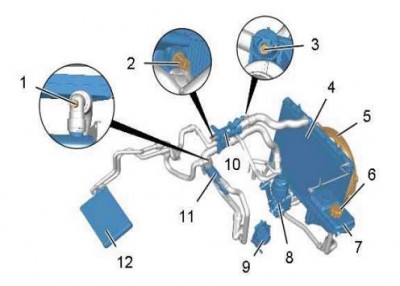

X7 DW10BTED4 Coolant Auto GBox Without Add Heater.JPG

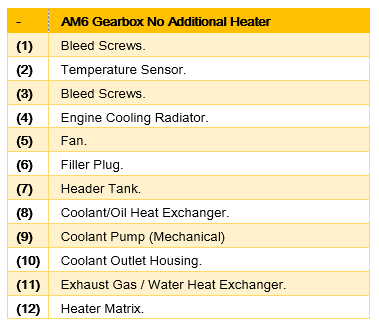

X7 DW10BTED4 Coolant Auto GBox Without Add Heater Table.PNG

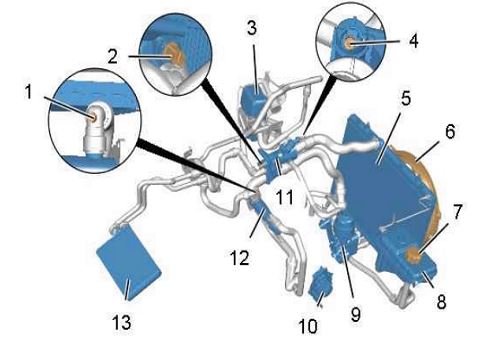

X7 DW10BTED4 Coolant Auto GBox With Add Heater.JPG
X7 DW10BTED4 Coolant Auto GBox With Add Heater Table.PNG

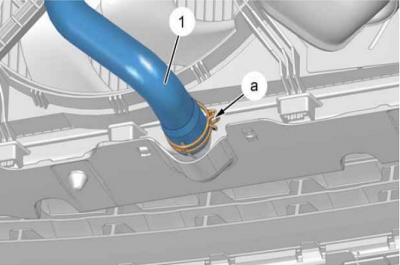

X7 DW10BTED4 Coolant Drain.PNG
Remove:
The protective panel under the engine (where fitted)
The de-aeration chamber plug (Carefully)
Place a clean tray underneath the engine to recover the coolant.

Uncouple the pipe (1) (at "a") ; Using tool [0165-2].
Open the bleed screws located on the coolant outlet housing and the heater pipe.
Allow the coolant to run out.
Drain the cylinder block (if necessary).
Please Don't PM Me For Technical Help

Marc
Nemo26
Posts: 59
Joined: 19 Apr 2017, 09:26
Location: Germany NRW
My Cars: Citroen C5 X7
x 4

Re: Coolant drainage plug location

Post by Nemo26 »

There is one on the block, i just saw it. It's part number 0234 48 #-o #-o #-o
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Coolant drainage plug location

Post by GiveMeABreak »

Those are just the plugs and they don't even mention those for the official draining and filling of the cooling system. Just suction or gravity, but glad you have found what you wanted regardless :-D
Please Don't PM Me For Technical Help

Marc
Nemo26
Posts: 59
Joined: 19 Apr 2017, 09:26
Location: Germany NRW
My Cars: Citroen C5 X7
x 4

Re: Coolant drainage plug location

Post by Nemo26 »

\:D/ I'm happy... So, im going to change timing belt next week. I could maybe make one good diy tutorial if the people are interested.
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Coolant drainage plug location

Post by EDC5 »

That would be great :-D I recently had my timing belt, water pump and tensioners changed but I took it to the Citroen dealer after looking through the official procedure. It seemed to be a huge job doing it by the book and I got a pretty good price all in.

Good luck!
Nemo26
Posts: 59
Joined: 19 Apr 2017, 09:26
Location: Germany NRW
My Cars: Citroen C5 X7
x 4

Re: Coolant drainage plug location

Post by Nemo26 »

I'v bought skf timing belt kit, hepu p801 waterpump, elring crank/cam seals, skf harmonic balancer, 5l mannol f12+ collant, ngk glow plugs, dw10/dw12 timing tool and hazzet glow plug reamer for about 370 €. :-D
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Coolant drainage plug location

Post by EDC5 »

Ok, at least you'll have the tools for next time. I paid £410 for everything including labour at the Citroen dealer so I won't complain. Although it is something I would like to have done myself.

The glow plugs are very difficult to change from what I have read. They are located around the back of the head so are almost unreachable. In addition, they have a bad reputation for breaking off in the head meaning a potentially huge job to remove the glow plug fragment should it drop into the cylinder :oops:

Do you actually need to change the glow plugs? because if not I would just leave them.

Could you take a picture of the coolant drain bolt you found?
Nemo26
Posts: 59
Joined: 19 Apr 2017, 09:26
Location: Germany NRW
My Cars: Citroen C5 X7
x 4

Re: Coolant drainage plug location

Post by Nemo26 »

I'll reveal you little trick for glow plugs: soak little bit of cotton wool in oil and put around glow plugs. Leave few days and than untighten them with wrench, but not exceed 35Nm and engine must be warm. If it doesn't go, leave few more days than try again. Block drain plug is number 9 in pdf

https://mega.nz/#!EpAzhYpL!N77KRHBBTwtG ... Q78Cq_0O_g
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Coolant drainage plug location

Post by EDC5 »

Thanks for that PDF.

It is good advice if it is the glow plug thread that is the problem. It is the glow plug tip that snaps off unfortunately so for this some specialised tools have to be used.
I’m going to leave mine in until they die…. And then probably never replace them 8-)
Nemo26
Posts: 59
Joined: 19 Apr 2017, 09:26
Location: Germany NRW
My Cars: Citroen C5 X7
x 4

Re: Coolant drainage plug location

Post by Nemo26 »

If tip breakes clean hole with compressed air and than push the tip in cylinder. Remove injector and with small magnet pull it out. One hour job, i know guy who managed to remove few broken tips that way. I just saw last sentence... :rofl2: :rofl2: :rofl2: :rofl2:
