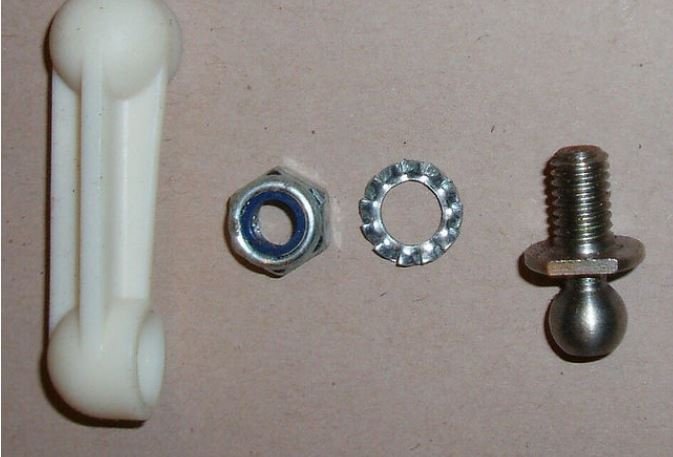

Does anyone know of a source for this repair kit, the threaded stud with the ball, not the dogbone.
The original fitment method is rubbish, not even spot welded just barely peened over so of course it eventually works loose and pops out. Had the same thing happen on the rear height corrector 7 years ago and managed a repair using Araldite after cleaning thoroughly.
Would much prefer to use a decent repair technique rather than 'sticking' it back into place.
Xantia S2 height corrector repair kit
