2010 C4 Electronic Parking Brake Wiring Schematic

[Dieseljimmer]

Hi All,
I'm tracing a fault through on the non operation of the EPB on a 2010 C4 Picasso. Can anybody help me with a wiring schematic for the system?

Many thanks in advance
Jim

[GiveMeABreak]

Hi Jim and welcome.

PM or Post your VIN and I'll dig one up for you.

Do you have any fault codes too?

[Dieseljimmer]

Hi Marc,
Thanks for the prompt response.
I'll get the VIN across to you as soon as I can.

Brief Overview; Car left idle for a couple of weeks, apart from the odd starting, on the last occasion it was started fault up with the EPB and no engagement of the parking brake. A number of fault codes present about the place, difficult to know which were present before this particular problem?
Cleared all the faults using Delphi diagnostic software and the EPB became active with the exception of the manual switch on the fascia. Road tested and EPB all functioning correctly but unable to manually engage PB. Did have the "P" illuminated on the manual switch but when used would immediately cause a fault with the EPB system.

I have read numerous posts on the subject of EPB faults, battery, EGR, I have had "economy mode active" up on the fascia and now understand what it relates to, battery voltage. Whilst settling for the EPB operation without a manual switch the BSI and glove box area was rebuilt. After rebuild the system was tested and found to have completely stopped working, fault code in the EPB ECU; 562, power supply, insufficient voltage. No other fault codes present.

If I had a wiring diagram I could follow the wiring and check inputs and output, I have the add on with the Delphi software of a a 4 channel Pico scope so can confirm outputs at the various pins once identified.

Hope the above makes senses?

Cheers
Jim

[GiveMeABreak]

Ideally Diagbox is better as it has proprietary PSA data, but do you have any specific fault codes as this will help in potentially identifying problem areas.

Also from what you say regarding the BSI, was it replaced, but more importantly was it reconfigured and was the configuration undertaken with the correct options? If not, you may have many problems if the BSI is not checked for the correct parameters and ECUs appropriate for your specific vehicle.

[GiveMeABreak]

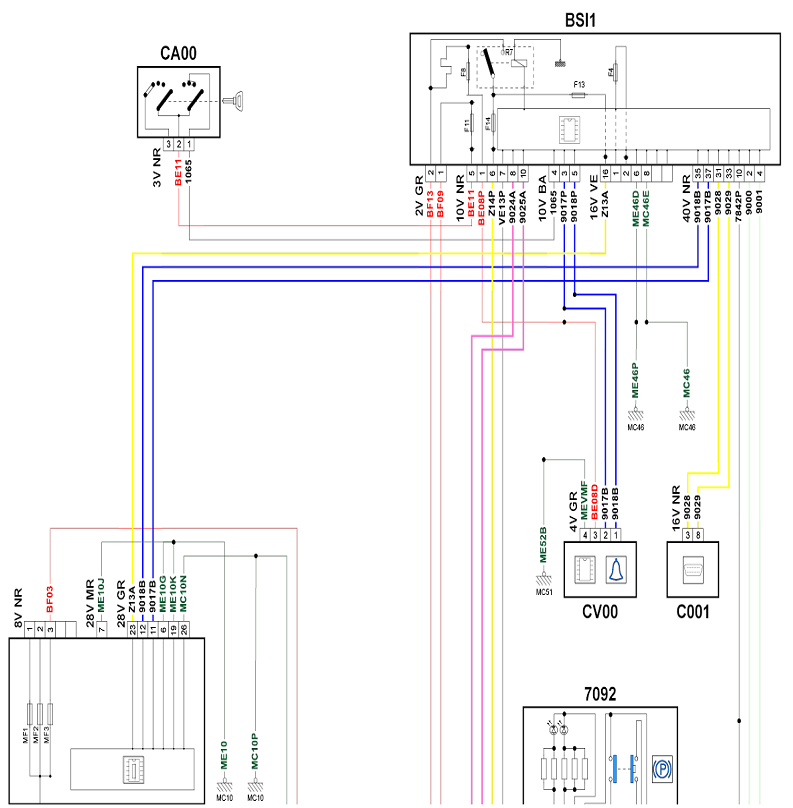

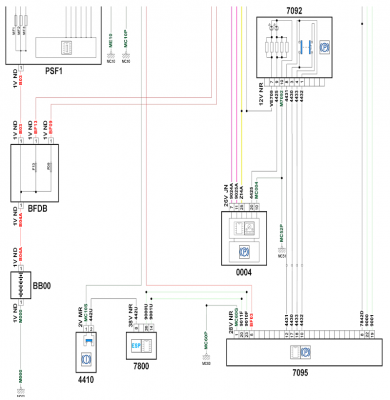

Jim, the wiring diagram for the EPB below - in 2 halves - click on each to zoom. Main ECU and Wiring codes below:

HWARE	Description	Wire	Description
7095	Electric handbrake assembly /	9001	Low Intersystem / Can bus
7800	ESP ECU	9000	High Intersystem / Can bus
4410	Brake fluid level switch	7842D	Remote control wake-up information
0004	Instrument panel /	4432	Electric handbrake 3 control
4410	Brake fluid level switch	4433	Electric handbrake 4 control
BFDB	Fuse box at the battery outlet	4430	Electric handbrake 1 control
7092	Electric handbrake / control	4431	Electric handbrake 2 control
PSF1	Engine compartment fusebox panel	9010F	High Intersystem 2 Can bus
CV00	Steering wheel controls	9011F	Low Intersystem 2 Can bus
C001	Diagnostic connector /	MC60G	MC60 Earth
BSI1	Built-in systems interface	9001U	Low Intersystem / Can bus
CA00	Ignition	9000U	High Intersystem / Can bus
-	-	442U	Brake fluid level info
-	-	MC10S	MC10 Earth
-	-	VE709	BSI output side lights positive

[Dieseljimmer]

Great stuff,

Many thanks Marc!

I will post how I get on!

Cheers
Jim
