Unread post by **KennyW** » 25 Mar 2018, 18:54

Well the steering rack has developed a weep from the pinion.

The only question I have is how long do I have until the reservoir need top up.

Kenny

GiveMeABreak · Unread post by **GiveMeABreak** » 25 Mar 2018, 19:18

Another one to add to the Poll!!!! Aagghh sorry to hear about that Kenny. Mine was a slow weep until I got the Suspension warning on and then noticed the wet patch from where the car is parked. Trouble is there was old oil there from ages ago, but it will soon cost you in LDS and the air getting in causing all the micro bubbles or fizzing.

So a good bleed when changed. Just keep a litre of LDS in the boot, but once it starts it will just get worse.

What are you going to do? Are you going to get a new one or risk a ‘recon’?

Unread post by **KennyW** » 25 Mar 2018, 20:20

Marc,

I'm going to try recon or may try scrapyards for newer model with modified rack ( RP no 98 014 154 80). Will save for new rack, looking on flea bay they are almost the same price as Citroen.

Will remove my rack done the Xantia before so not overawed by the prospect, but the weather is supposed to be COLD with some snow later in the week. Think I will start tomorrow to strip down and ready to put replacement rack on.

Will require serious grovelling to SWMBO to use her car to go to work plus we due to move house at end of April!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Kenny

PS message for Bobbins any result for your test on the seals for pipework on pinion.

Unread post by **bobins** » 25 Mar 2018, 20:33

KennyW wrote: 25 Mar 2018, 20:20

PS message for Bobbins any result for your test on the seals for pipework on pinion.

Ping !...... they survived many weeks in a pot of LDS with absolutely no noticeable ill effects. I'd be happy to use HNBR O rings if I needed to replace mine in the rack.

Unread post by **KennyW** » 25 Mar 2018, 21:09

Bobbins,

Excellent, where did you get the seals from ?

Kenny

Unread post by **bobins** » 25 Mar 2018, 22:02

eBay !!
They were from an assortment I'd originally got for aircon work IIRC. They definitely weren't bought intentionally for steering rack work, but they seem to do the job !

Unread post by **KennyW** » 26 Mar 2018, 20:36

Okay that's here I've found some as well.

Hopefully I can start stripping the car down to get rack off. I need it sort before the end of April as moving house!!!!!!!!!!!!!!!!!!!!

Kenny

Bandit12 · Unread post by **Bandit12** » 27 Mar 2018, 12:13

Sorry to hear that mate

Hope you can source a replacement.

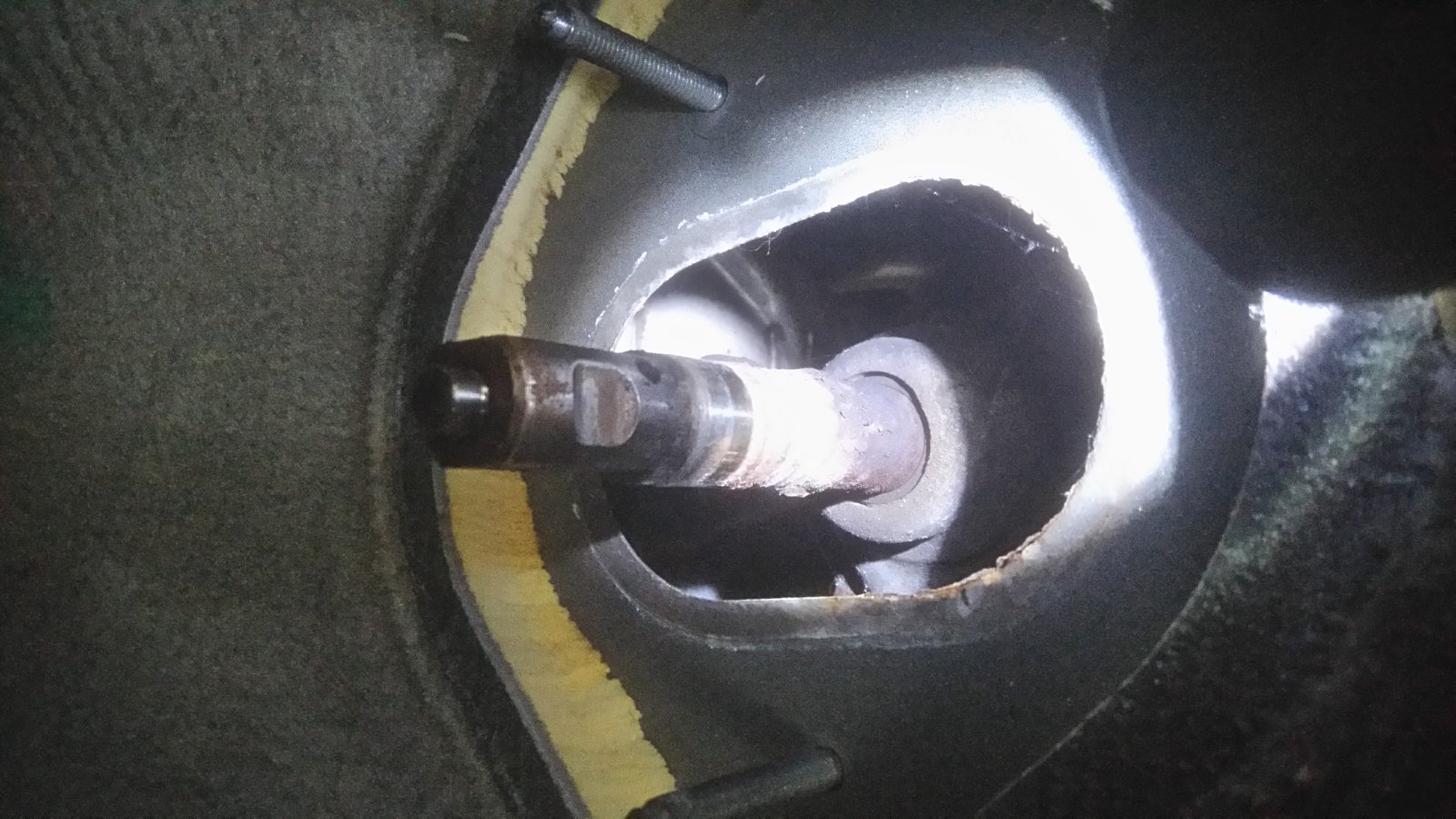

I've managed to gain access to mine. Although rusty it appears dry as a bone so I have covered it in grease and hopefully that will prevent it failing

: before adding grease

First time I've posted pictures so hopefully they have attached ok.

Bandit

Bandit12 · Unread post by **Bandit12** » 27 Mar 2018, 18:03

Just spotted an earlier thread regarding replacement steering racks. A member called blizzard posted on 8 June 2017 a place who fitted a replacement rack for about £400. He seemed very pleased with price n result. Sorry can't seem to copy actual link as accessing site via my mobile.
Bandit

blizzard wrote: 08 Jun 2017, 21:40 Right, their details are :
The Steering Specialists Ltd
97 Bridge Rd, Middlestown, Horbury, Wakefield WF4
Tel: 01924 267999
http://stores.ebay.co.uk/The-Steering-Superstore?_rdc=

https://www.frenchcarforum.co.uk/forum/ ... 24#p537024

Bandit12 · Unread post by **Bandit12** » 27 Mar 2018, 18:03

P.S thanks fr tip re duplicate pix

Unread post by **KennyW** » 27 Mar 2018, 19:25

Thanks or that info Bandit, I've sourced another company who will supply a completely refurbish rack and give 3 year warranty with unlimited mileage.

The price £350 but includes surcharge which will be reimbursed when they received my rack

Will see what they are like and comment and provide a link later.

Kenny

Unread post by **KennyW** » 07 Apr 2018, 12:52

Well here's an update, I can't even get started diagbox and car are not communicating.

It works first time but thereafter no green comm's on laptop.

Also it's going into eco mode within 15 mins which I can't understand why. New battery with 14 - 15 v showing on multi meter.

So this is a cry for help.

Can anyone who lives reasonably close come and depressurise the system for me ?

or Is there a way to do the rack without depressurising or a manual way ?

I was hoping to have it done this weekend but it looks like a non start until this is sorted out first.

Kenny

Unread post by **bobins** » 07 Apr 2018, 12:56

It's possible to manually depressurise the system. I'd need to look it up, but it's not difficult.
Someone - possibly me - will be along shortly with the instructions........

Unread post by **bobins** » 07 Apr 2018, 13:03

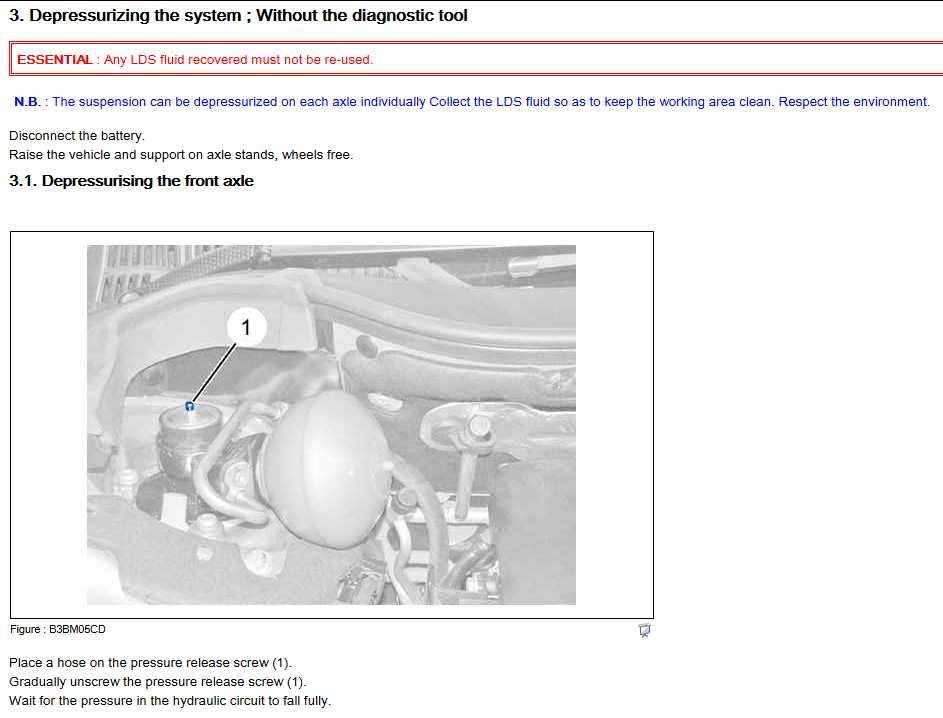

: Depressue front - PSA

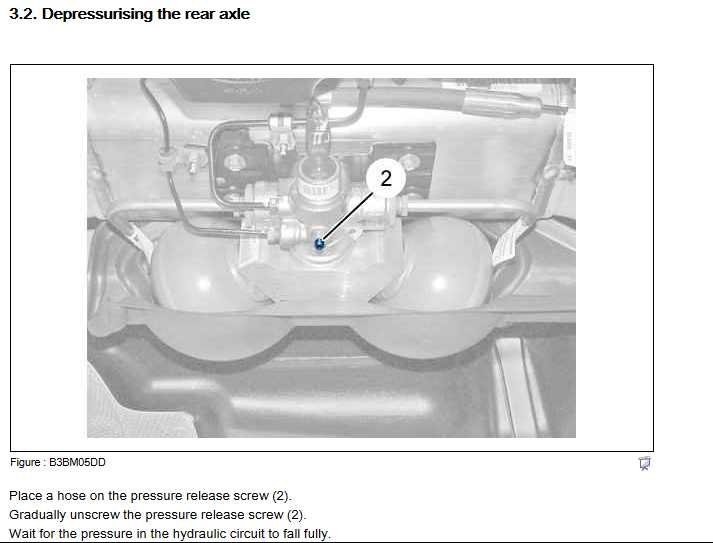

: Deprtessure rear - PSA

Unread post by **KennyW** » 07 Apr 2018, 15:12

Bobbins,

Brilliant, at least I can start the work now.

Will get back with the result and any tips whilst doing the repair for future reference.

Kenny
