1975 Citroen GS fuel gauge

Post by tony trans am »

Any one got a picture of the rear of the dash board wired up, my fuel gauge is always reading full and when I turn the head lights on it goes to empty. There seems to be a spade connector that has nothing on it and I can't find a loose wire. I have the dash with the tumbler speedo.
sparksie
(Donor 2016)
Posts: 595
Joined: 04 Jan 2014, 22:35
Location: R.O.I.
My Cars:
x 33

Re: 1975 Citroen GS fuel gauge

Post by sparksie »

Hi Tony
I don't have a pic, but that sounds very like a missing earth wire.
Do you have access to a volt meter?
Sparksie

2000 Xantia 1.9TurboD
tony trans am
Posts: 21
Joined: 09 May 2013, 11:23
Location:
My Cars:
x 1

Re: 1975 Citroen GS fuel gauge

Post by tony trans am »

Hi, tried earthing it but it seemed live. I’ll try and get a pic.
sparksie
(Donor 2016)
Posts: 595
Joined: 04 Jan 2014, 22:35
Location: R.O.I.
My Cars:
x 33

Re: 1975 Citroen GS fuel gauge

Post by sparksie »

I have a workshop manual for the GS (probably Haynes, but might be Autodata), but I can't find it.
Suspect it might be in a box of books, somewhere in a lockup storage unit.
Maybe somebody could post up a diagram of the instrument panel wiring, so we can check it.
Conventional analogue instruments need a regulated +12v, a ground and a sense connection.
There are a few that only have the +12v and the sense, with ground provided through the sender.
If we could see the diagram we could figure out which Citroen used in the GS.
Don't randomly ground things, because they're unlikely to be adequately fused, particularly on anything French, so something else will go pop.
That will most likely be the instrument panel voltage regulator, but could be the circuit board, or even the wiring loom.
Anyone have a diagram?
Sparksie

2000 Xantia 1.9TurboD
sparksie
(Donor 2016)
Posts: 595
Joined: 04 Jan 2014, 22:35
Location: R.O.I.
My Cars:
x 33

Re: 1975 Citroen GS fuel gauge

Post by sparksie »

Hmm.
We're not going to get killed in the rush, are we?
I'll try to find the appropriate box of books and dig out my manual.
I haven't seen it, consciously, for years. It's at least 20 years since I saw a GS in the flesh.
Still have nightmares about the starters on those...
Sparksie

2000 Xantia 1.9TurboD
dnsey
Posts: 1538
Joined: 20 Oct 2004, 01:39
Location:
My Cars:
x 19

Re: 1975 Citroen GS fuel gauge

Post by dnsey »

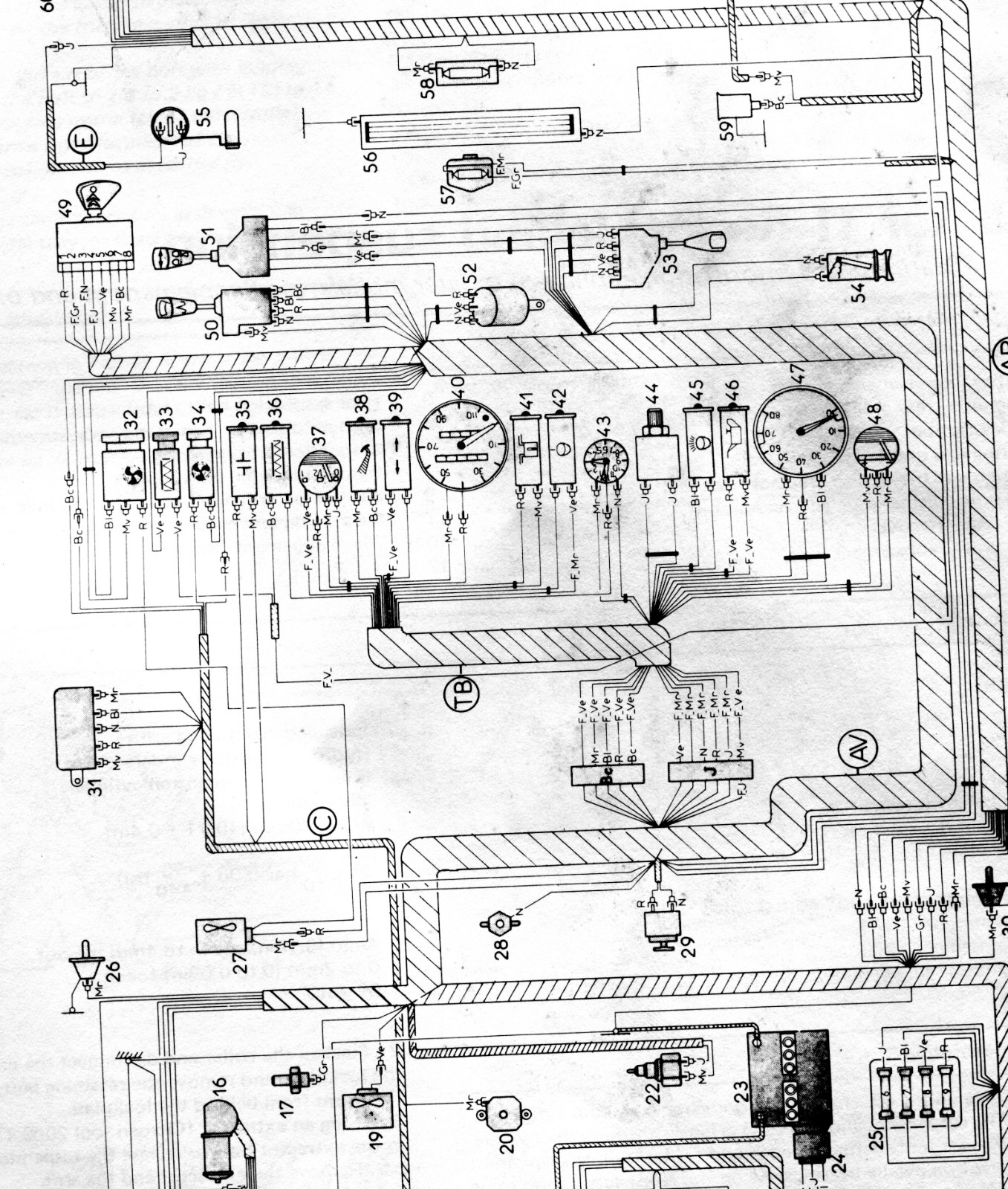

Here you go!
Apologies for the skew - my scanner's in an awkward position at the moment.
Not the most useful of diagrams, but it might help.
Attachments
tony trans am
Posts: 21
Joined: 09 May 2013, 11:23
Location:
My Cars:
x 1

Re: 1975 Citroen GS fuel gauge

Post by tony trans am »

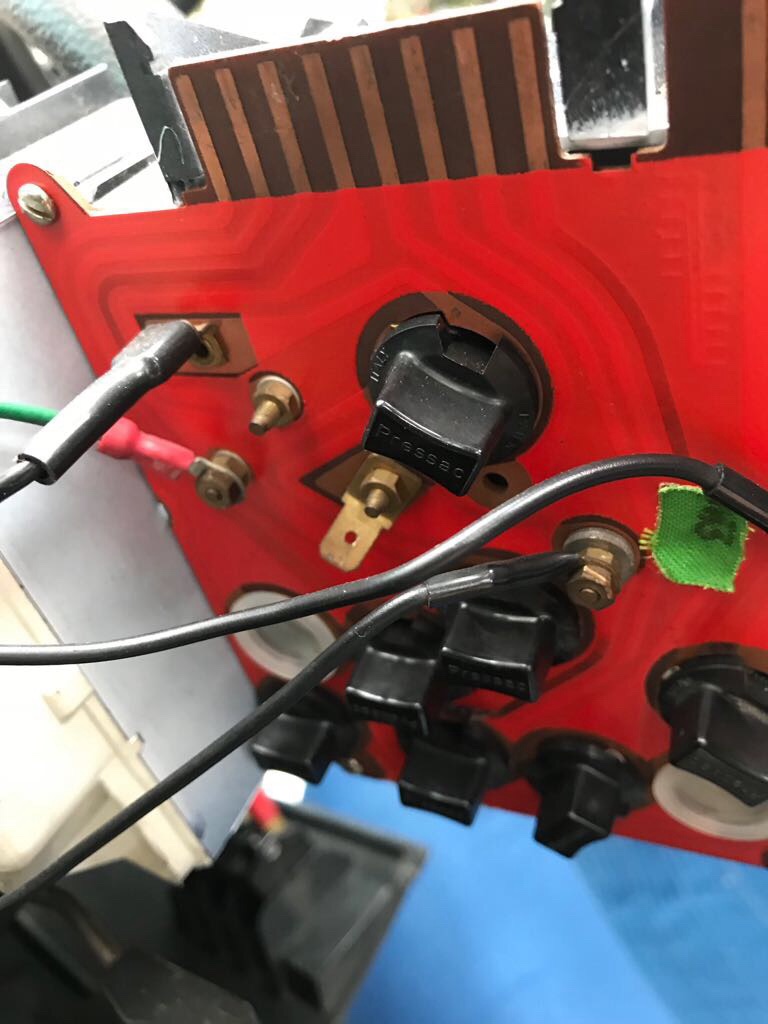

I have a LHD gs van with the Tumbler speedo and printed circuit board dash. I have attached a pic of the connector that maybe missing.
Attachments
sparksie
(Donor 2016)
Posts: 595
Joined: 04 Jan 2014, 22:35
Location: R.O.I.
My Cars:
x 33

Re: 1975 Citroen GS fuel gauge

Post by sparksie »

dnsey wrote: 23 Mar 2018, 21:11 Here you go!
Apologies for the skew - my scanner's in an awkward position at the moment.
Not the most useful of diagrams, but it might help.



Hi
Not sure whether that helps or not.
Do you have the legend for it?
The numbers don't mean anything to me, I'm afraid
Sparksie

2000 Xantia 1.9TurboD
