C5 heater blower resistor
Moderator: RichardW
-
- Posts: 14
- Joined: 01 May 2017, 20:18
- Location: exeter
- My Cars: renault magane.
renault scenic.
rx4.
citroen c5.
C5 heater blower resistor
This is giving me a headache, been through hundreds of pages trying to find the location of my heater Resistor, almost taken out my dashboard in the process but it's nowhere to be found. Starting to think that my pile of s**t hasn't got one, The Muppet who had it before me has bodged so much on the car(Starting to think it's chop job).
Nothing on the drivers side or the passengers side
Please help before I pour petrol over it and walk away.
My vin is VF7**************[VIN obfuscated, can be read by forum staff].
Many thanks in advance.
Nothing on the drivers side or the passengers side
Please help before I pour petrol over it and walk away.
My vin is VF7**************[VIN obfuscated, can be read by forum staff].
Many thanks in advance.
-
OnlinePaul-R
- Donor 2023
- Posts: 6930
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1378
Re: C5 heater blower resistor
Others can decipher your VIN but it would be helpful to know the year of the car. If it's a Mk1 (and probably facelift Mk2 as well) there are two different types depending on whether it's the fully automatic climate control or the basic aircon and they are both buried in the footwell. The 2008 onwards Mk3 (X7) is also in the footwell
I know - I've done them on both my C5s!
I know - I've done them on both my C5s!
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
- Posts: 14
- Joined: 01 May 2017, 20:18
- Location: exeter
- My Cars: renault magane.
renault scenic.
rx4.
citroen c5.
Re: C5 heater blower resistor
It's a 1.6 hdi 2005 facelift. Mine is just the basic aircon no climate control
Nothing on either side, searched all over.- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: C5 heater blower resistor

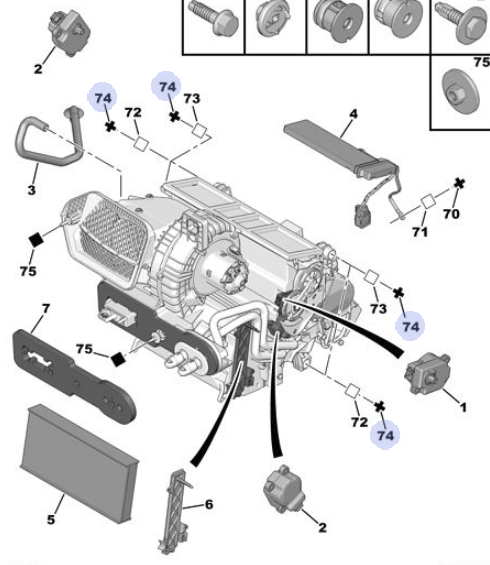

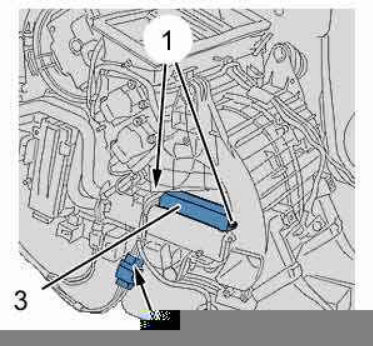

It's Item 4 on this diagram - according to your VIN there is one - look at the second diagram (item 3) - this would show it on the left hand side - it slots in so maybe that's why you can't find it,
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 1366
- Joined: 30 Oct 2012, 22:37
- Location: Chelmsford, Essex
- My Cars: Two C5's...
Lots of CXs...
A couple of Xantia...
A C2...
Lots of Prelude's...
And a Sunny! - x 66
- Contact:
Re: C5 heater blower resistor
Back as in towards the back of the car? (it's towards the front of the heater unit as you look at when sat in the car!)
Must say that the first time I've seen an inkling as to what the blower resistor looks like on a c5... Am amazed how huge that thing is! (oo-er) Way bigger than on any other car I've seen!
Must say that the first time I've seen an inkling as to what the blower resistor looks like on a c5... Am amazed how huge that thing is! (oo-er) Way bigger than on any other car I've seen!
--
Iain
1x '85 CX GTi Turbo s1 (metallic blue)
2x '85 CX GTi Turbo s2 t1 (metallic silver & grey)
'88 CX GTi Turbo s2 T2 (metallic light blue)
CX DTR T2 Safari (silver)
2x '96 Xantia Activa (Black & metallic green)
'01 C5 2.0 HDi LX Estate (Blue)
Iain
1x '85 CX GTi Turbo s1 (metallic blue)
2x '85 CX GTi Turbo s2 t1 (metallic silver & grey)
'88 CX GTi Turbo s2 T2 (metallic light blue)
CX DTR T2 Safari (silver)
2x '96 Xantia Activa (Black & metallic green)
'01 C5 2.0 HDi LX Estate (Blue)
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: C5 heater blower resistor

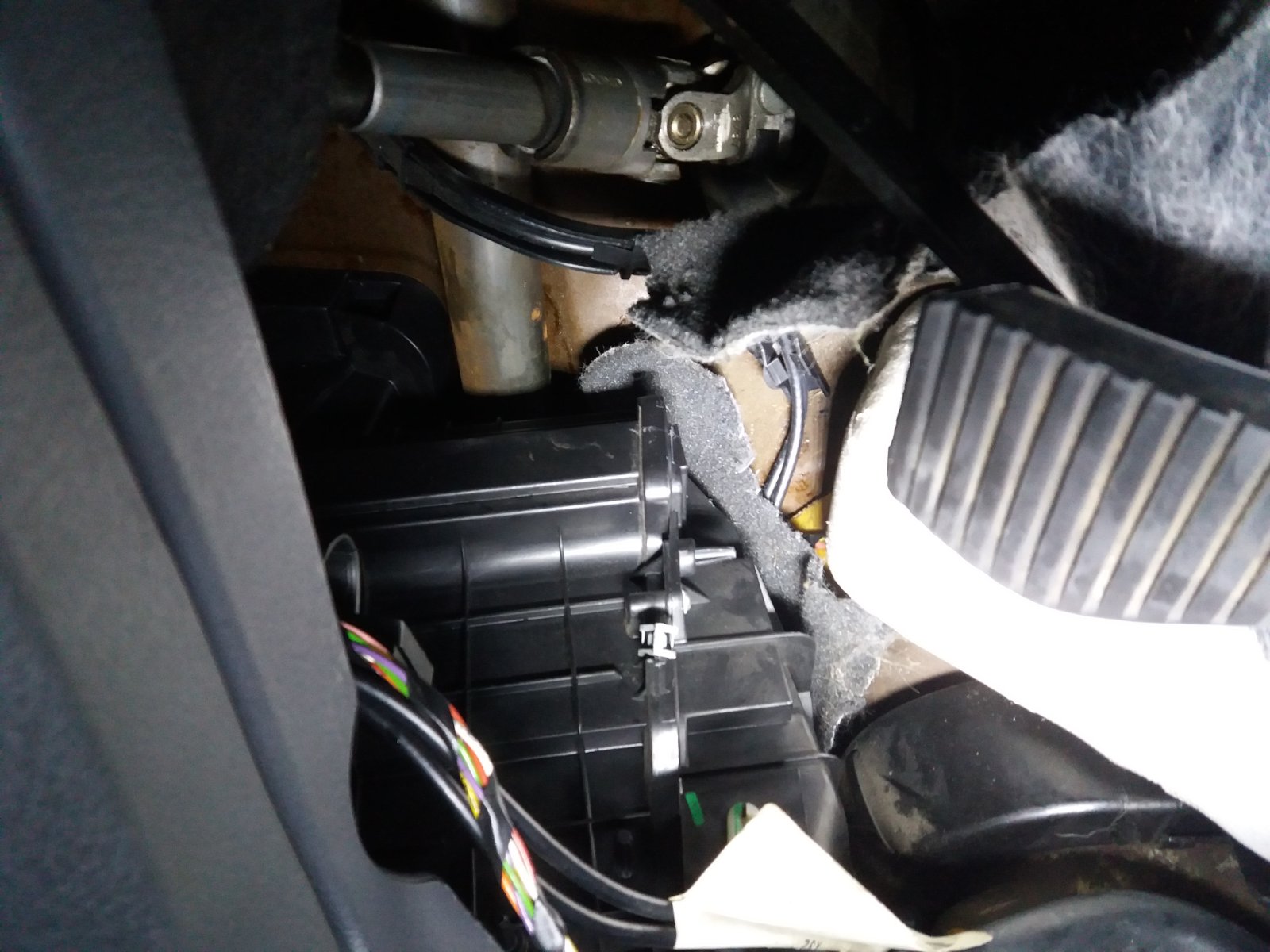

I dug up the procedure and then realised they ran out of room to show it on the left - so they've just shown it on the diagram where they had room it seems!

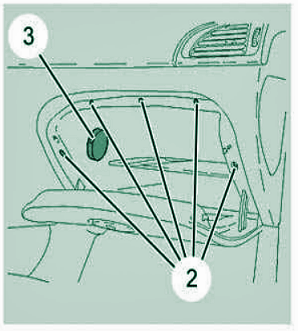

Just above the 3 on the second diagram there is a vertical clip - that is the cap that hides the cabin filter, and the resistance is just rear of that in blue item 3.
Just above the 3 on the second diagram there is a vertical clip - that is the cap that hides the cabin filter, and the resistance is just rear of that in blue item 3.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 14
- Joined: 01 May 2017, 20:18
- Location: exeter
- My Cars: renault magane.
renault scenic.
rx4.
citroen c5.
Re: C5 heater blower resistor
Many thanks givemeabreak. Saw it but completely dismissed it I think i was being blinded by too much information from other models on the internet. It surprises me that there are so many different versions.
-
- Posts: 14
- Joined: 01 May 2017, 20:18
- Location: exeter
- My Cars: renault magane.
renault scenic.
rx4.
citroen c5.
Re: C5 heater blower resistor
Update on trying to find heater resistor.

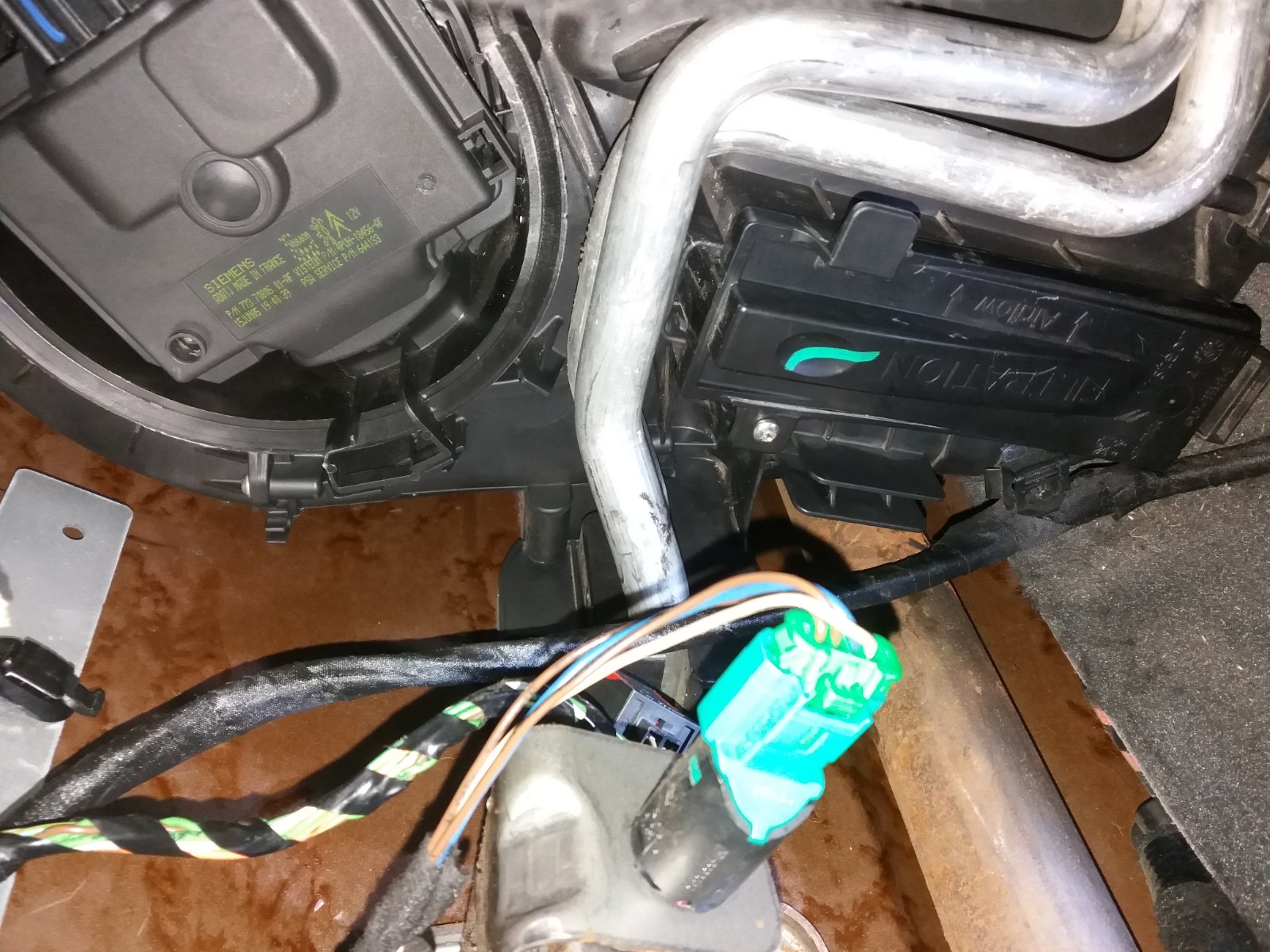

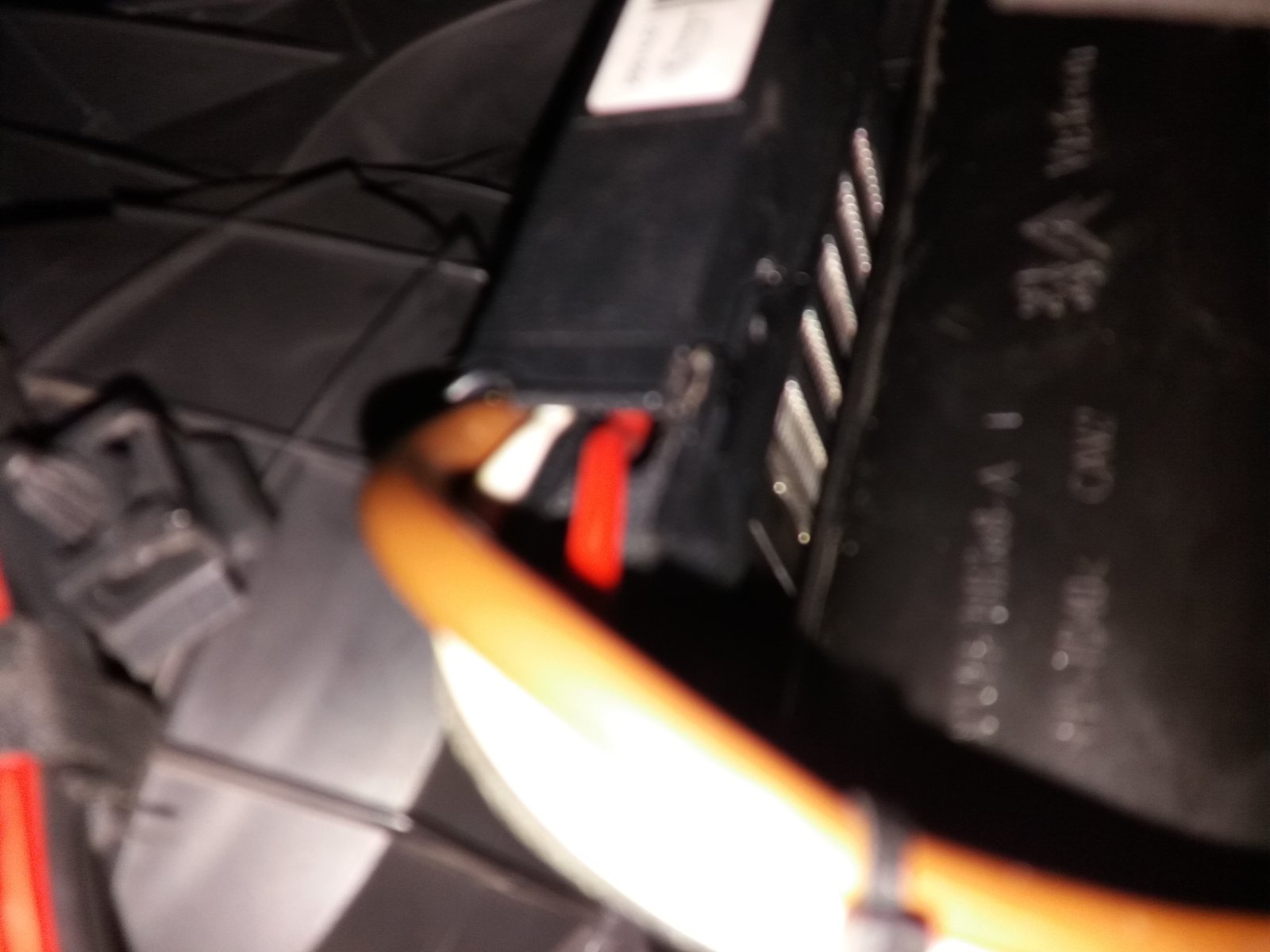

Had a look today and found this, surely this can't be the resistor ?. As far as I can tell this is a pre heater, there are no other wires leading anywhere. Still banging my head in this one.
Had a look today and found this, surely this can't be the resistor ?. As far as I can tell this is a pre heater, there are no other wires leading anywhere. Still banging my head in this one.
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: C5 heater blower resistor
Hard to see from your picture but is should like part 4 in the first diagram I posted and in reality like this:
Are you talking about the blown air module? If so , I don't think there is one - only the 'Heater Air Puller' as shown below:

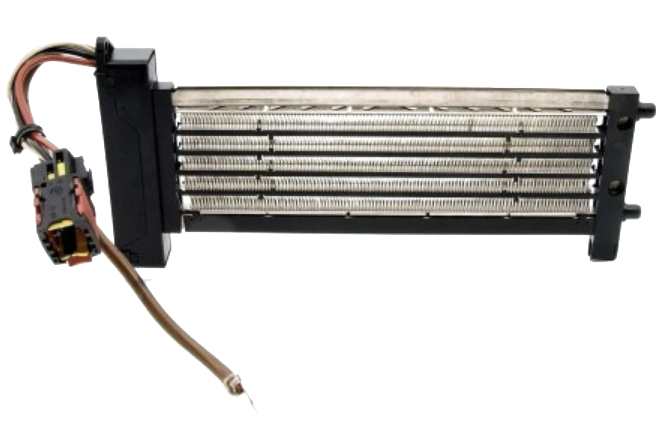

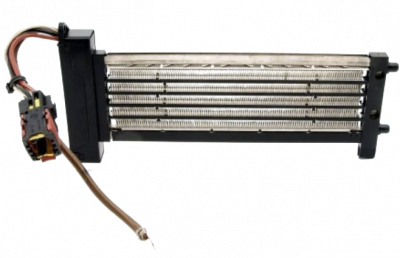

I think there may be some confusion over what it is you are looking for. This is the air heating resistance module that helps to provide some warmth a little quicker into the cabin when it is cold.Are you talking about the blown air module? If so , I don't think there is one - only the 'Heater Air Puller' as shown below:
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 14
- Joined: 01 May 2017, 20:18
- Location: exeter
- My Cars: renault magane.
renault scenic.
rx4.
citroen c5.
Re: C5 heater blower resistor
Ooohhh f**k that's it, its massive. Looks like a dash out job then to big to take out in situ.
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: C5 heater blower resistor
What actually are the problems? Have you got it on a Lexia to interrogate the system - it could be beneficial in time and cost as it could be the heater control panel, a short, fuse, etc., ?
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 14
- Joined: 01 May 2017, 20:18
- Location: exeter
- My Cars: renault magane.
renault scenic.
rx4.
citroen c5.
Re: C5 heater blower resistor
I am getting no air blowing through my vents, I have checked all the fuses all are fine, wiring seems fine. All as far as I can tell leads to the blower resistor which I can't find to check it out. And no I having got it put onto a lexia yet need to really( to scared to as it will probably laugh at me and tell me to scrap it).
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: C5 heater blower resistor
Taking the blower motor out is a removal of passenger airbag - negative terminal off and wait 10 minutes, then remove the glovebox:
3 bolts underneath:
Refitting:
Proceed in the reverse order to removal.
Fit the nuts (4).
Tighten the nuts (4) to 1,1 ± 0,05 daN.m.
Reconnect the battery negative terminal.
ESSENTIAL: Check the operation of the airbag warning lamp in the instrument panel Switch on the ignition The warning lamp remains on for a minimum of 6 seconds.
3 bolts underneath:

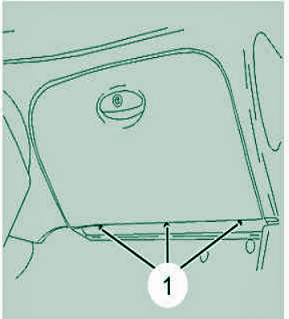

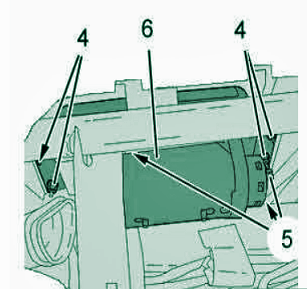

Remove the bolts (1). | Remove the bolts (2), Unclip: The air conditioning control (3) in the glovebox & the glovebox lighting. Remove the glovebox. |

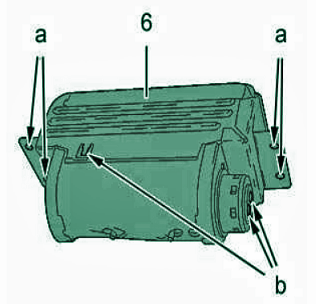

Disconnect the connectors (5), Remove: The nuts (4), Remove the airbag (6) | "a": Mounting points of the passenger’s airbag (6), "b": Connection points. |
